Lithium Battery Shredder Genox - Twin Pre-Shredder - TS1600/2000

Name: Lithium Battery Shredder Genox - Twin Pre-Shredder - TS1600/2000
SKU: Lithium Battery Shredder - Twin Pre-Shredder - TS1600/2000

Price upon request

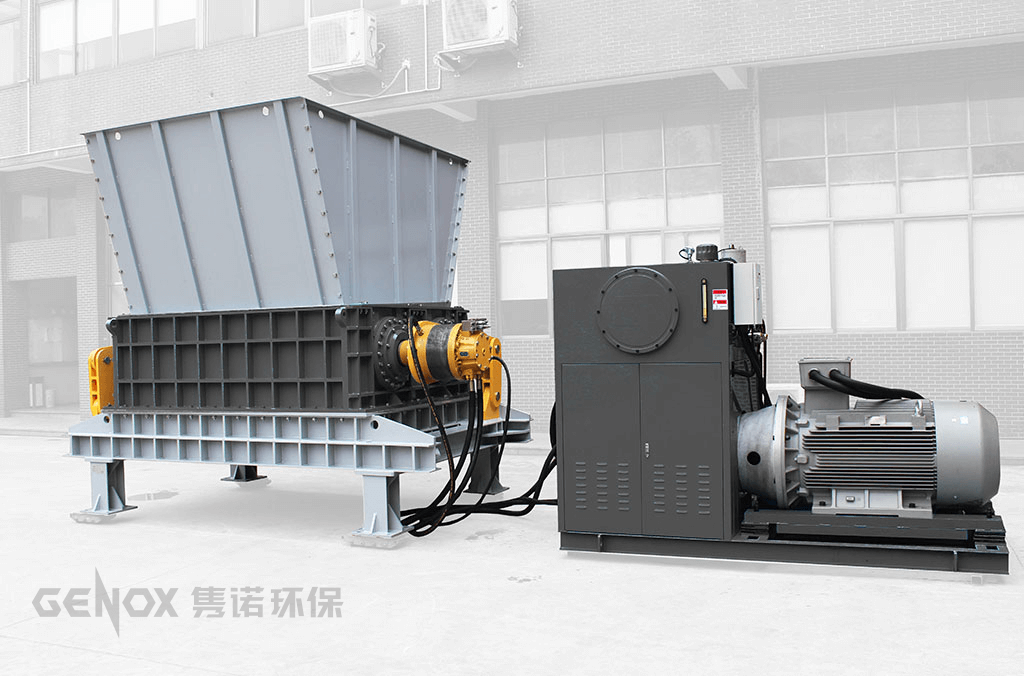

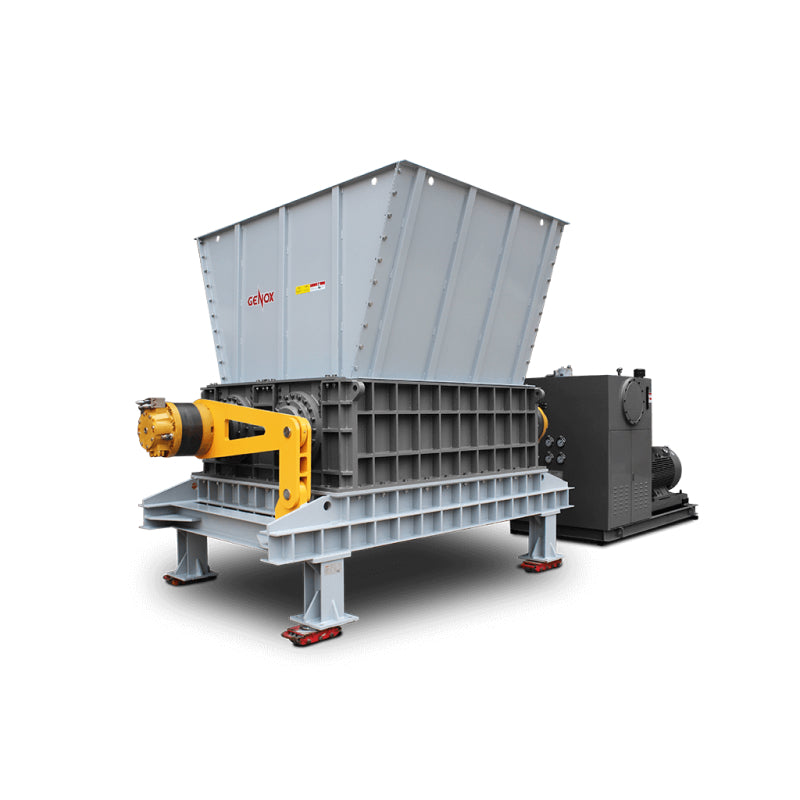

TS Series Two Shaft Shredders are low speed high torque hydraulic driven size reduction machines. The shredding shafts are bi-directional, therefore increasing the cutting efficiency and capacity of the machine whilst maximizing knife utilization.

Enquire about this product

Features

Slow Speed High Torque Shredding Principle
Low Dust and Low Noise Operation
Rugged Low Maintenance Design
Strong Blades manufactured from high quality alloy steels are suitable for shredding tough materials
Modular Chamber Design with split endplates and bearing housings enables quick access to key components
Advanced Adjustable Sealing System prevents product migration and ensures long bearing service life
Stand Alone Electrical Control Panel with Siemens PLC Control System
Tested, Approved and Certified to the applicable CE safety standards

Models (Table)

Model	TS1600	TS2000
Dimension (L x W x H) (mm)	3750 × 2920 × 3200	4150 × 2920 × 3200
Hopper Opening (L x H) (mm)	1600 × 1600	2000 × 1600
Discharge Height (mm)	470	470
Rotation Diameter (mm)	790	790
Operation Length (mm)	1600	2000
Number of Rotor Knives	154	192
Number of Counter Knives	24+26+2+4+2	30+32+2+4+2
Main Drive - Hydraulic (kw)	160	220
Weight (kg)	Approx 19000	Approx 22000
