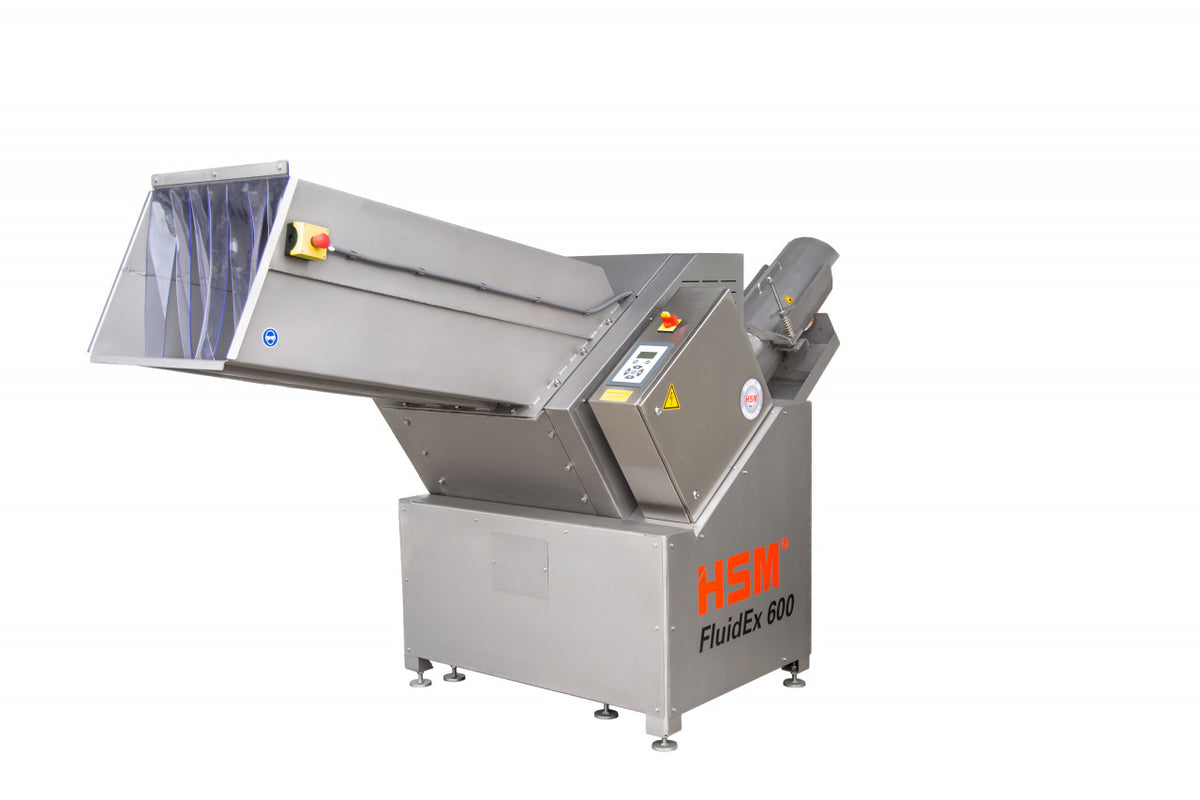

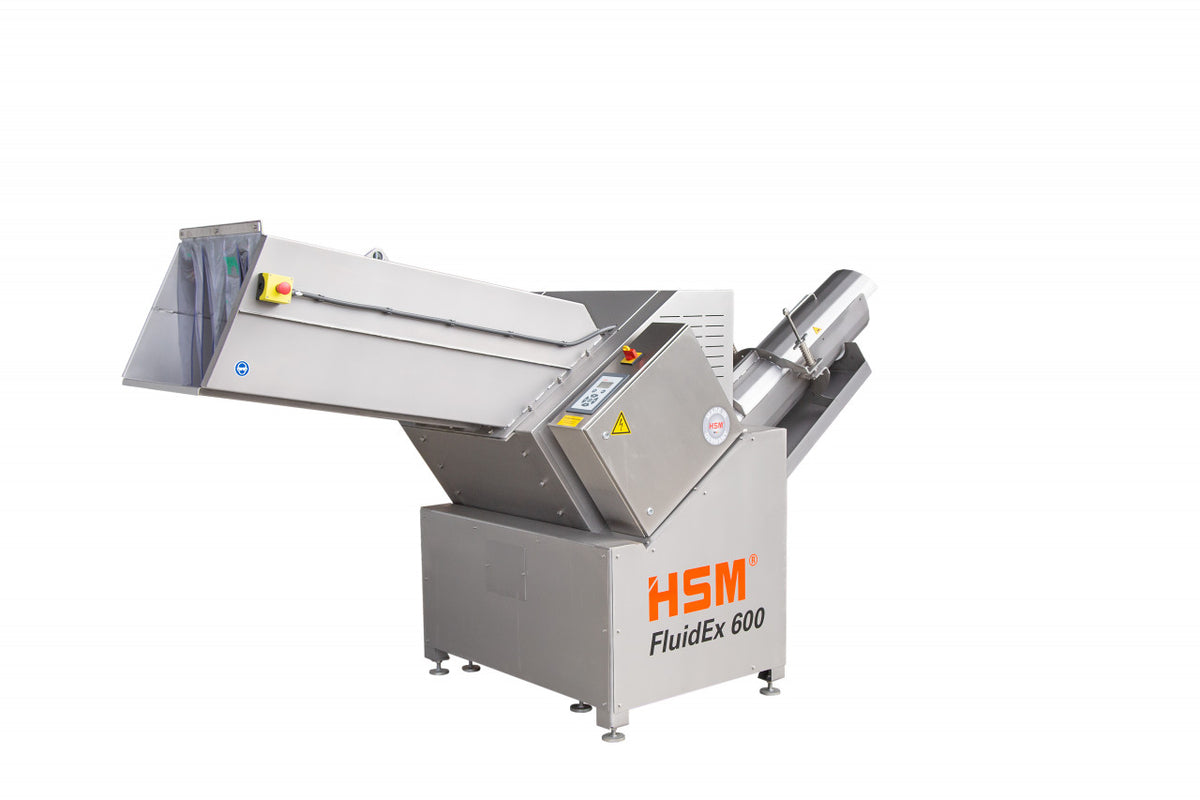

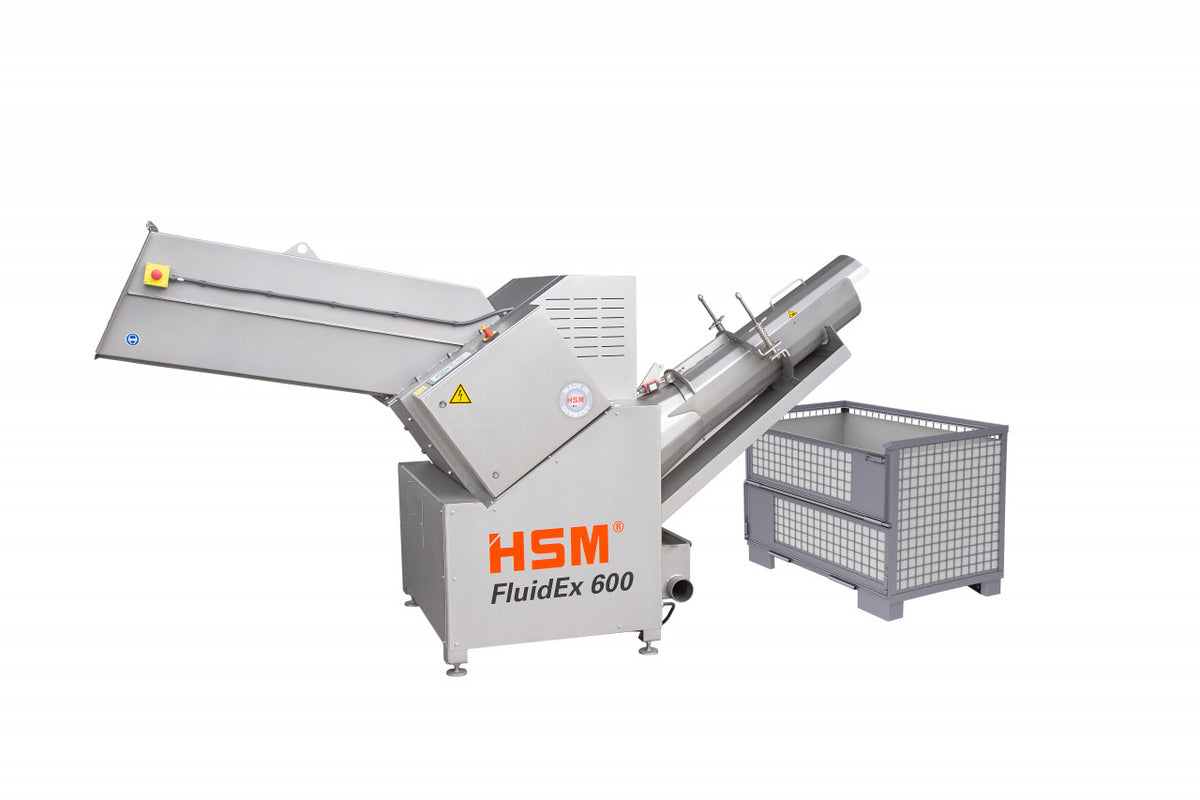

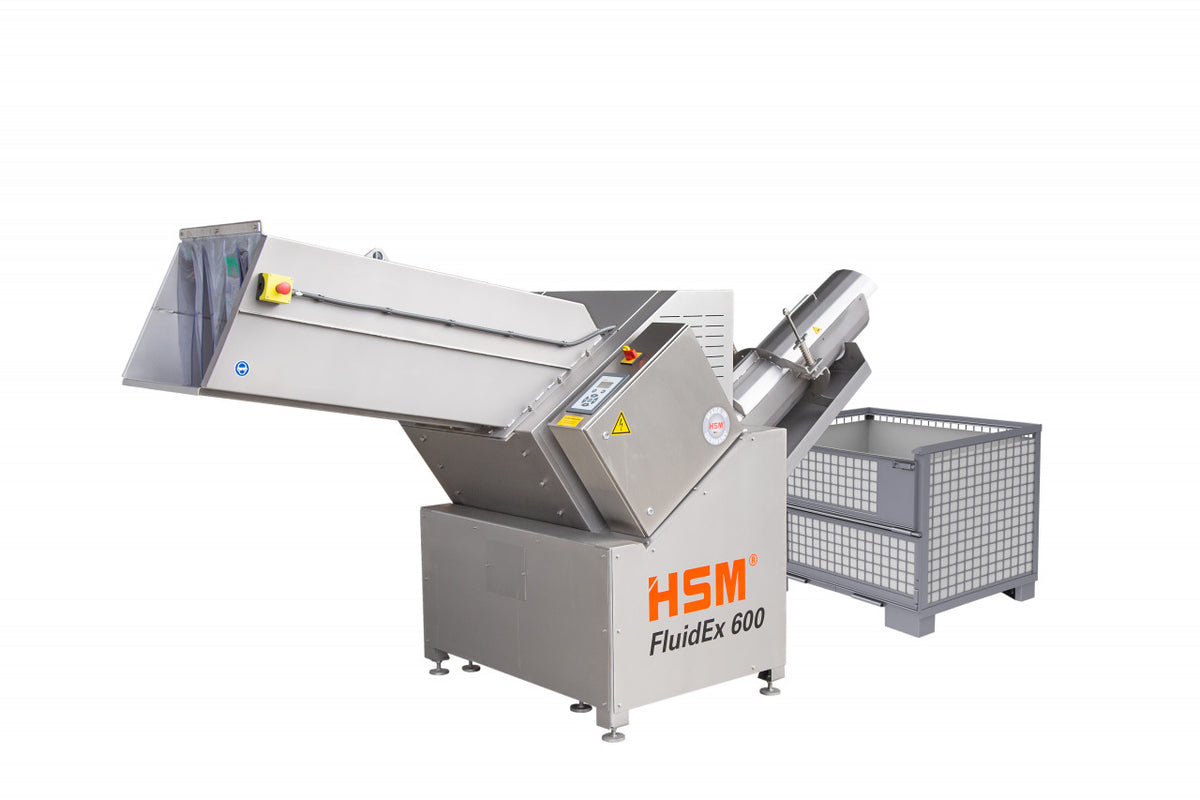

Liquid De Packaging HSM - Pet FluidEX 600

Name: Liquid De Packaging HSM - Pet FluidEX 600
SKU: PET FluidEx600 - Liquid De Packaging

Price upon request

Quickly and reliably, the HSM PET FluidEx 600 empties full PET bottles and cartons / cans or drink which have been incorrectly filled or labelled or in situations where the minimum shelf life has been exceeded.

Enquire about this product

Features

Perforation of full PET bottles, carton based packaging containers and cans
Throughput per hour up to 10 000 PET bottles (1 litre)
Both manual and automatic filling possible
Cutting unit made of specially hardened steel, other machine frame parts made of stainless steel
Specific discharge system for liquids via hose or pump
Easy to clean due to inspection door and hinged outlet chute
Ideal as compliment to the HSM baling presses
Intuitive, multilingual operational guidance via graphic description
Very low space requirement thanks to compact and sturdy design

Product Description

The containers thrown in via the loading funnel are pulled in by the 2-roller mechanism and almost completely emptied. Small pieces of plastic and labels are removed from the liquid using a filter system and the liquid is then discharged using a dedicated system. The hinged loading funnel means that the machine can be easily cleaned. A high performance, low space requirement and the possibility to integrate the machine into existing recycling processes are the decisive advantages of the HSM PET FluidEx 600.

Dimensions

Width: 1215 mm
Height: 1775 mm
Length: 3304 mm

Weight

Machine Weight: 1150 kg

Additional Information

Driving power: 7 kW
Voltage / Frequency:400 V / 50 Hz
Working width: 600 mm
Loading height: 1270 mm
Throughput per hour PET bottles (1 litre): 10000
Method of loading: manual
Width x Depth x Height:1215 x 3304 x 1775 mmWeight:1150 kg
