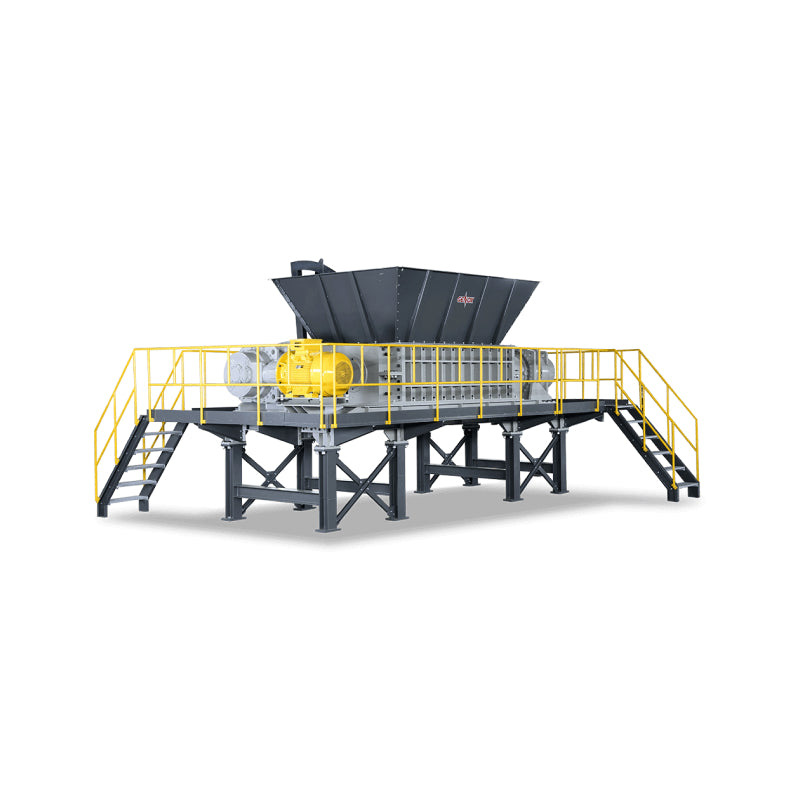

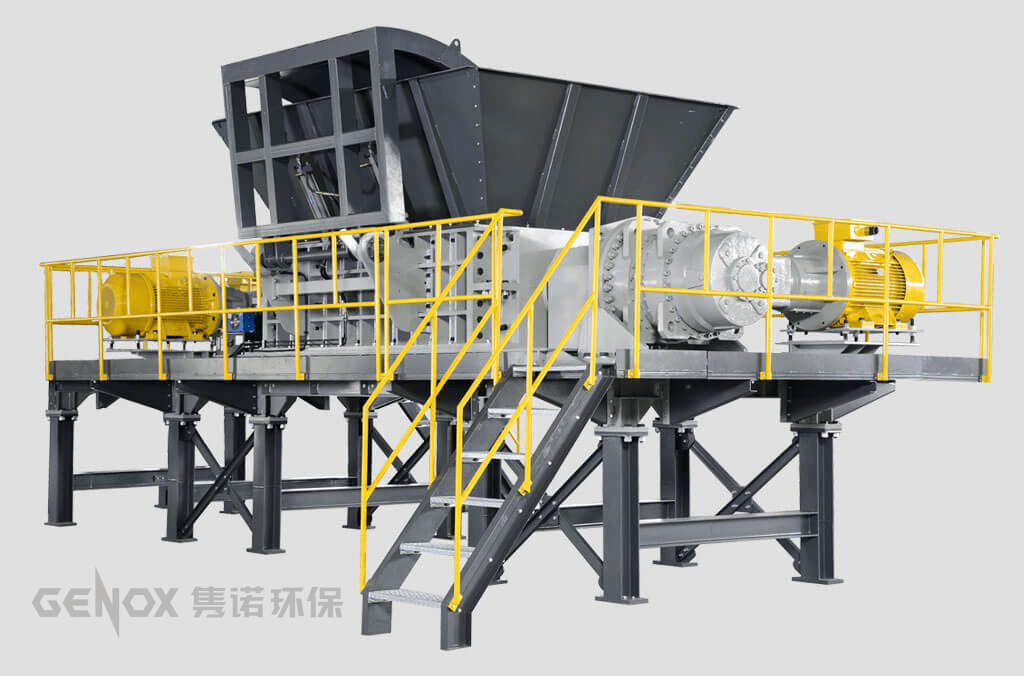

Tyre Shredder Genox - X Series - X1000-2500

Tyre Shredder Genox - X Series - X1000-2500

Name: Tyre Shredder Genox - X Series - X1000-2500
SKU: Tyre Shredder - X Series - X1000-2500

Price upon request

X Series Twin Shaft Shredders are extremely high torque, high throughput, rotating shear type size reduction machines often used for pre-shredding of large volume or high strength materials which may contain contamination. The unique modular split chamber design, provides excellent access to key components therefore reducing maintenance downtime and service costs.

Enquire about this product

Features

Slow Speed High Torque Shredding Principle
Low Dust and Low Noise Operation and Rugged Low Maintenance Design.
Shock absorbing shaft couplings between gearboxes and blade shafts reduces operational stress.

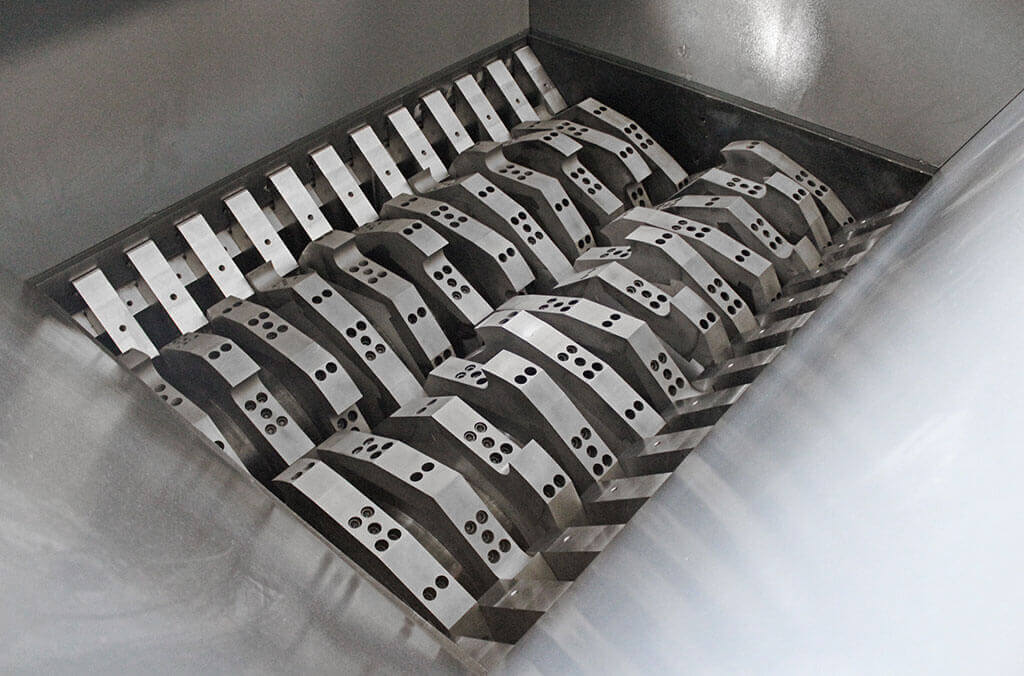

High Strength Cutters and Spacers manufactured from high quality, heat treated steel alloys are suitable for shredding tough materials.
Individual Cleaning Fingers mounted to the chamber sidewalls ensure quick discharge of shredded materials.
Modular Chamber Design with split endplates and bearing housings enables quick access to key components.
Advanced Adjustable Sealing System for the bearings.
Stand Alone Electrical Control Panel with Siemens PLC Control System.
Tested, Approved and Certified to the applicable CE safety standards.

Product Description

Typical Applications Include:

Tires – Car, Truck and O.T.R. (Off The Road – Earthmovers etc.)
Steel – Car Body Shells, Sheet Scrap, Drums etc.
Electronic Scrap – WEEE Directive Materials.
Wood/Timber – Pallets, C&D Waste etc.
Aluminum – Castings, Profiles, etc.
Bulky Waste – Mixed Household, Commercial, Pulper Waste from Paper Industry etc.

Models (Table)

Model		X1000	X1300	X1600	X1500	X1800	X2200	X2500
Main Drive (kw)		30+30	30+30	30+30	55+55	55+55	55+55	55+55
		37+37	37+37	37+37	75+75	75+75	75+75	75+75
		45+45	45+45	45+45	90+90	90+90	90+90	90+90
		55+55	55+55	55+55	110+110	110+110	110+110	110+110
Rotation Diameter (mm)		515	515	515	750	750	750	750
Shredding width (mm)		1000	1300	1600	1500	1800	2200	2500
		4.2-12	4.2-12	4.2-12	4.2-12	4.2-12	4.2-12	4.2-12
		4.2-12	4.2-12	4.2-12	4.2-12	4.2-12	4.2-12	4.2-12
		5.4-12	5.4-12	5.4-12	5.4-12	5.4-12	5.4-12	5.4-12
		6-12	6-12	6-12	6-12	6-12	6-12	6-12
Center distance (mm)		400	400	400	610	610	610	610
Number of Blades	15thickness	/	/	/	/	/	/	/
	20thickness	/	/	/	/	/	/	/
	40thickness	25	32	40	37	45	/	/
	50thickness	20	26	32	30	36	44	50
	75thickness	13	17	21	20	24	29	33
	100thickness	/	/	/	15	18	22	25
The quantity of blade hocks	Standard rotor	1/2/3/6	1/2/3/6	1/2/3/6	1/2/3/6	1/2/3/6	1/2/3/6	1/2/3/6
	K type rotor	1/2/3/6	1/2/3/6	1/2/3/6	1/2/3/6	1/2/3/6	1/2/3/6	1/2/3/6
	D type rotor	8	8	8	12	12	12	12
Dimension	L	4592	4892	5150	6340	6993	7110	7986
	W	2210	2210	2270	2610	3045	3342	3284
	H	2600	2600	2600	4000	4000	4000	3760
Weight		4592	4892	5150	6340	6993	7110	7986
