Price upon request

DC-FP 3000 Drum Crusher - Explosion Proof
DC-FP 3000 Drum Crusher - Explosion Proof
DC-FP 3000 Drum Crusher - Explosion Proof
DC-FP 3000 Drum Crusher - Explosion Proof

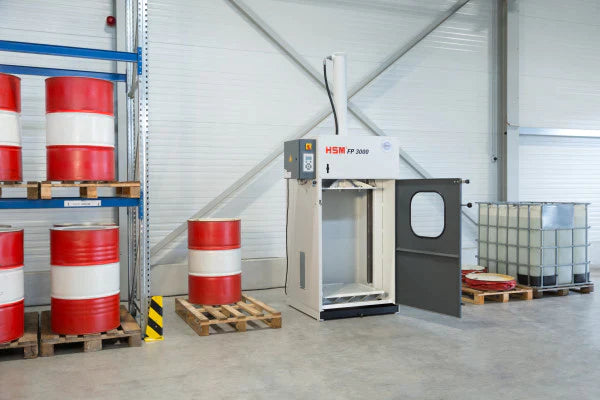

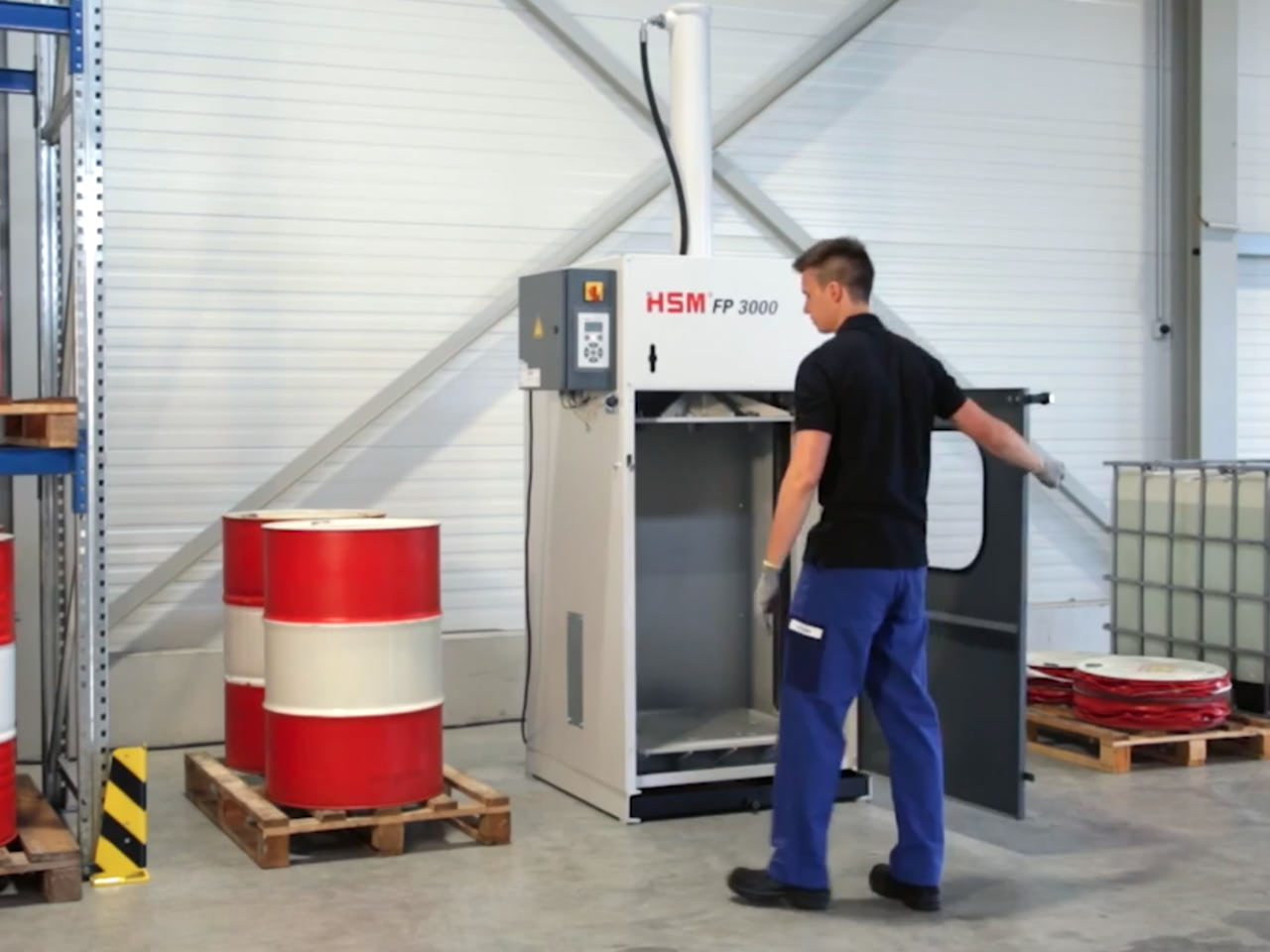

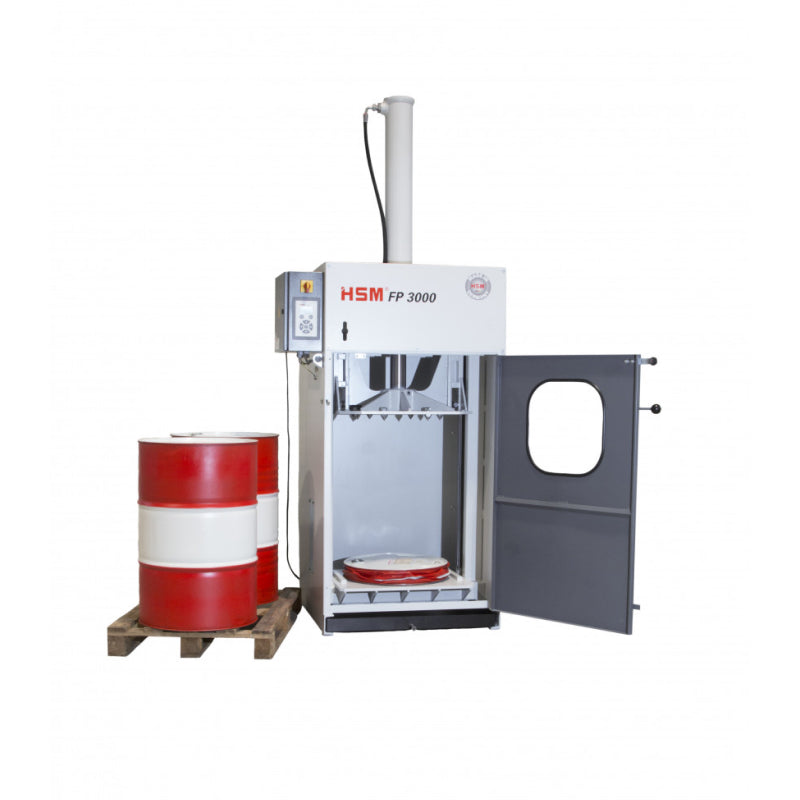

HSM FP 3000 is an industrial barrel crusher for pressing light metal and rolled hoop barrels. This drum crusher has a pressing power of 27 tons and reduces the volume of barrel drums by up to 90%. The industrial crusher is built with a press ram with spikes for opening the barrels and a collector tray for residual liquid.

Features

  • Excellently suitable for light metal and rolled hoop barrels
  • Volume reduction up to 95 %
  • Low installation height and small footprint
  • Press ram with spikes for opening the barrels and collector tray for residual liquid
  • Automatic return stroke saves time, overheads and personnel costs

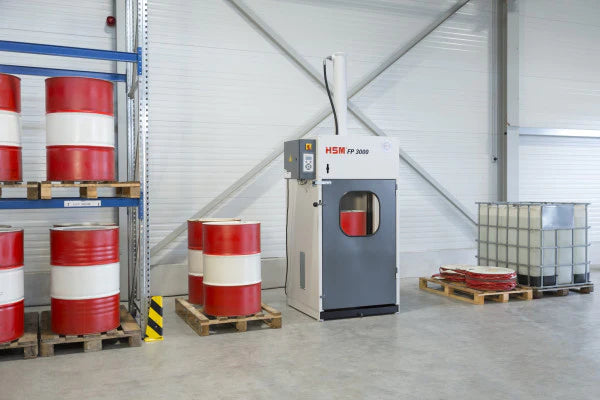

  • Enclosed on all sides with inspection window for safety and dust reduction
  • Membrane key-pad with LED for operator safety
  • Low-maintenance and durable electro-hydraulics

Product Description

The barrel crusher is enclosed on all sides with an inspection window for safety and dust reduction. HSM FP3000 is a continuous duty machine with automatic return stroke to save time, overhead and personnel costs.

Dimensions

  • Width: 1158 mm
  • Height: 2892 mm
  • Length: 997 mm

Weight

Machine Weight: 972 kg

Additional Information

  • Pressing power: 270 kNS
  • Specific pressing power: 60 N/cm²
  • Driving power: 7.5 kW
  • Voltage / Frequency: 400 V / 50 Hz
  • Cycle time when idling vacío: 33 s
  • Loading height: 1092 mm
  • Loading aperture width x height: 618 x 1092 mm
  • Noise level (idle operation): ca. 67 dB(A)
