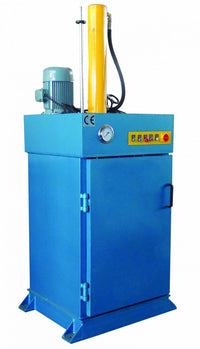

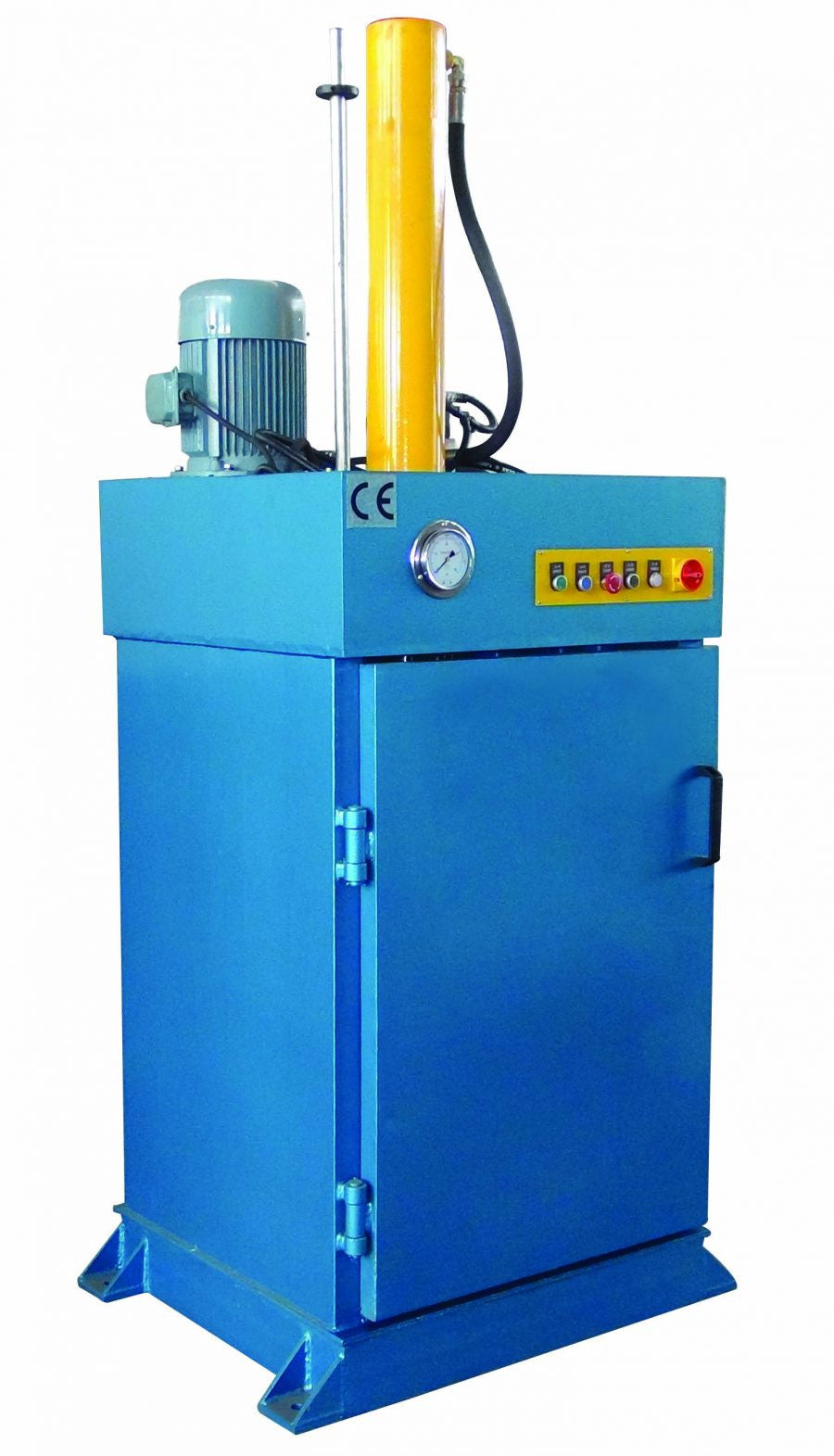

SB-SVB2-MD-300 Drum Crusher
Price upon request
This drum crusher flattens all kinds of metal drums or barrels with capacity up to 220L (55 gallons), and has a 10:1 compaction ratio. With a 10:1 compaction ratio, the drum baler could largely reduce the volume or even flatten disposed drums, facilitating storage, transportation and recycling.
Features
- Liquid collection channel for efficient draining of residual liquid.
- Metal blocker for preventing the drum from skidding.
- Spikes on the platen for puncturing the drum to release air pressure during compression.
Dimensions
- Width: 1000 mm
- Height: 2200 mm
- Length: 920 mm
Weight
Machine Weight: 900 kg
Additional Information
- Compressing Force: 30 Tons
- Feed Opening Size (LxH): 760 x 1000 mm
- Bale Size: 760 x 760 x 100 mm
- Compressing Chamber Size: 1760x760x1000 mm
- Voltage (customisable): 220-480V, 3 phase, 50/60Hz
- Power: 5.5 kw
- Machine weight (approx.): 900 kgs
- Overall dimensions (WxDxH): 920x1000x2200 mm
Enquiry Form
Product: SB-SVB2-MD-300 Drum Crusher
You may also like
DC-FP 3000 Drum Crusher
HSM FP 3000 is an industrial barrel crusher for pressing light metal and rolled hoop barrels. This drum crusher has a pressing power of 27 tons and reduces the volume...

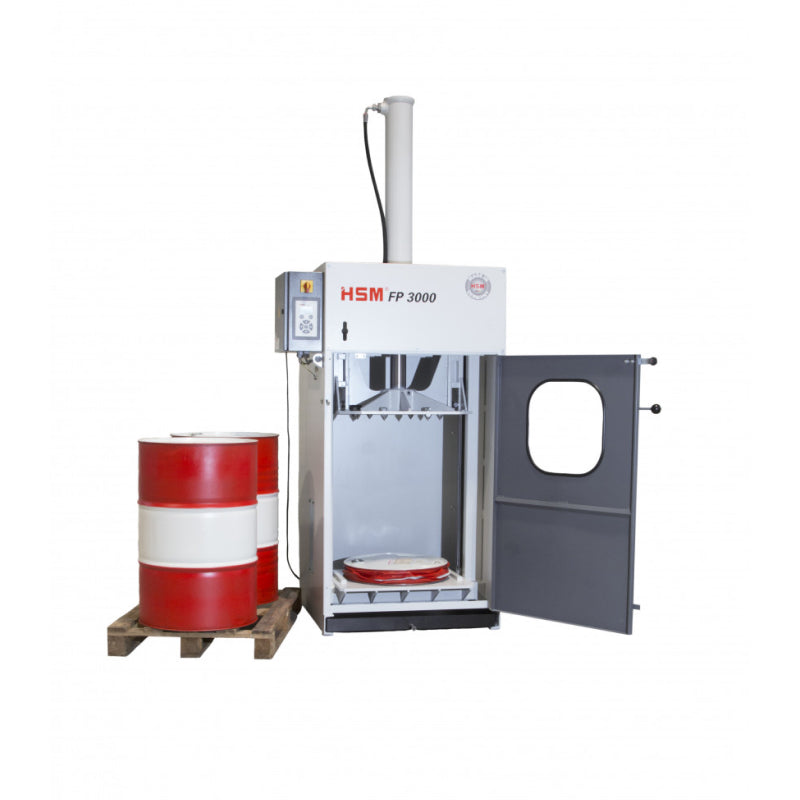

DC-FP 3000 Drum Crusher - Explosion Proof
