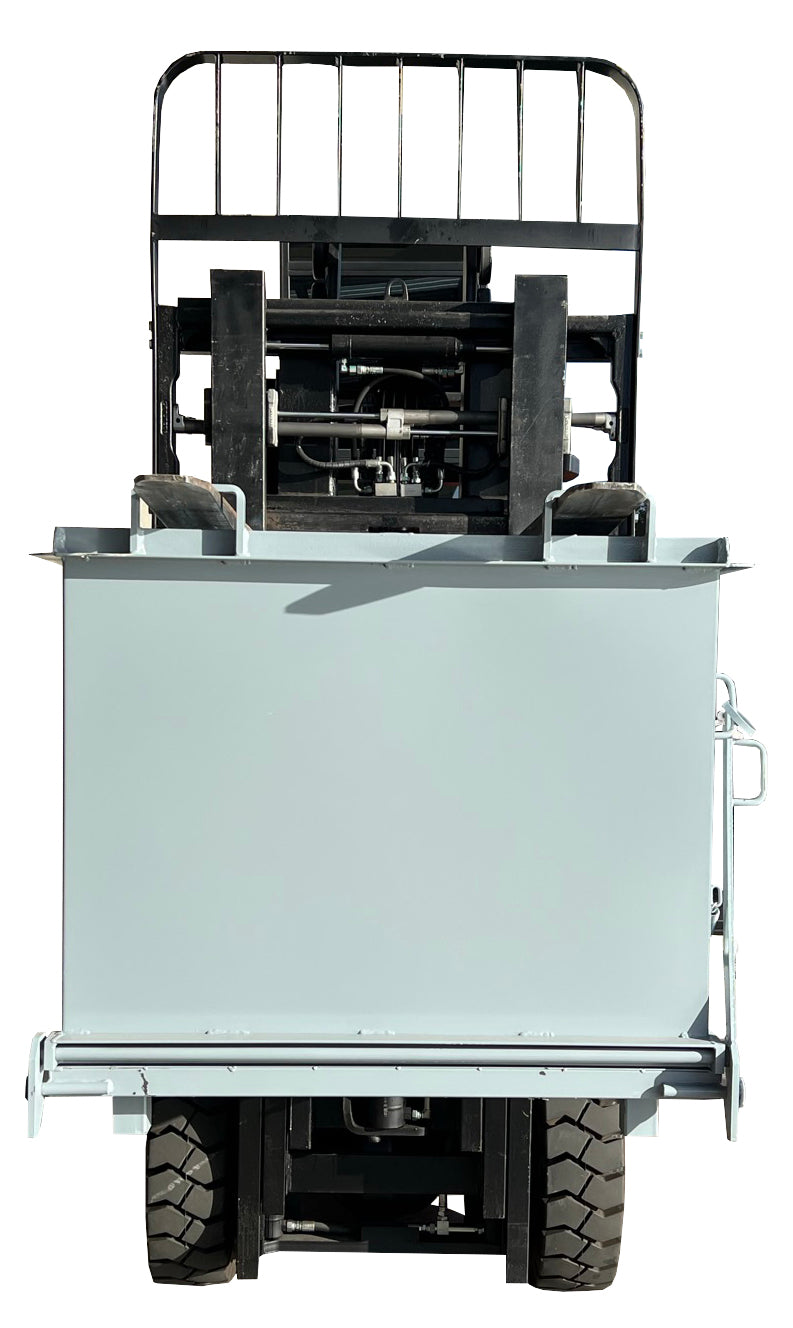

Our forklift drop bottom bin attachments will make light work of your produce or waste material handling requirements.

These heavy duty drop bottom bins are designed for the efficient storage and transfer of materials, and can often be found transporting fruit and vegetable produce or waste products.

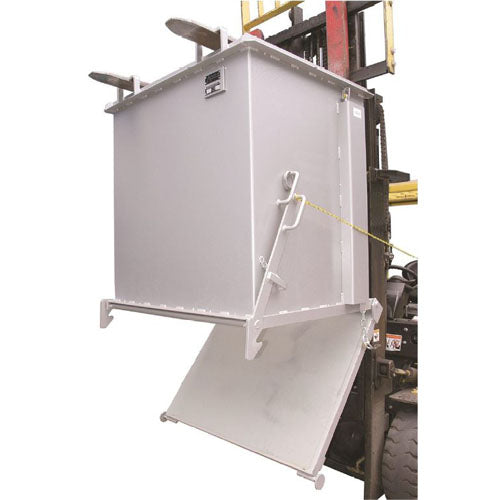

This bin is emptied via a simple drop bottom base, allowing complete emptying of contents into a larger bin or dump truck. The base is closed by an automatic locking mechanism when bin is lowered to the ground.


  • Drop bottom base allows fast and complete dumping of produce or solid waste
  • Heavy-duty 3mm reinforced plate to handle all waste products
  • Easily transported by forklift or overhead crane
  • Drop bottom base is released safely from drivers seat via a pull cord mechanism
  • Shock absorbing system removes all impact from the forklift or crane during emptying
  • Forklift and crane lugs fitted as standard
  • Zinc or enamel paint finish
  • Cast or rubber wheels available as optional extras
  • Fork Pocket Size 160mm x 65mm
  • Fork Pocket Centres 684mm
  • Working Load Limit 1,000kg


Model Working Load Limit (kg) Capacity cu/m Length (mm) Width (mm) Height (mm) Fork Pocket Size (mm) Fork Pocket Centres (mm) Unit Weight (kg)
STDB-500 1000 0.5 1200 1025 745 160 x 65 684 200
STDB-800 1000 0.8 1200 1025 1045 160 x 65 684 225
STDB-1100 1000 1.1 1200 1025 1345 160 x 65 684 250
