The Eddy Current Separator is used widely in the recycling industry to either recover or remove non-ferrous metals from non-metallic materials. Different designs enable the separation of small (down to 3mm) and large non-ferrous metals.

Bunting’s range of eddy current separators include both concentric and eccentric rotor designs that have evolved over a 30 years period of manufacture and supply. The range also includes laboratory-scale eddy current separators, examples of which are located in the UK Recycling Test Facility.

Product Description

The Eddy Current Separator (ECS) utilises magnetic forces to physically repel non-ferrous metals and enables separation from non-conductive materials.  The eddy current separator is often supplied as part of a metal separation module with a first-stage drum magnet removing ferrous metals.

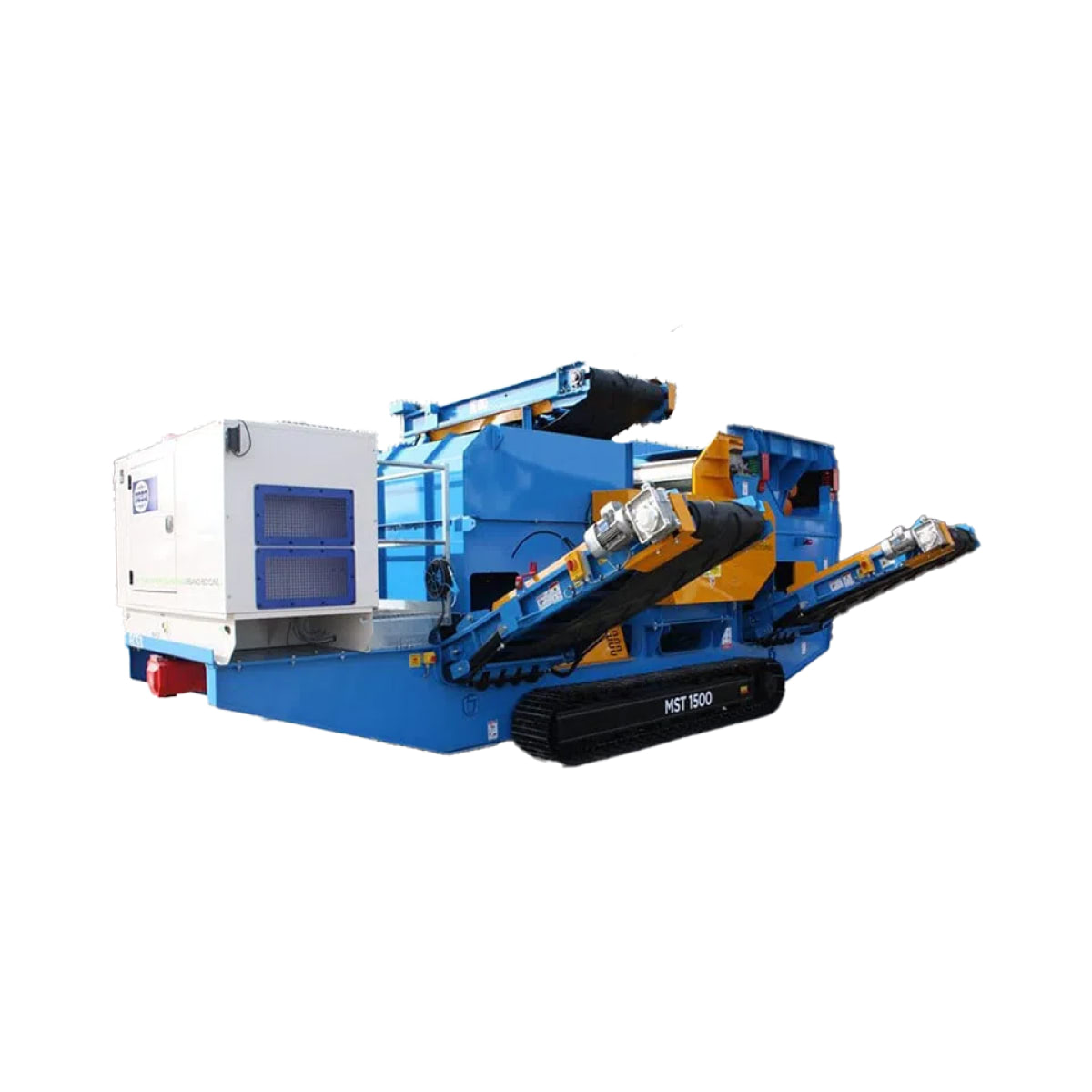

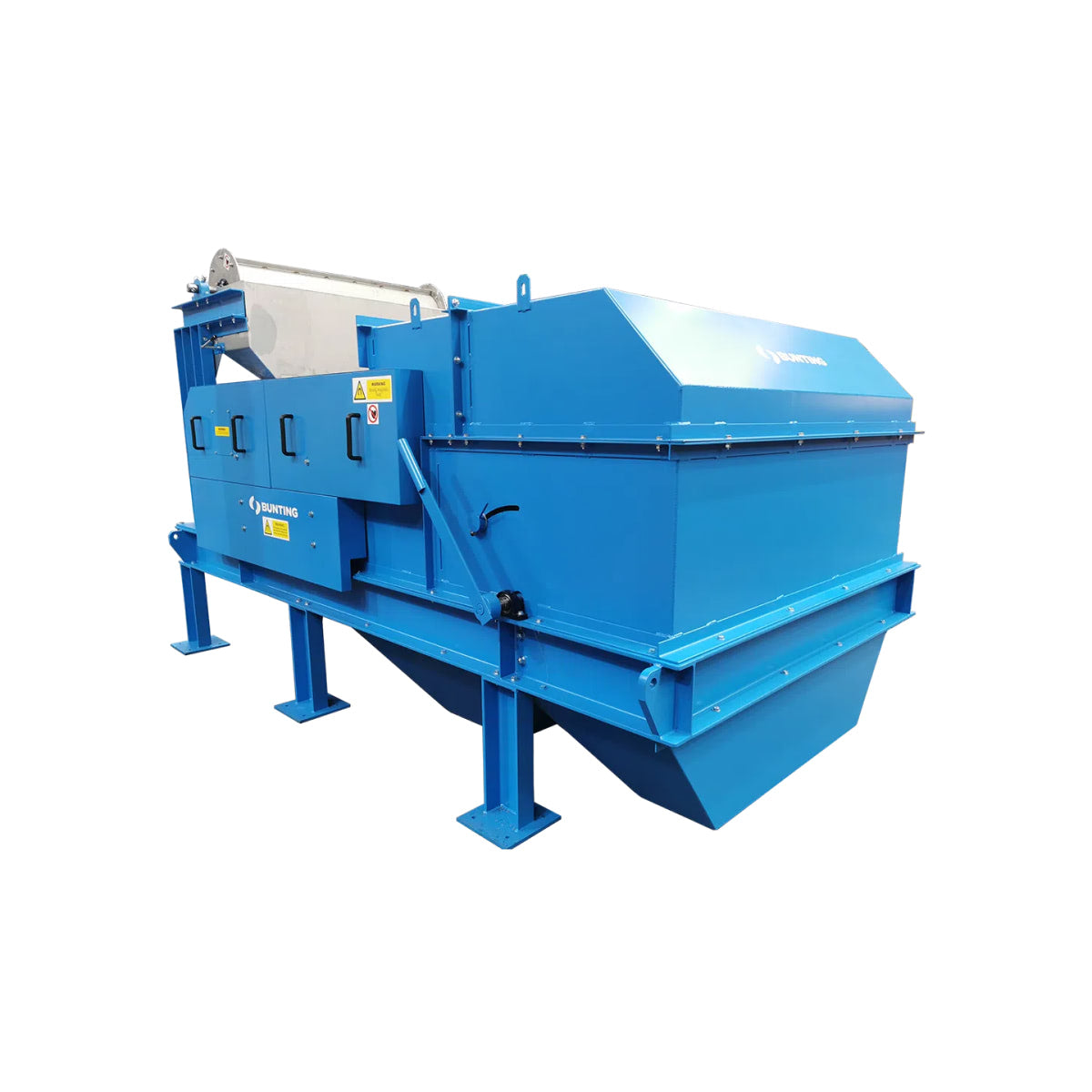

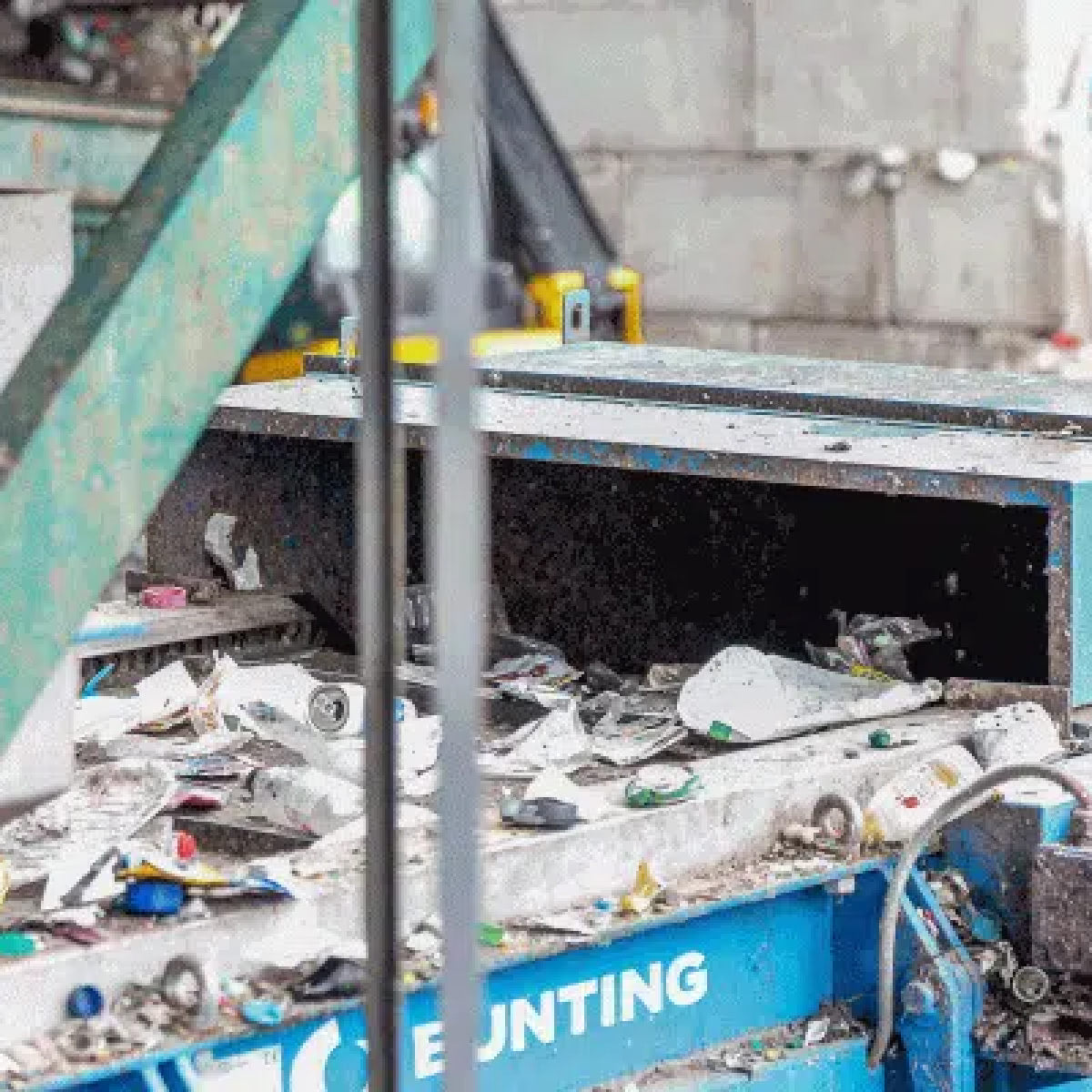

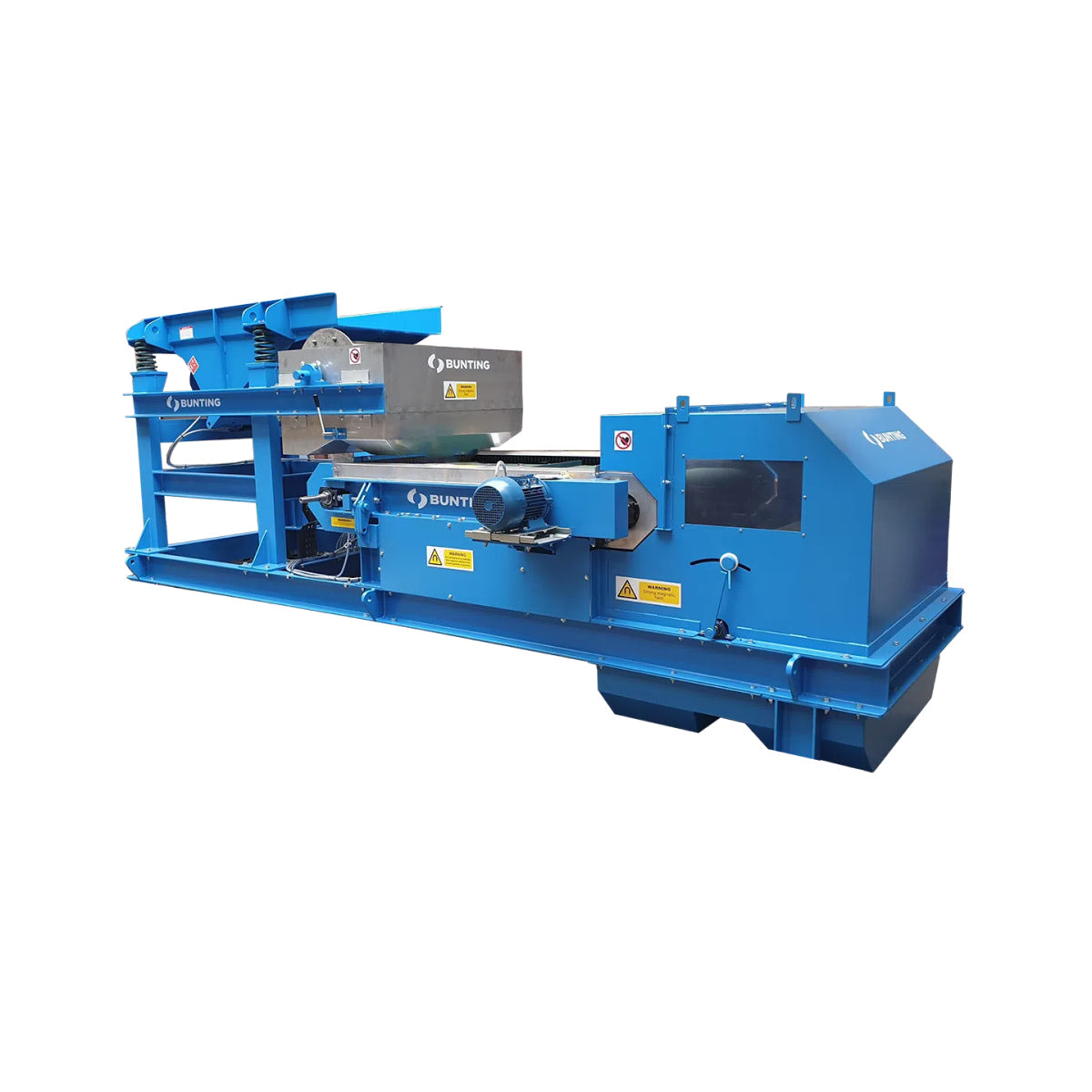

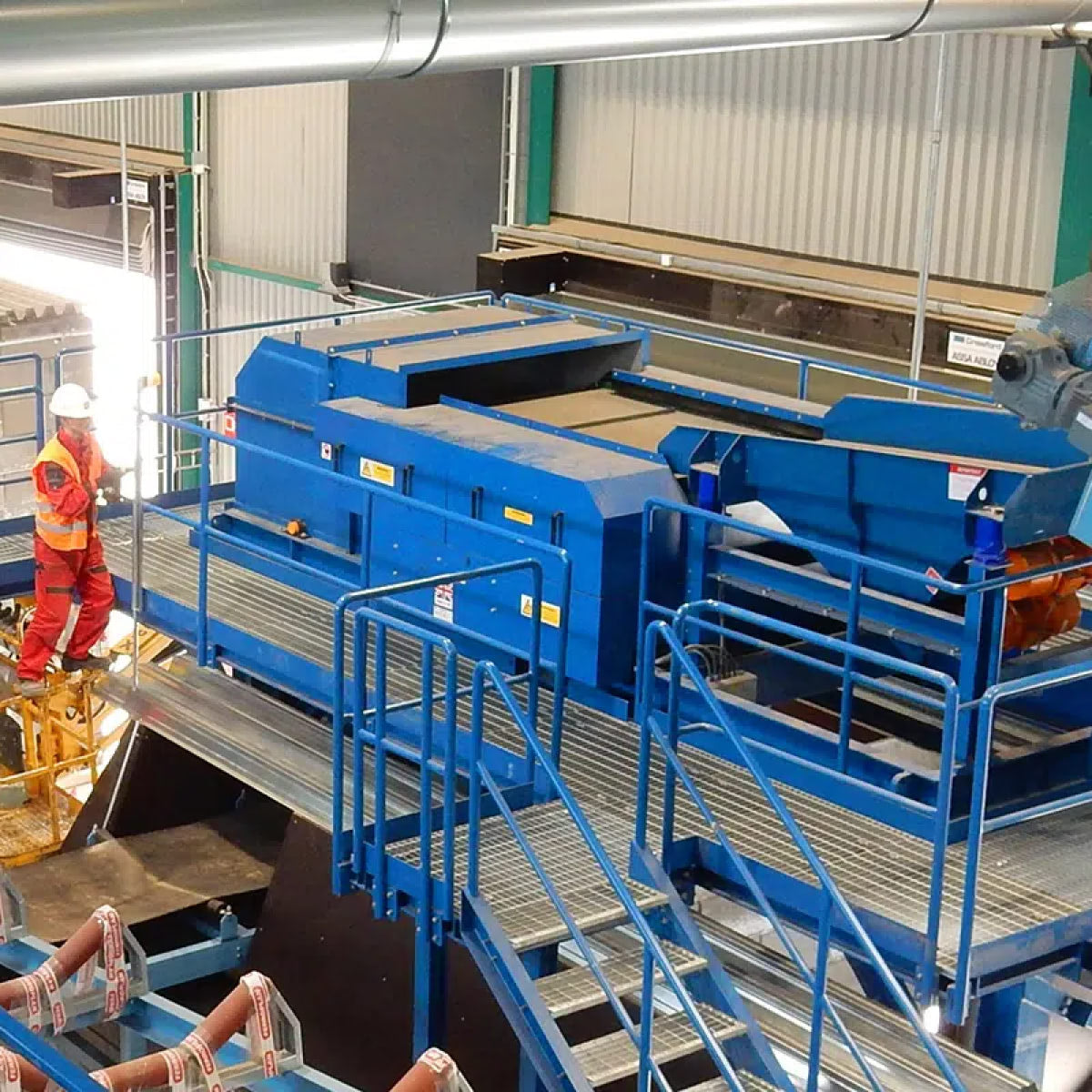

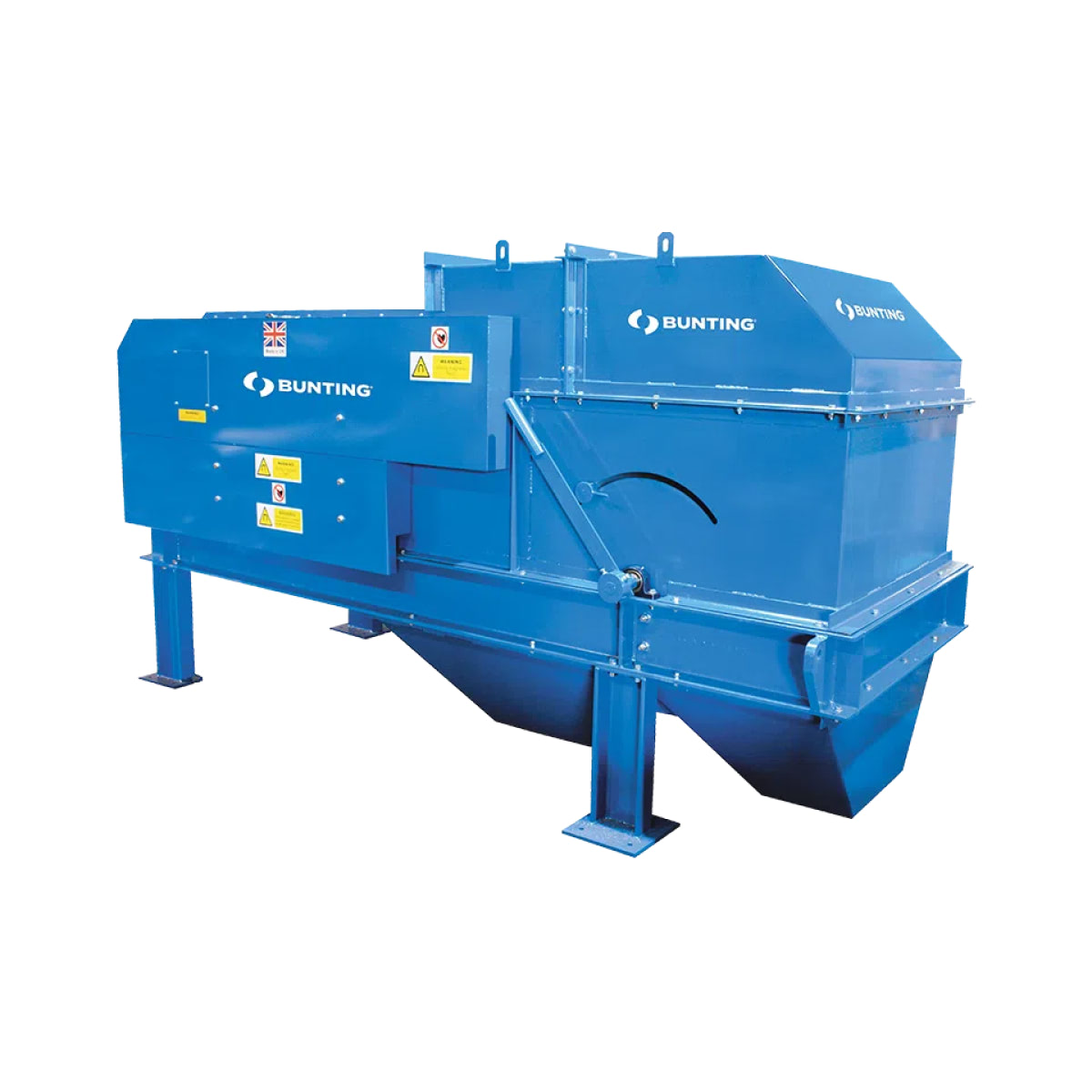

To maximise the separation and recovery of non-ferrous metals, Bunting has developed four different eddy current separator models:

  • High-Intensity Eccentric (HIE) ECS – for small non-ferrous metals down to 3mm;
  • High-Intensity Concentric (HIC) ECS – for small non-ferrous metals down to 10mm;
  • R Type ECS – for general recycling applications where non-ferrous metals are above 20mm
  • Can Sorter (CS) ECS – A cost-efficient model designed specifically for the recovery of aluminium cans;

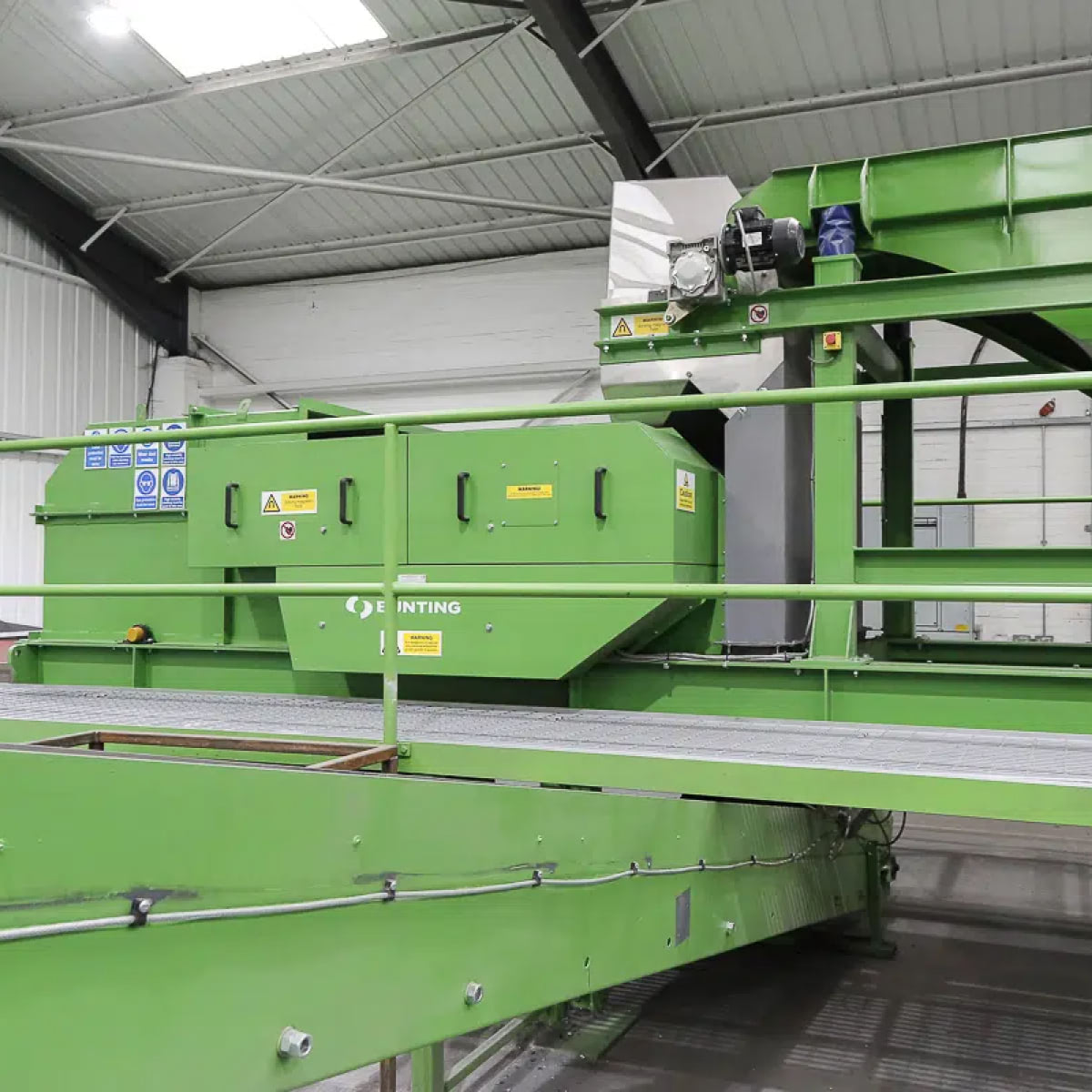

Eddy Current Separators commonly form part of a Metal Separation Module as a two-stage metal separator.  Material initially passes over a Permanent Drum Magnet to remove and recover ferrous metals, leaving a non-magnetic fraction.  The Eddy Current Separator then separates non-ferrous metals from the non-conductive remains.

Models (Table)

Model High-Intensity Concentric (HIC) ECS High-Intensity Eccentric (HIE) ECS R Type ECS Can Sorter (CS) ECS
Magnetic Rotor Dia (mm) 300 190 190 120
Poles 24 24 12 6
Widths (mm) 300–2000 300–1250 300–1500 300–600

Options

Sequenced control cabinet

  • Ceramic Coating on carbon fibre shell for enhanced protection of magnetic rotor
  • A complete custom frame design with chutes for a metal separation module (Primary Magnetic Separator and Eddy Current Separator combined)
  • Primary magnetic separators to remove ferrous materials, in the form of:
  • Rotary or static belt cleaning brushes for use in applications where the product may be wet or sticky;

Additional Information

Operation

An eddy current separator is a dual pulley conveyor system, where the non-metallic rotor cover houses an independently rotating high-speed magnetic rotor.  Separation occurs when a non-ferrous metal particle (e.g. aluminium, copper or zinc) is conveyed into the magnetic zone.  The non-ferrous metal particle is exposed to rapidly changing magnetic polarity.  This induces ‘eddy currents’ into the particle generating an electrical current (Fleming’s left-hand rule) that subsequently creates its own magnetic field.  The two magnetic fields oppose each other (i.e. North vs North pole repulsion), causing the repulsion of the non-ferrous metal particle and change in trajectory.  The measured positioning of a splitter enables the separation of non-ferrous metals from non-metallic material due to the altered and unaltered material trajectories.

The speed of the magnetic rotor is dependent on the number of poles on the magnetic rotor and the application.

Quick Belt Change Design

To limit production downtime, the model HIC eddy current separator design enables the swift changing of the main conveyor belt. The HIC eddy current separator features a cantilever jacking system fitted beneath the hinge mechanism on the frame. After removing the side guards and the drive belts on the rotor motor, the jacking system lifts and then holds the conveyor from one side. This allows the belt to be easily and simply slipped onto the pulleys. This significantly reduces the time needed to change a belt. In many other designs, replacing the belt is time-consuming and involves the removal of the main eddy current rotor.

Applications

Al from post-consumer packages:
Size Range: 20–300 mm
ECS Model: Can Sorter
Max: 3 t/hr/m

Aluminium Dross (Oversize):
Size Range: 20–200 mm
ECS Model: HIC
Max: 10 t/hr/m

Aluminium Dross (Screened):
Size Range: 3–20 mm
ECS Model: HIE
Max: 5 t/hr/m

Household Refuse (unsorted):
Size Range: 20–300 mm
ECS Model: R Type
Max: 20 t/hr/m

Household Refuse (pre-sorted):
Size Range: 50–200 mm
ECS Model: R Type or CS
Max: 10 t/hr/m

Glass Cullet (Large):
Size Range: 20–50 mm
ECS Model: HIE or HIC
Max: 20 t/hr/m

Glass Cullet (Small):
Size Range: 3–30 mm
ECS Model: HIE
Max: 7 t/hr/m

Incineration Ash:
Size Range: 3–40 mm
ECS Model: HIE or HIC
Max: 20 t/hr/m

Plastic Waste (Granulated):
Size Range: 3–10 mm
ECS Model: HIE
Max: 5 t/hr/m

ZORBA Production (Large):
Size Range: 3–150 mm
ECS Model: HIE
Max: 20 t/hr/m

ZORBA Production (Regular):
Size Range: 10–40 mm
ECS Model: HIE
Max: 15 t/hr/m

UPVC Window Frames (Screened):
Size Range: 10–40 mm
ECS Model: HIE
Max: 20 t/hr/m

WEEE (Electronic Scrap):
Size Range: 3–30 mm
ECS Model: HIE
Max: 20 t/hr/m

White Goods:
Size Range: 40–150 mm
ECS Model: HIC
Max: 20 t/hr/m

Woodchip:
Size Range: 3–60 mm
ECS Model: HIC
Max: 13 t/hr/m

Note:  All stated capacities are for indication purposes only.  Specific capacities are subject to confirmation once an application has been reviewed or after laboratory tests.

Eddy Current Separators - Bunting

Enquiry Form

Product: Eddy Current Separators - Bunting

Get in touch with the team to learn more about our pricing options.

See it in action

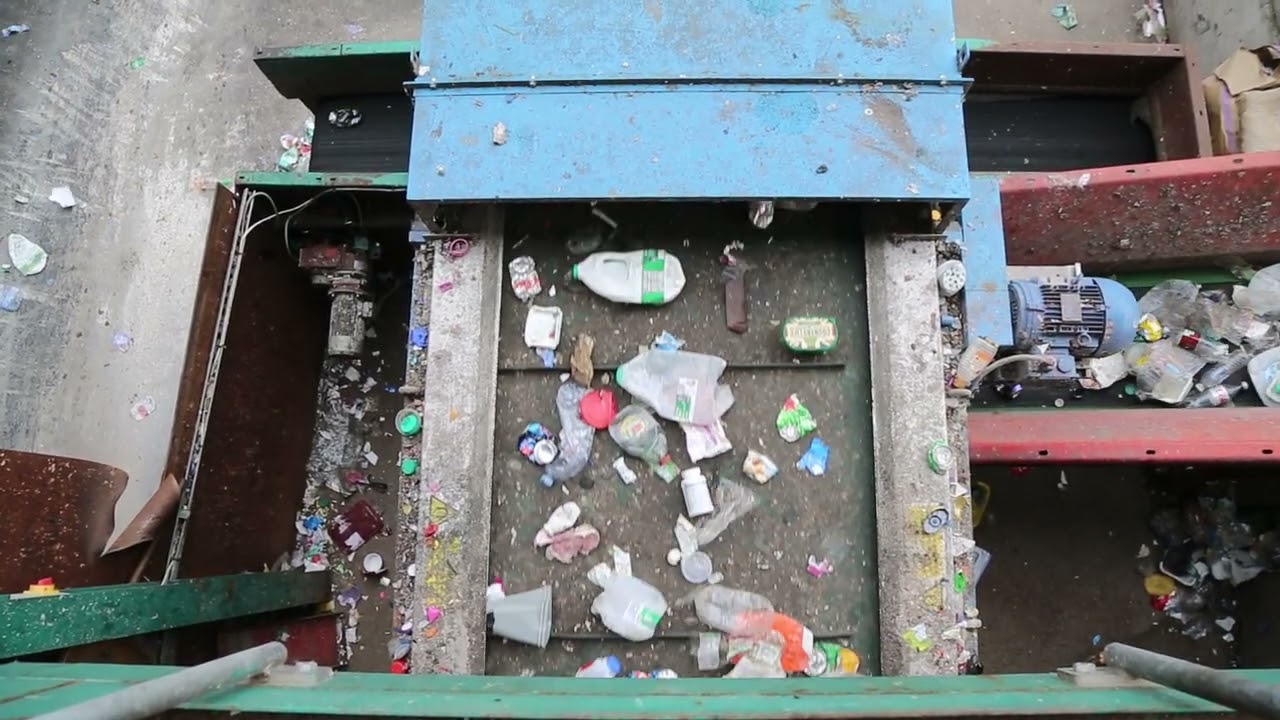

Metal Recovery from Pre-Sorted Waste at Parry and Evans

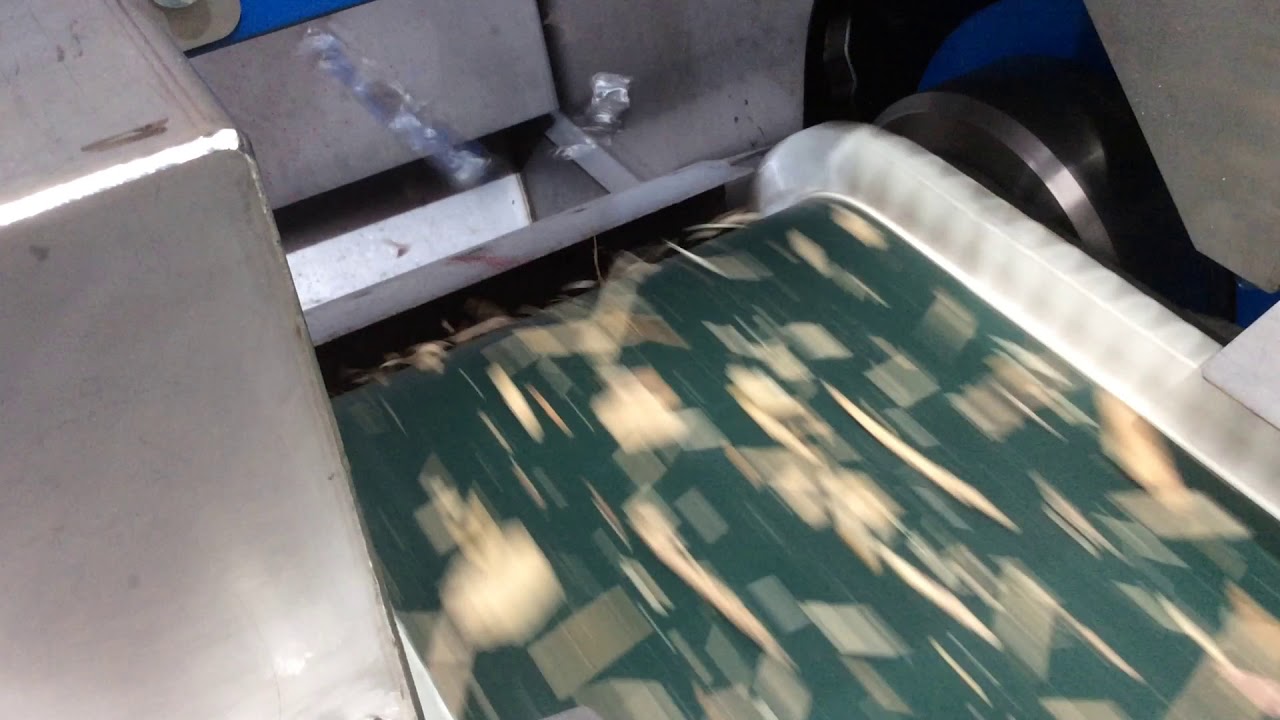

Non Ferrous Metal Separation from Recycled Wood

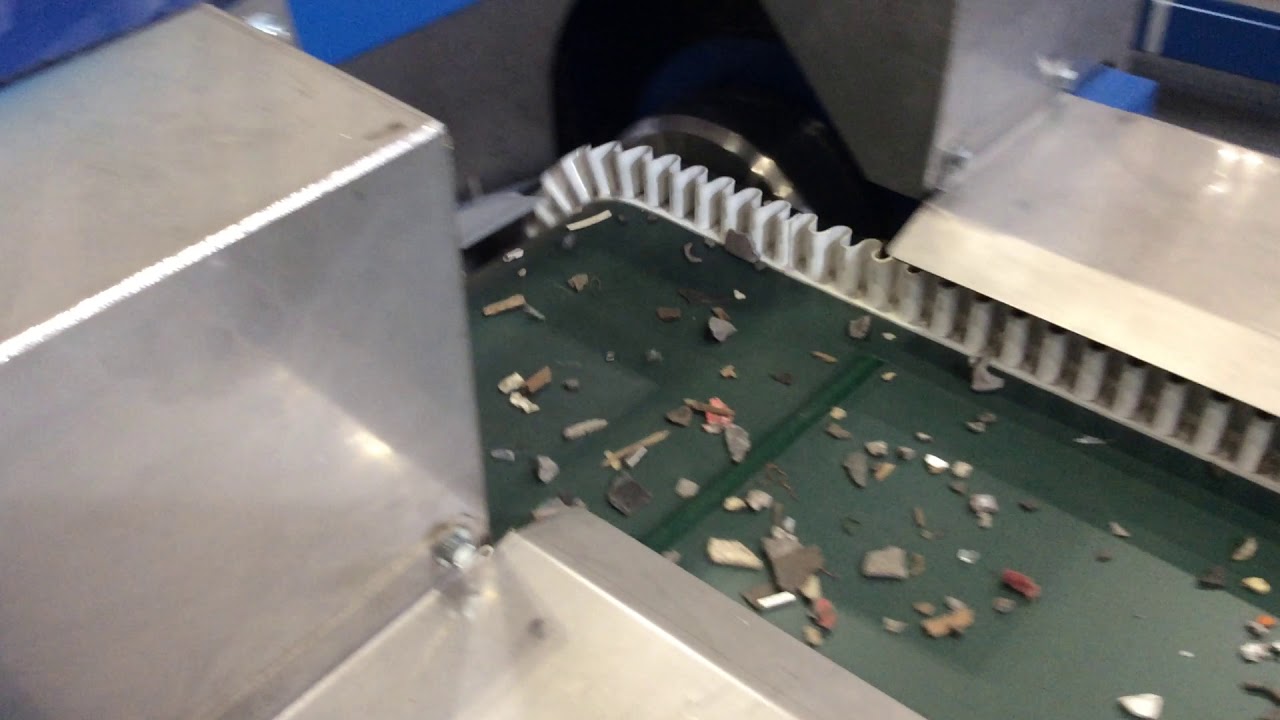

Separating Non-Ferrous Metals at RWM19
