Features

Machine frame:

Welded steel profile construction

Infeed belt:

Belt length: 1,880 mm
Belt width: 1,400 mm

The infeed opening is 550 mm deep and 1,500 mm wide.

Discharge belt:

Belt length: 9,575 mm or according to customer request
Belt width: 1,400 mm

Crushing unit:

42 hammers
Hammer width: 80 mm

Single hammers replaceable.

Width of crushing unit: 1,500 mm
Rotor diameter: 960 mm

Counter blade:

Segment 150 x 1,500 – can be used in four ways

Motor:

CAT turbo diesel with a power of P = 354 kW, valid Euro emission standard
Electric motor with a power of P = 300 kW

Diesel tank:

One tank, capacity: 450 litres (diesel powered machines)

Drive:

Banded V-belts (8 grooves) with hydr. belt tensioner

Painting:

Special painting – all RAL colours – (standard: RAL 5010)

Product Description

The infeed belt operates load-dependent as overload protection. The high-speed rotor with pendulum mounted hammers works over a breaker bar. The comminuted material can be discharged by conveyor belts or into a bunker. The machine can be equipped with a variety of finest screens, thereby reaching output qualities of 5 up to 10 mm. The special shedding technology, hammer and screen design guarantee feinest comminution results.

Especially for the Fine Shredding of Wood Waste Husmann company has developed a mobile or static machine of the type HFZ. With this machine, we are in a position to produce a very fine output material.

The machines can be manufactured as requested by the customer.

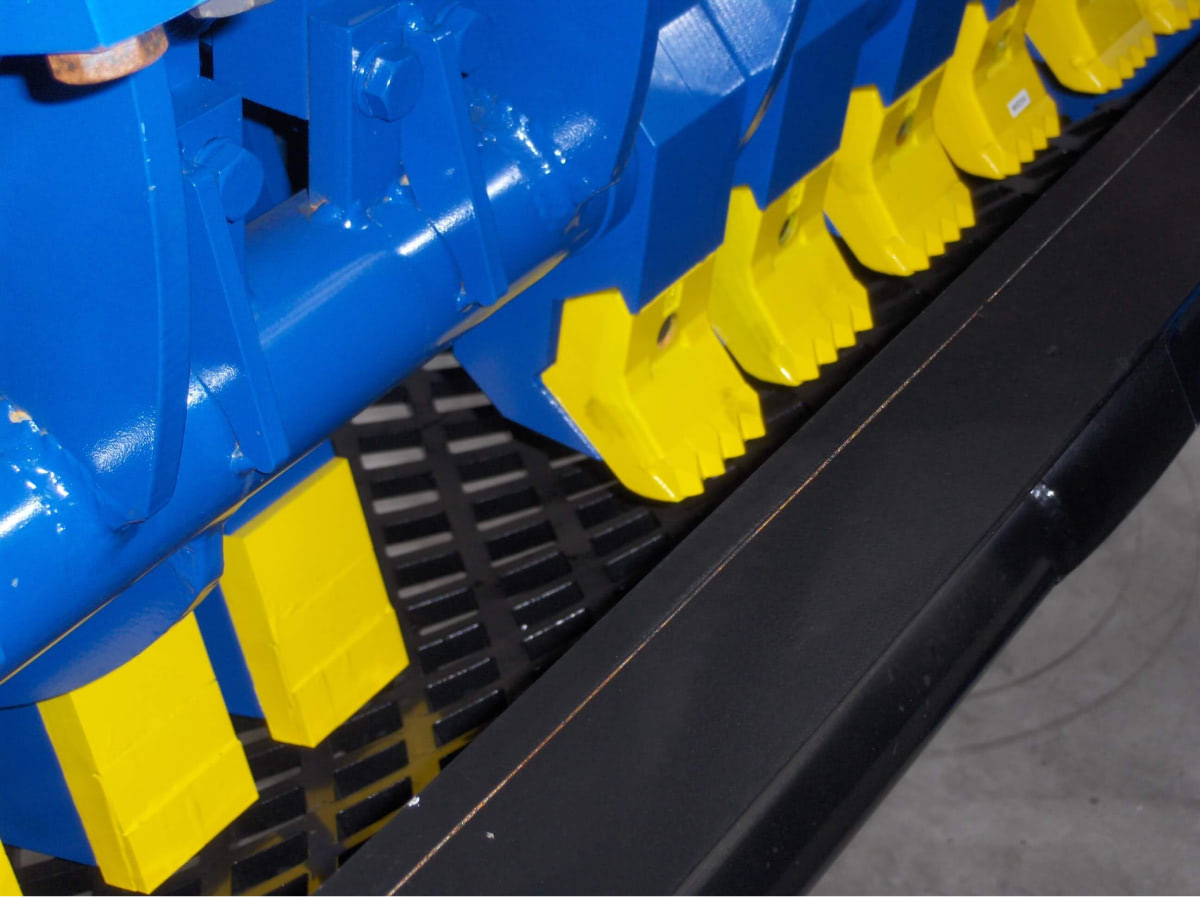

Via a short infeed belt, the pre-crushed and metal-free feeding material is fed into the hopper and conveyed to the rotor. Subsequently, the material will be comminuted by the high-speed rotor with pendulum mounted hammers and an adjustable counter cutter.

The particle size is adjustable by means of bolted and quickly replaceable screens.

The finely processed material is used for incineration, pelletisation or briquetting.

Models

Fine shredder HFZ V – hook lift

Machine frame:

Welded steel profile construction on a U-frame with a hook holder according to DIN 30722

Engine:

CAT turbo diesel with an output of P = 354 kW, valid Euro emissions standard

Diesel tank:

One tank, content: 450 liters

Dimensions:

see installation plan and scope of delivery
Total length: approx. 9,800 mm
Width: 2,500 mm
Height: approx. 3,800 mm
Throw-in height: 2,700 mm

Weight:

Dead weight approx. 13,500 kg, depending on the equipment

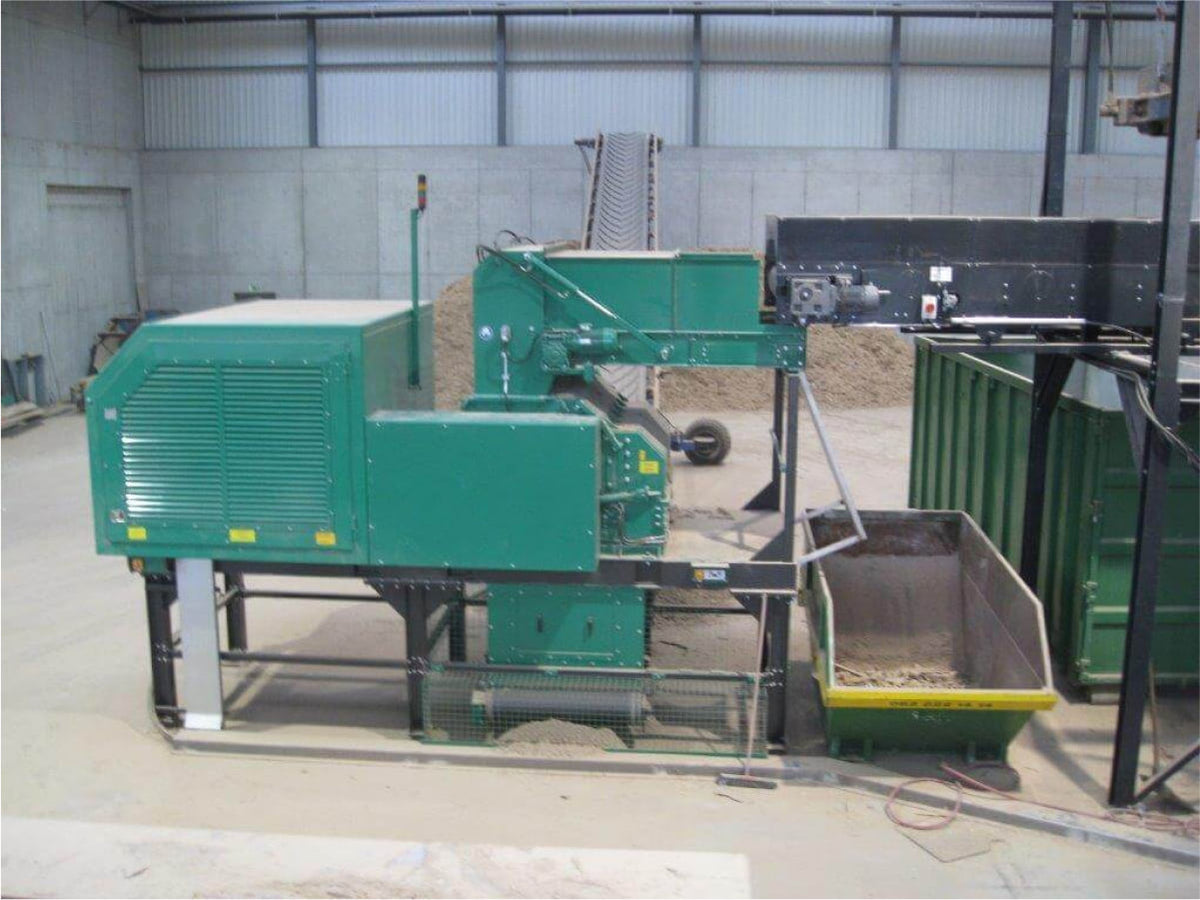

Fine shredder HFZ V – electric / stationary

Machine frame:

Stable steel welded construction according to the application

Engine:

Electric motor with an output of P = 3000 kW

Dimensions:

see installation plan and scope of delivery
Machine set up according to customer requirements

Weight:

Dead weight approx. 11,000 kg, depending on the equipment

Options

The basic equipment of the HUSMANN fine shredder can be adapted to the wishes and applications of the customers using various accessories. This includes, among other things, an individual discharge conveyor belt, a TÜV acceptance, or the overload protection.

You can also choose the following optional accessories:

Radio remote control
Lift axis
Conveyor belt
Magnet – drive drum
Sieve hydr. foldable
Reversible fan
Funnel chest foldable
Sledge base
fixed mallet hammers
Metal detector in the feed belt
Soft start
Interference material selection via ejection flap in the funnel
hydr. Sieve opening mole
Vehicle letter
Special painting (standard RAL 5010) and much more.

Additional Information

Especially for the Fine Shredding of Wood Waste Husmann company has developed a mobile or static machine of the type HFZ. With this machine, we are in a position to produce a very fine output material.

The machines can be manufactured as requested by the customer.

Via a short infeed belt, the pre-crushed and metal-free feeding material is fed into the hopper and conveyed to the rotor. Subsequently, the material will be comminuted by the high-speed rotor with pendulum mounted hammers and an adjustable counter cutter.

The particle size is adjustable by means of bolted and quickly replaceable screens.

The finely processed material is used for incineration, pelletisation or briquetting.
