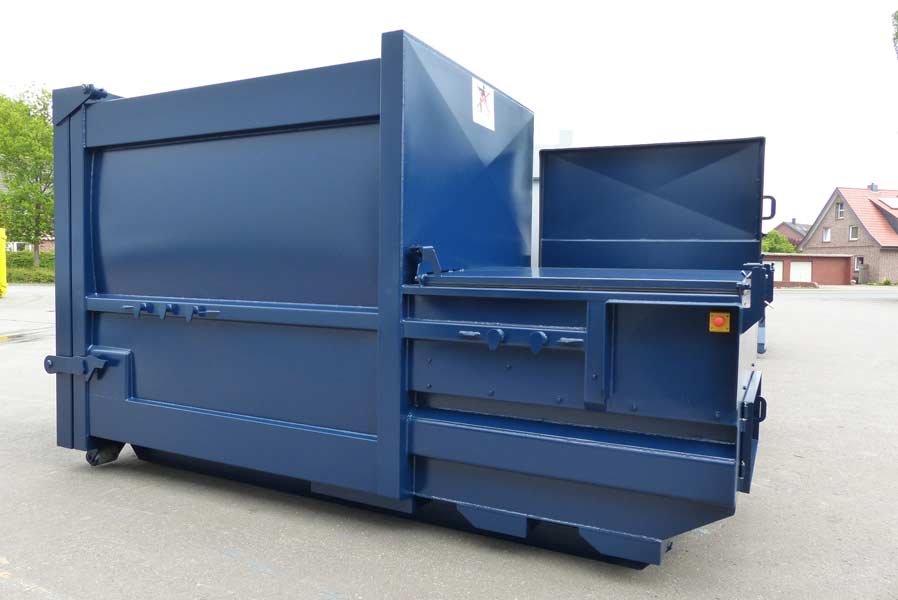

HA - General Waste Compactor - Skip Lift

HA - General Waste Compactor - Skip Lift

Name: HA - General Waste Compactor - Skip Lift
SKU: HA - General Waste Compactor - Skip Lift

Price upon request

Mobile compactors are designed for handling large volumes of recyclables, residual waste, and ordinary commercial waste. Its special feature is a single unit that is firmly connected to the compaction container. The material is compacted by a horizontal compaction plate with an electro-hydraulic drive system.

Enquire about this product

Features

The particularly low feeding opening and the
foldable hook offer maximum feeding comfort.
The conical shape ensures easy emptying.
The rib-free structure offers you large advertising
space.
The optimum location of the polyamide guide
elements makes for low-maintenance operation.
The central locking system is operated from one
side, so the emptying hatch can be opened safely
and quickly.
The large cleaning door allows comfortable
access for service and cleaning.

Product Description

The extremely low filling opening makes loading the mobile containers very easy. Although the material is highly compacted, the removal is effortless. For the exactly choise of the type of mobile compactors, you have to consider the material size, the throughput and the type of the disposal vehicle.

The type HAN R and HA R are standard for skip lift containers and by comparison to the roll on and roll container type with 6 - 12 m³ smaler.

Models

HA-8 R

Volume: 8 m3
Length (L): 3950 mm
Width (B): 2040 mm
Height (H): 2500 mm
Dimension A: 1315 mm
Feeding opening: 1000 x 1500 mm
Stroke Length: 1270 mm
Plunger surface area (h x b / height x width): 545 x 1500 mm
Feeding volume max: 1.4 m3
Stroke volume: 0.6
Compaction force: 300 kN
Specific Compaction force: 370 kN/m2
Cycle Time: 36 S
Machine Weight: 3070 kg
Motor power rating: 5.5 kW
Electrical power supply: 3 L / N / PE; 400 V / 50 Hz

HA-10 R

Volume: 10 m3
Length (L): 4200 mm
Width (B): 2040 mm
Height (H): 2500 mm
Dimension A: 1315 mm
Feeding opening: 1000 x 1500 mm
Stroke Length: 1270 mm
Plunger surface area (h x b / height x width): 545 x 1500 mm
Feeding volume max: 1.4 m3
Stroke volume: 0.6
Compaction force: 300 kN
Specific Compaction force: 370 kN/m2
Cycle Time: 36 S
Machine Weight: 3150 kg
Motor power rating: 5.5 kW
Electrical power supply: 3 L / N / PE; 400 V / 50 Hz

HA-12 R

Volume: 12 m3
Length (L): 4700 mm
Width (B): 2040 mm
Height (H): 2500 mm
Dimension A: 1315 mm
Feeding opening: 1000 x 1500 mm
Stroke Length: 1270 mm
Plunger surface area (h x b / height x width): 545 x 1500 mm
Feeding volume max: 1.4 m3
Stroke volume: 0.6
Compaction force: 300 kN
Specific Compaction force: 370 kN/m2
Cycle Time: 36 S
Machine Weight: 3290 kg
Motor power rating: 5.5 kW
Electrical power supply: 3 L / N / PE; 400 V / 50 Hz
