HAN - General Waste Compactor - Skip Lift

HAN - General Waste Compactor - Skip Lift

Name: HAN - General Waste Compactor - Skip Lift
SKU: HAN - General Waste Compactor - Skip Lift

Price upon request

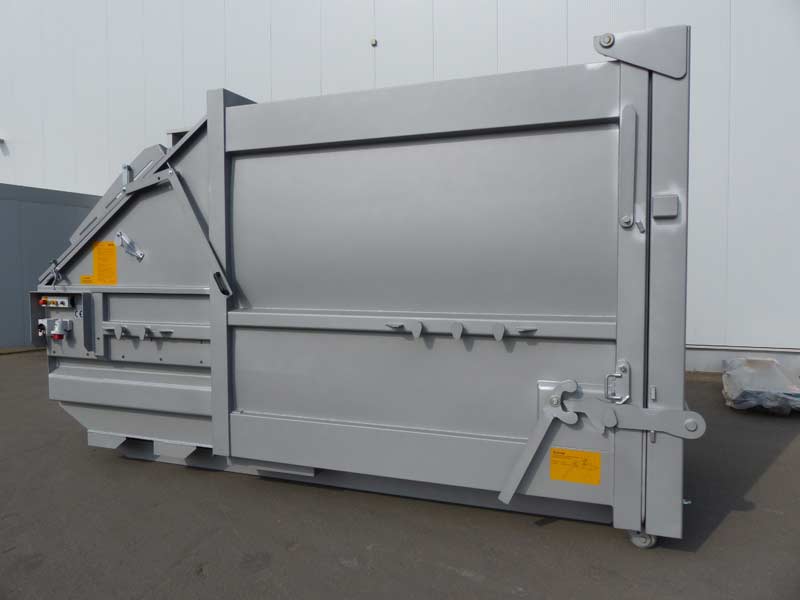

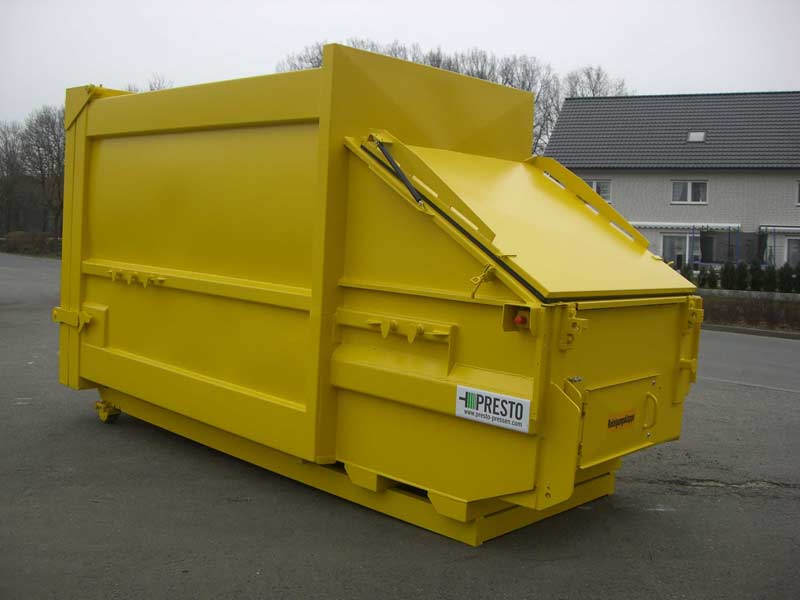

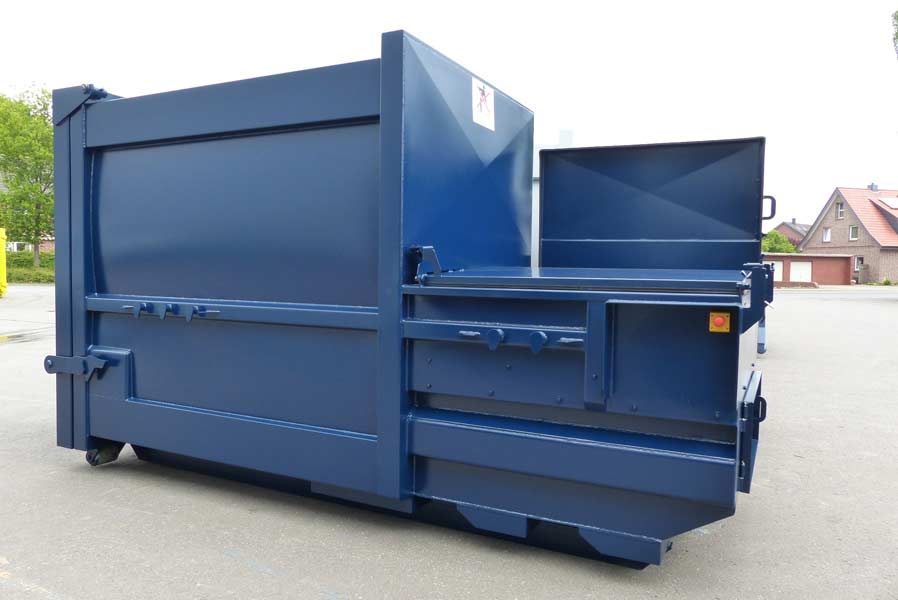

Mobile compactors are designed for handling large volumes of recyclables, residual waste, and ordinary commercial waste. Its special feature is a single unit that is firmly connected to the compaction container. The material is compacted by a horizontal compaction plate with an electro-hydraulic drive system.

Enquire about this product

Features

The particularly low feeding opening and the
foldable hook offer maximum feeding comfort.
The conical shape ensures easy emptying.
The rib-free structure offers you large advertising
space.
The optimum location of the polyamide guide
elements makes for low-maintenance operation.
The central locking system is operated from one
side, so the emptying hatch can be opened safely
and quickly.
The large cleaning door allows comfortable
access for service and cleaning.

Product Description

The extremely low filling opening makes loading the mobile containers very easy. Although the material is highly compacted, the removal is effortless. For the exactly choise of the type of mobile compactors, you have to consider the material size, the throughput and the type of the disposal vehicle.

The type HAN R and HA R are standard for skip lift containers and by comparison to the roll on and roll container type with 6 - 12 m³ smaler.

Models

Model	HAN-8 R	HAN-10 R	HAN-12 R
Volume (m3)	8	10	12
Length (mm)	3750	4000	4500
Width (mm)	2040	2040	2040
Height (mm)	2500	2500	2500
Dimension (mm)	1250	1250	1250
Feeding Opening (mm)	750 x 1500	750 x 1500	750 x 1500
Stroke Length (mm)	935	935	935
Plunger Surface Area (mm)	505 x 1500	505 x 1500	505 x 1500
Feeding Volume Max (m3)	1.1	1.1	1.1
Stroke Volume	0.5	0.5	0.5
Compaction Force (kN)	250	250	250
Specific Compaction Force (kN/m22)	330	330	330
Cycle Time (s)	25	25	25
Machine Weight (kg)	2770	2860	2990
Motor power rating (kW)	5.5	5.5	5.5
Electrical Power Supply	3 L / N / PE; 400 V / 50 Hz	3 L / N / PE; 400 V / 50 Hz	3 L / N / PE; 400 V / 50 Hz
