RHD - Static Compactor
Price upon request

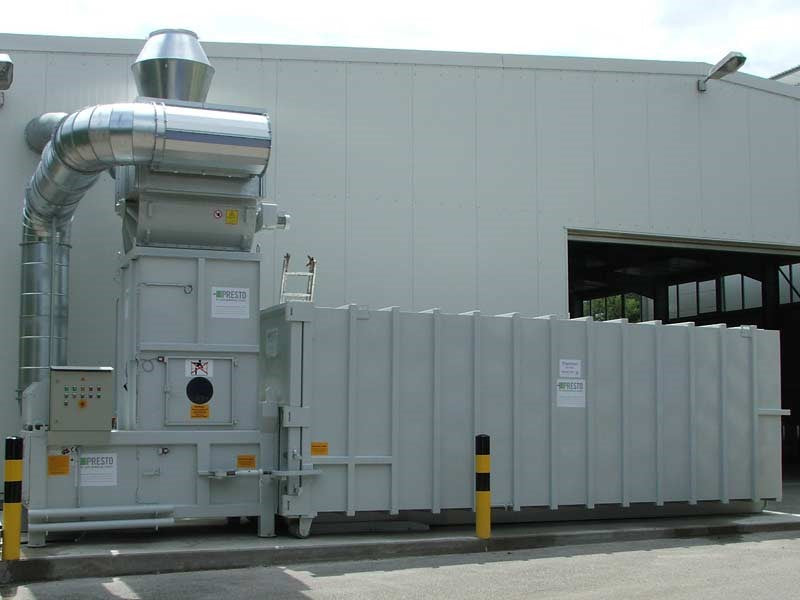

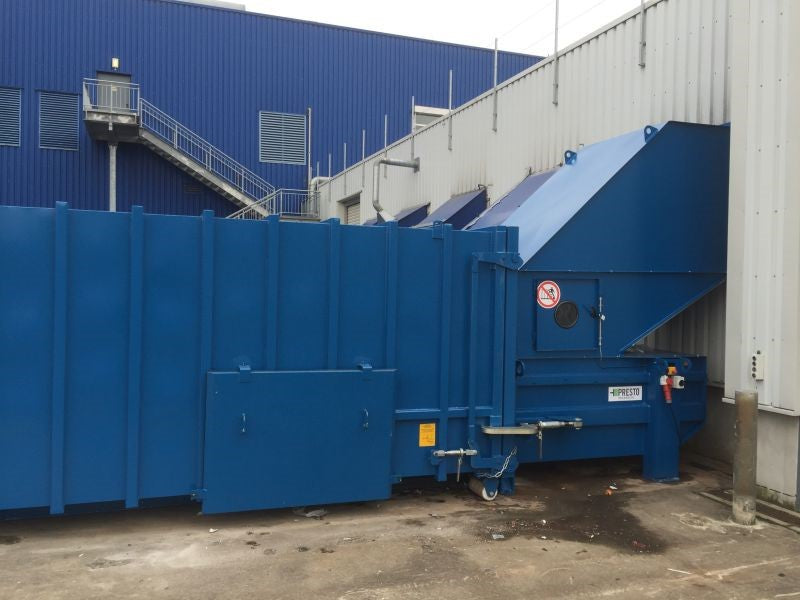

Static compactors can be used wherever large quantities of recycling material, residual waste or commercial waste similar to domestic waste are generated regularly. The fixed compaction unit with a horizontally moving plunger compacts the material into the coupled container pod. When the full container pod is carried away the compactor unit stays on site, making better use of the transport trucks payload.
Features
- Large feed opening with scissors layout of the hydraulic cylinders reduces the space required
- The optimum location of the Nylon guides makes for low-maintenance operation
- High pressing force ensures good compaction of the material into compactor pods
- Quiet operation
Models
Model | RHD-1200 | RHD-1600 | RHD-2000 |
---|---|---|---|
Length (mm) | 1970 | 2560 | 3200 |
Width (mm) | 1620 | 1620 | 2020 |
Height (mm) | 1140 | 1140 | 1140 |
Feeding Opening (mm) | 900 x 1460 | 1300 x 1460 | 1650 x 1860 |
Stroke Length (mm) | 1200 | 1600 | 2000 |
Plunger Surface Area (mm) | 1460 x 650 | 1460 x 650 | 1860 x 650 |
Stroke Volume | 1.0 | 1.4 | 2.2 |
Compaction Force (kN) | 300 | 300 | 340 |
Specific Compaction Force (kN/m22) | 316 | 316 | 340 |
Cycle Time (s) | 35 | 37 | 37 |
Machine Weight (kg) | 2600 | 3100 | 4100 |
Motor power rating (kW) | 5.5 | 7.5 | 7.5 |
Electrical Power Supply | 3 L / N / PE; 400 V / 50 Hz | 3 L / N / PE; 400 V / 50 Hz | 3 L / N / PE; 400 V / 50 Hz |
Options
Containers
SPB-20
- Content: 20 m3
- Length (L): 5030 mm
- Width (B): 2420 mm
- Height (H): 2350 mm
- Dist. container end to locking trunnion (V): 3050 mm
- Machine weight: 2800 kg
SPB-30
- Content: 30 m3
- Length (L): 6953 mm
- Width (B): 2420 mm
- Height (H): 2550 mm
- Dist. container end to locking trunnion (V): 4010 mm
- Machine weight: 3200 kg
