SAN - Static Compactor
Price upon request

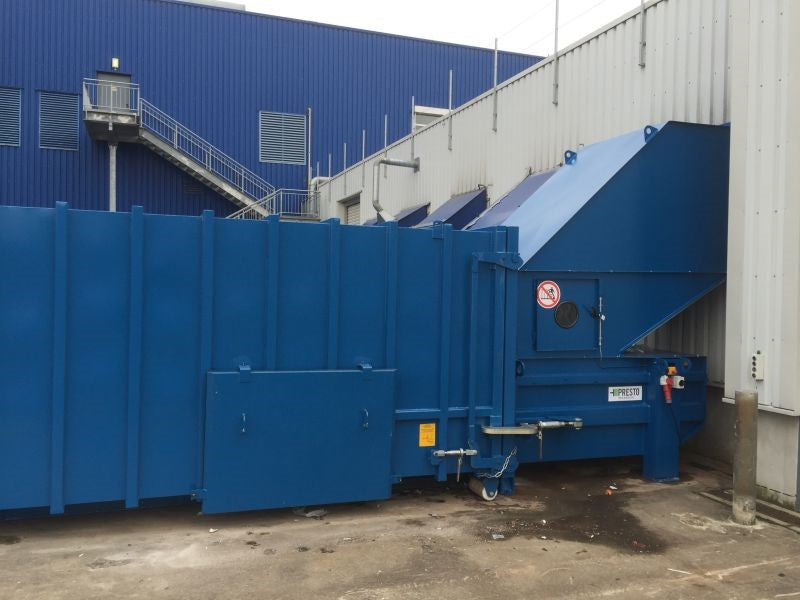

Static compactors can be used wherever large quantities of recycling material, residual waste or commercial waste similar to domestic waste are generated regularly. The fixed compaction unit with a horizontally moving plunger compacts the material into the coupled container pod. When the full container pod is carried away the compactor unit stays on site, making better use of the transport trucks payload.
Features
- Large feed opening with scissors layout of the hydraulic cylinders reduces the space required
- The optimum location of the Nylon guides makes for low-maintenance operation
- High pressing force ensures good compaction of the material into compactor pods
- Quiet operation
Options
Containers
SPB-20
- Content: 20 m3

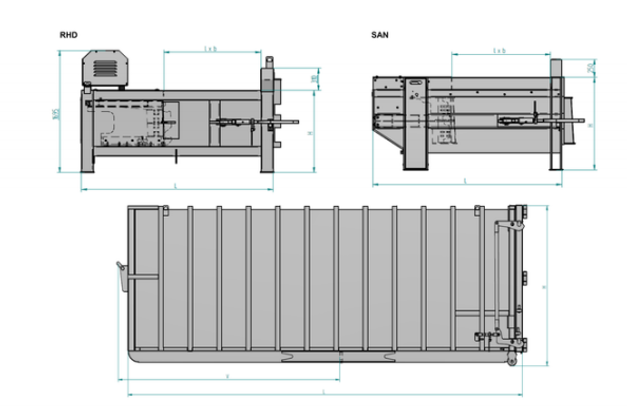

- Length (L): 5030 mm
- Width (B): 2420 mm
- Height (H): 2350 mm
- Dist. container end to locking trunnion (V): 3050 mm
- Machine weight: 2800 kg
SPB-30
- Content: 30 m3
- Length (L): 6953 mm
- Width (B): 2420 mm
- Height (H): 2550 mm
- Dist. container end to locking trunnion (V): 4010 mm
- Machine weight: 3200 kg
Additional Information
- Length (L): 2520 mm
- Width (B): 1810 mm
- Height (H): 1140mm
- Feeding opening: 1315 x 1460 mm
- Stroke Length: 1580 mm
- Plunger surface area (h x b / height x width): 1460 x 650 mm
- Stroke volume: 1.4 m3
- Compaction force: 290 kN
- Specific Compaction force: 290 kN/m2
- Cycle Time: 50 S
- Machine Weight: 2200 kg
- Motor power rating: 5.5 kW
- Electrical power supply: 3 L / N / PE; 400 V / 50 Hz
