HGS - Mobile Compactor - Hook Lift

Name: HGS - Mobile Compactor - Hook Lift
SKU: HGS - Mobile Compactor - Hook Lift

Price upon request

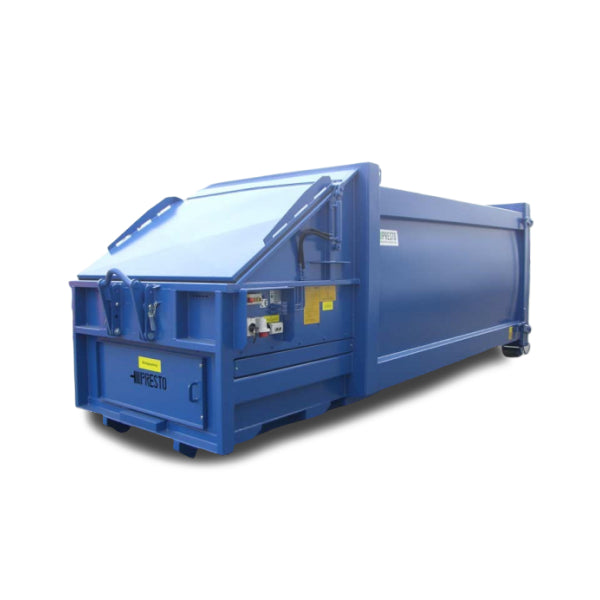

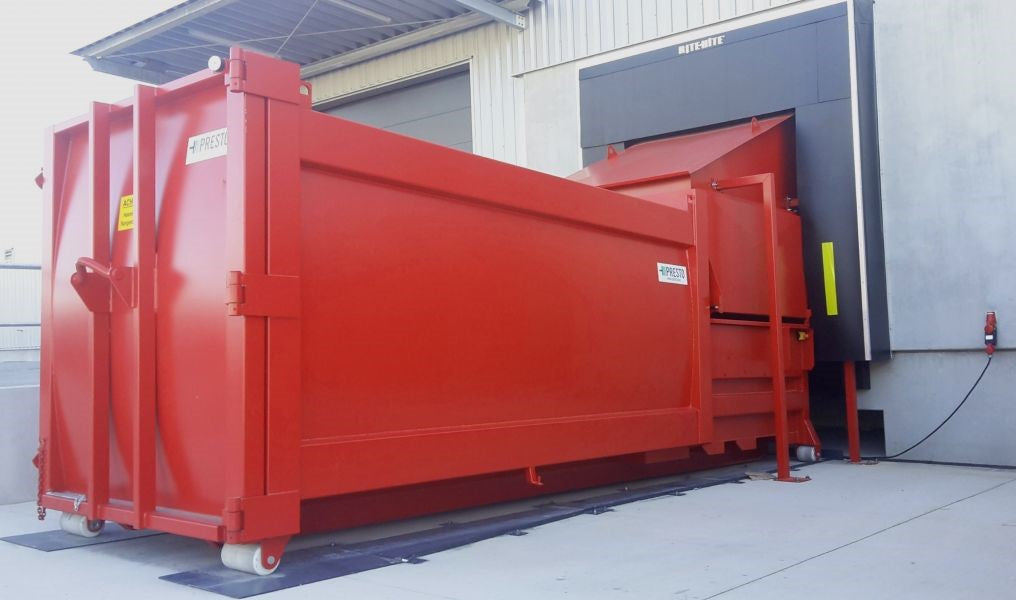

Mobile compactors can be used wherever large quantities of recycling material, residual waste or commercial waste similar to domestic waste are generated. A compactor that is firmly connected with the container compacts the material. The feeding opening is especially low to facilitate feeding these mobile compactors.

Enquire about this product

Features

The particularly low feeding opening and the foldable hook offer ease of loading
The optimum location of the Nylon guides makes for low-maintenance operation
The large cleaning door allows easy access for service and cleaning.
Quiet operation

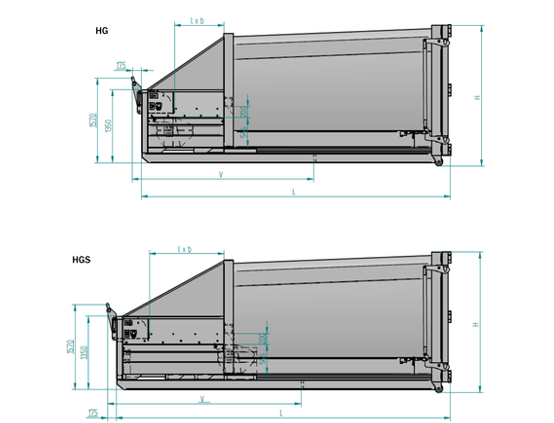

Models (Table)

	HGS-16	HGS-18	HGS-20	HGS-24
Content m3	16	18	20	24
Length (L) mm	5900	6280	6600	7500
Width (B) mm	2420	2420	2420	2420
Height (H) mm	2600	2600	2600	2600
Dimension A mm	1350	1350	1350	1350
Feeding opening mm	1470 x 1800	1470 x 1800	1470 x 1800	1470 x 1800
Stroke Length mm	1690	1690	1690	1690
Plunger surface area (h x b / height x width) mm	545 x 1800	545 x 1800	545 x 1800	545 x 1800
Feeding volume, max. m3	2,6	2,6	2,6	2,6
Dist. container end to locking trunnion (V) mm	3510	3720	3830	4110
Stroke volume m3	1,4	1,4	1,4	1,4
Compaction force kN	300	300	300	300
Specific Compaction force kN/m2	310	310	310	310
Cycle Time S	50	50	50	50
Machine weight kg	4550	4750	4950	5250
Motor power rating kW	5,5	5,5	5,5	5,5
