Wherever all kinds of materials are generated and need to be disposed static compactors can be used: in the disposal industry, chain stores, wholesale and retail, industrial enterprises, hospitals/clinics, print and paper industry and in the packaging industry.

The large feeding opening and the power increase for a higher cycle rate are ideal preconditions for high volume throughput.

Features

  • The large feeding opening and more powerful drive for shorter cycle time are the ideal preconditions for high volume throughput.
  • The optimum pressing force ensures good compaction of the material.
  • The feeding system can be selected in line with the requirements, integration into the production process is possible.
  • The compactor plunger runs in four polyamide guiding elements to ensure secure, low-maintenance operation.
  • The conical shape of the containers ensures easy emptying.

Product Description

Versatile and effective

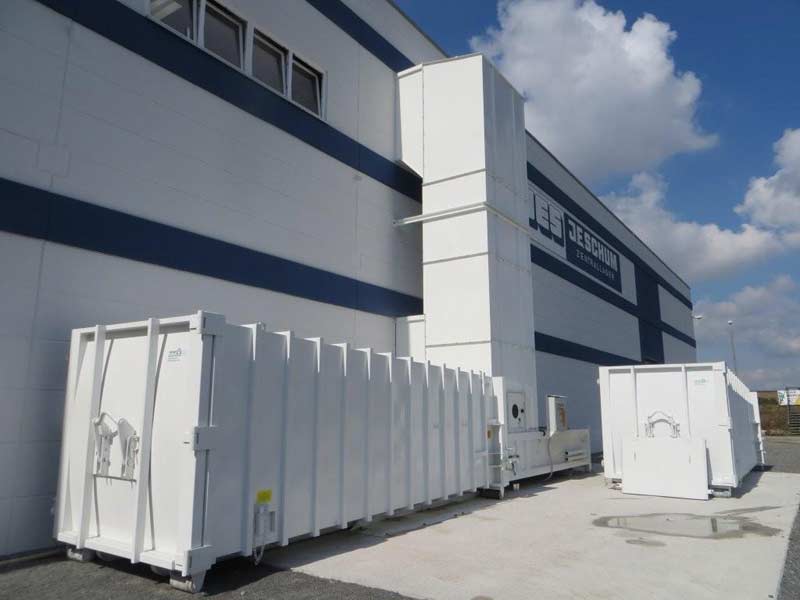

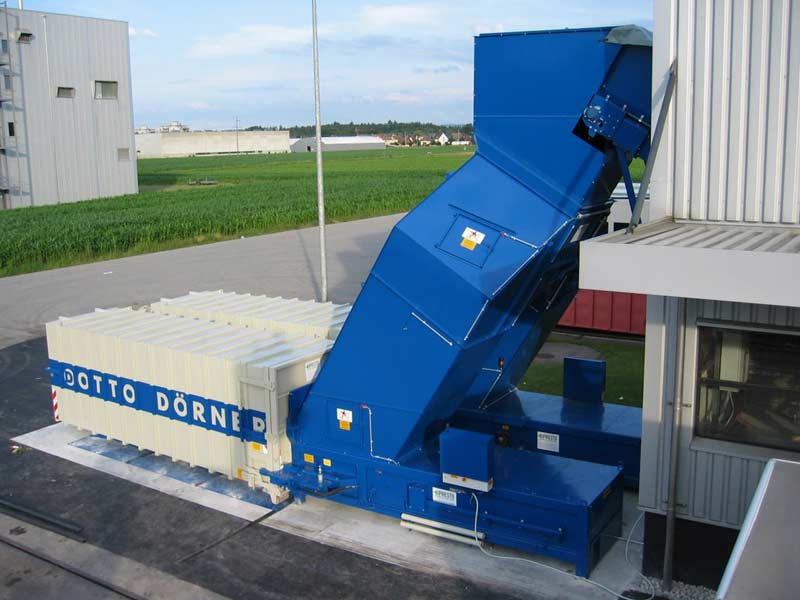

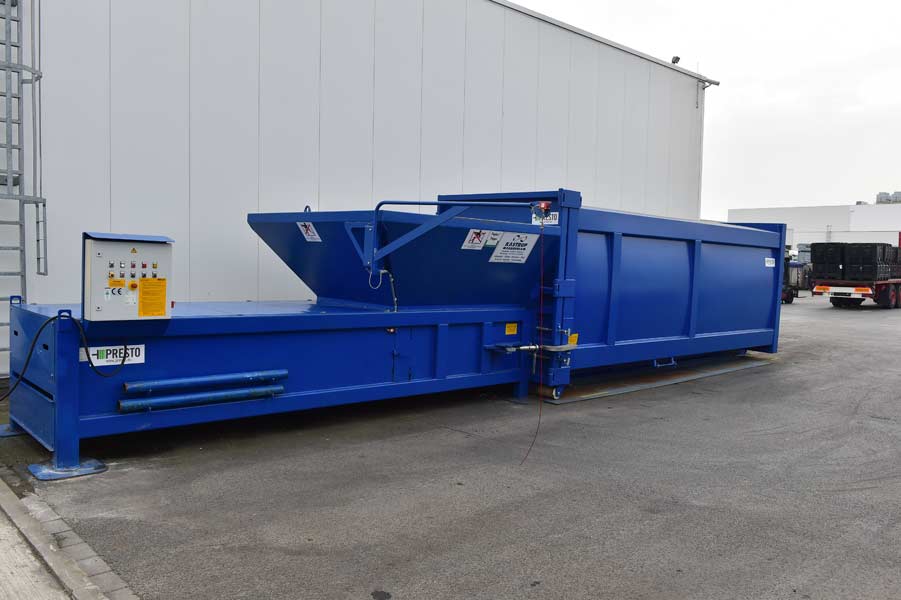

Static compactors can be used wherever large quantities of recycling material, residual, commercial domestic similar waste are generated regularly. The fixed compaction unit with a horizontally moving plunger compacts the material into the coupled container. When the full container is carried away the compactor unit stays on site. This makes better use of the vehicle payload.

Easy and safe

Reliable function and user-friendliness go without saying for all PRESTO products. Not only in operation, but also in terms of integration into the working environment. A static compactor is ready for use as soon as the machine is installed on its foundation and power is supplied.

Models

Model SHD-1600 SHD-1800 SHD-2200 SHD-2500 SHD-3000
Length (mm) 4200 4600 5400 6000 7180
Width (mm) 1620 1620 1620 1620 1620
Height (mm) 1140 1140 1140 1140 1140
Feeding Opening (mm) 1360 x 1460 1560 x 1460 1960 x 1460 2260 x 1460 2760 x 1460
Stroke Length (mm) 1800 2000 2400 2700 3200
Plunger Surface Area (mm) 1460 x 650 1460 x 650 1460 x 650 1460 x 650 1460 x 650
Stroke Volume 1.4 1.6 2 2.3 2.8
Compaction Force (kN) 300 300 400 400 400
Specific Compaction Force (kN/m22) 316 316 421 421 421
Cycle Time (s) 38 42 34 38 45
Machine Weight (kg) 3500 4250 5000 6400 8800
Motor power rating (kW) 7.5 7.5 15 15 15
Electrical Power Supply 3 L / N / PE; 400 V / 50 Hz 3 L / N / PE; 400 V / 50 Hz 3 L / N / PE; 400 V / 50 Hz 3 L / N / PE; 400 V / 50 Hz 3 L / N / PE; 400 V / 50 Hz

Options

Containers

SPB-20

  • Content: 20 m3
  • Length (L): 5030 mm
  • Width (B): 2420 mm
  • Height (H): 2350 mm
  • Dist. container end to locking trunnion (V): 3050 mm
  • Machine weight: 2800 kg

SPB-30

  • Content: 30 m3
  • Length (L): 6953 mm
  • Width (B): 2420 mm
  • Height (H): 2550 mm
  • Dist. container end to locking trunnion (V): 4010 mm
  • Machine weight: 3200 kg
