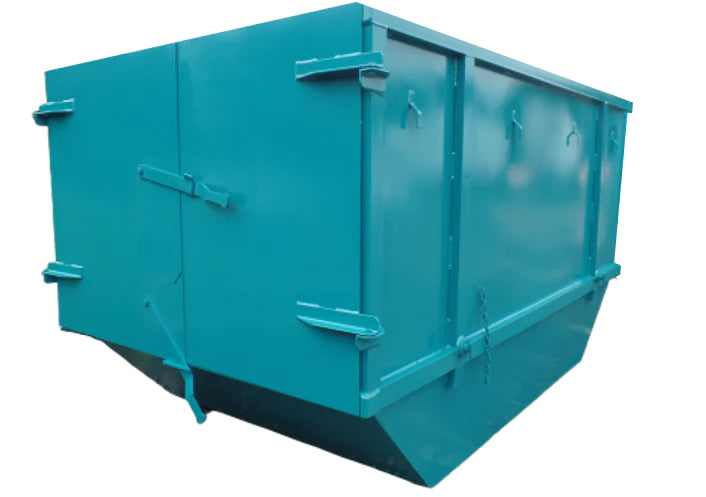

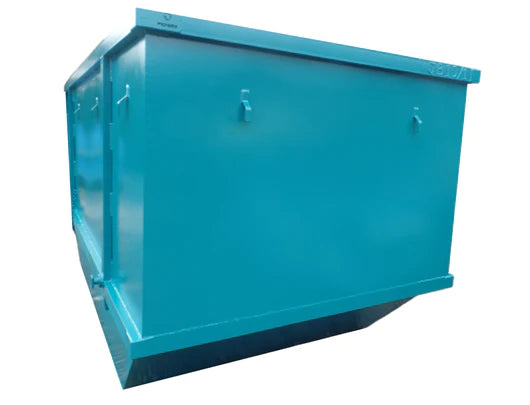

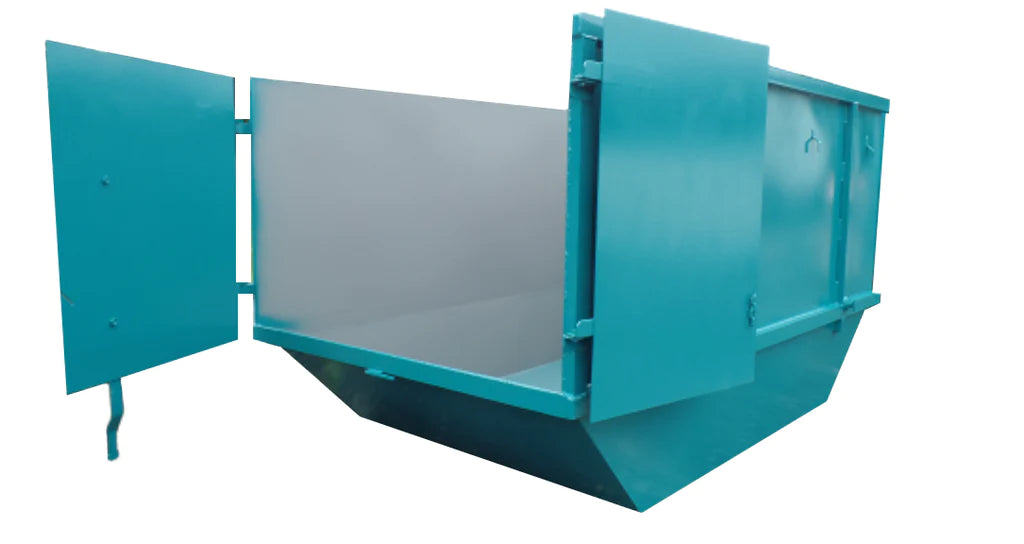

PGB12.0M Steel Gantry Bin (With Rear Doors)
PGB12.0M Steel Gantry Bin (With Rear Doors)
PGB12.0M Steel Gantry Bin (With Rear Doors)

PGB12.0M Steel Gantry Bin (With Rear Doors)

Price upon request

PGB12.0M Steel Gantry Bin (With Rear Doors)
PGB12.0M Steel Gantry Bin (With Rear Doors)
PGB12.0M Steel Gantry Bin (With Rear Doors)

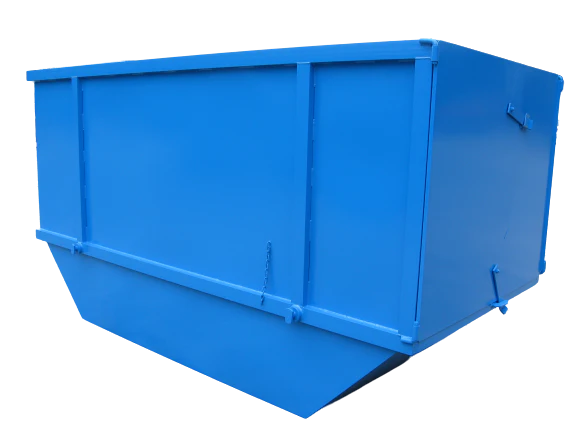

The 12-metre Gantry Bins are engineered tough to withstand the harsh working environment of construction sites. Our bins have heavily reinforced side panel stiffeners, machined one-piece lifting pins and 75×40 channels solid welded round top edge.

Pioneer Gantry bins are abrasive blasted and painted with an enamel primer undercoat and finished in a RAL colour of your choice.

Features

  • Floor thickness - 3 mm
  • Wall thickness - 3 mm
  • Rear Doors thickness - 3mm
  • Side stiffening plates - 75 PFC
  • Stacking plates - 75 PFC
  • Machined 70 mm one-piece lifting pins
  • Proven bin designs

Dimensions

  • Width: 1800 mm
  • Height: 1800 mm
  • Length: 3450 mm

Weight

Total Weight: 850 kg

Options

  • Side Plates: 4mm or 5mm plate
  • Base sheets: 4mm or 5mm plate
  • Tie Rails – Tie Hooks – Base feet
  • Lifting lugs – Certified
  • Forklift pockets
PGB12.0M Steel Gantry Bin (With Rear Doors)
