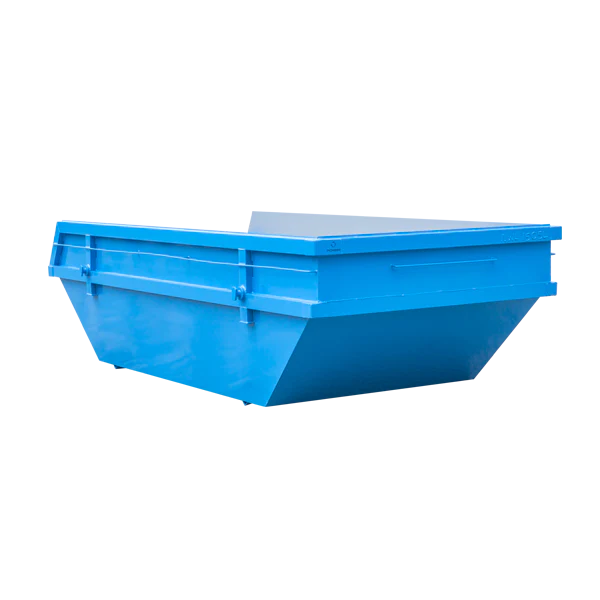

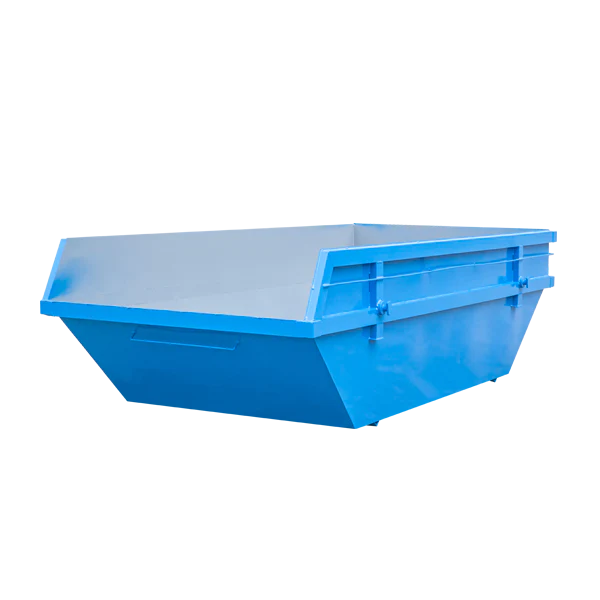

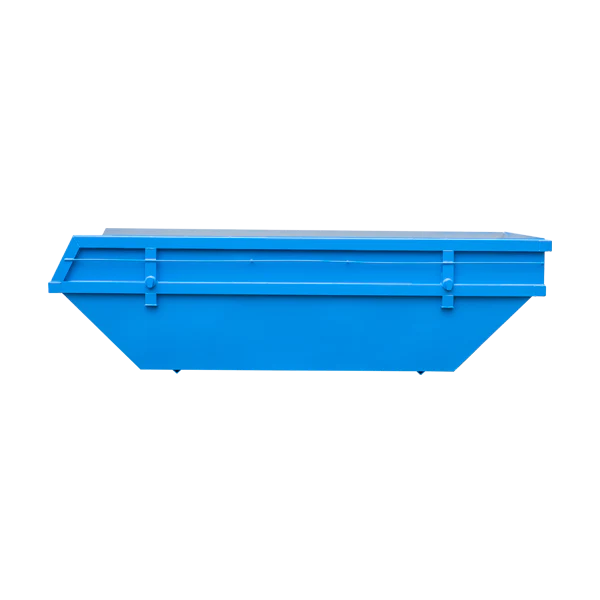

The 4.5 metre Gantry Bins are engineered tough to withstand the harsh working environment of construction sites. Our bins have heavily reinforced side panel stiffeners, machined one piece lifting pins and 75×40 channels solid welded round top edge.

Pioneer Gantry bins are abrasive blasted and painted with an enamel primer undercoat and finished in a RAL colour of your choice.

Features

  • Hot dip galvanizing is available on request.
  • Floor thickness – 3 mm
  • Wall thickness – 3 mm
  • Side stiffening plates -75 PFC
  • Stacking plates -75 PFC
  • Machined Ø70 mm one piece lifting pins
  • Proven bin designs
  • Inter stackable
  • Heavy duty bin spacers (no jamming)

Dimensions

  • Width: 1600 mm
  • Height: 900 mm
  • Length: 3300 mm

Weight

Total Weight: 400 kg

Options

  • Side Plates: 4mm or 5mm plate
  • Base sheets: 4mm or 5mm plate
  • Tie Rails – Tie Hooks – Base feet
  • Lifting lugs – Certified
  • Forklift pockets
