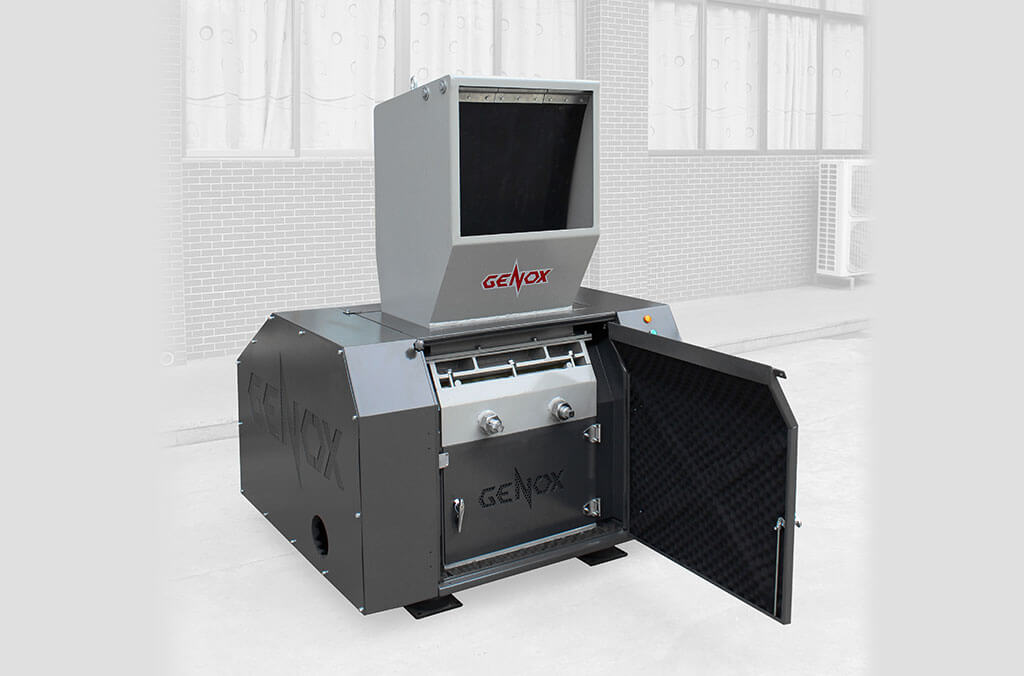

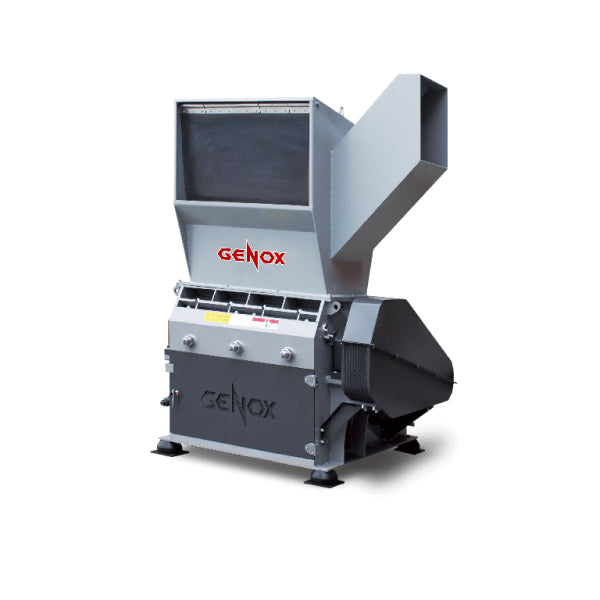

Plastic Granulators Genox - GC Series
Price upon request
GC Series Granulators are high speed granulation machines designed especially for the efficient size reduction of various materials in a single pass. These machines are ideal for processing a multitude of materials including plastics, rubber, fibers, copper cable and light non-ferrous metals amongst others.
Features
- Compact design minimizes on-site space requirements.
- Inclined, split cutting chamber design.
- Oversized, outboard spherical rotor bearings – prevents bearing damage due to product migration.
- Precision machined rotors (Forward set V-Rotor as standard).
- Replaceable wear plates at either end of the rotor shaft.
- Standard machines are prepared for air extraction.
- Stand Alone Electrical Control Panel - using quality Schneider components and Siemens PLC’s.
- Tested, Approved and Certified to the applicable CE safety standards.
Product Description
Typical Applications Include:
- Plastics – Mouldings, Profiles, Films etc.
- Rubber – Tire Rubber, Relaim Rubber Products etc.
- Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials etc.
- Copper Cable – Household, Telecoms and Industrial Cables including S.W.A.
- Textiles – Carpet (Rolls & Tiles) etc.
- Foam – Production Waste etc.
Models
Model | GC600 | GC600T | GC800 | GC800T | GC1000 | |
---|---|---|---|---|---|---|
Main Drive (kw) | 15 | 22 | 30 | 37 | 45 | |
Rotation Diameter (mm) | 260 | 320 | 320 | 420 | 420 | |
Shredding width (mm) | 600 | 600 | 800 | 800 | 1000 | |
Rotation Speed (rpm) | 580 | 580 | 580 | 580 | 580 | |
Number of Rotor Knives (The quantity of hocks X quantity of blades per row) (pcs) | V type rotor | / | 3×2 | 3×2 | 3×2 | 3×2 |
VB type rotor | 3×2 | 3×2 | 3×2 | 3×2 | 3×2 | |
C type rotor | / | 3×6 | 3×8 | 3×8 | 3×10 | |
CS type rotor | / | 3×2 | 3×2 | 3×2 | 3×2 | |
S type rotor | / | 3×2 | 3×2 | 3×2 | 3×2 | |
Number of Counter Knives (The quantity of rows X the quantity per row) | 2×1 | 2×1 | 2×2 | 2×2 | 2×2 | |
Screen Size (mm) | 12 | 12 | 12 | 12 | 12 | |
The quantity of screens (pcs) | 1 | 1 | 1 | 1 | 1 | |
Dimension | L | 1200 | 1420 | 1420 | 1640 | 1640 |
W | 1352 | 1180 | 1380 | 1450 | 1650 | |
H | 1825 | 2200 | 2200 | 2275 | 2275 | |
Weight | 1040 | 1435 | 2050 | 3000 | 3180 |
Enquiry Form
Product: Plastic Granulators Genox - GC Series
You may also like

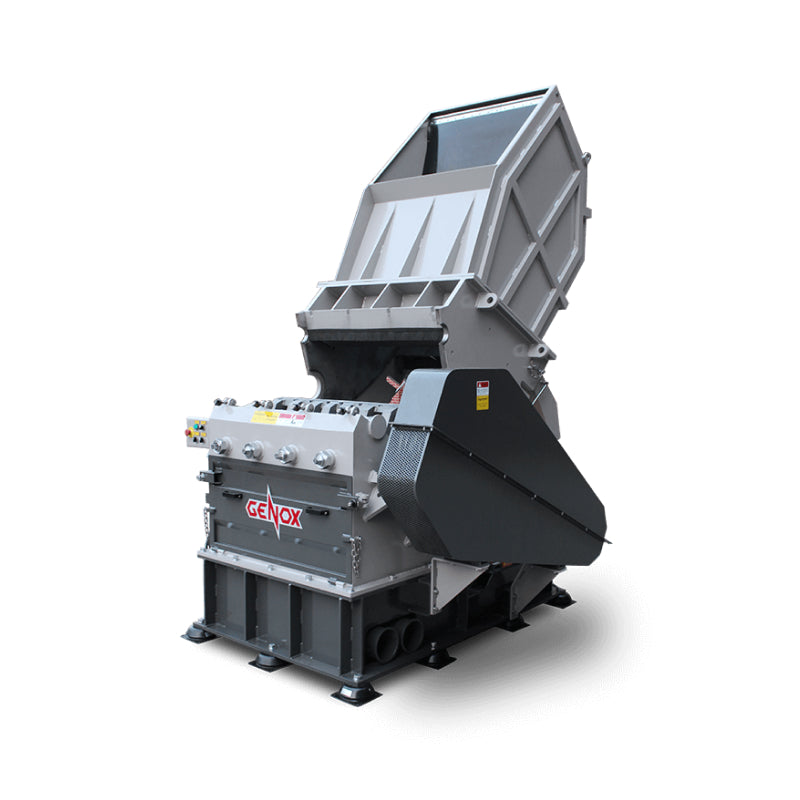

Plastic Granulators Genox - GXC Series
GXC Series Heavy Duty Granulators with power ratings of 55kw to 315kw are designed for high throughput processing. With a variety of rotor configurations available, these granulators have a wide...

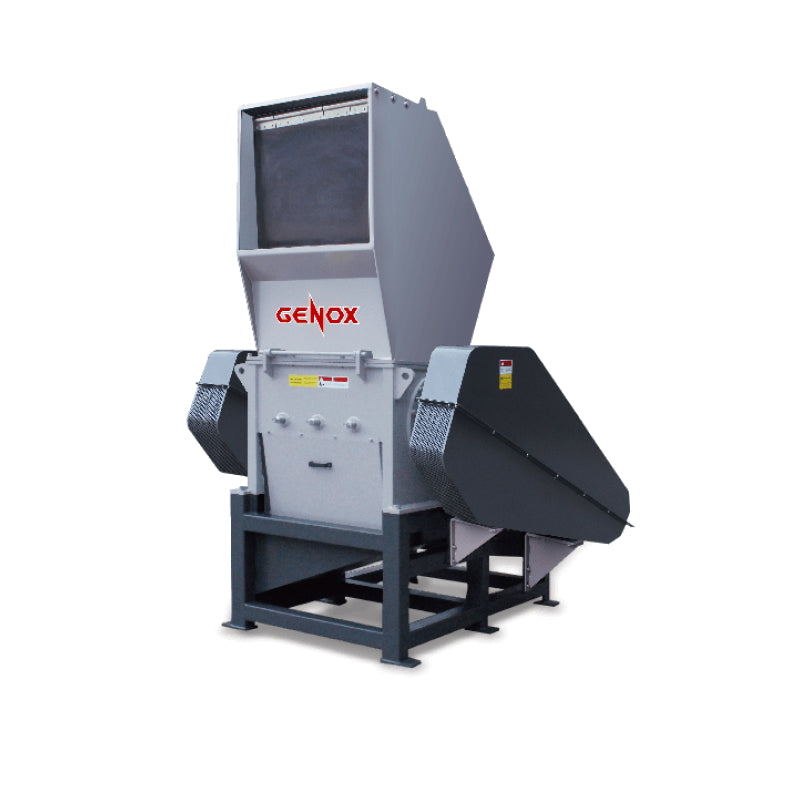

Plastic Granulators Genox - GMC Series
