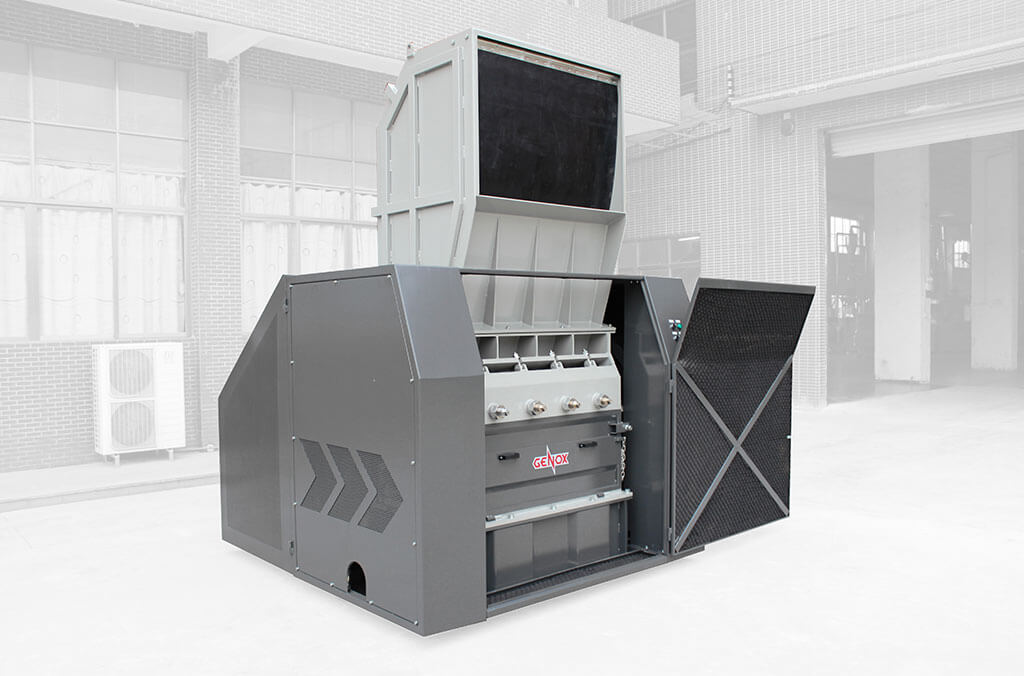

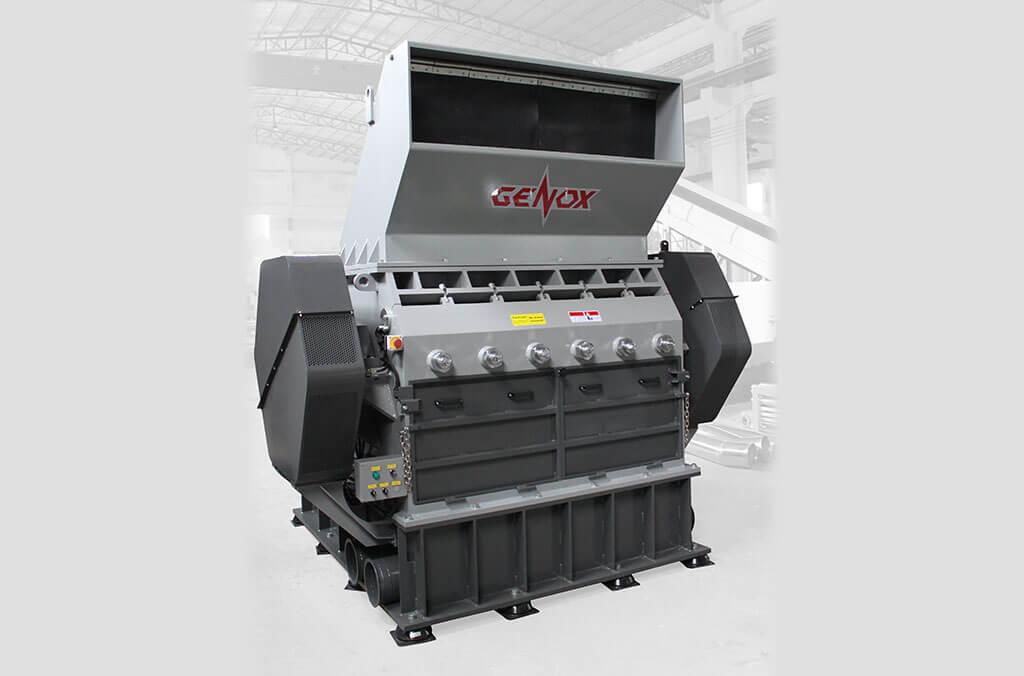

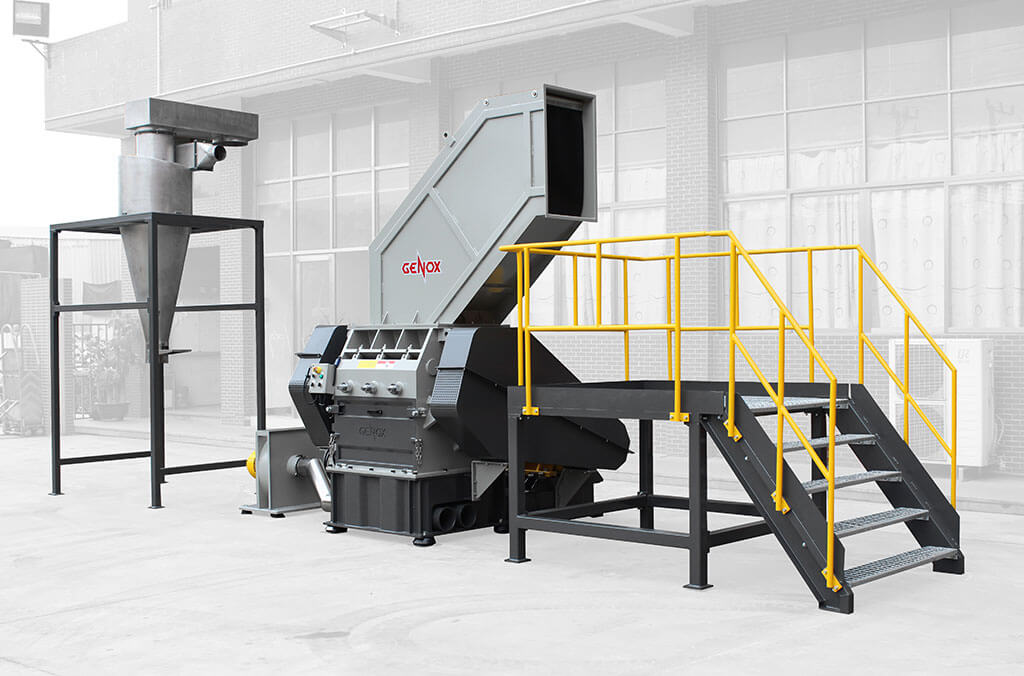

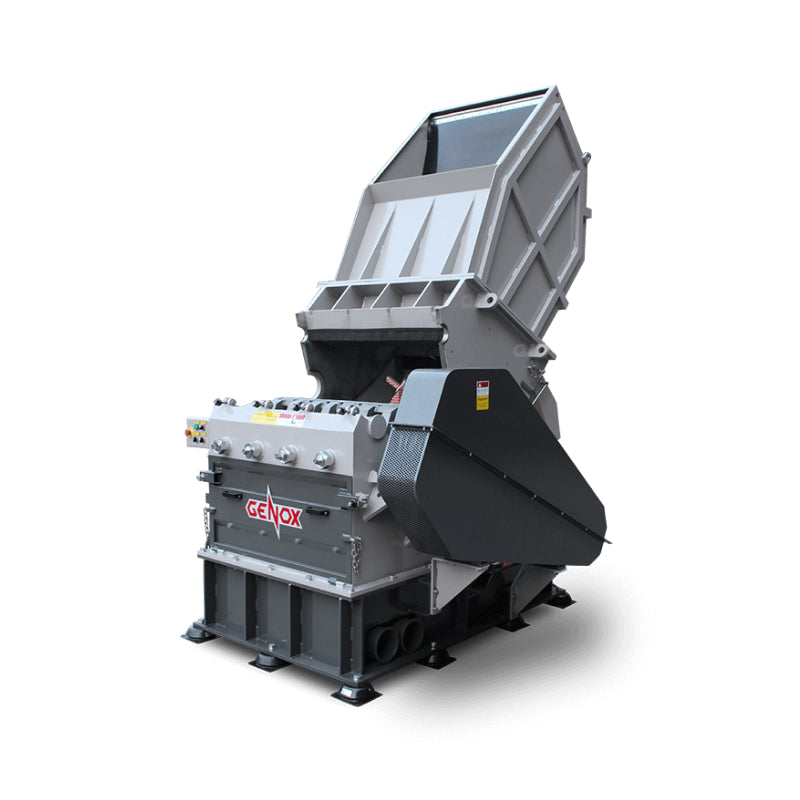

Plastic Granulators Genox - GXC Series

Name: Plastic Granulators Genox - GXC Series
SKU: GXC Series Granulators

Price upon request

GXC Series Heavy Duty Granulators with power ratings of 55kw to 315kw are designed for high throughput processing. With a variety of rotor configurations available, these granulators have a wide range of applications including; hollow and voluminous materials (i.e. plastic drums, crates and chairs), flexible materials such as films, woven bags and rubber, tougher materials such as profiles, thick sheets, and other general plastics.

Enquire about this product

Features

Strong welded construction from heavy gauge steel plate.
Inclined, split cutting chamber design.
Oversized, outboard spherical rotor bearings – prevents bearing damage due to product migration.
Precision machined rotors (Forward set V-Rotor as standard).
Manual, electric and hydraulic chamber opening mechanisms - quick access to the cutting chamber for maintenance and machine clean downs.
Replaceable wear plates at either end of the rotor shaft.
Stand Alone Electrical Control Panel - using quality Schneider components and Siemens PLC’s.
Tested, Approved and Certified to the applicable CE safety standards.

Product Description

Typical Applications Include:

Plastics – Mouldings, Profiles, Films etc.
Rubber – Tire Rubber, Relaim Rubber Products etc.
Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials etc.
Copper Cable – Household, Telecoms and Industrial Cables including S.W.A.
Textiles – Carpet (Rolls & Tiles) etc.
Foam – Production Waste etc.

Models

Model		GXC800	GXC1000	GXC1200	GXC1000T	GXC1200T	GXC1600T	GXC1200G	GXC1600G	GXC2000G
Main Drive (kw)		55	55	75	75	90	132	110	160	220
Rotating diameter (mm)		520	520	520	660	660	660	800	800	800
Shredding width (mm)		800	1000	1200	1000	1200	1600	1200	1600	2000
Rotation Speed (rpm)		580	520	520	520	520	520	460	460	460
Number of Rotor Knives（The quantity of hocks X quantity of blades per row) (pcs）	V type rotor	5×2	5×2	5×2	5×2	5×2	5×4	7×2	7×4	7×4
	VB type rotor	5×2	5×2	5×2	7x2	7x2	7×4	9×2	9×4	9×4
	C type rotor	5×8	5x10	5x12	5x10	5x12	/	7×12	/	/
	CS type rotor	5×2	5×2	5x3	7x2	7x3	7×4	9×3	9×4	9×4
	S type rotor	5×2	5×2	5×2	7x2	7x2	7×4	9×2	9×4	9×4
Number of Counter Knives（The quantity of rows X the quantity per row)	3×2	3×2	3×2	3×2	3×2	3×2	3×2	3×2	3×4	3×4
Screen Size (mm)	12	12	12	12	12	12	12	12	12	12
The quantity of screens (pcs)		1	1	1	1	1	2	1	2	2
Dimension	L	2170	2170	2170	2500	2500	2500	2625	2625	2625
	W	1785	1958	2185	2060	2260	2660	2470	2870	3270
	H	3100	3100	3100	3325	3325	3325	3900	3900	3900
Weight		3700	3920	4150	10200	10650	11120	10030	14405	17040
