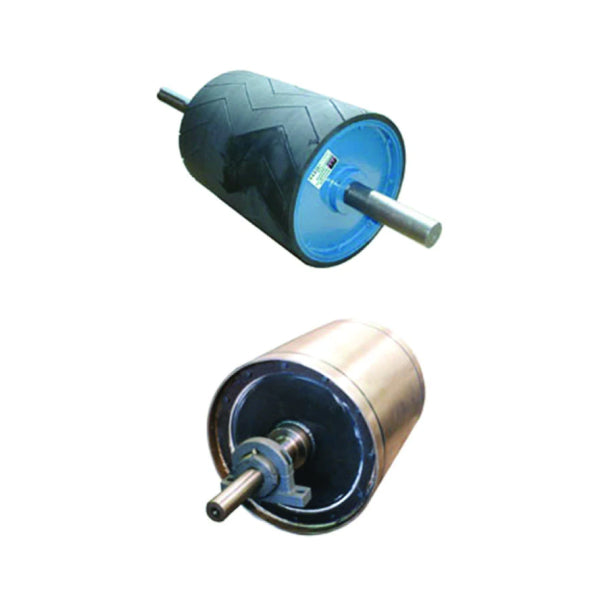

PPH Pulley Magnets

PPH Pulley Magnets

Price upon request

PPH Pulley Magnets

Magnetic pulleys are designed specifically for installation at the head of conveyors for the continuous extraction of iron contamination from conveyor burden. Magnetic pulleys can be supplied as permanent magnetic units, or electro, dependent on the application.

Product Description

Bunting® Magnetics Separation Pulleys offer superior removal of ferrous steels from ASR and ICW applications with either Deep Reach Ceramic or Deep Reach Neo Rare Earth Pulleys. Magnetic Separation Head Pulleys are extremely popular to continuously remove, recover, and discharge ferrous metals from Shredded ASR streams before Eddy Currents, or in ICW streams, before Wire Choppers. They can also be used for continual separation of ferrous from non-ferrous steels in your scrap metal recovery separation.

Bunting® designs and manufactures Magnetic Separation Pulleys for maximum reachout, holding force, and separation effectiveness in any size you may need with any lagging you may desire.

Bunting High Intensity Neo Rare Earth Head Pulleys are also excellent for purification in the Plastic Industry for fine ferrous removal from Shredded Plastic before Granulation, or PET Plastic before Extrusion.

Whether you are pulling nails and staples out of a carpet, a pallet recycling facility, or scrapping cans and steel at a municipal solid waste recovery facility, these Magnetic Pulleys are ready to clean your product, separate materials, and make you money. If you are designing and building your own conveyors, Bunting® Magnetics Co. offers economical OEM Magnetic Ceramic Separation Pulleys, or the optional high intensity Neo Rare Earth pulleys for those critical separation jobs.



These economical Magnetic Separation Pulleys can be used to replace your existing head pulleys to turn your material handling conveyor into a material separation conveyor. These pulleys can be provided with the same shaft as your existing conveyor has.

Our Magnetic Pulleys come in 4”, 6”, 8”, 10”, 12”, 15”, 18”, 24” and 30” diameters sizes and in widths from 4” up to 72” wide. We offer the pulleys in an economical stepped crowned face, machine crowned face, flat faced and an assortment of rubber vulcanized crowned covers.

To match up to your conveyor,  we offer an assortment of Taper Lock or QD hubs for any shaft diameter you need or welded in shafts to slip into the end of your conveyor.

Built with high-intensity Neo Rare Earth magnetic separation capabilities, these pulleys are designed for maximum separation jobs in the Recycling industry. This includes paramagnetic fines or stainless steel scrap and fasteners that have been work-hardened, and can only be separated with High Intensity Neo Separation Pulleys.

Deep Reach Rare Earth Field Pulleys are for the high volume recycling lines to make sure you get all the ferrous metals out of the deeper burden streams before the Eddy Current Separators Shredders. These units can be incorporated on the Bunting Grinder Feeder and Transfer Conveyors with reachouts of 10″ to 12″ and more and with field intensity that’s unmatched.

Low Reachout High Intensity Rare Earth Field Pulleys are designed for higher gauss super high intensity fields but with low reachout – low volume applications. These applications usually have a single layer stream of material on very thin belts for maximum separation. These units can be incorporated on Bunting stainless steel transfer/separation conveyors.

Dimensions

  • Width: 650 mm
  • Height: 750 mm
  • Length: 850 mm

Weight

Total Weight: 20 kg
