Name: Single Shaft Shredder Genox - V Series-V600-1500
SKU: Single Shaft Genox Shredder - V Series-V600-1500

Price upon request

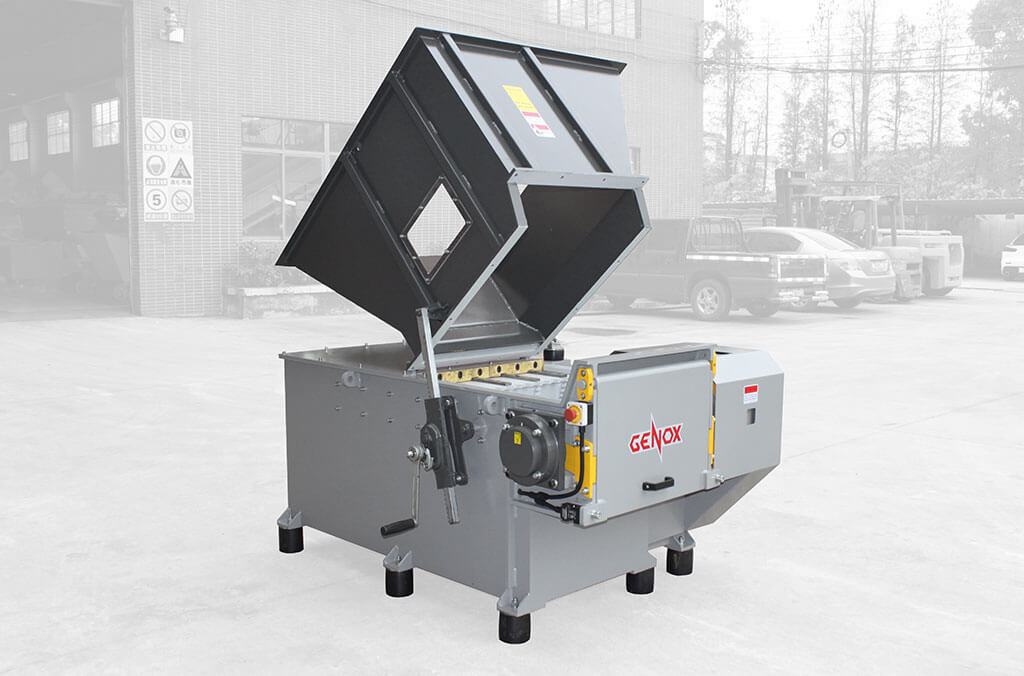

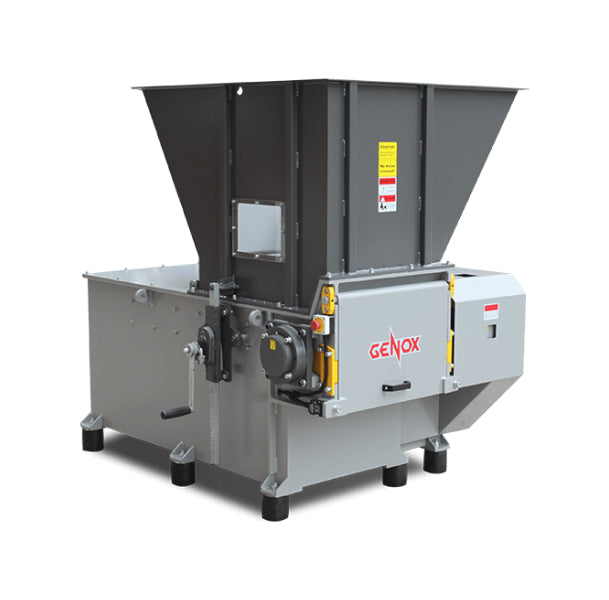

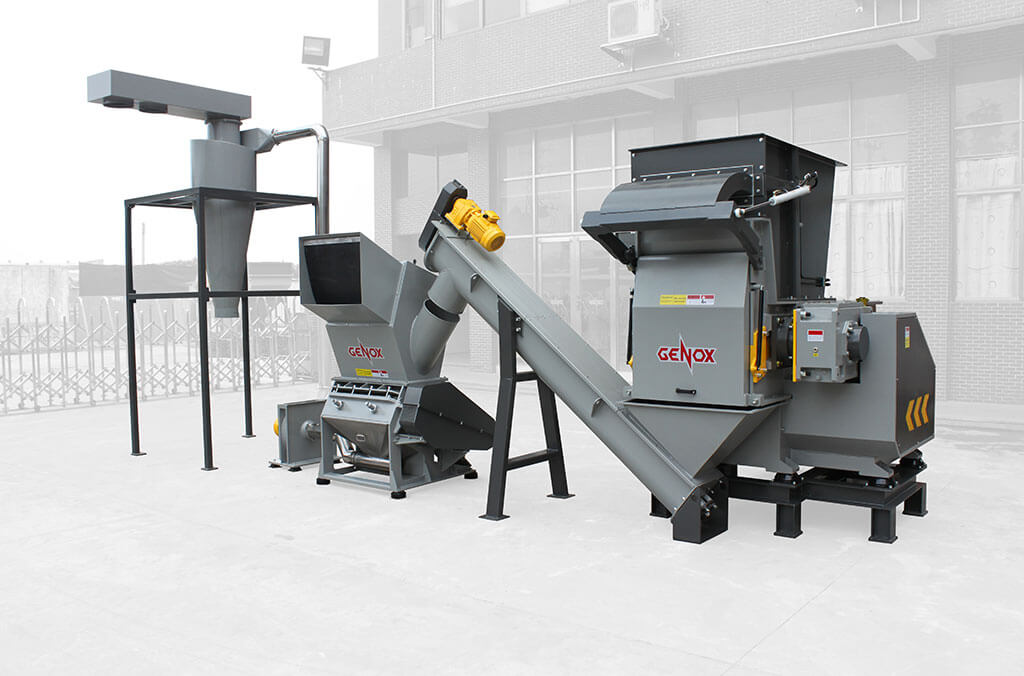

V Series Single Shaft Shredders are small - medium size reduction machines suitable for processing a wide range of materials to a uniform particle size. The output products created can often be sold as is, or be sent for further processing through additional equipment (granulators briquetters etc). Throughputs typically range between 300kg/hr – 5,000kg/hr+ depending on the machine model, material type, screen size and application.

Enquire about this product

Features

Energy Efficient + Maximum Cutting Force & Productivity
Shock Absorbing Gearbox reduces Stress on Drive Components

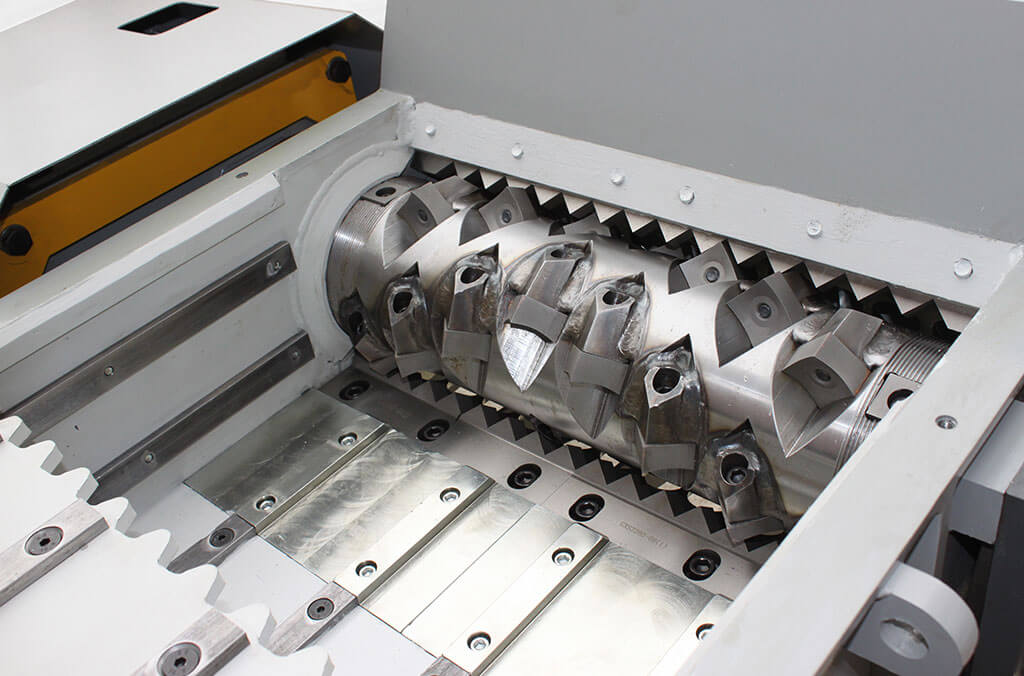

Rotor Knives can be rotated and used on four edges before replacement.
Long Life Counter Knives can be adjusted to maintain cutter clearance

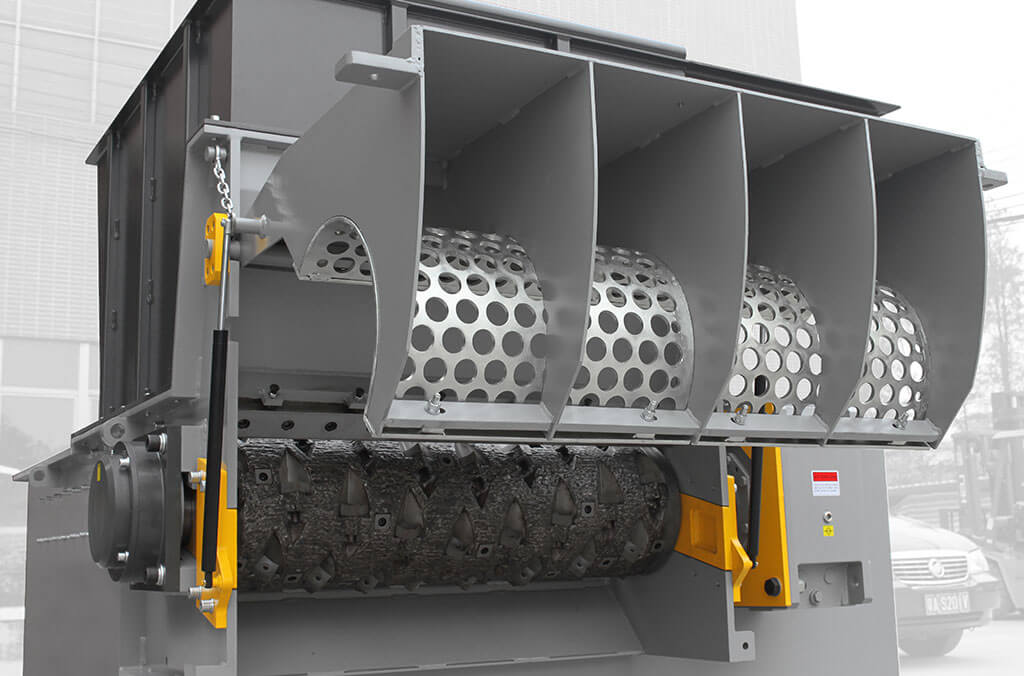

Quick Change Screens for accurate particle size control
Segmented Shredding Chamber Floor with Brass Guides

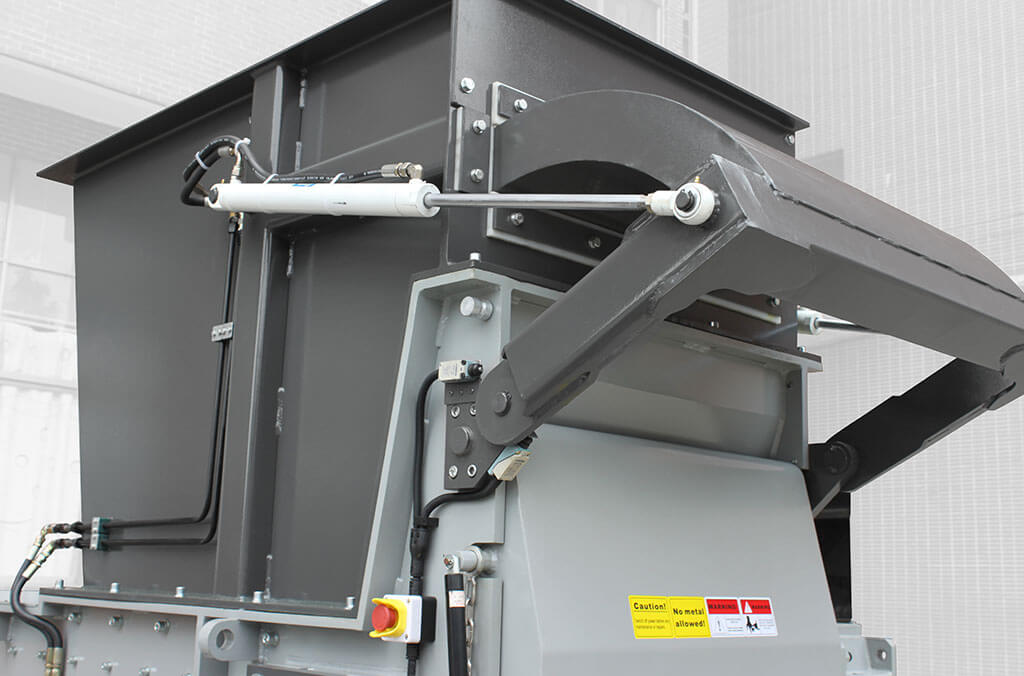

Twin Speed Hydraulics with integrated air cooler
Stand Alone Electrical Control Panel with Siemens PLC Control System
Tested, Approved and Certified to the applicable CE safety standards

Product Description

Typical Applications Include:

Plastics – Mouldings, Purging/Lump, Profiles, Films etc.
Timber/Wood – Pallets, Joiners Waste, Green Waste etc.
Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials etc.
Copper Cable – Household, Telecoms and Industrial Cables including S.W.A
Aluminum – Used Beverage Cans (UBC’s), Swarf, Cables etc.
Textiles – Carpet (Rolls & Tiles), Garments etc.
Security Destruction – Counterfeit Items, Faulty Goods, Out of Date Stock etc.
Foam – Production Waste etc.

Models (Table)

Model		V400	V500	V600	V800	V1000	V1200	V1500
Main Drive (kw)		7.5	15	18.5	37	45	55	75
Rotation Diameter (mm)		170	220	220	400	400	400	400
Shredding width (mm)		400	500	600	800	1000	1200	1500
Rotation Speed (rpm)		80	80	80	80	80	80	80
Number of Rotor Knives	Standard rotor	13+2	19+4	23+4	35+4	45+4	55+4	78+4
	S type rotor	/	19+4	23+4	35+4	45+4	55+4	78+4
	F type rotor	/	/	/	45	57	69	81
	K type rotor	/	/	/	35+4	45+4	55+4	78+4
Number of Counter Knives	Lower fixed blade	2	2	2	2	2	3	3
	Upper fixed blade	2	2	2	2	2	3	3
Hydraulic Power Pack (kw)		1.5	2.25	2.25	3.75	3.75	5.5	5.5
Ram (mm)		350	500	500	815	815	815	815
Rotor blade size (mm)		30X30	40X40	40X40	40X40	40X40	40X40	40X40
The quantity of screens		1	1	1	1	2	2	2
Dimension	L	1400	1820	1820	2800	2800	2800	2800
	W	990	1190	1310	1800	1980	2500	2750
	H	1600	1730	1730	2090	2090	2140	2140
Weight		750	1500	1750	4150	4300	4900	7820
