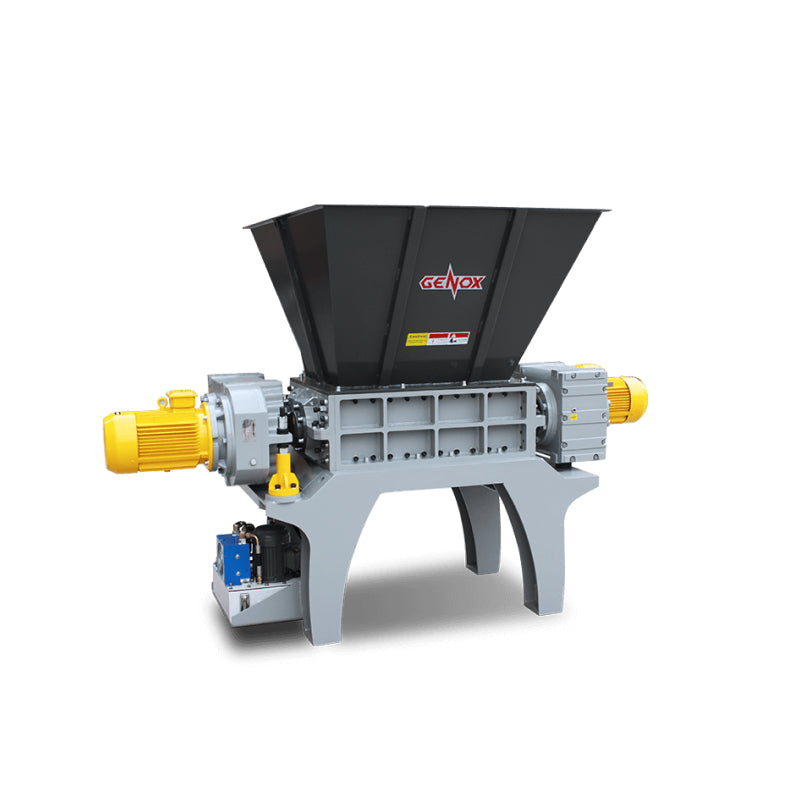

Twin Shaft Shredder Genox - M Series-M300-1200
Price upon request
Low speed, high torque operation minimizes noise and power consumption – whilst achieving high throughput rates. These machines are particularly suited to the size reduction of bulky or voluminous materials which could include contamination such as metals or stones.
Features
- Slow Speed High Torque Shredding Principle.
- Low Dust and Low Noise Operation.
- Rugged Low Maintenance Design.

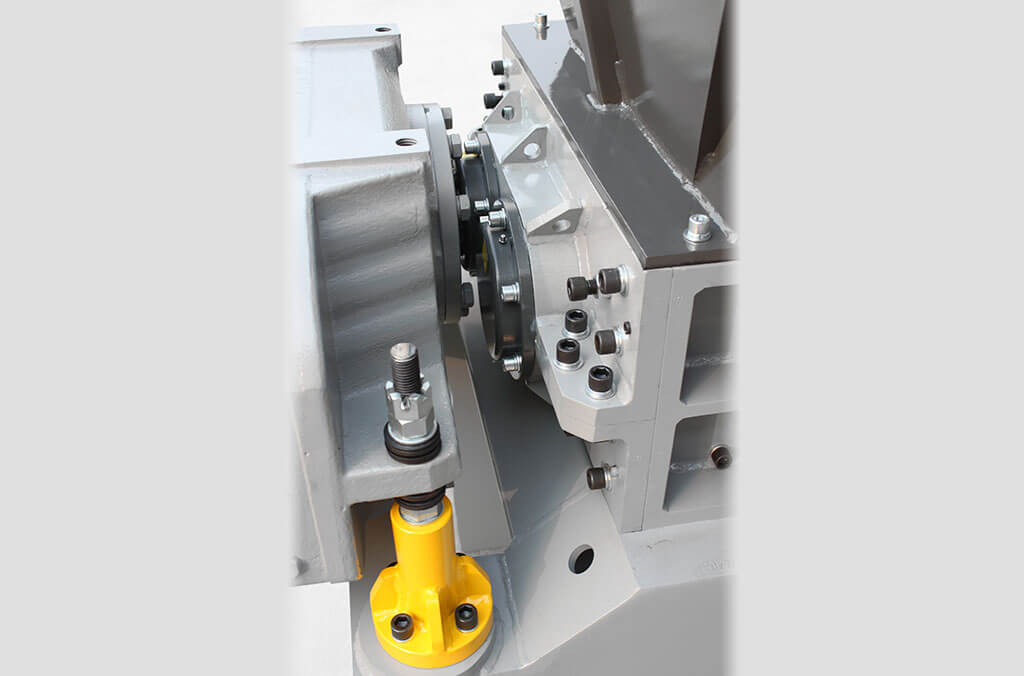

- Shock Absorbing Gearbox Mounting Arrangement reduces Stress on Drive Components.

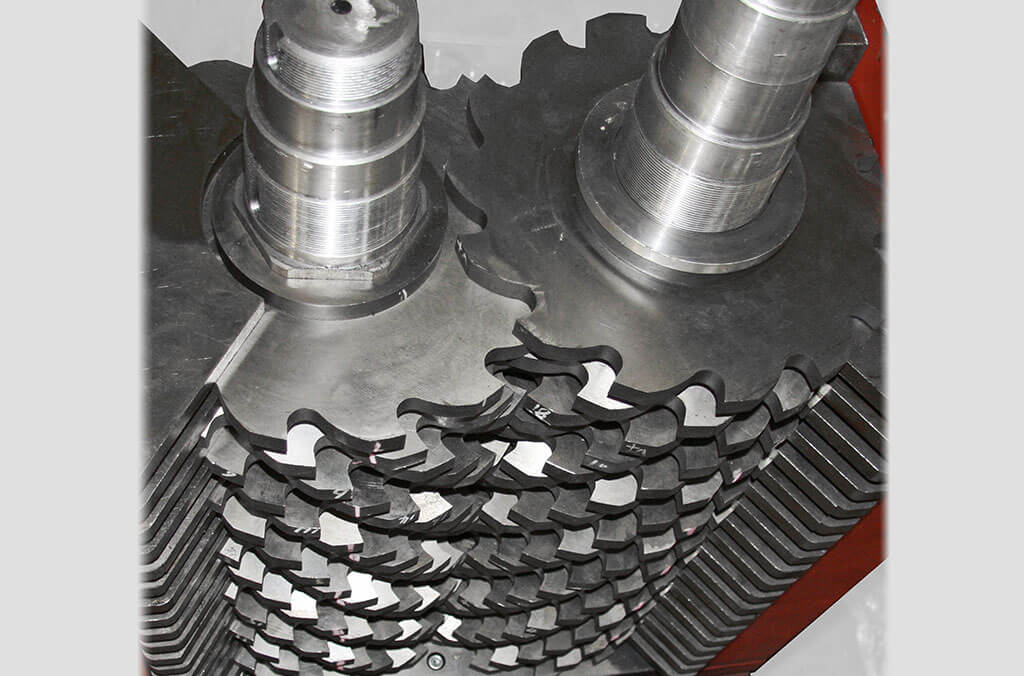

- Strong Blades manufactured from high quality steels are suitable for shredding tough materials.
- Two Piece Split Bearing Housing Arrangement enables quick access to bearings and rotor.
- Advanced Adjustable Sealing System prevents product migration and ensures long bearing service life.
- Stand Alone Electrical Control Panel with Siemens PLC Control System.
- Tested, Approved and Certified to the applicable CE safety standards.
Product Description
Typical Applications Include:
- Plastics –Mixing Plastics, Plastic Drums or Containers, etc.
- Electronic Scrap – WEEE Directive Materials.
- Tires – Car Tires, Debeaded Truck Tires.
- Wood – Pallets etc.
- Packaging Materials – Cardboard etc.
- Metals – Lead, Aluminium, Copper etc.
- Textiles.
Models (Table)
Model | M300 | M400 | M600 | M800 | M800T | M1000 | M1200 | |
---|---|---|---|---|---|---|---|---|
Main Drive (kw) | 7.5 | 7.5 | 5.5+5.5 | 7.5+7.5 | 15+15 | 15+15 | 15+15 | |
18.5+18.5 | 18.5+18.5 | |||||||
22+22 | 22+22 | |||||||
30+30 | 30+30 | |||||||
Rotation Diameter (mm) | 276 | 276 | 276 | 430 | 430 | 430 | 430 | |
Shredding width (mm) | 400 | 500 | 600 | 800 | 800 | 1000 | 1200 | |
Rotation Speed (rpm) | 13 | 13 | 14 | 14 | 5.4-12 | 5.4-12 | 5.4-12 | |
6.0-12 | 6.0-12 | 6.0-12 | ||||||
7.5-12 | 7.5-12 | 6.0-127.5-12 | ||||||
10-12 | 10-12 | 10-12 | ||||||
Center distance (mm) | 210 | 210 | 210 | 210 | 320 | 320 | 320 | |
Number of Blades | 15thickness | 20 | / | 40 | / | / | / | / |
20thickness | 15 | 20 | 30 | 40 | 40 | / | / | |
40thickness | / | 10 | / | 20 | 20 | 25 | 30 | |
50thickness | / | / | / | / | 16 | 20 | / | |
75thickness | / | / | / | / | / | / | / | |
100thickness | / | / | / | / | / | / | / | |
The quantity of blade hocks | Standard rotor | 1/2/3/6 | 1/2/3/6 | 1/2/3/6 | 1/2/3/6 | 1/2/3/6 | 1/2/3/6 | 1/2/3/6 |
K type rotor | / | / | / | / | / | / | / | |
D type rotor | / | / | / | / | / | / | / | |
Dimension | L | 1500 | 1587 | 2530 | 2710 | 3055 | 3315 | 3574 |
W | 1222 | 1222 | 1275 | 1275 | 1835 | 1885 | 1965 | |
H | 1850 | 1850 | 1850 | 1850 | 2200 | 2200 | 2200 | |
Weight | 1370 | 1470 | 2080 | 2300 | 4380 | 4520 | 5120 |
