The Tiger Expert | EPS

Name: The Tiger Expert | EPS
SKU: TIGER 200-400 EXPERT | EPS | Heger

Price upon request

Compaction system for EPS packaging.
Model variant including a pre-crusher with very large feed opening.
Used for daily medium to large processing quantities.
Suitable for small to large parts.

Enquire about this product

Features

Compact, space-saving EPS compactor for businesses generating expanded polystyrene (EPS) waste.
Cold compaction technology – no heat required, reducing energy consumption.
Fully automatic, plug-and-play operation for simple and efficient use.
Reduces EPS volume by up to 40:1, significantly lowering storage and transport costs.
Produces high-density recyclable EPS blocks (up to 350 kg/m³).
Available in four models with capacities ranging from 40 to 200 kg/hour.
Suitable for retail, logistics, manufacturing, warehouses, and packaging operations.
Optional automatic block cutting and lifting systems for improved material handling.
Automatic mode of operation.
Electric drives only.
No hydraulic drives.
Energy-efficient.
Plug and play.
Cold compaction.

Product Description

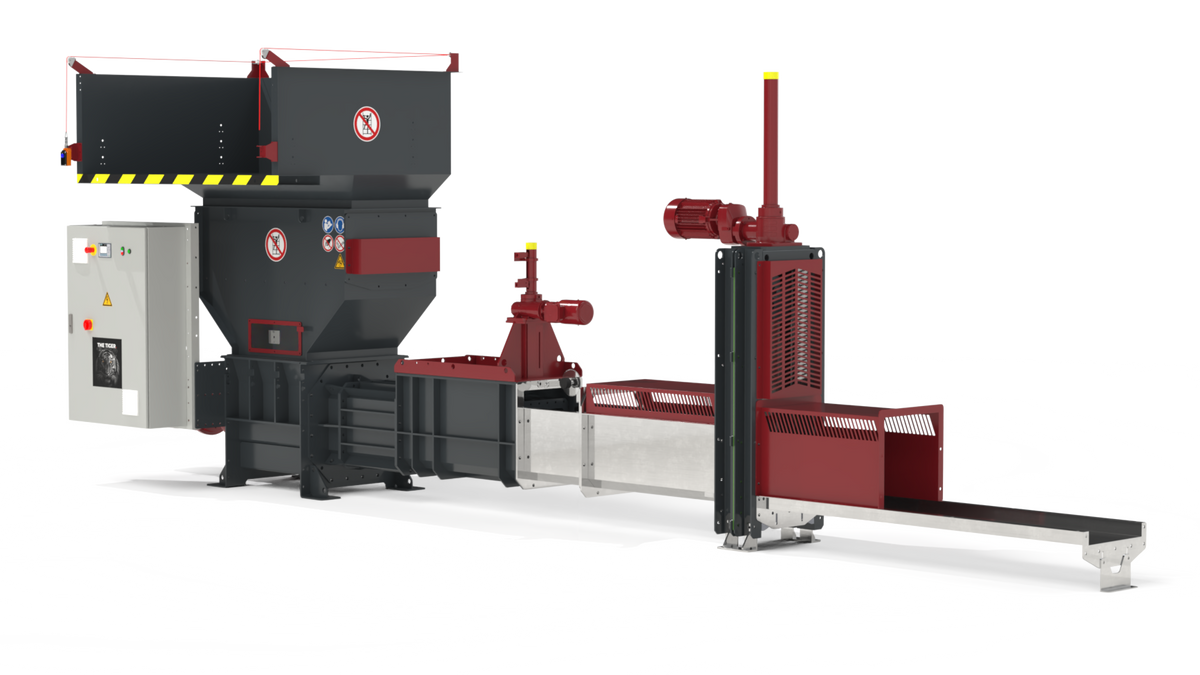

The HEGER THE TIGER EXPERT EPS is a compact EPS (Expanded Polystyrene) compaction system designed to reduce the volume of EPS packaging waste and prepare it for recycling.

Available in 4models

TIGER 200 Expert EPS | 50Kg/h
TIGER 250 Eppert | 80Kg/h
TIGER 300 Expert | 120Kg/h
TIGER 400 Expert | 200Kg/h

Check out more information on throughput, performance range, machine weight nd supply voltage by downloading the brochure from the download section

Materials

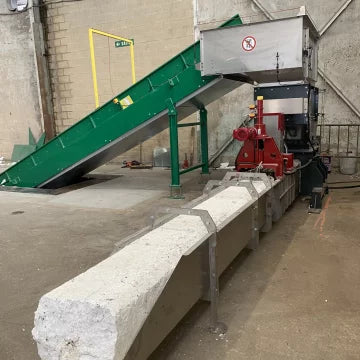

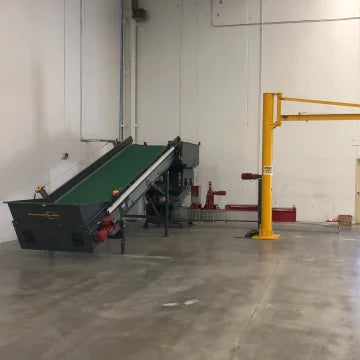

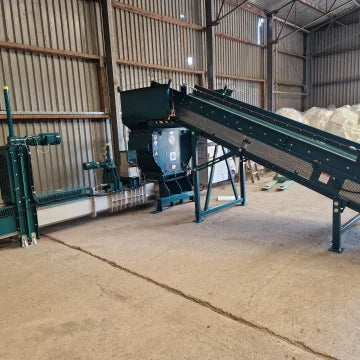

Conveyor belt for more efficient feeding | Automatic block separation system for the production of defined block lengths | Block lifting crane with grab

Dimensions

Width: 1.55 mm
Height: 2.52 mm
Length: 2.83 mm

Weight

Machine Weight: 1550kg

Additional Information

Throughput 1) up to 45-50 kg/h
Recommended performance range 1) 80 -250 Kg/day
Achievable compaction density 1) up to 250-350 kg/m³
Processable material densities up to 40 g/l
Processable moulded part thickness up to 200 mm
Effective feed opening (L x W) 1400 x 600 mm

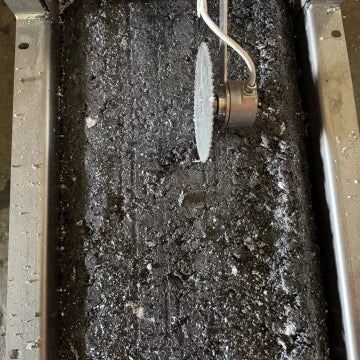

Block size 210 x 210 mm
Installation dimensions (L x W x H) 2) 3.830 x 1.550 x 2.250 mm
Machine weight 2) approx. 1.500kg
Electrical connected load 2) 8,65 kW (32 Amp)
Supply voltage (EU) 3x 400 V 50 Hz
Supply voltage (USA) 3x 480 V 60 Hz
Marking CE

1) Depending on material type and material density
2) Basic machine without options Subject to technical changes / All information without guarantee
