The Tiger Genius | EPS

Name: The Tiger Genius | EPS
SKU: TIGER 130-400 GENIUS | EPS

Price upon request

Compaction system for EPS packaging.
Model variant in space-saving compact design. Use for small to large daily processing quantities. Suitable for small to medium-sized parts.

Enquire about this product

Features

Compact, space-saving EPS compactor for businesses generating expanded polystyrene (EPS) waste.
Cold compaction technology – no heat required, reducing energy consumption.
Fully automatic, plug-and-play operation for simple and efficient use.
Reduces EPS volume by up to 40:1, significantly lowering storage and transport costs.
Produces high-density recyclable EPS blocks (up to 250 kg/m³).
Available in five models with capacities ranging from 18 to 200 kg/hour.
Suitable for retail, logistics, manufacturing, warehouses, and packaging operations.
Optional automatic block cutting and lifting systems for improved material handling.
Plug-and-play.
Automatic mode of operation.
Space-saving installation.
Energy Efficient.
Electric drives only.
Cold compaction.

Product Description

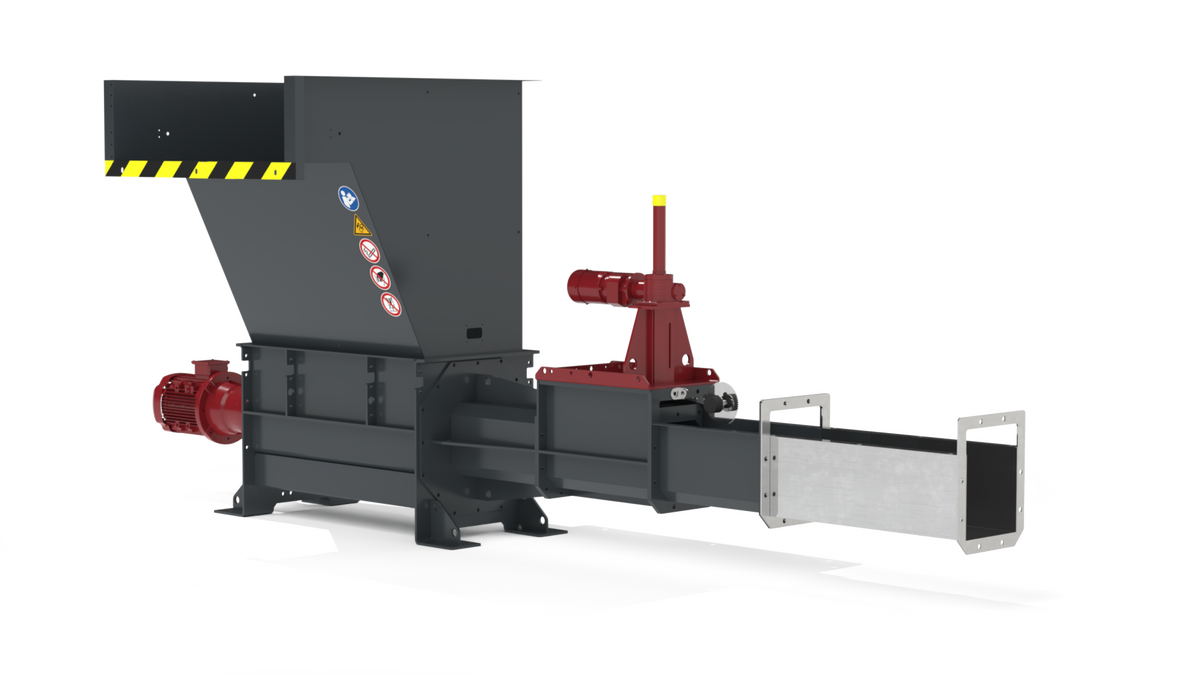

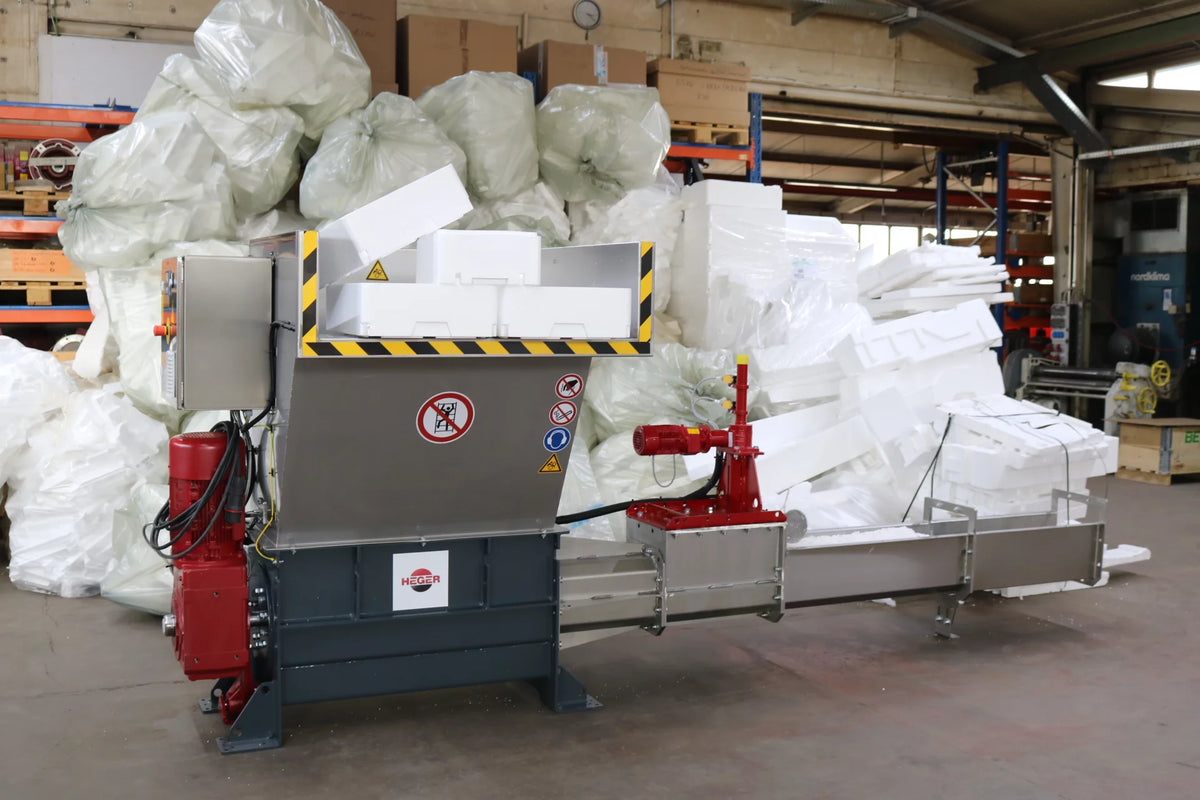

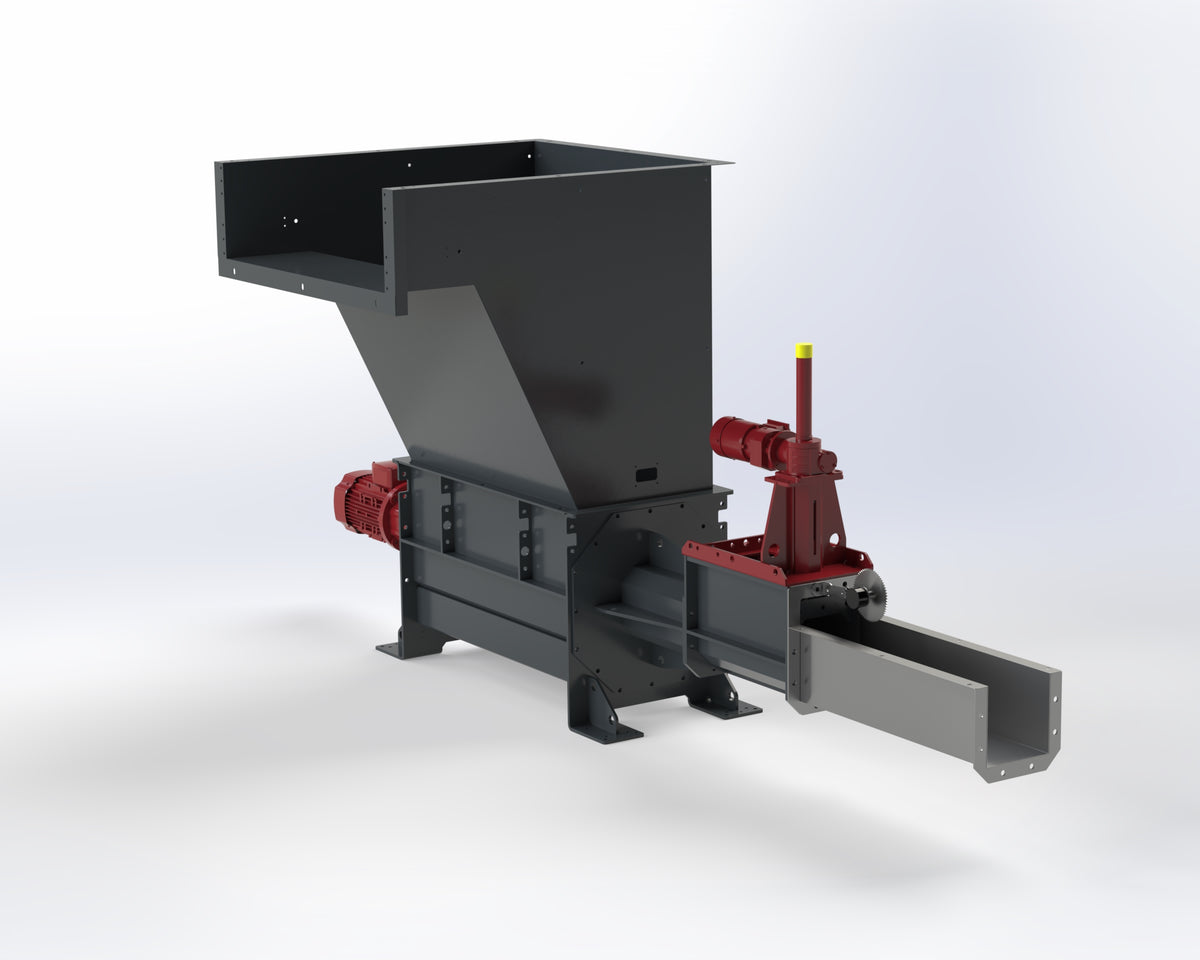

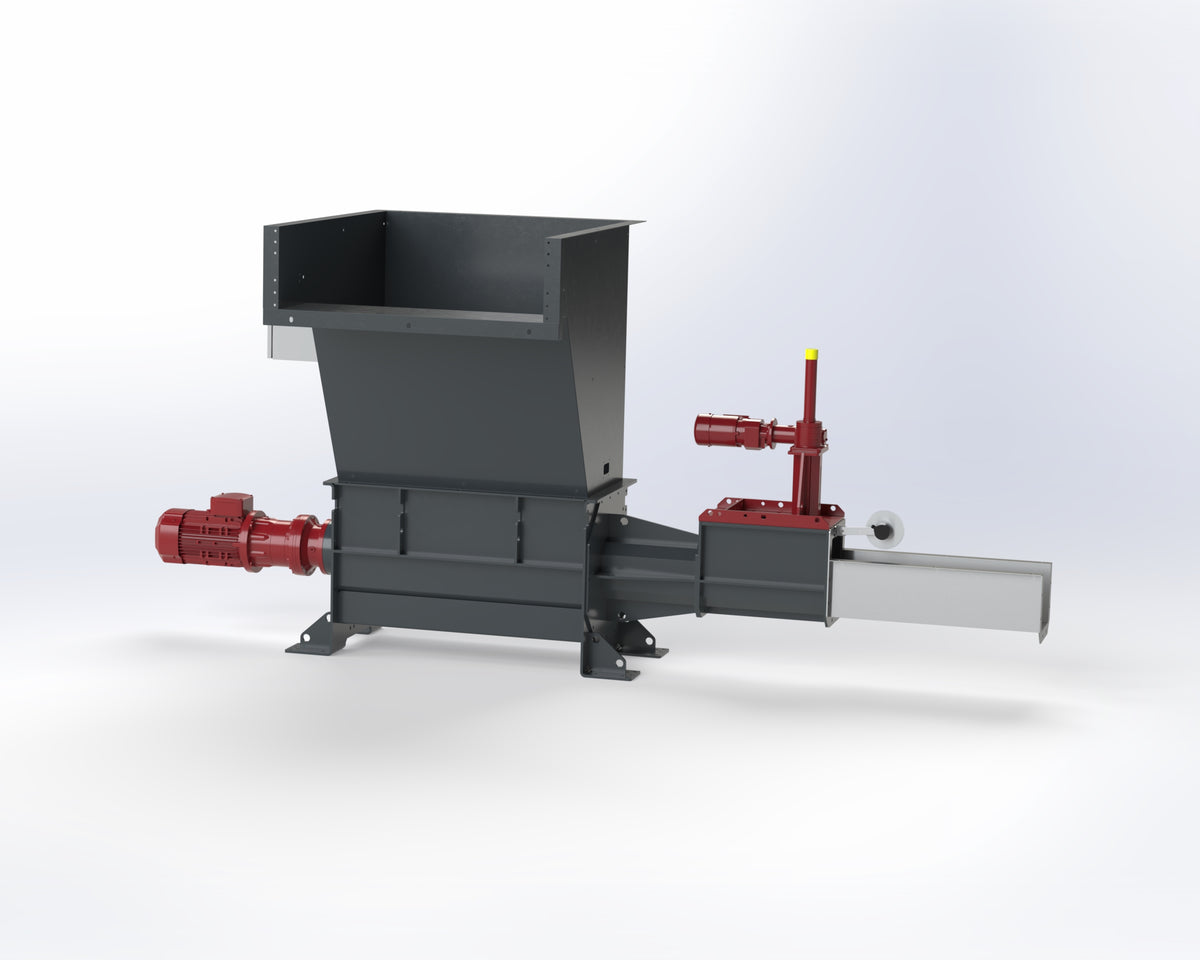

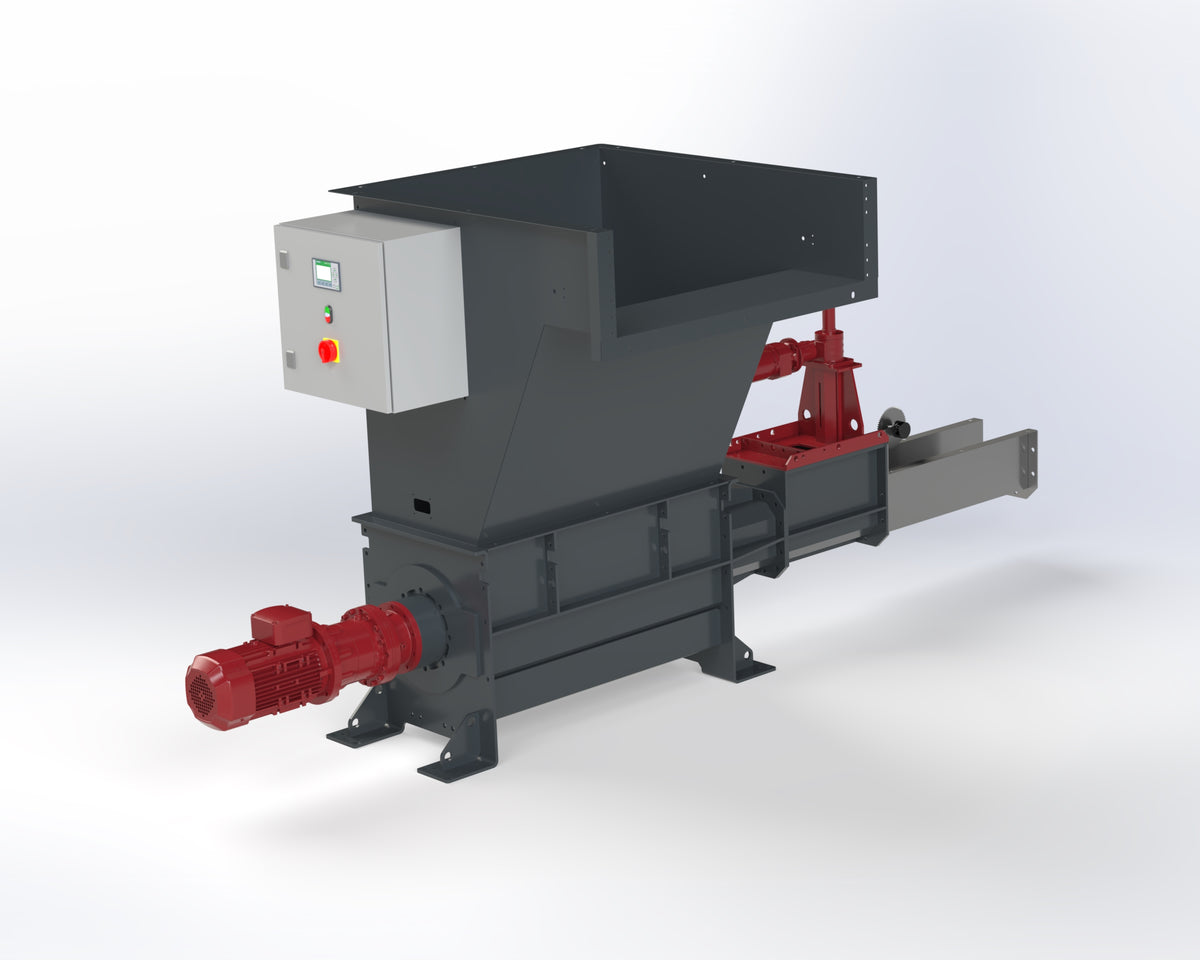

The HEGER THE TIGER GENIUS EPS is a compact EPS (Expanded Polystyrene) compaction system designed to reduce the volume of EPS packaging waste and prepare it for recycling.

Available in 4models

TIGER 130Genius | 18Kg/h
TGER 200Genius | 50Kg/h
TIGER250Genius | 80Kg/h
TIGER300Genius | 120Kg/h
TIGER400Genius | 200Kg/h

Check out more information on throughput, performance range, machine weight nd supply voltage by downloading the brochure from the download section

Options

Automatic block separation system for the production of defined block lengths | Block lifting crane with grab

Dimensions

Width: 1.07 mm
Height: 1.6 mm
Length: 2.59 mm

Weight

Machine Weight: 350kg

Additional Information

Throughput 1) up to 15-18 kg/h
Recommended performance range 1) 20 - 60 Kg/day
Achievable compaction density 1) up to 250 kg/m³
Processable material densities up to 40 g/l
Processable molded part thickness up to 200 mm
Effective feed opening (L x W) 800 x 360 mm
Block size 140 x 140 mm
Installation dimensions (L x W x H) 2) 2.590 x 1.070 x 1.602 mm
Machine weight 2) approx. 350 kg
Electrical connected load 2) 1,50 kW (16 Amp)
Supply voltage (EU) 3x 400 V 50 Hz
Supply voltage (USA) 3x 480 V 60 Hz
Marking CE

1) Depending on material type and material density
2) Basic machine without options Subject to technical changes / All information without guarantee

Downloads

Tiger_130-400_Genius.pdf
