DM Dumpmaster Heavy Duty Bin Tipper

Name: DM Dumpmaster Heavy Duty Bin Tipper
SKU: DM Dumpmaster Heavy Duty Bin Tipper

Price upon request

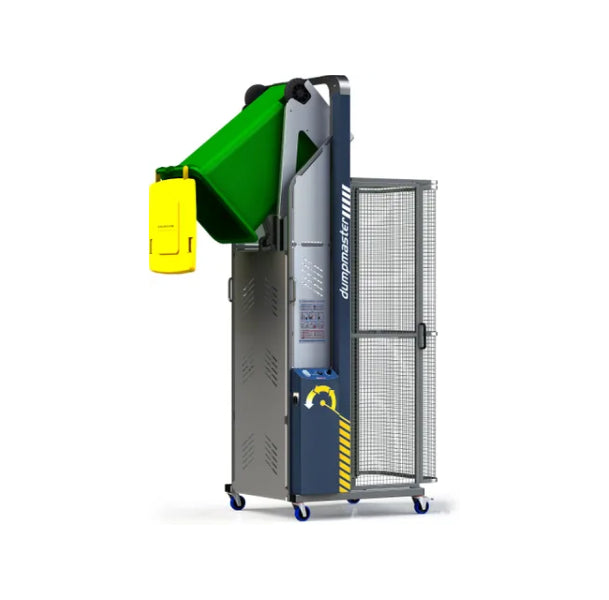

Dumpmaster is a high-speed mobile bin lifter from Simpro, with 250kg capacity and a modular design which can empty almost any bin at any height. The unique hydraulic action lifts bins vertically, then gently inverts them over the destination receptacle, while keeping the centre of gravity safely within the machine's footprint. A complete tipping cycle can take less than 30 seconds.

Enquire about this product

Product Description

Standard Dumpmaster models have battery or 3-phase mains powerpacks, but other power options can be specified, including solar panels, 1-phase mains, and even compressed-air. All models are designed for safety, with full-cage guarding, an interlocked door and CAT1 architecture to achieve PLc safety performance; optionally upgraded to CAT3 or CAT4. With a hot-dip galvanised frame and IP55 ingress protection, Dumpmaster needs little maintenance and can be used indoors or out.

In production since 1992, the Simpro Dumpmaster is now relied upon by thousands of companies around the world to save time and prevent injuries. It is made in New Zealand, CE-marked, and backed by a two-year warranty.

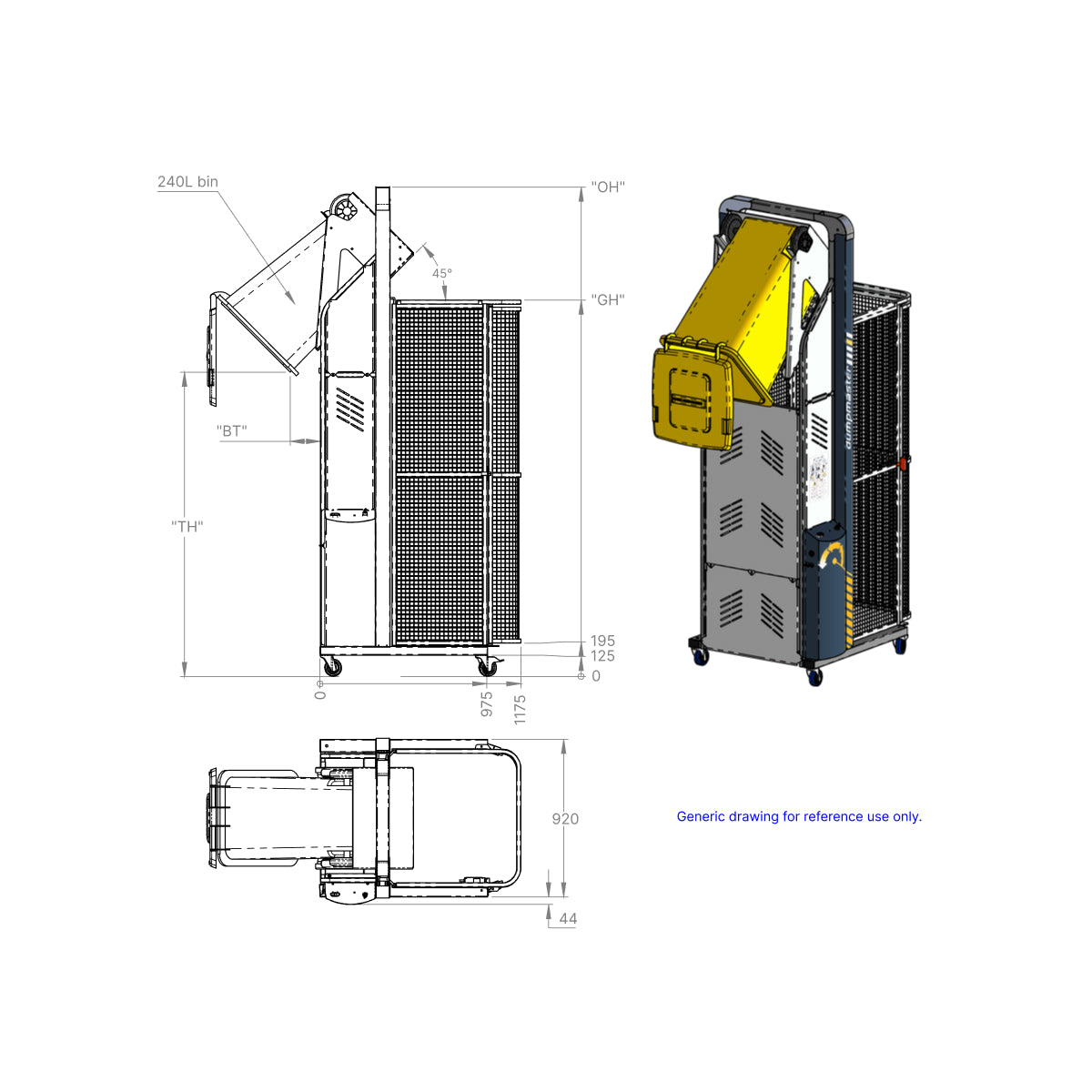

Models

DM0700

Tipping height ("TH"): 700mm
Height ("OH"): 1770mm
Weight: ~160kg
Tipping cycle duration: ~8s

DM1200

Tipping height ("TH"): 1200mm
Height ("OH"): 2260mm
Weight: ~205kg
Tipping cycle duration: ~11s

DM1500

Tipping height ("TH"): 1500mm
Height ("OH"): 2560mm
Weight: ~215kg
Tipping cycle duration: ~13s

DM1800

Tipping height ("TH"): 1800mm
Height ("OH"): 2860mm
Weight: ~225kg
Tipping cycle duration: ~15s

DM2100

Tipping height ("TH"): 2100mm
Height ("OH"): 3160mm
Weight: ~235kg
Tipping cycle duration: ~17s

DM (Custom)

Tipping height ("TH"): xxxx mm
Height ("OH"): xxxx + 1060mm
Weight: xxxx . 30 + 165kg
Tipping cycle duration: xxxx / 166 + 4s

Additional Information

Width: 964mm
Length: 1170mm door closed / 1834mm door open
Capacity (max bin weight): 250kg
Bin compatibility (EN840 cradle): 60L,80L,120L,140L,240LEN840 wheelie bins(options: custom cradle)
Bin throw ("BT"): ~180mm with 240L wheelie bin / ~105mm with 120L wheelie bin
700-6000mm tipping height
250/300kg capacity
Standard cradles to suit EN840 wheelie bins, DIN9797 Eurobins and ANSI trash carts (custom cradles available)
Battery, 3-phase, 1-phase, solar and compressed-air powerpacks available
Duty cycle up to ~4 tonnes per hour
Tipping cycle 20~60 seconds
CAT1 safety architecture to achieve PLc safety performance (optionally CAT3/CAT4)
Service weight 160~570kg
Castor wheels or bolt-down lugs
24 month back-to-base factory warranty
Electrical specifications (battery model): Onboard digital float charger (input: 85-264VAC 47-63hz, max draw 3 Amps), with 2x 12V 21Ah deep-cycle sealed gel batteries in series configuration, 0.8kW DC electric motor, and 24VDC control circuit (options: solar panel)
Electrical specifications (1-phase model): 1-phase mains supply (120/240VAC 50-60hz, max draw 8 Amps), with Variable Speed Drive (VSD) controller driving 0.75kW AC electric motor, and 24VDC control circuit
Electrical specifications (3-phase model): 3-phase mains supply (380-415VAC 50-60hz, max draw 1.9 Amps), with 0.75kW AC electric motor, and 24VDC control circuit
User interface: Raise/Lower buttons, key switch, battery indicator, master lockout switch (options: VSD joystick, autocycle unit with Emergency Stop button)
Ingress protection: IP55 (options: IP56, IP66, IP69K)
Cradle travel speed: 0.4m/s lifting / 0.28m/s lowering
Noise level at operator’s ear: ⪅ 60dB(A)
Materials: Hot-dip galvanised mild steel frame, galvanised mild steel cradle, 25x25x2.5mm zinc-plated wire mesh guarding (options: sheet metal guarding, polycarbonate guarding, full or partial 304 or 316 stainless steel)
Door: Left-hinged door with solenoid-operated electrical safety interlock (options: right-hinged door, swing-up door, roller door)
Mounting: 100mm Blue Resilex castors (options: 200mm castors, bolt-down lugs)
Applicable Standards and Certifications: AS/NZS4024, ISO 13849-1, IEC 62061, Conformité Européene (CE), EN 349 1993, EN 574 1996+A1:200, EN 953 1997, EN ISO 4413 2010, EN ISO 12100 2010, EN ISO13849-1 2006, EN ISO 13857 2008, EN 60204 2006+A1 2009, EN61000-6-2 2005, EN61000-6-4 2007, Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2004/108/EC
