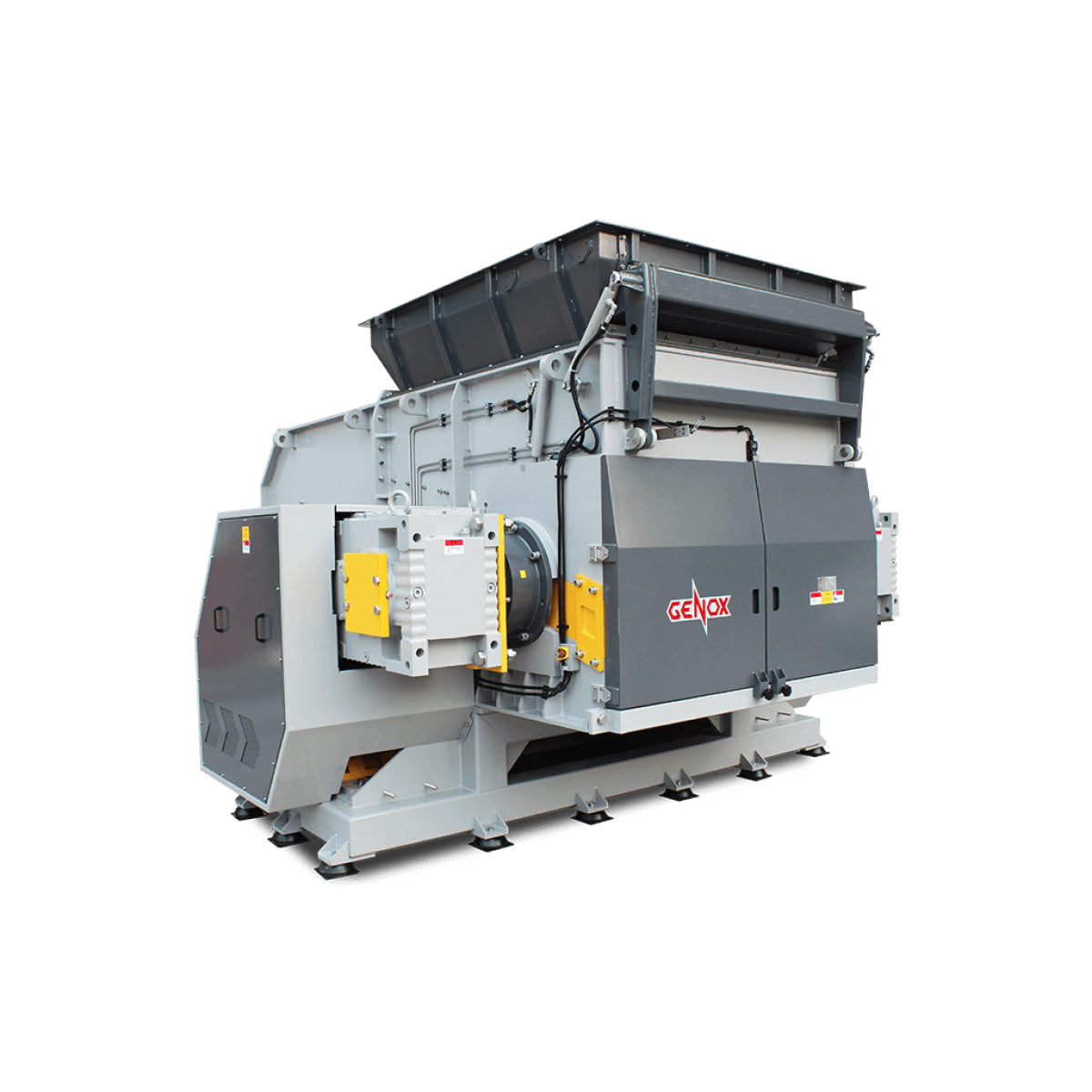

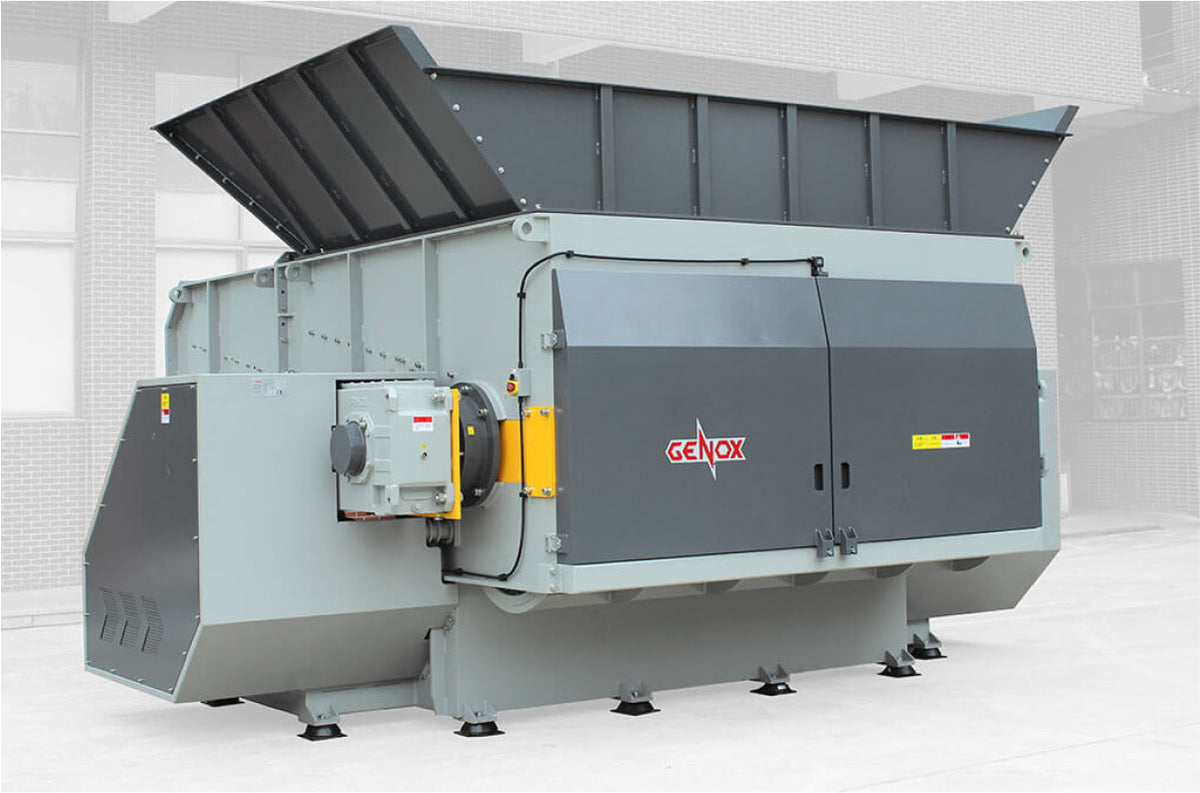

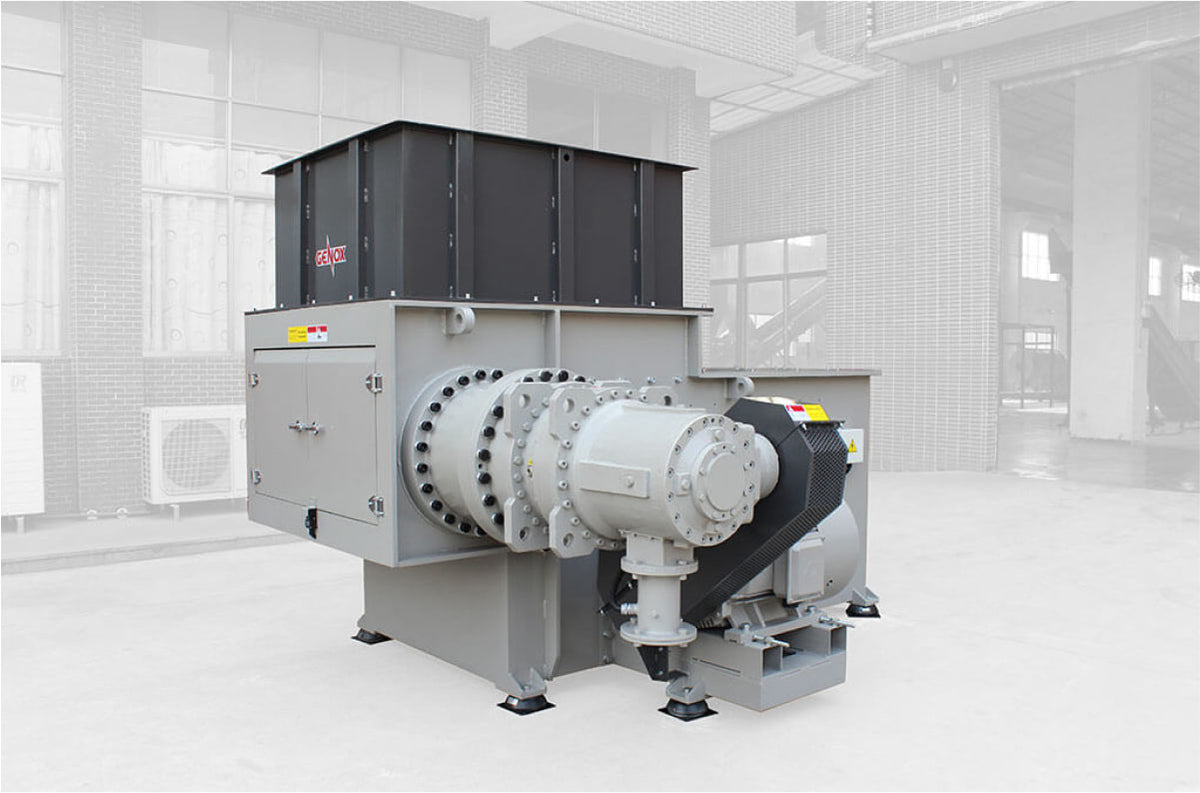

Single Shaft Shredder Genox - BH Series- BH1500-BH3000

Single Shaft Shredder Genox - BH Series- BH1500-BH3000

Name: Single Shaft Shredder Genox - BH Series- BH1500-BH3000
SKU: Single Shaft Genox Shredder - BH Series

Price upon request

BH Series Single Shaft Shredders are heavy duty, reduction machines specifically designed for shredding a wide variety of untreated waste material streams down into either coarse or medium sized fractions. The powerful, wear resistant machine structure is well suited to demanding recycling tasks.

Enquire about this product

Features

Energy Efficient + Maximum Cutting Force & Productivity

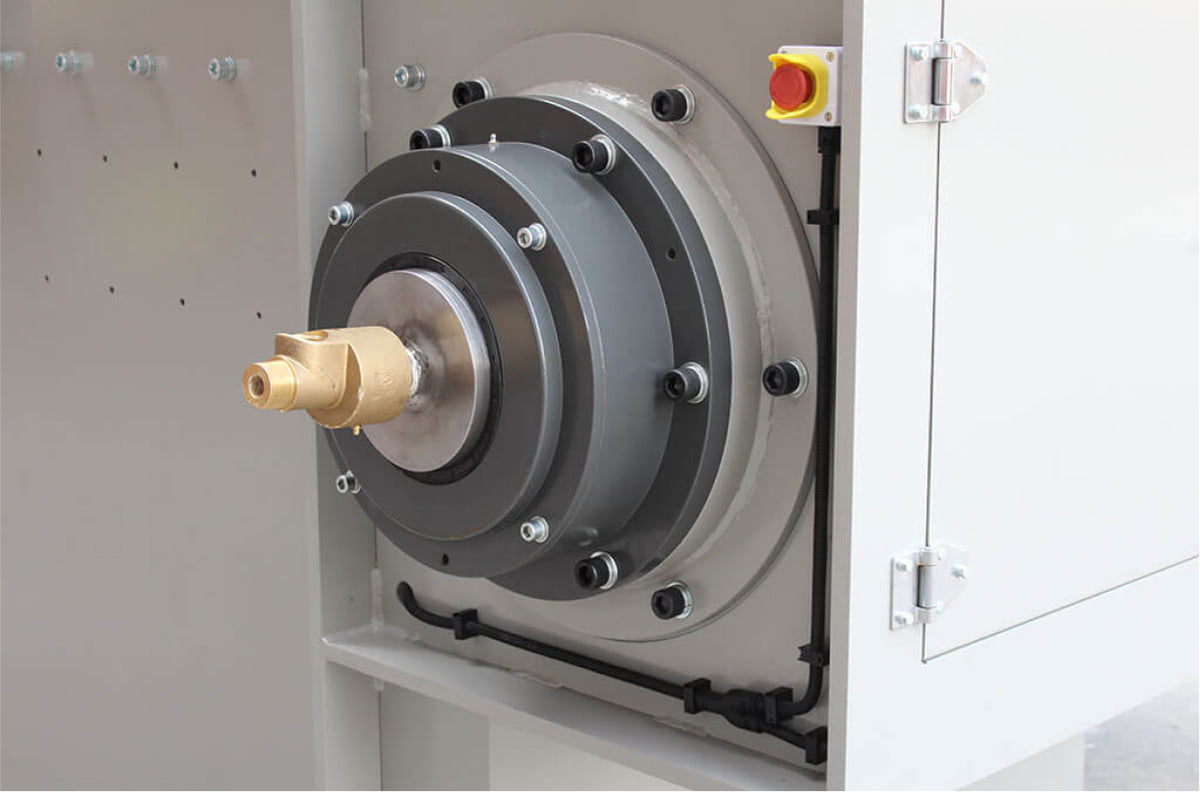

Shock Absorbing Gearbox reduces Stress on Drive Components

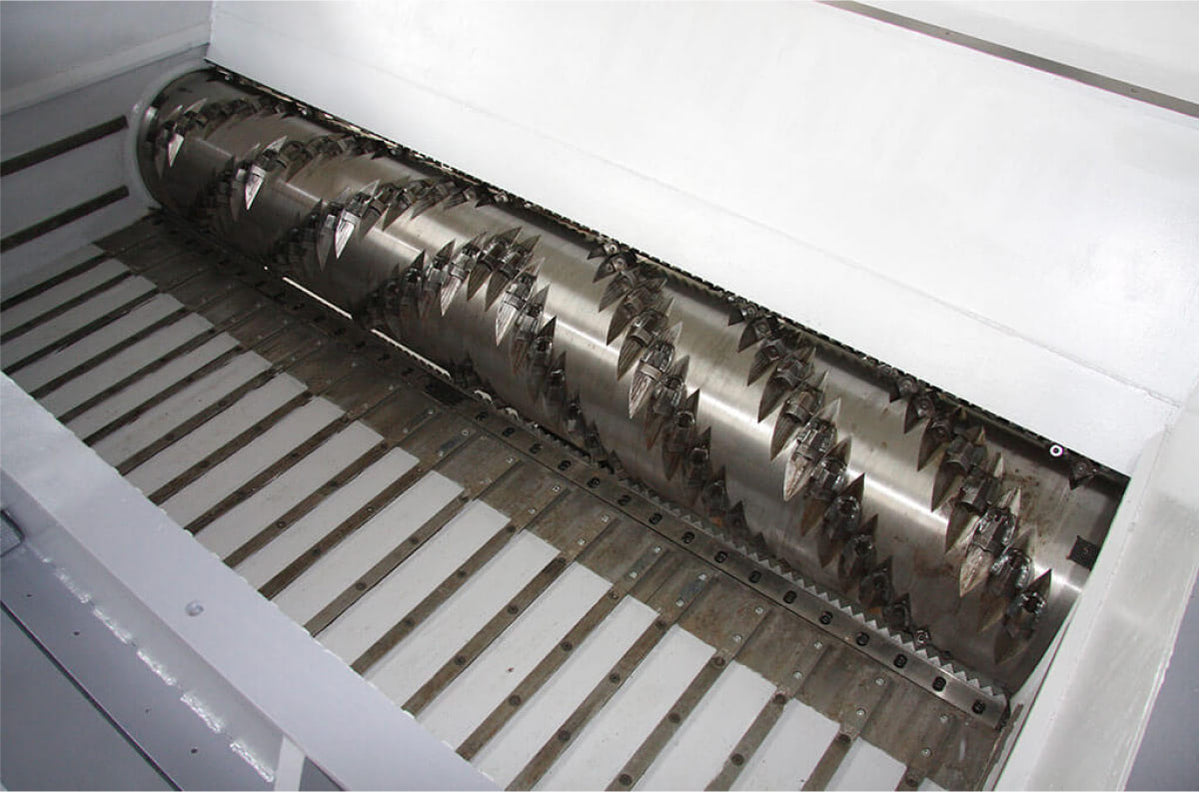

Rotor Knives can be rotated and used on four edges before replacement.
Long Life Counter Knives can be adjusted to maintain cutter clearance

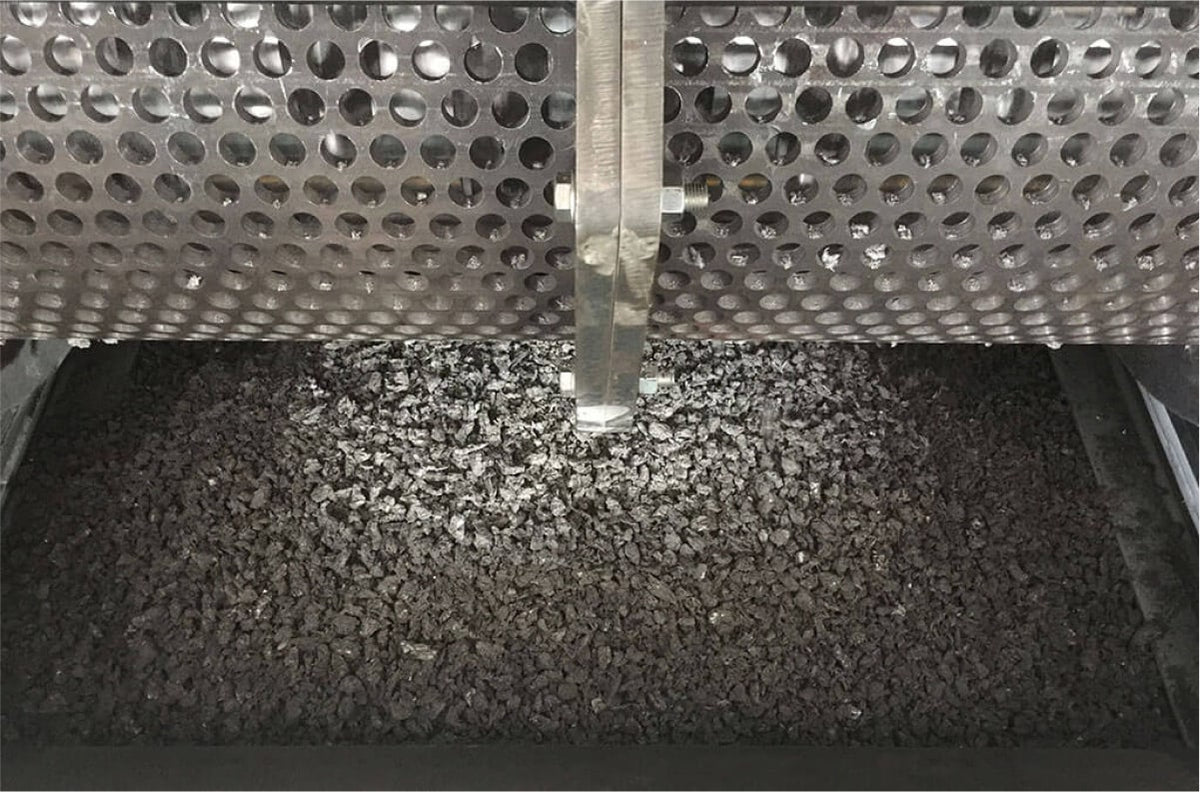

Quick Change Screens for accurate particle size control
Segmented Shredding Chamber Floor with Brass Guides
Pusher drawer mounted on heavy duty rollers.
Twin Speed Hydraulics with integrated air cooler
Stand Alone Electrical Control Panel with Siemens PLC Control System
Tested, Approved and Certified to the applicable CE safety standards

Product Description

Typical Applications Include:

Plastics – Mouldings, Purging/Lump, Profiles, Films, etc.
Timber/Wood – Pallets, Joiners Waste, Green Waste, etc.
Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials, etc.
Copper Cable – Household, Telecoms, and Industrial Cables including S.W.A
Aluminum – Used Beverage Cans (UBCs), Swarf, Cables, etc.
Textiles – Carpet (Rolls & Tiles), Garments, etc.
Security Destruction – Counterfeit Items, Faulty Goods, Out of Date Stock, etc.
Foam – Production Waste, etc.
Mixed Household & Commercial Waste – RDF/SRF Production

Models (Table)

Model		BH1500	BH2000	BH1700	BH2200	BH2800	BH1800	BH2400	BH3000
Main Drive(kw)		110	75+75	132	90+90	110+110	90+90	132+132	160+160
Rotation Diameter(Φmm)		480	480	650	650	650	800	800	800
Shredding width(mm)		1500	2000	1650	2240	2840	1790	2390	2990
Rotation Speed(rpm)		80	80	80	80	80	80	80	80
Number of Rotor Knives	Standard rotor	84+6	95+6	94+6	109+6	125+6	106+6	124+6	156+6
S type rotor	84+6	95+6	94+6	109+6	125+6	106+6	124+6	156+6
F type rotor	87	117	94+6	129+6	138+6	122	141	177
K type rotor	84+6	95+6	94+6	109+6	125+6	106+6	124+6	156+6
Number of Counter Knives	Lower fixed blade	3	4	3	4	5	3	4	5
Upper fixed blade	3	4	3	4	5	3	4	5
Hydraulic Power Pack(kw)		7.5	7.5	7.5	15	15	11	15	15
Ram(mm)		1100	1100	1100	1100	1100	1100	1100	1100
Rotor blade size(mm)		40X40	40X40	40X40	40X40	40X40	40X40	40X40	40X40
The quantity of screens		3	4	3	4	5	3	4	5
Dimension	L	3710	3710	3920	3920	3920	4070	4070	4070
W	2880	4150	2750	4500	5600	4070	4670	5270
H	2530	2530	2720	2720	2720	2870	2870	2870
A	2080	2080	2380	2380	2380	2530	2530	2530
B	1880	2380	2080	2580	3180	2180	2780	3380
C	720	720	720	720	720	800	800	800
D	770	770	880	880	880	1030	1030	1030
E	1500	2000	1650	2200	2750	1800	2400	3000
Weight		11110	14800	13800	18000	21000	16000	20000	20000
