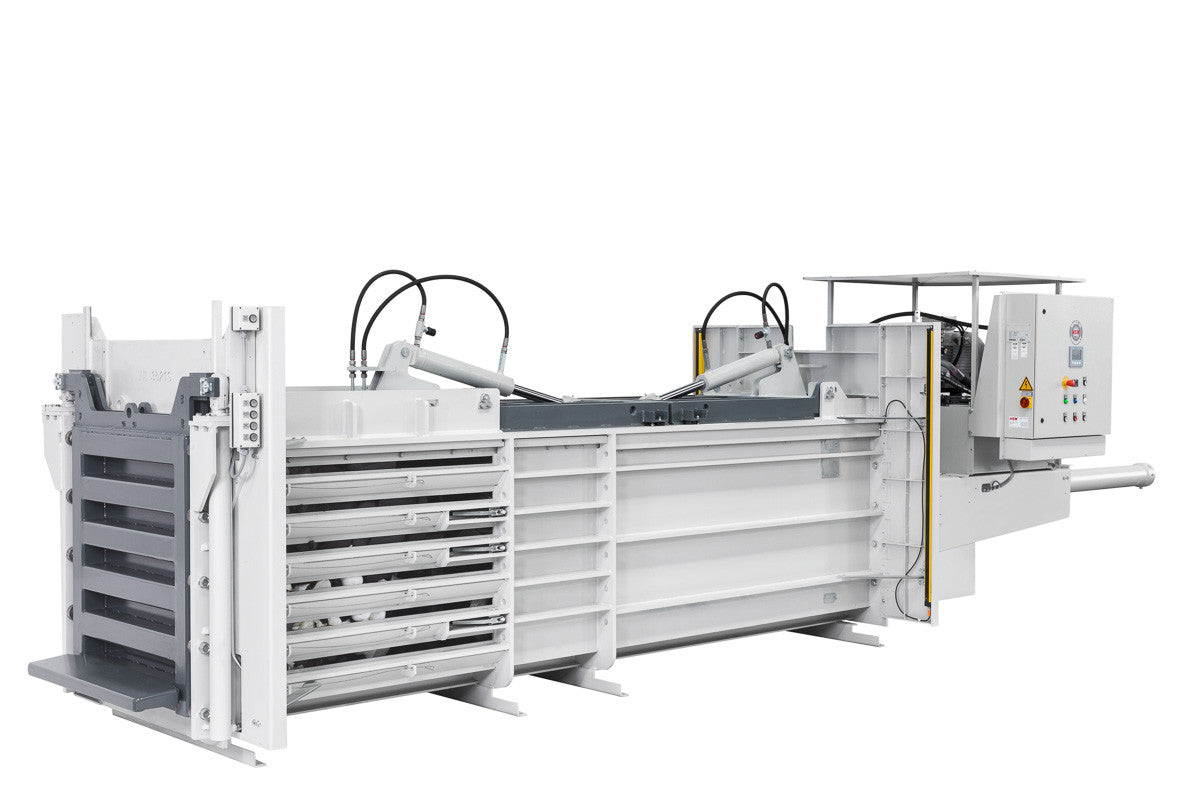

HL 3521 S Horizontal Manual Tie Baler

Name: HL 3521 S Horizontal Manual Tie Baler
SKU: HL 3521 S Horizontal Manual Tie Baler

Price upon request

The HSM HL 3521 S, with its exceptionally large loading aperture is the perfect machine for compressing large quantities of paper, cardboard, foils or packaging material and for extremely large and bulky materials. It also has been especially designed for compressing strongly expanding material such as foam.

Enquire about this product

Features

Compression of bulky materials. Suitable for: cardboard, film, foams, polystyrene, hollow vessels, metal buckets, barrels and much more
Safeguarding of the operating area with infrared light curtains for maximum operator safety

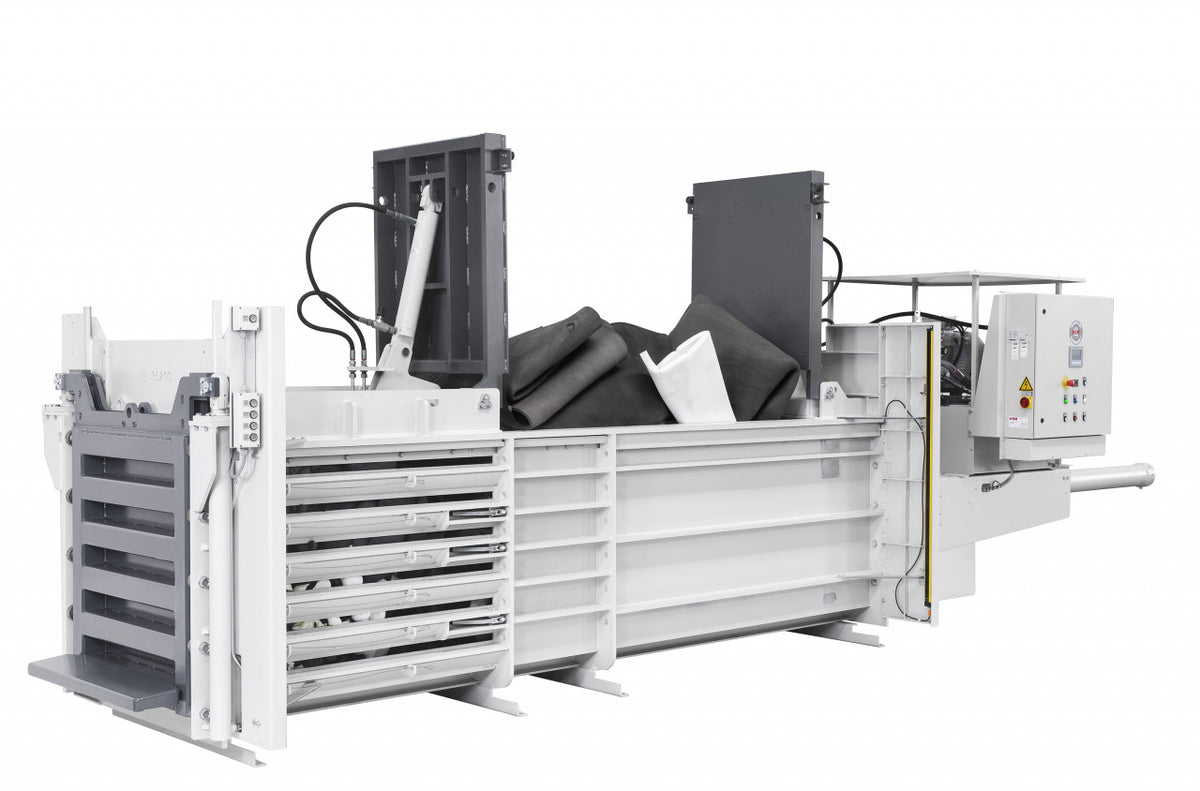

The extremely large loading aperture makes the unit simple and convenient to load
Hydraulic loading flap for maximum operating comfort
Multilingual operational guidance and Stored-program controller PLC

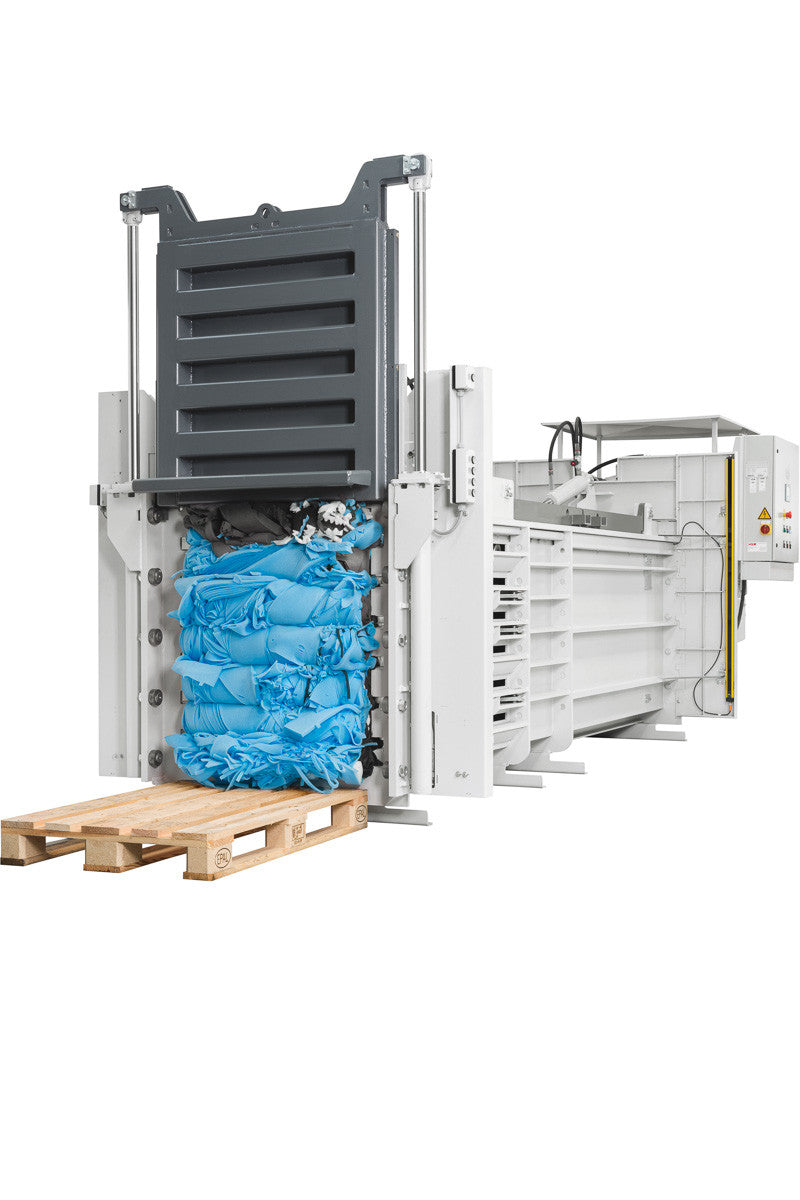

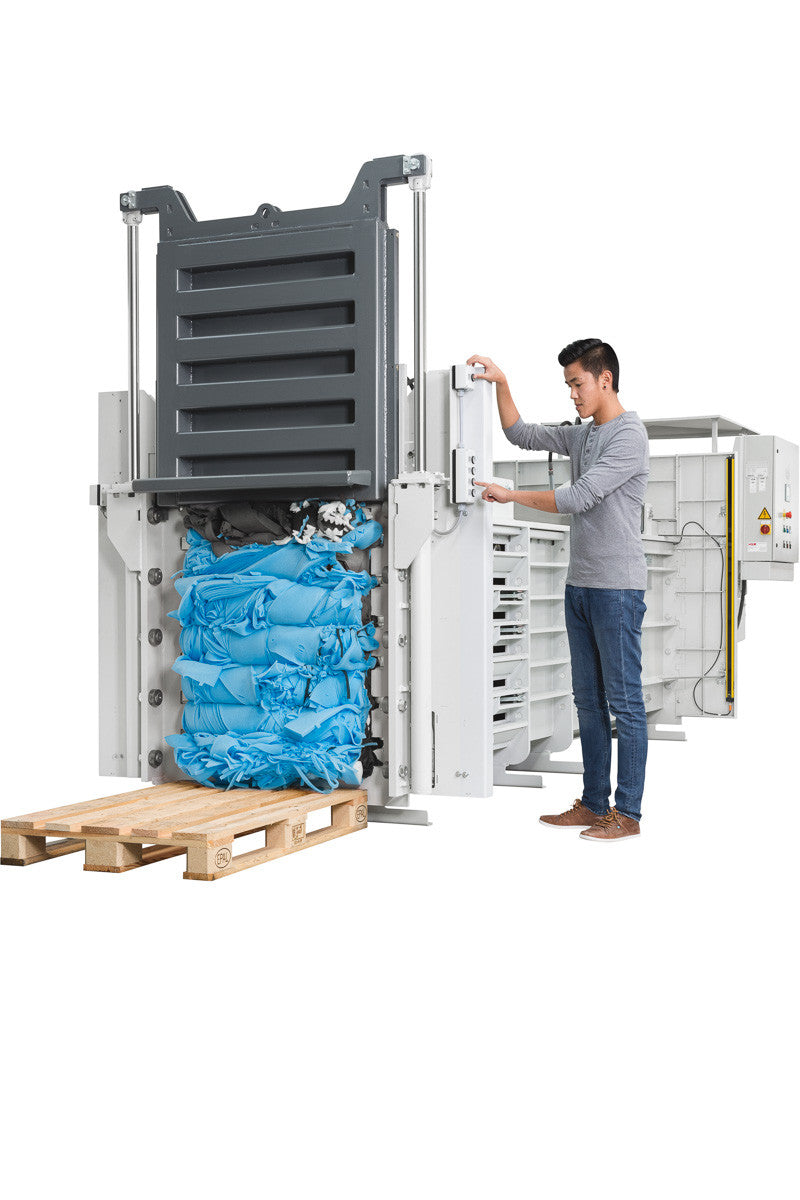

Hydraulic counterplate for bale removal ensures optimum operating convenience and safety
The unique design and controllable positioning of the press ram allows for easy cleaning and servicing
Automatic information as soon as enough material for a bale has been compressed and the bale can be tied
Manual bale strapping with continuous polyester tape. (HL 3521 S optionally also with eyelet wire or tape)

Dimensions

Width: 1660 mm
Height: 2485 mm
Length: 7900 mm

Weight

Machine Weight: 7100 kg

Additional Information

Specific pressing power: 40 N/cm²
Driving power: 22 kW
Voltage / Frequency: 400 V / 50 Hz
Cycle time when idling vacío: 44 s
Volume throughput in idle operation (theor.): 138 m³/h
Loading aperture width x Loading aperture length: 800 x 2100 mm
Bale width x Bale height x Bale length: 800 x 1000 x 1200 mm
Bale weight: 600 kg
Method of loading: manual
Length x Width x Height: 7900 x 1660 x 2485 mm
Weight: 7100 kg
Type of consumables: Strapping tape
Press material: Plastic film, Mixed paper, Cardboard, Punch waste/residue, Big Bags, HDPE / LDPE hollow containers & plastic bottles, Polystyrene
