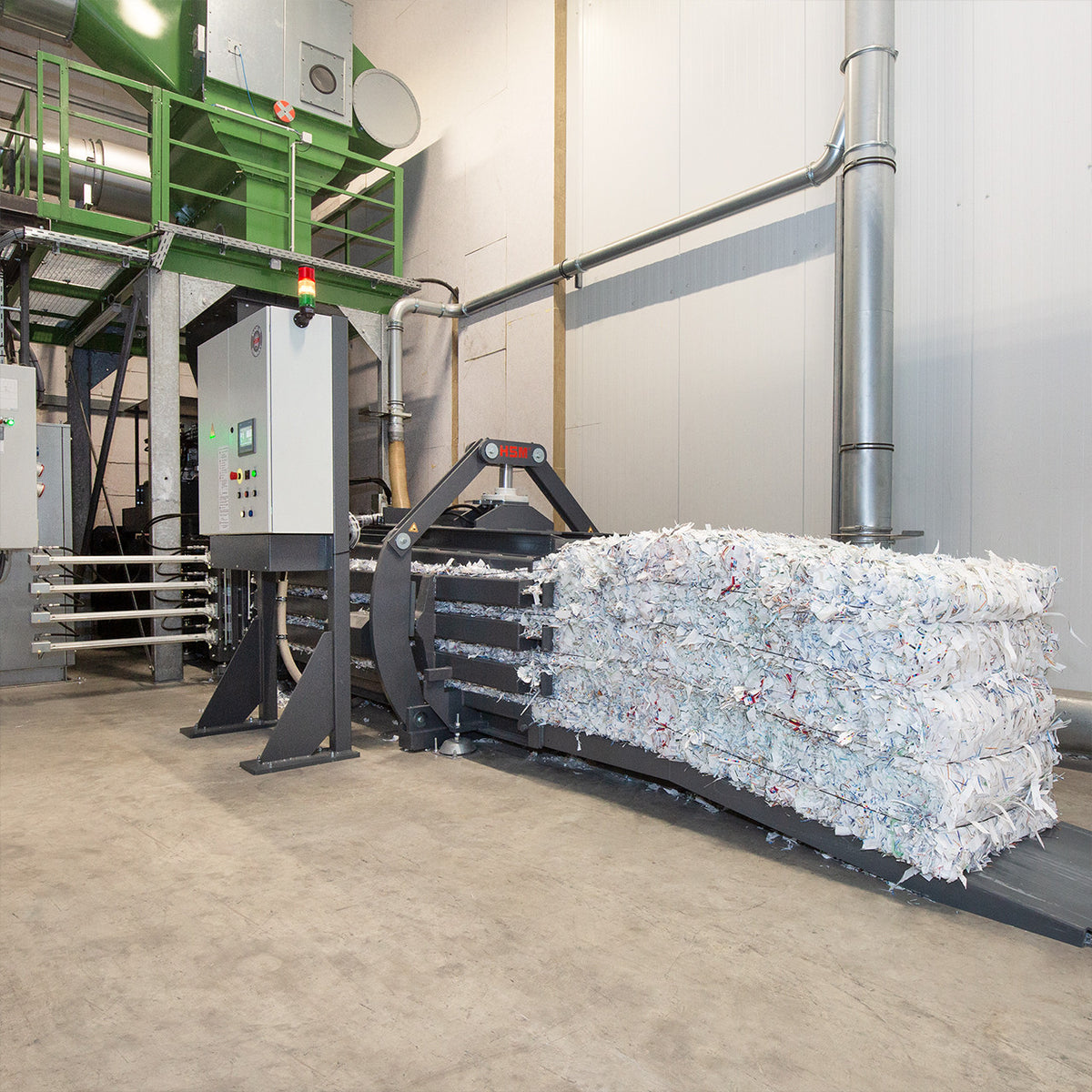

VK4208 Horizontal Auto Tie Baler
Price upon request
For industrial applications with small material loads - Troughput up to approx. 216 m³/h
Features
- Suitable for compressing paper, cardboard, shredded material and plastic film
- Versatile solution for materials up to approx. 60 kg /m³ bulk weight
- Fast cycle times, 800 mm loading aperture
- Integration into automated industrial production processes
- Suitable for continuous loading with conveyor belt, air feeding or similar
- High compression and bale weights
- Control of the pressing process via light barrier
- Can be fully integrated into existing workflows and processes. Operating side can be selected
- Suitable for almost all requirements. Contact us if you have other materials or applications. We will find you a suitable solution.
Dimensions
- Width: 2882 mm
- Height: 2030 mm
- Length: 6960 mm
Weight
Machine Weight: 6300 kg
Additional Information
- Specific pressing power: 75 N/cm²
- Driving power: 30 kW
- Voltage / Frequency: 400 V / 50 Hz
- Cycle time when idling vacío: 7.5 s
- Volume throughput in idle operation (theor.): 216 m³/h
- Volume throughput at 50kg/m³ (theor.): 10.8 t/h
- Loading aperture width x Loading aperture length: 620 x 800 mm
- Bale width x Bale height x Bale length: 700 x 800 x 600-1200 mm
- Length x Width x Height: 6960 x 2882 x 2030 mm
- Weight: 6.3 t
- Type of consumables: Wire
- Press material: Plastic film, Mixed paper, Cardboard, Punch waste/residue
Downloads
Enquiry Form
Product: VK4208 Horizontal Auto Tie Baler
You may also like
HL 4812 Horizontal Manual Tie Baler
The HSM HL 4812 has been designed with an operating concept and technical features in mind to make it the optimum machine for food retailers and small central storage facilities....
HL 3521 S Horizontal Manual Tie Baler
The HSM HL 3521 S, with its exceptionally large loading aperture is the perfect machine for compressing large quantities of paper, cardboard, foils or packaging material and for extremely large...
VK4812 Horizontal Auto Tie Baler
For industrial applications with small material loads - Troughput up to approx. 332 m³/h

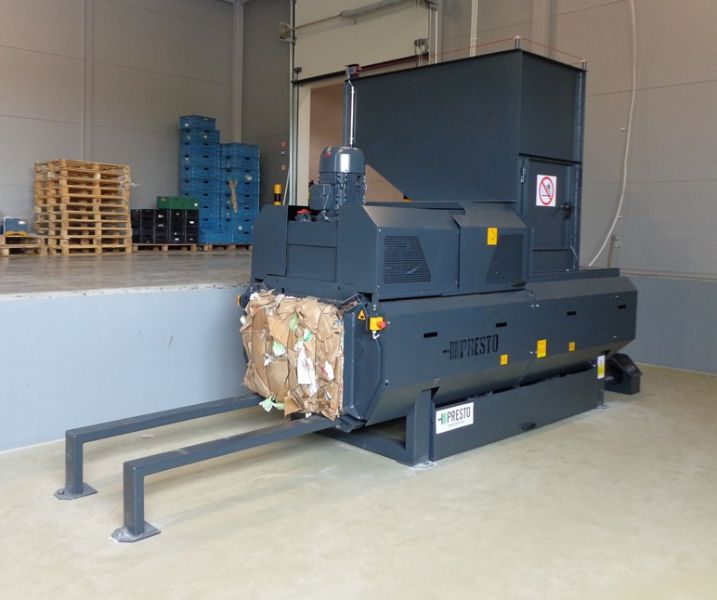

CC 30 V Horizontal Auto Tie Baler
