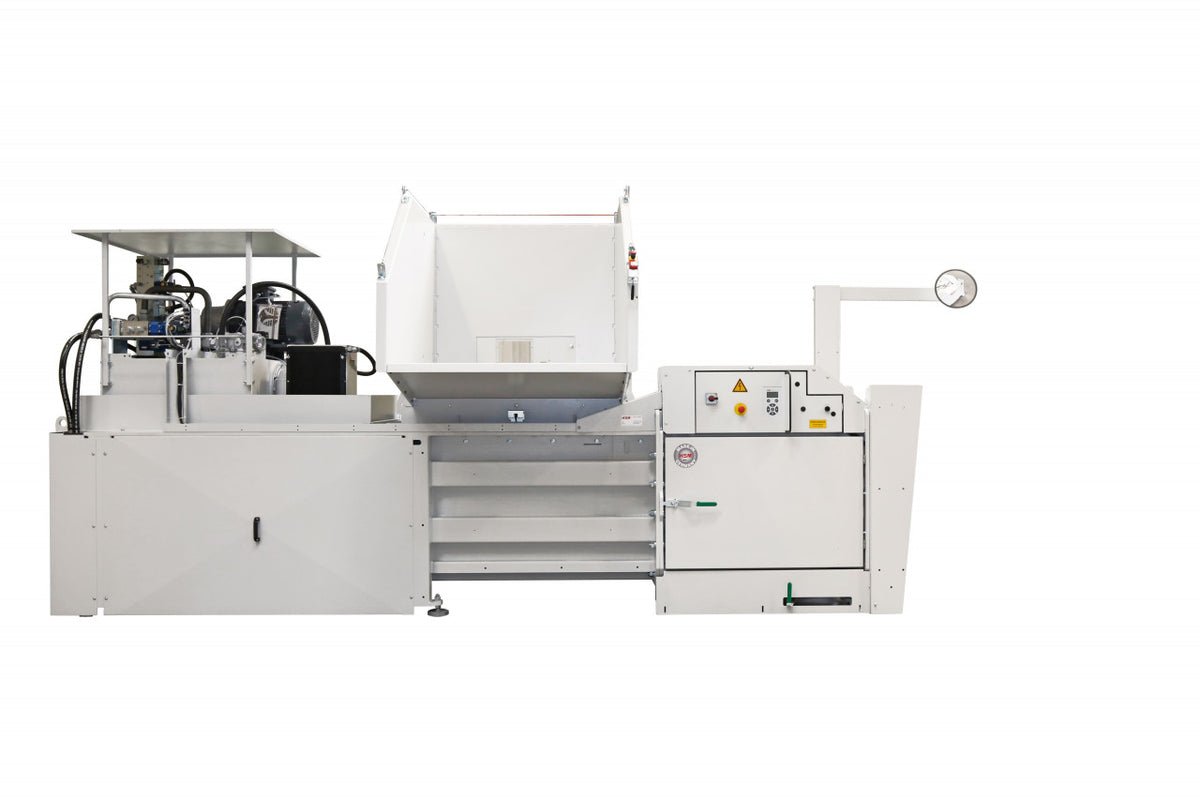

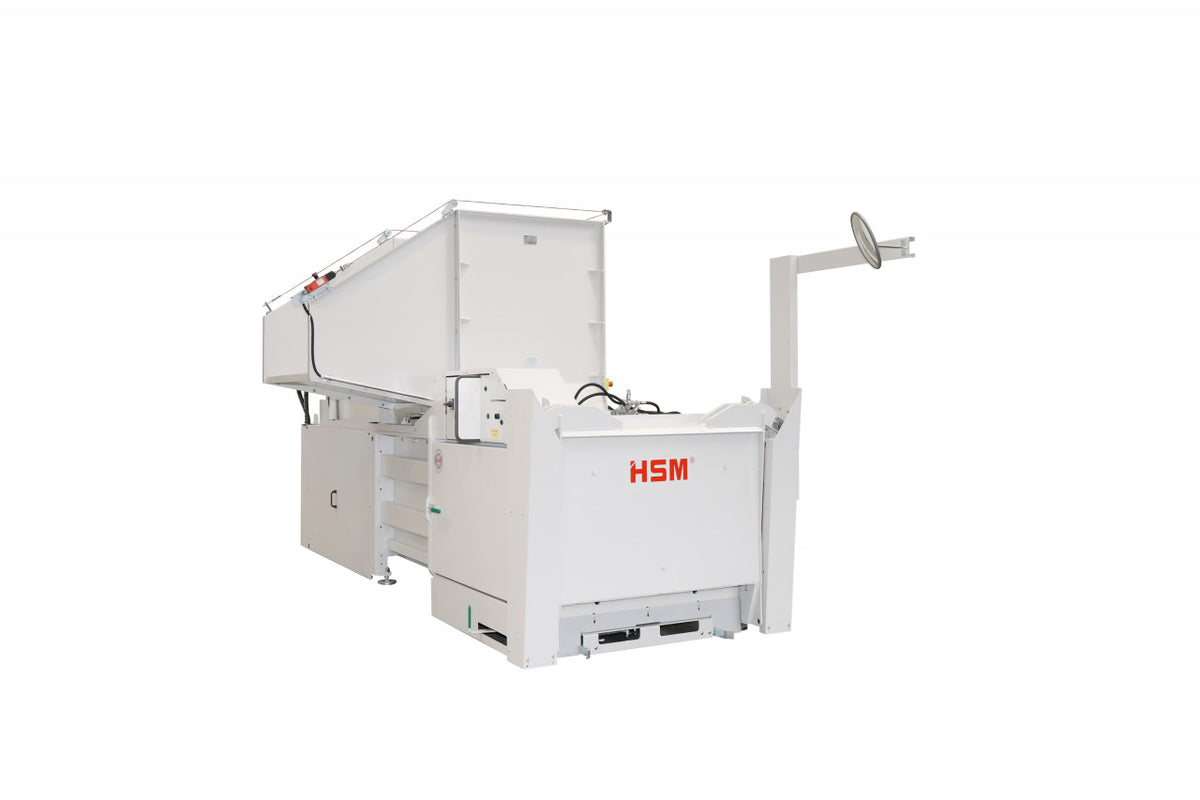

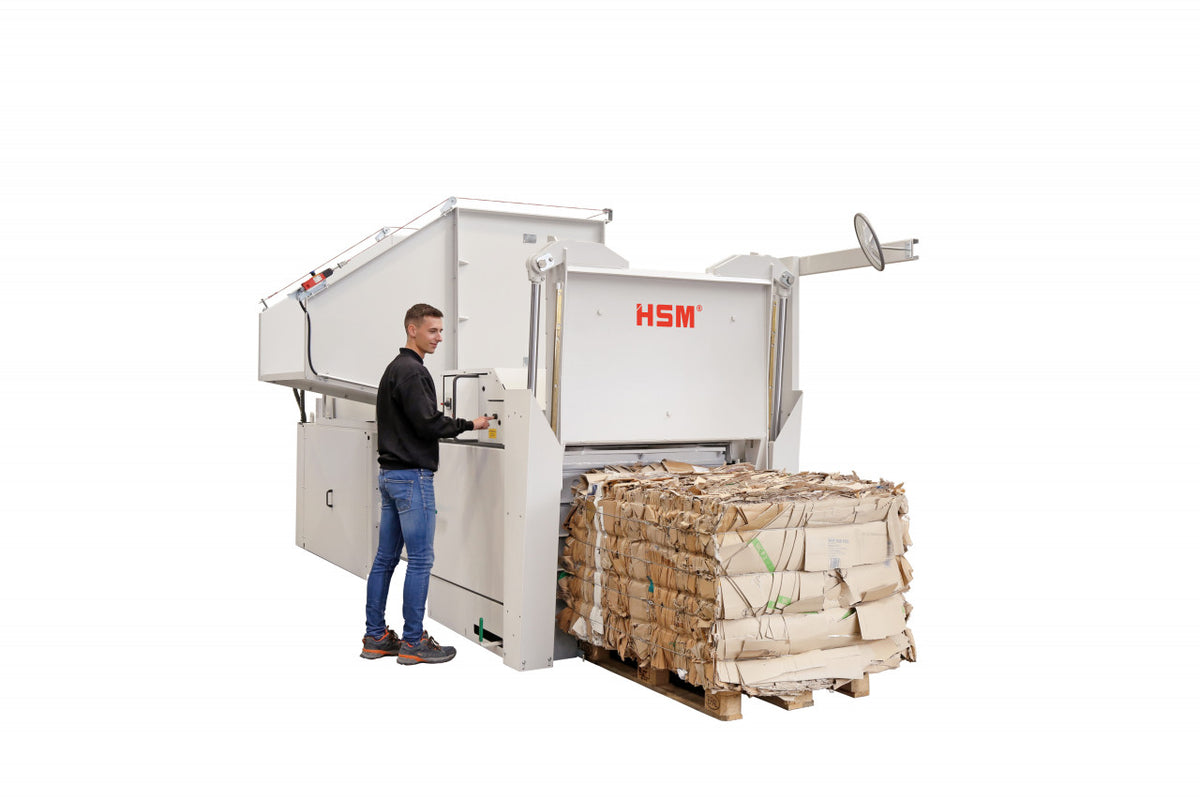

HL 4812 Horizontal Manual Tie Baler
Price upon request
The HSM HL 4812 has been designed with an operating concept and technical features in mind to make it the optimum machine for food retailers and small central storage facilities. It can be fed manually or via conveyor. Bale ejection is handled by the machine efficiently and safely with minimum operator effort. All in all a sophisticated solution for small to medium quantities at a great price-performance ratio and high automation level.
Features
- Suitable for cardboard as well as film
- Suitable for continuous loading with conveyor belt or similar
- Especially large loading aperture for bulky materials
- Very low space requirement thanks to compact and sturdy design
- Manual bale strapping with Quick-link wire
- Pallet locking mechanism for safe bale removalIntuitive, multilingual operational guidance via graphic description
- High specific pressing power provides a high compaction of the material and consequently an optimum HGV load
- Hydraulic sliding door for bale removal ensures optimum operating convenience and safety
Dimensions
- Width: 1642 mm
- Height: 2550 mm
- Length: 5158 mm
Weight
Machine Weight: 5899 kg
Additional Information
- Specific pressing power: 58 N/cm²
- Driving power: 22 kW
- Voltage / Frequency: 400 V / 50 Hz
- Cycle time when idling vacío: 25 s
- Volume throughput in idle operation (theor.): 130 m³/h
- Loading aperture width x Loading aperture length: 1020 x 1250 mm
- Bale width x Bale height x Bale length: 1100 x 750 x 1200 mm
- Bale weight: 420 kg
- Length x Width x Height: 5158 x 1642 x 2550 mm
- Weight: 5899 kg
- Type of consumables: WirePress material: Plastic film, Mixed paper, Cardboard
