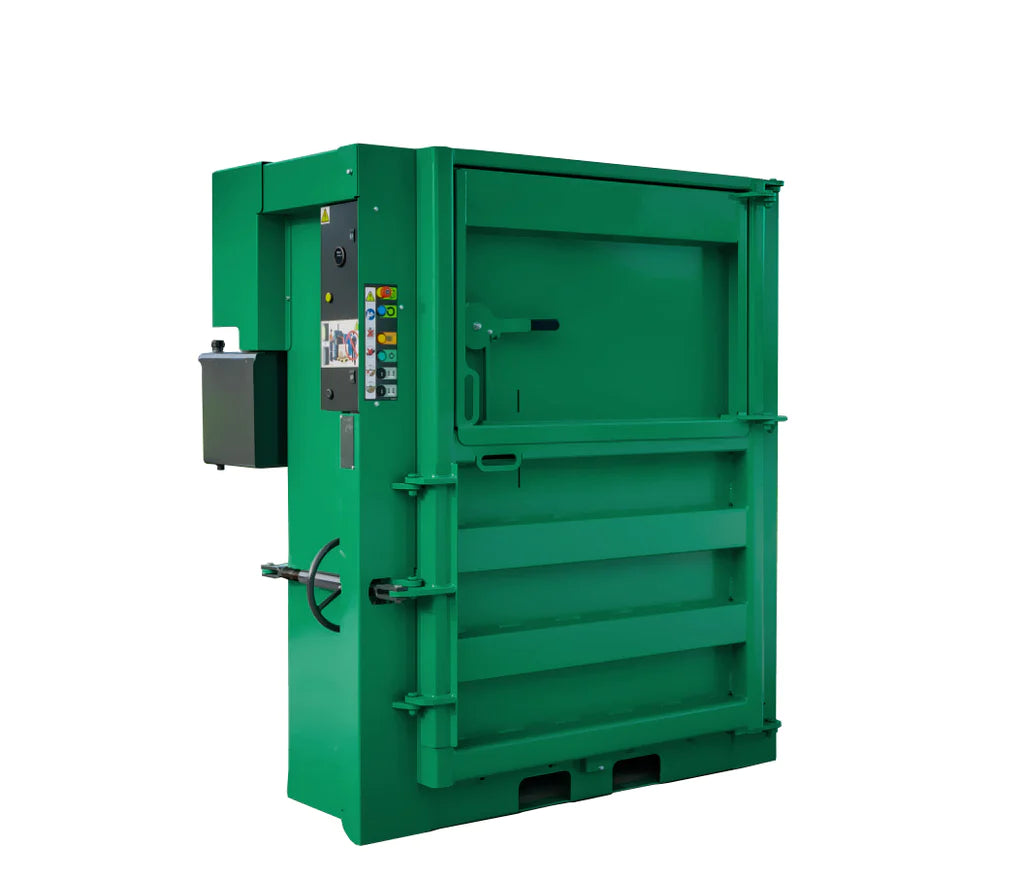

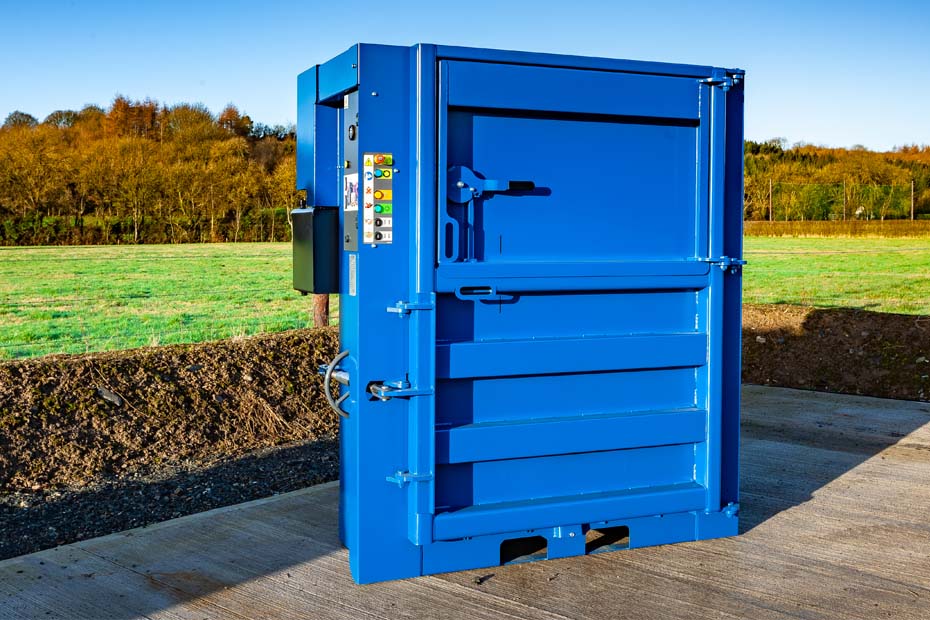

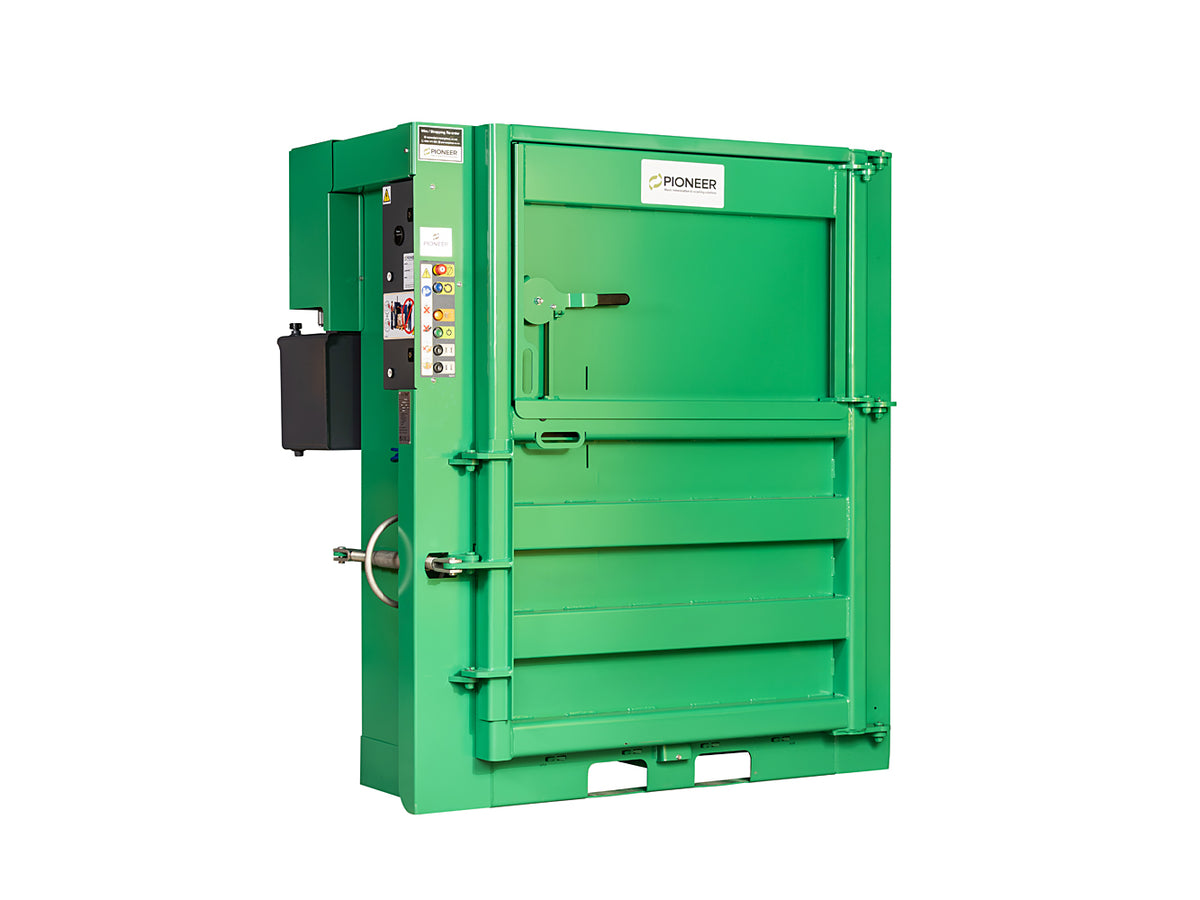

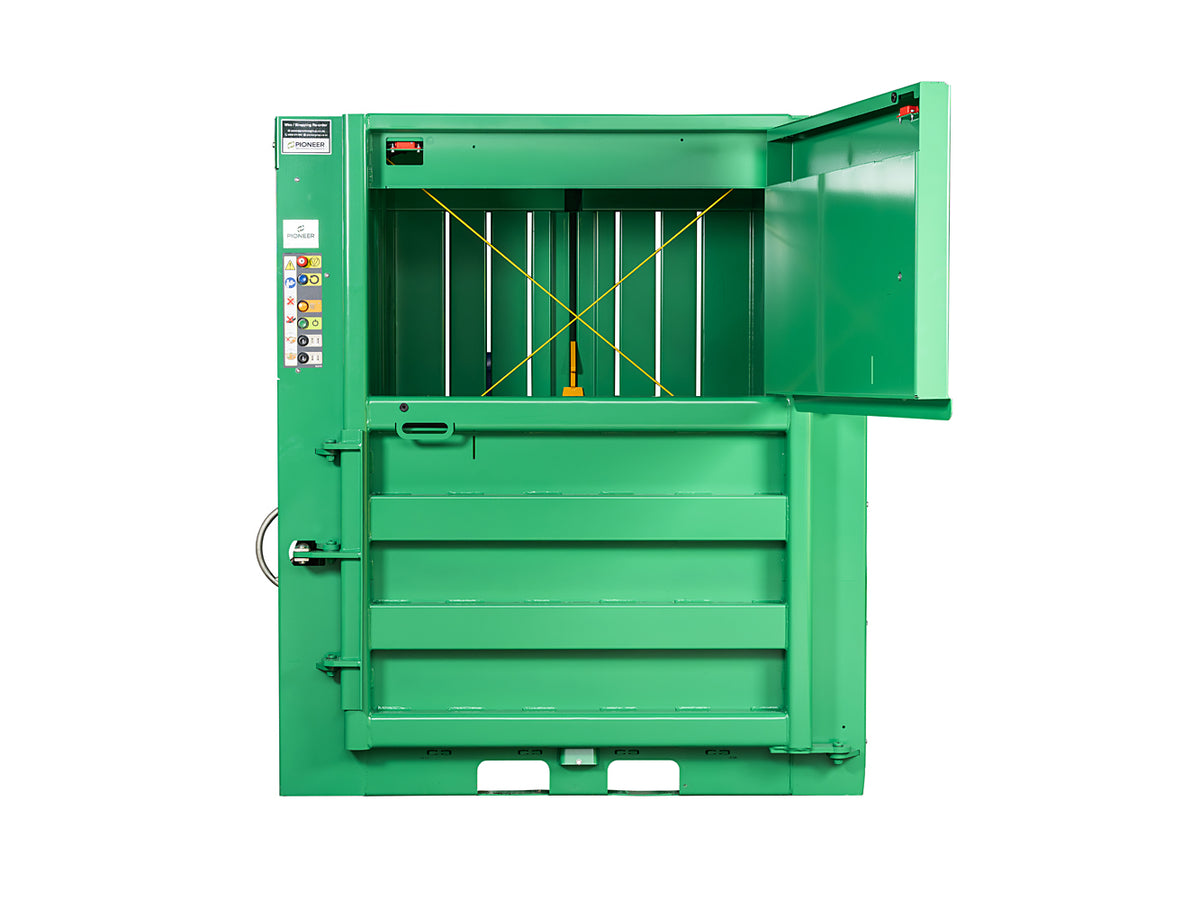

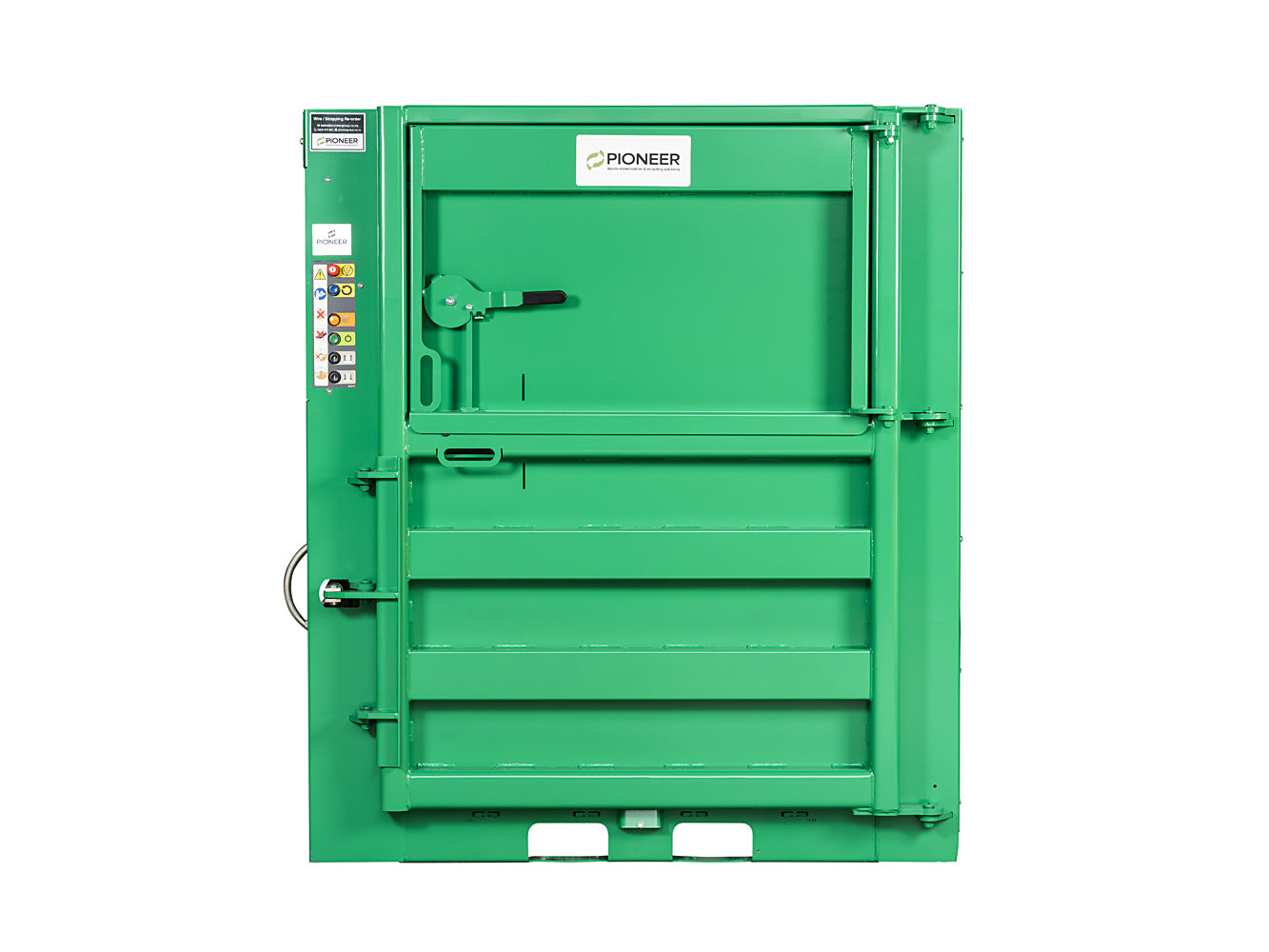

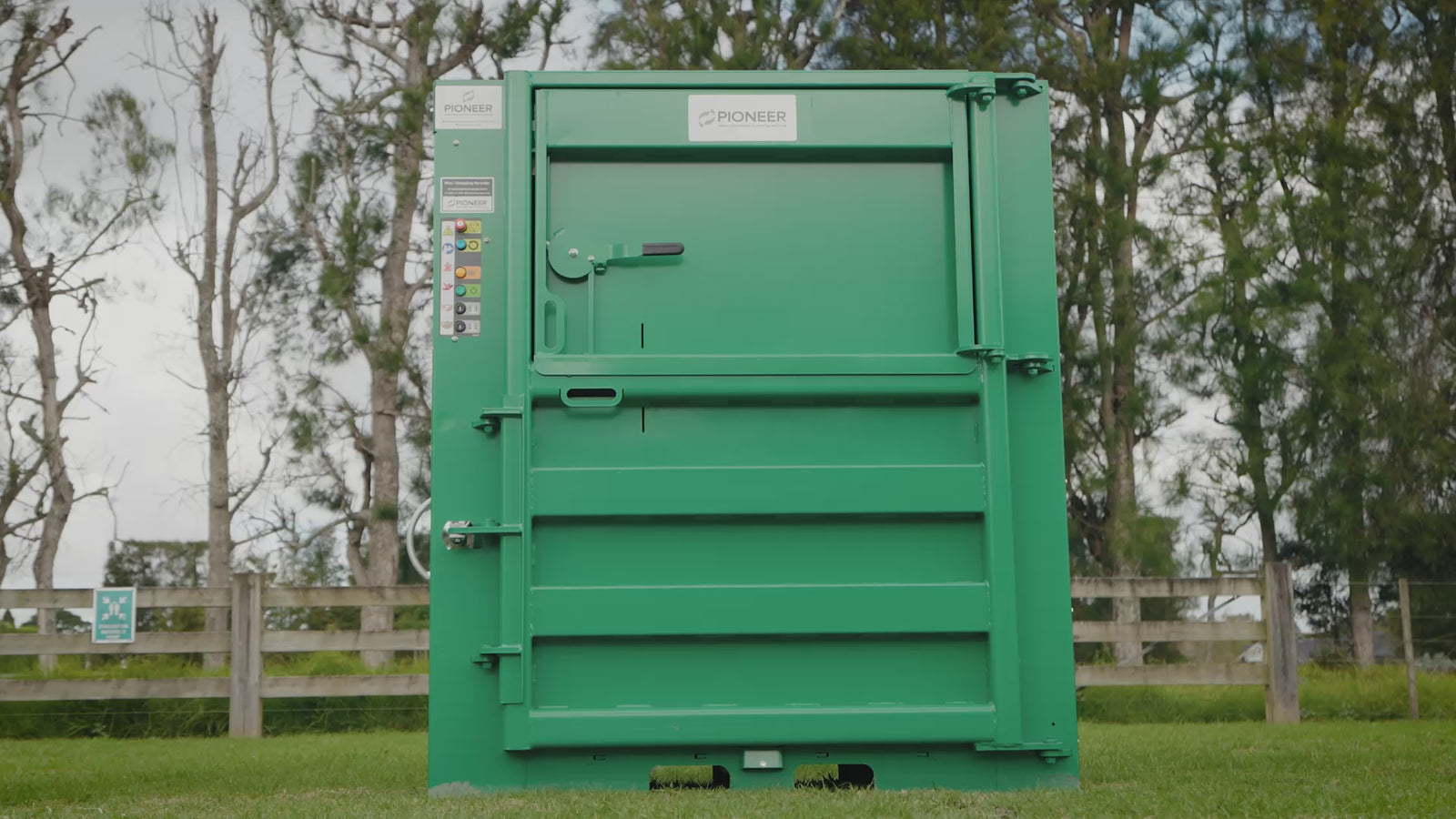

PB300 Vertical Baler

Name: PB300 Vertical Baler
SKU: PB300 Vertical Baler

Please enquire for pricing and rental options

This medium sized baler has a low height of under 2 meters, perfect where space is limited.The Compaction Cylinders are built into the sides of the chamber walls of the LH300 which means it is a plug and play machine with low setup times.

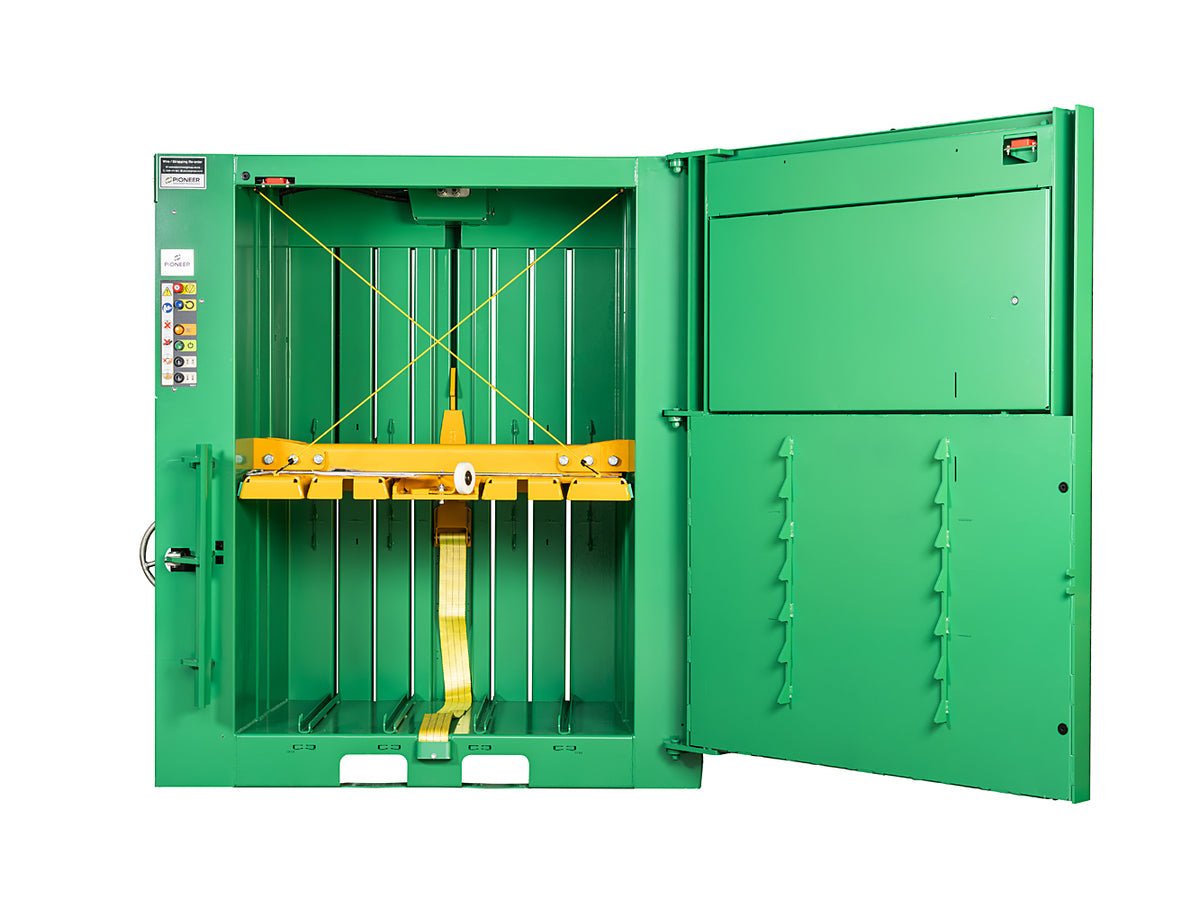

The LH300 has a compaction force of 20 Ton and can bale a variety of materials including cardboard boxes and plastic film. 4 rolls of strapping placed on a bar at the back of the baler to tie off bales.

All MACFAB machines are available in Pioneer Green only.

Enquire about this product

Features

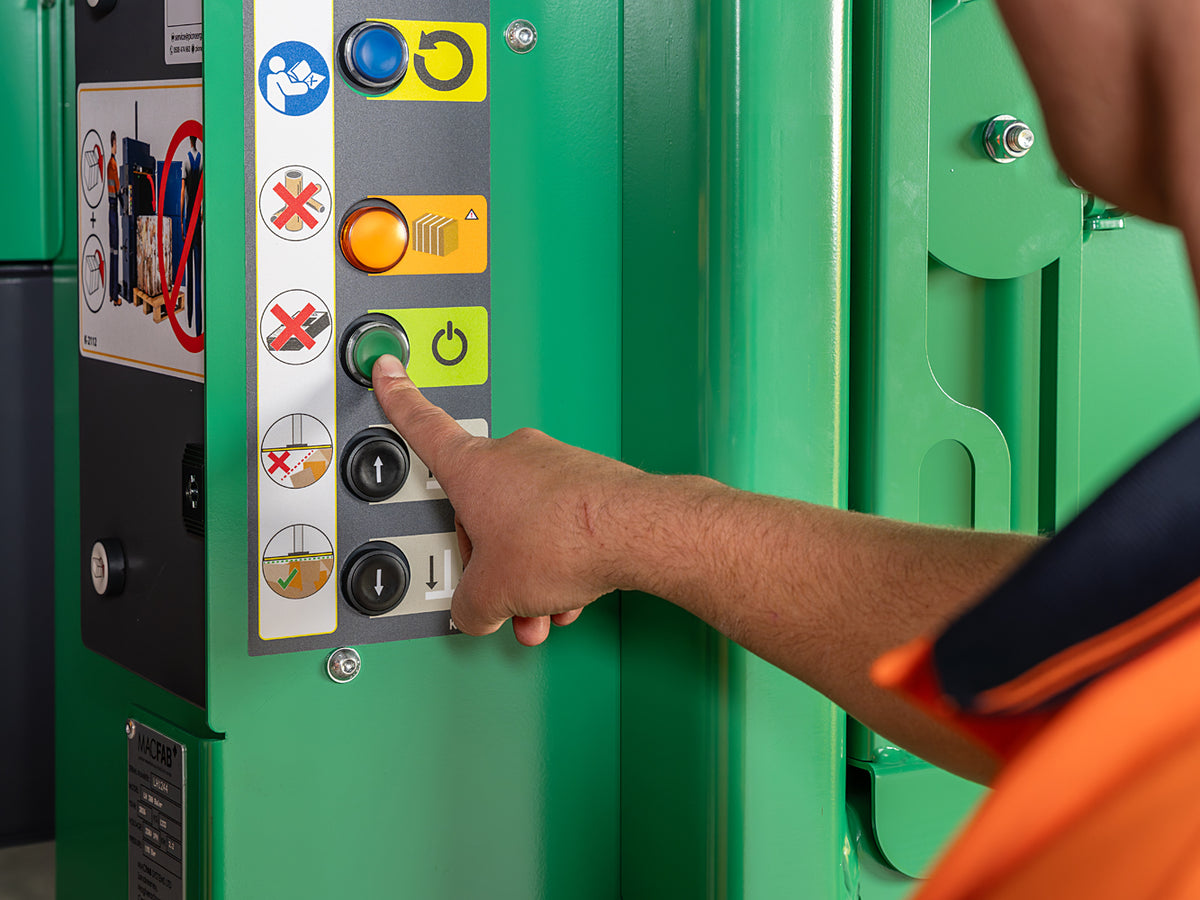

PLC control panel with a bale full light
E-stop button with a key for easy machine lockout of the baler.
Hour counter to record machine usage and plan maintenance.
Low height baler perfect where space is limited.

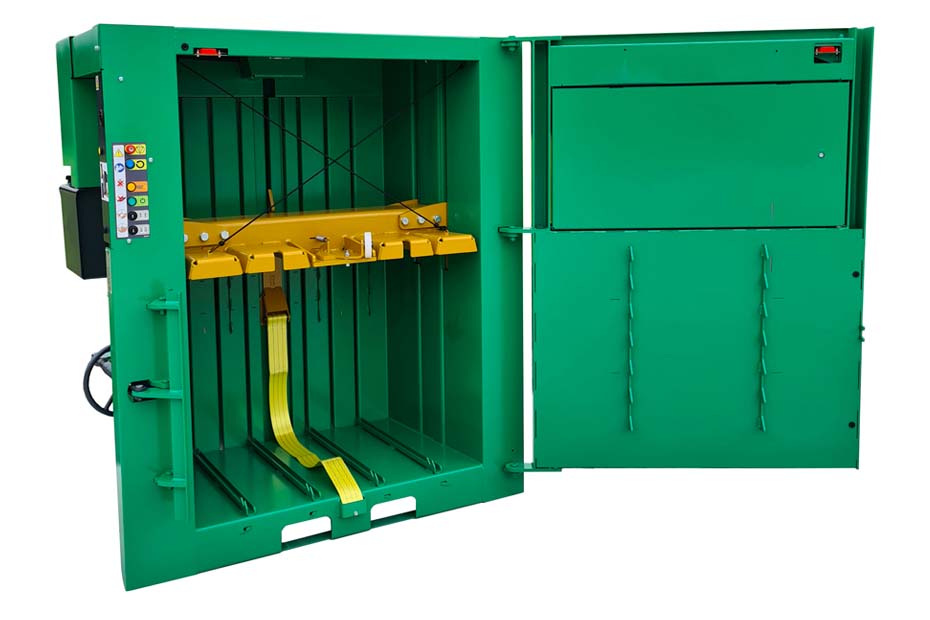

easy to eject a bale with strap eject.
Tie off bale with doors open.

Dimensions

Width: 1800 mm
Height: 1986 mm
Length: 1100 mm

Weight

Machine Weight: 1140 kg

Options

Galvanised finish available on request
Alternative power supplies

Additional Information

Baler Specs

Power Supply: 220 - 240 Volt 1 phase
Motor: 2.2 kW 16 Amp
Pressing Force: up to 20 Ton
Noise Level: 68 decibels
Cycle Times: 45 seconds

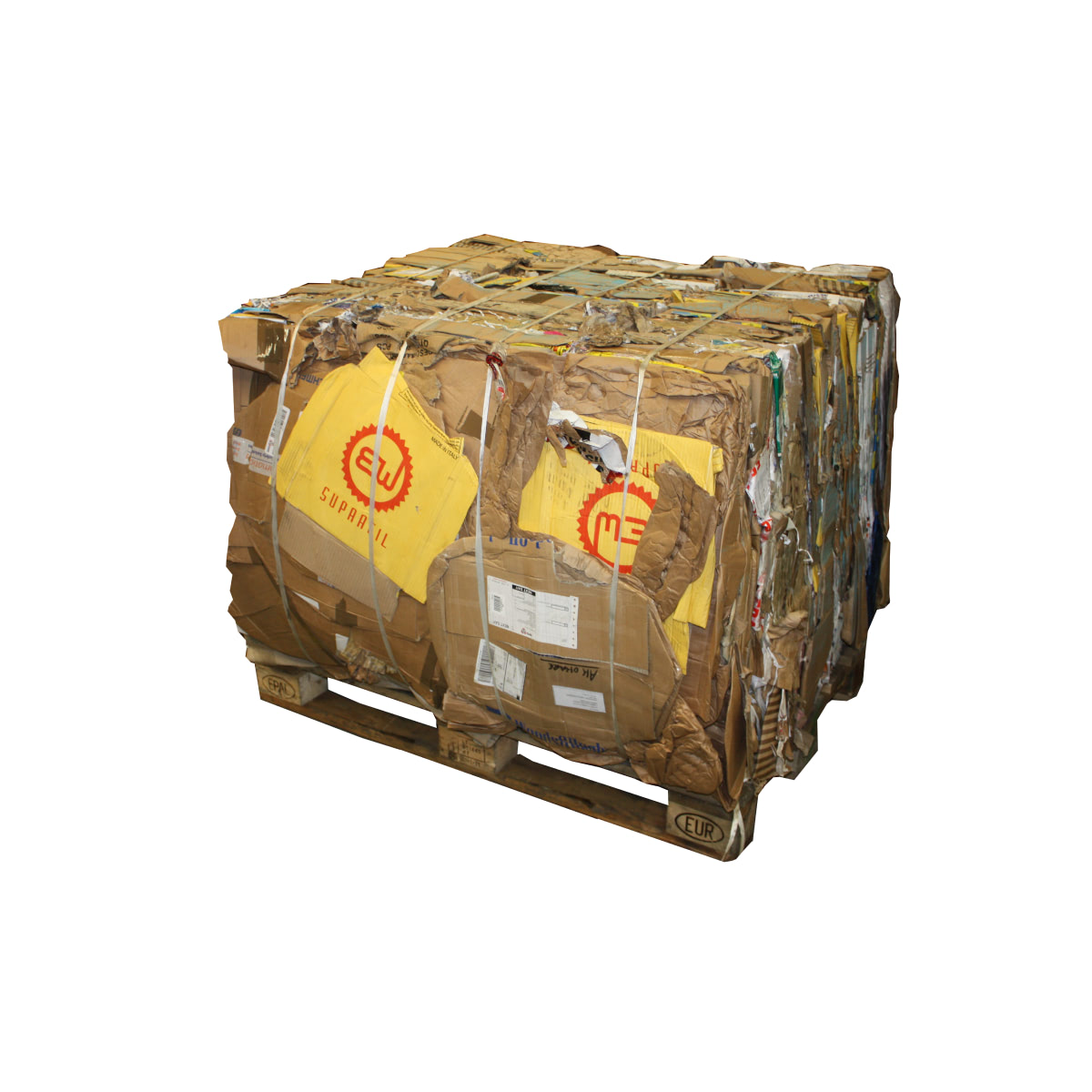

Bale Dimensions

Height: 1.100 m
Width: 1.200 m
Depth: 0.800 m
Weight: 300kg (depending on material used)

Loading Aperture Sizes

Height: 0.596 m
Width: 0.800 m
Depth: 1.200 m

Downloads

MACFAB_PB300_Vertical_Baler.pdf

Consumables for this product

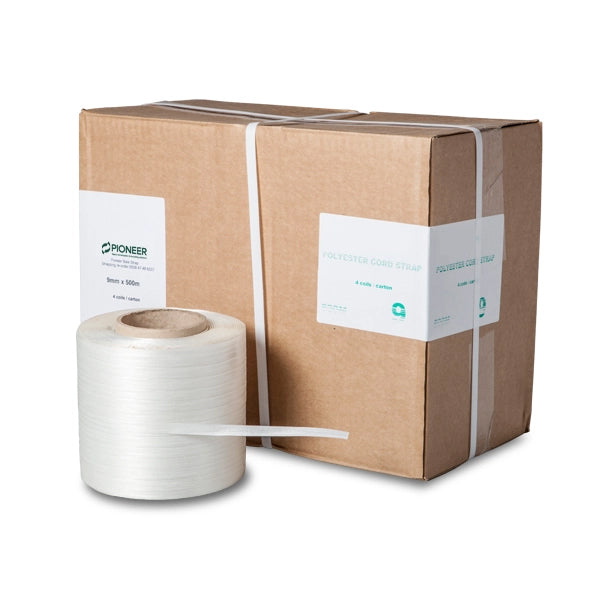

PBS13 - 13mm Bale Strap

13mm polyester tape is an ideal solution for baling strap. It is wider and stronger than the 9mm baling strap, but still cost effective. Made of high tenacity polyester yarns it is very strong yet more flexible and much safer to handle.
