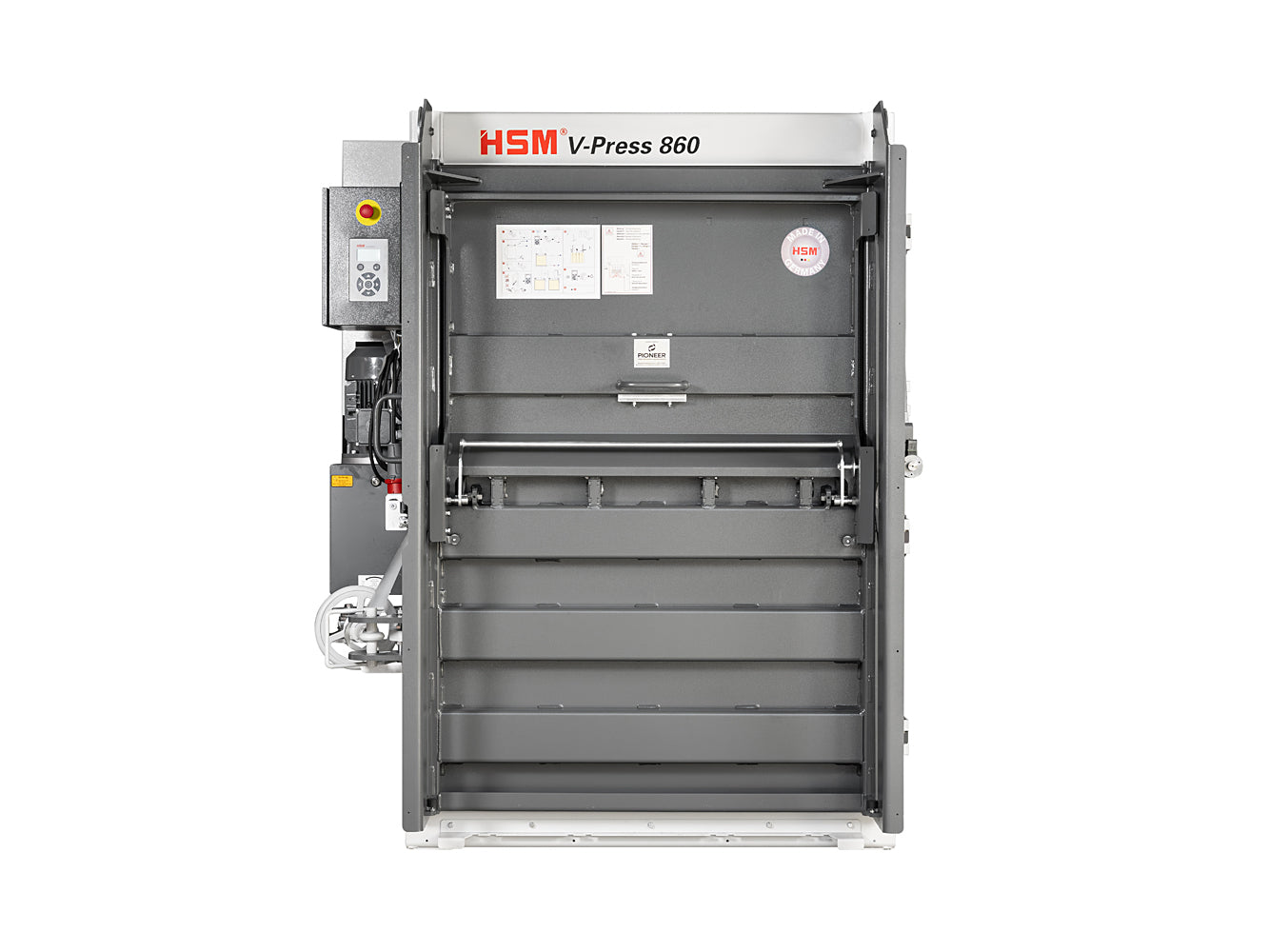

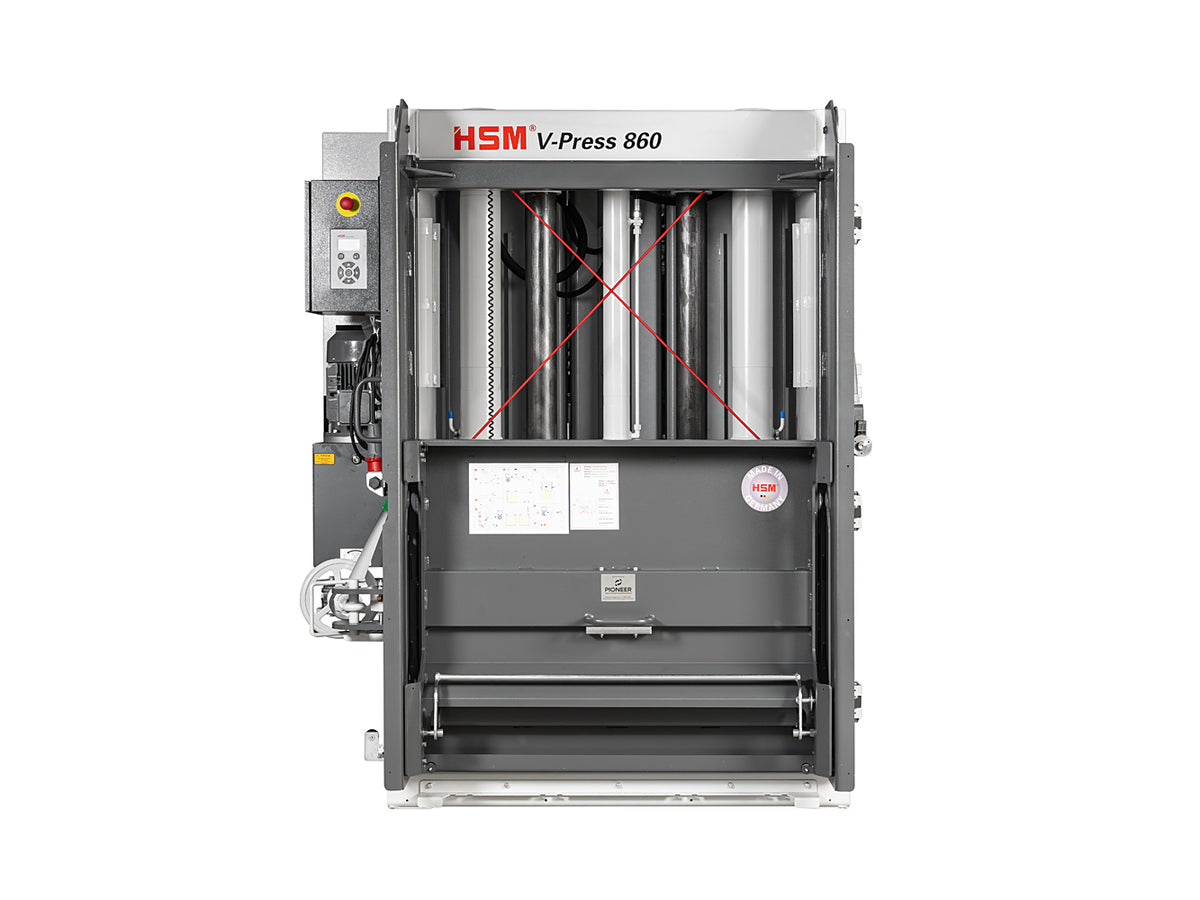

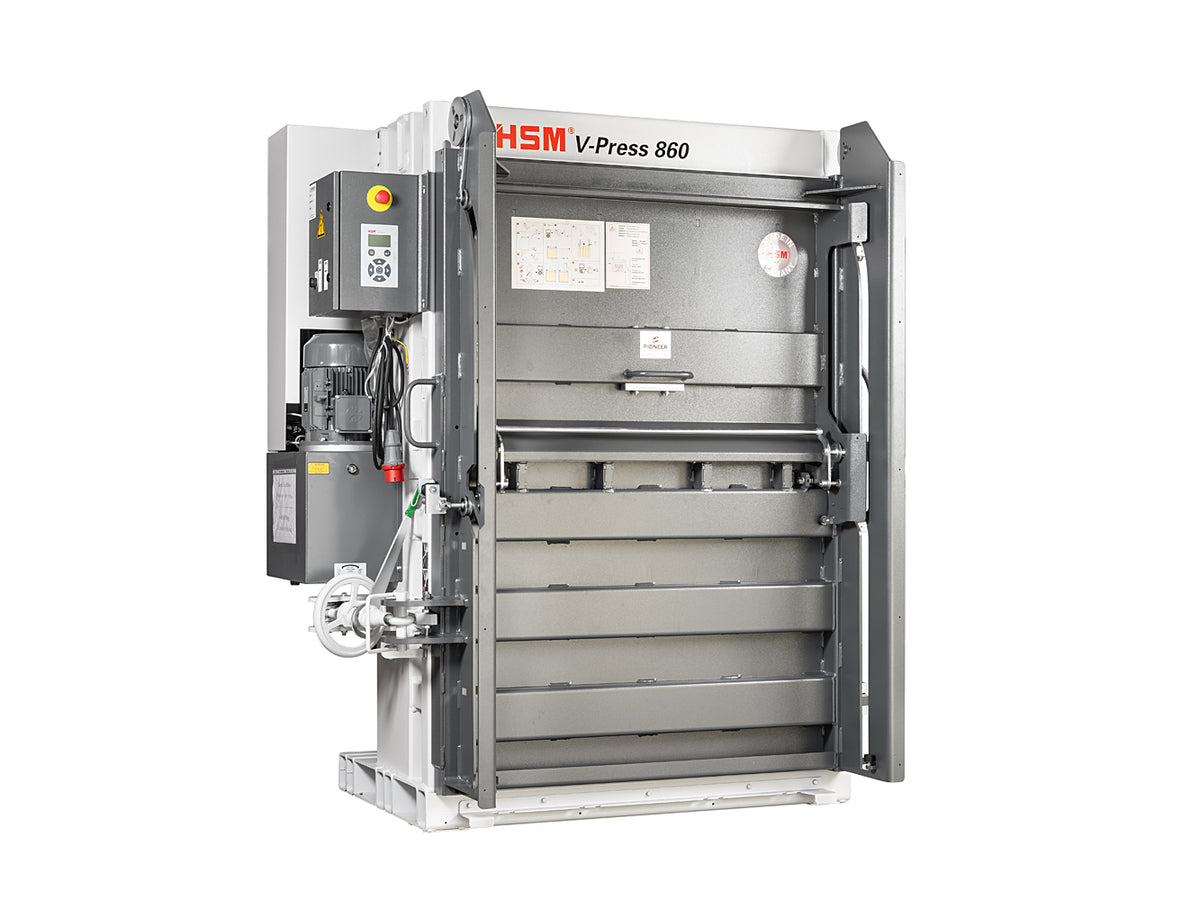

V-Press 860 Plus Vertical Baler - High Density
Please enquire for pricing and rental options
With a pressing power of 594 kN and employing low-noise and energy-saving technology, the HSM V-Press 860 is the most economical and ecological solution for your waste disposal.
Features

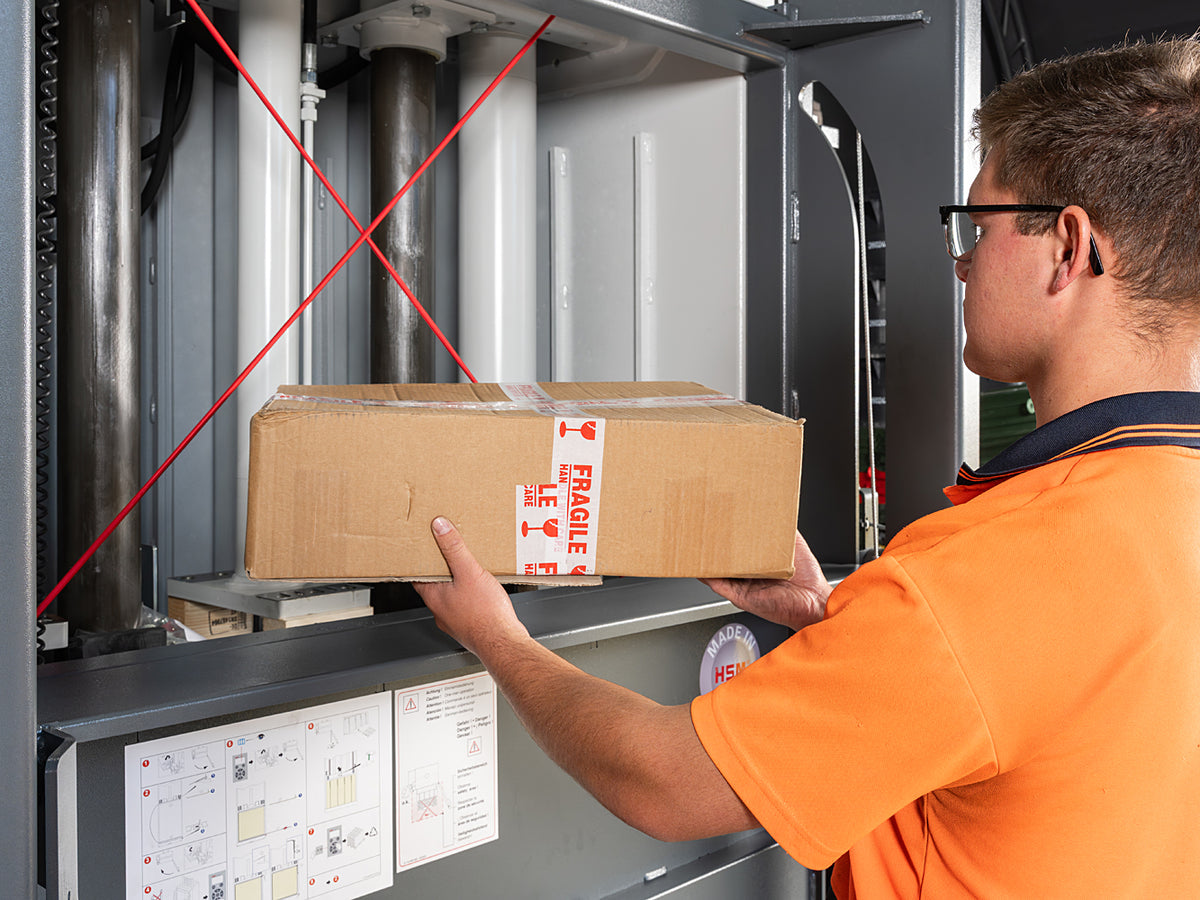

- To fill the press, the upper half of the doors is pushed down and automatically opens after the compression process

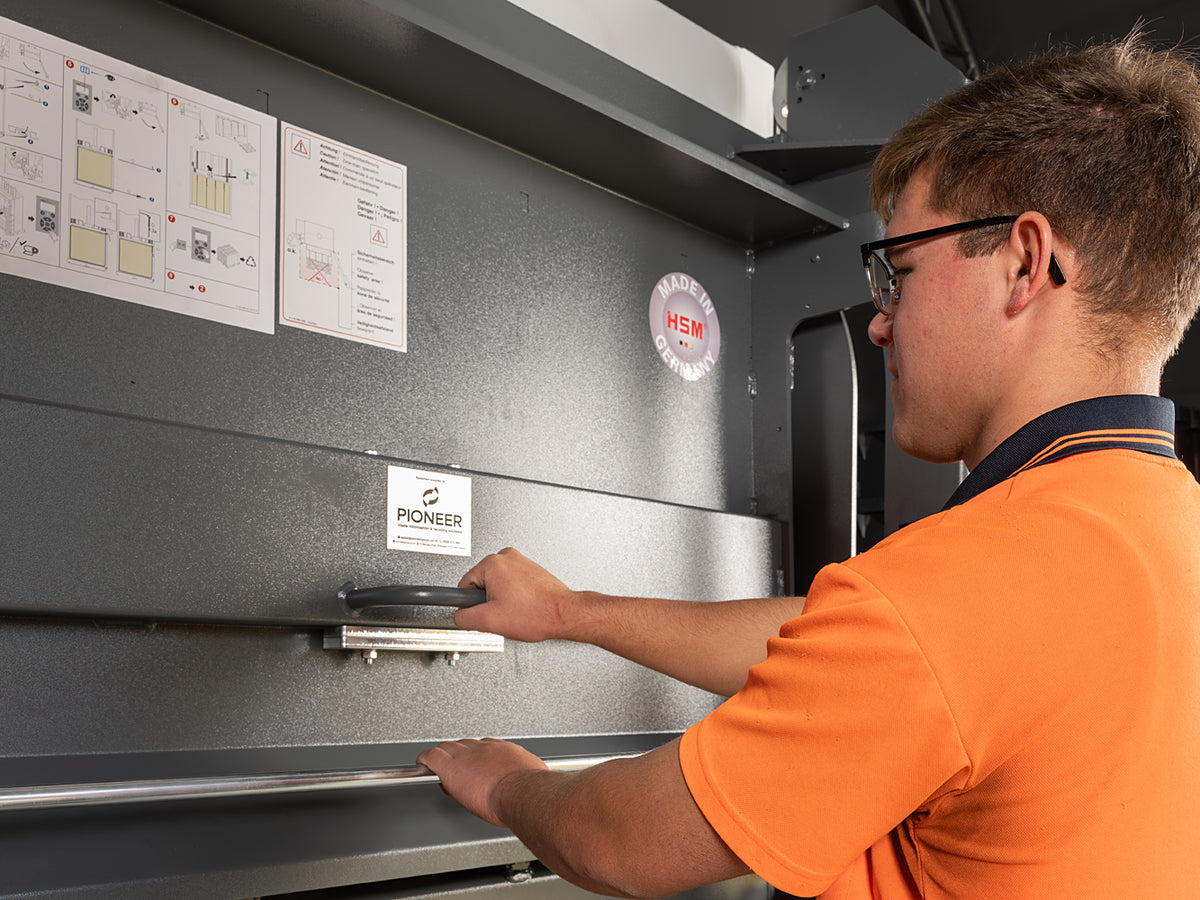

- Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
- The HSM V-Presses are highly energy efficient thanks to the rapid stroke technology. This saves time and money
- Suitable for cardboard as well as film
- Automatic start of the pressing process after closing the door
- Optimised bale dimensions and bale weights for efficient storage, transport and dierct commercialisation

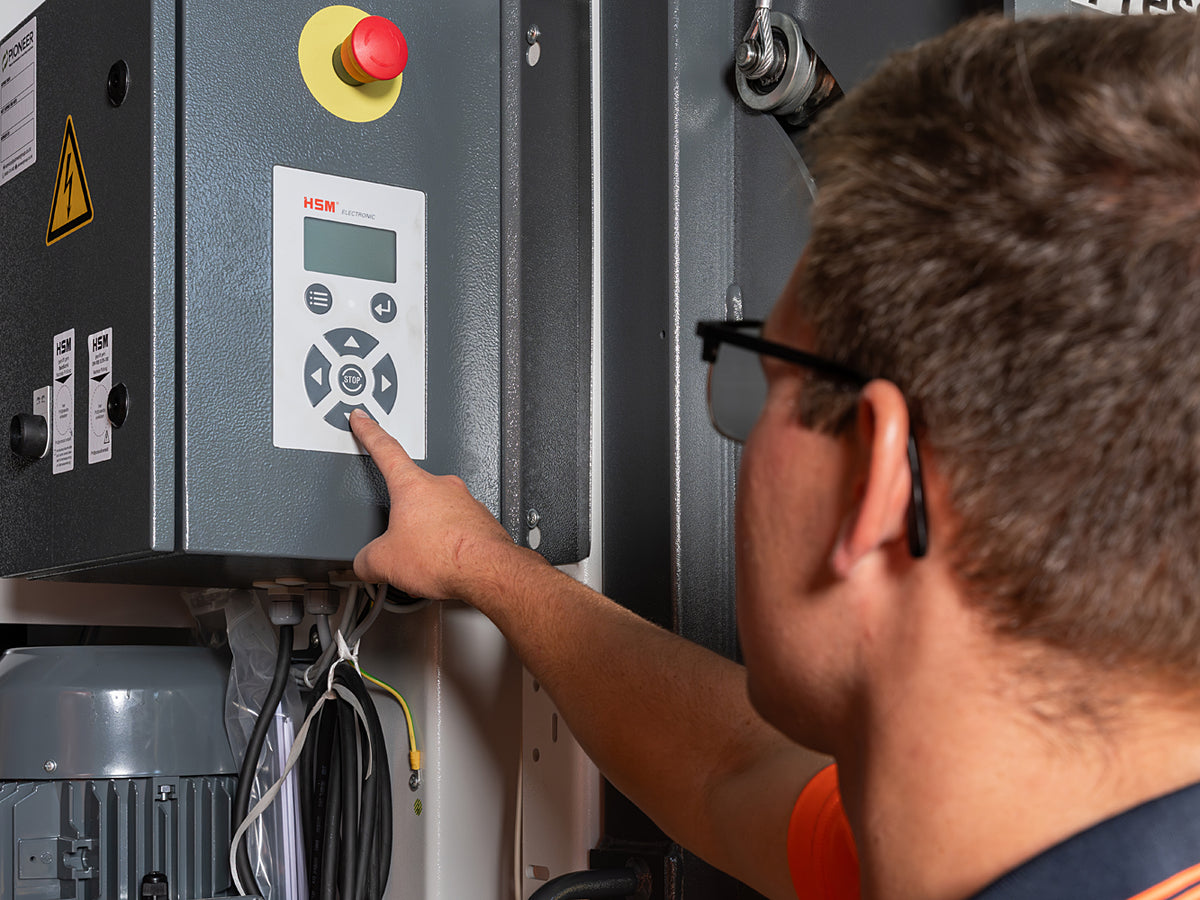

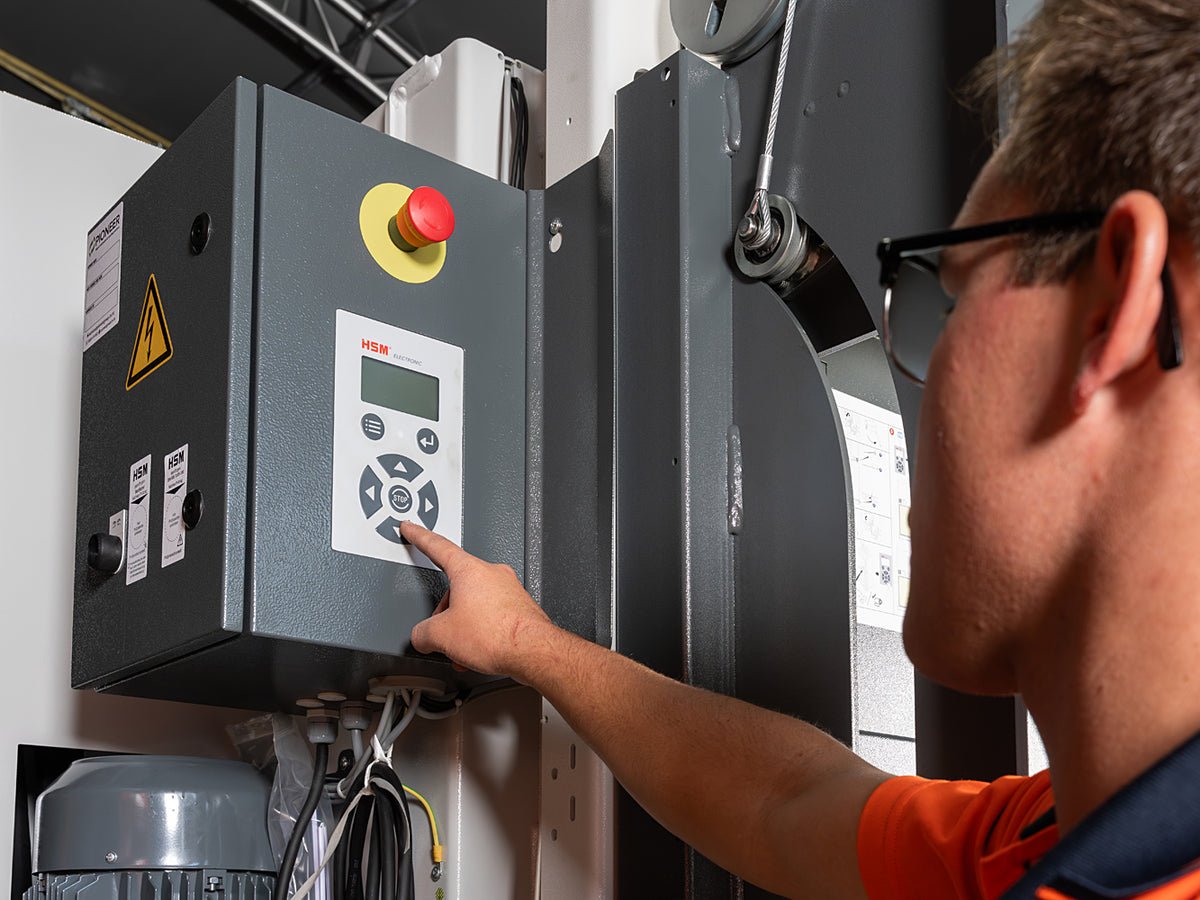

- Convenient membrane keypad with text display, which shows the current status of the machine
- HSM TCS (Torsion Control System) for monitoring press ram movement

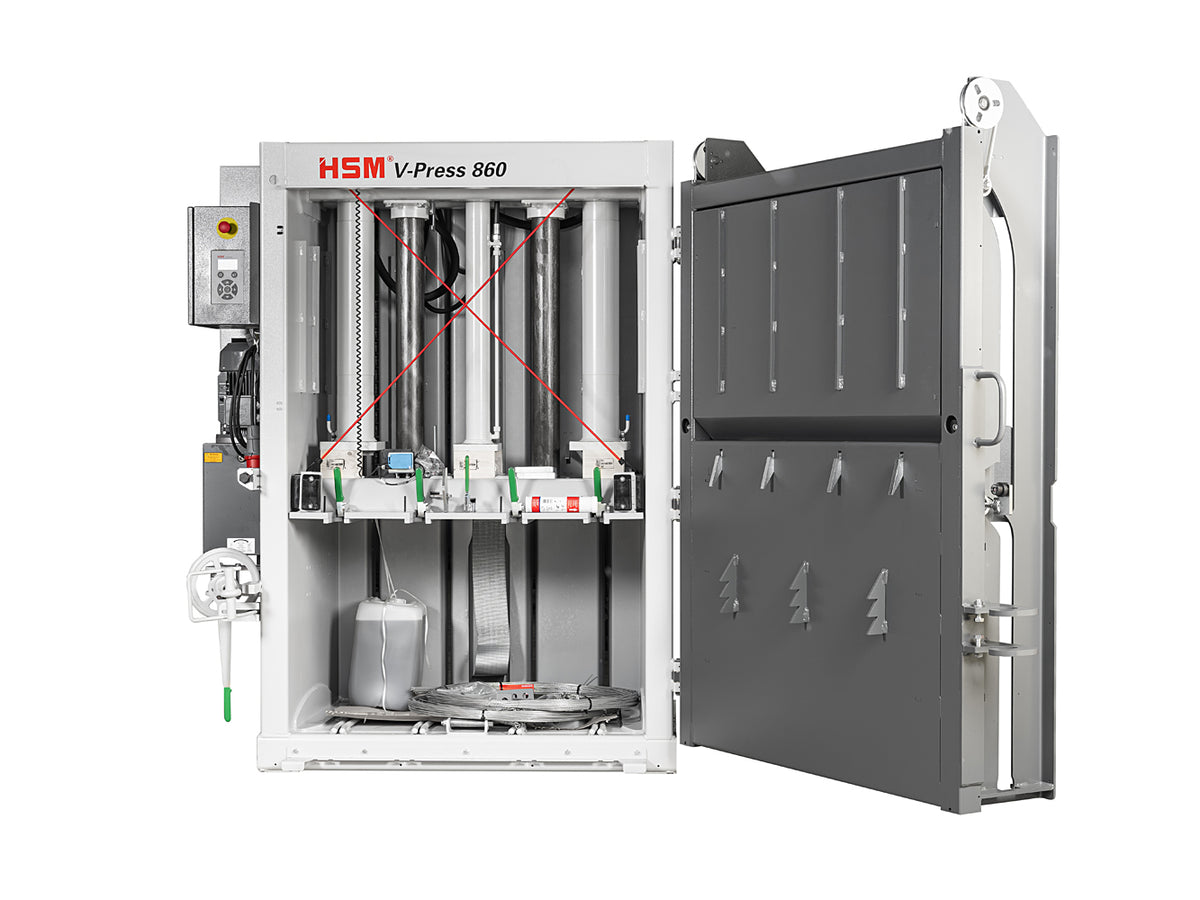

- Manual 4-fold strapping with Quick-link wire
Dimensions
- Width: 1797 mm
- Height: 2990 mm
- Length: 1314 mm
Weight
Machine Weight: 2200 kg
Additional Information
- Pressing power: 594 kN
- Specific pressing power: 63,46 N/cm²
- Voltage / Frequency: 400 V / 50 Hz
- Cycle time when idling vacío: 25 s
- Volume throughput in idle operation (theor.): 26,25 m³/h
- Loading height: 1110 mm
- Loading aperture width x height: 1195 x 650 mm
- Bale length x Bale width x Bale height: 1200 x 780 x 1000 mm
- Related product line: V-Press
- Type of consumables: Wire
- Press material: Plastic film, Mixed paper, Cardboard
