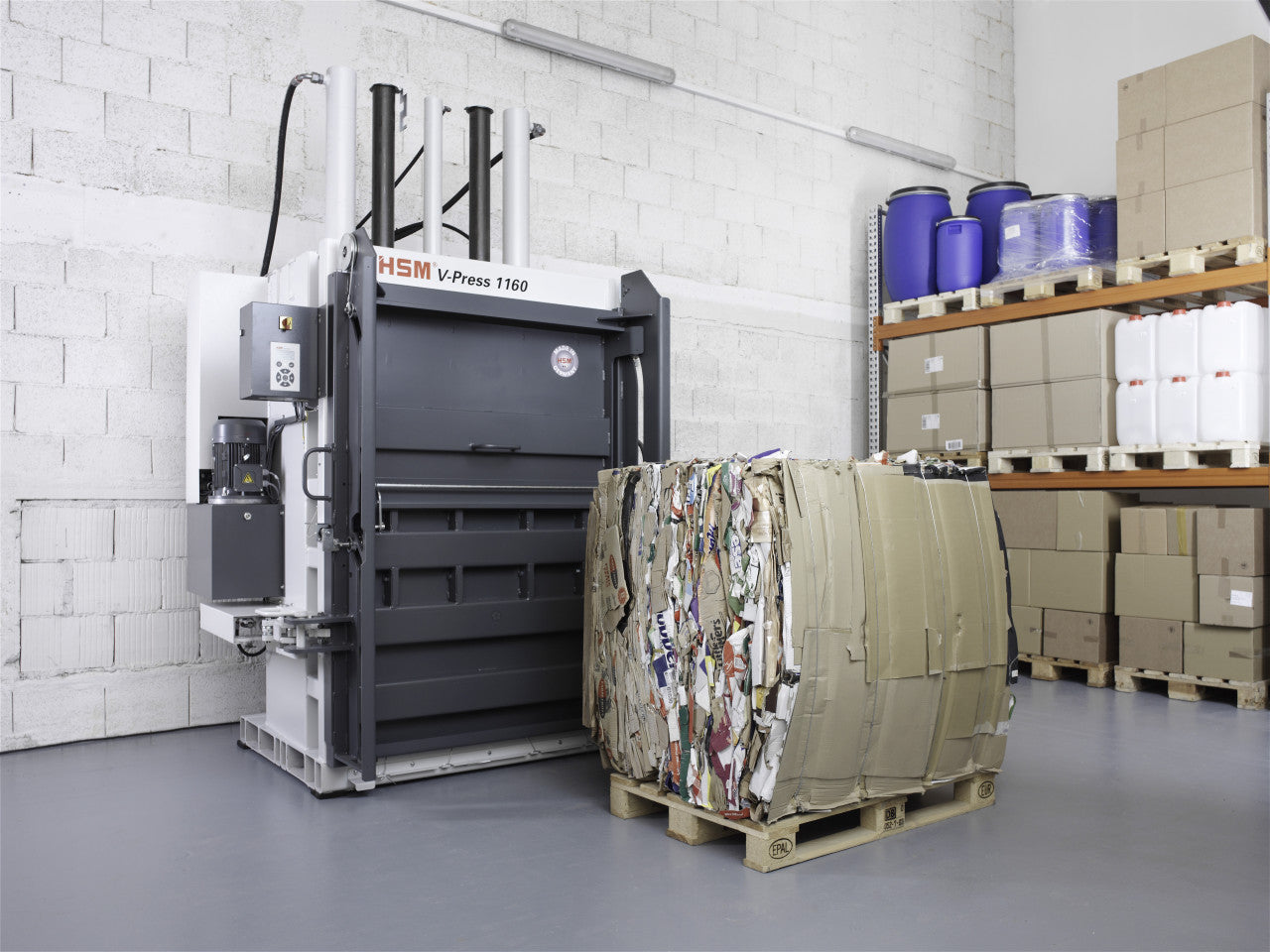

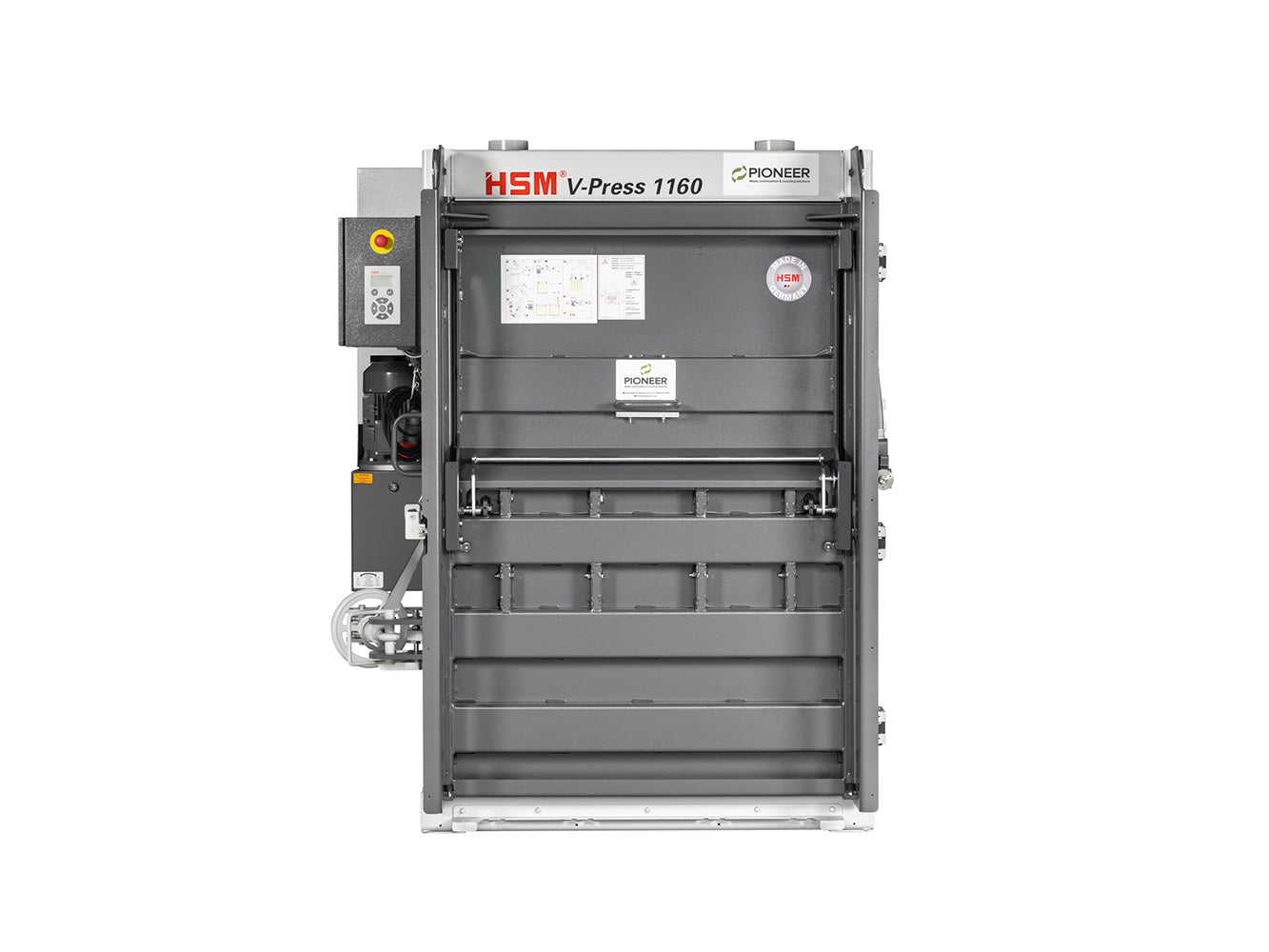

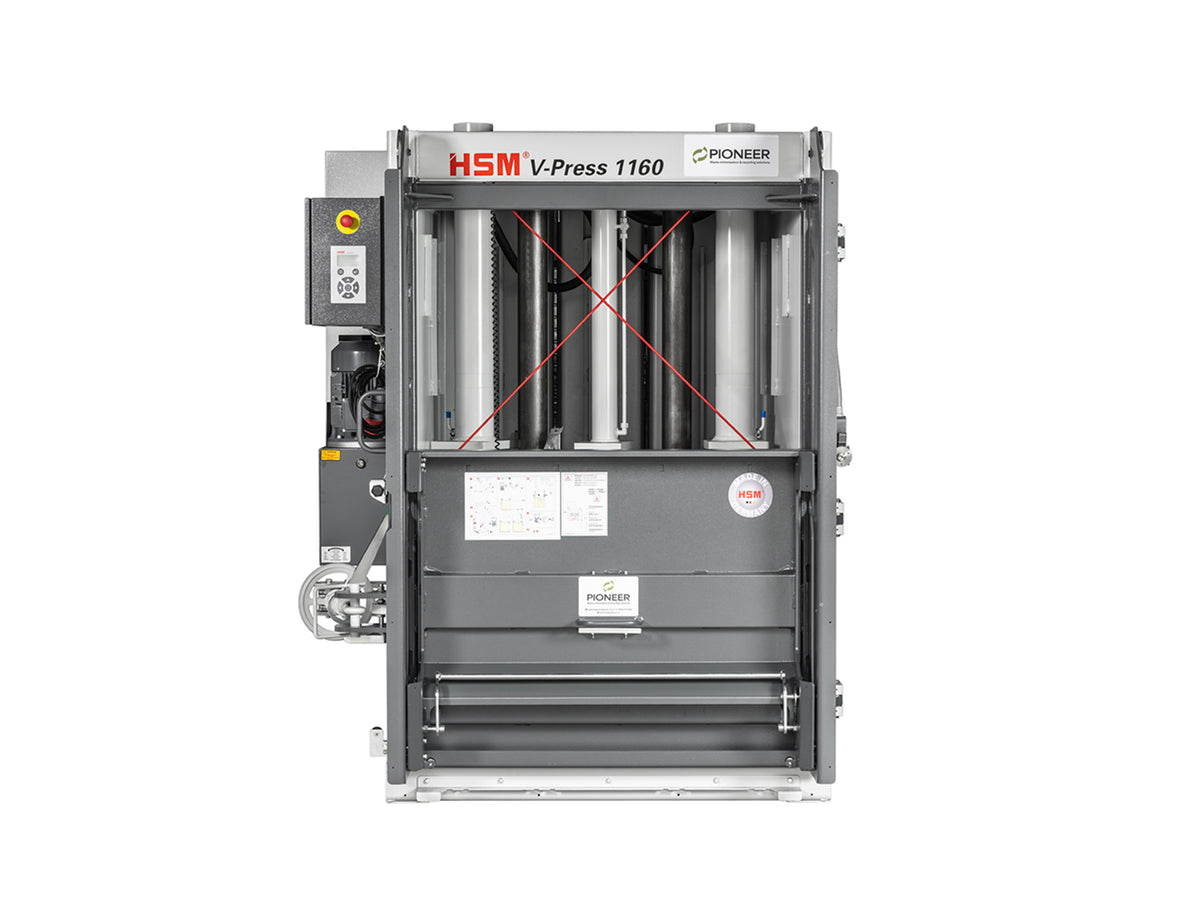

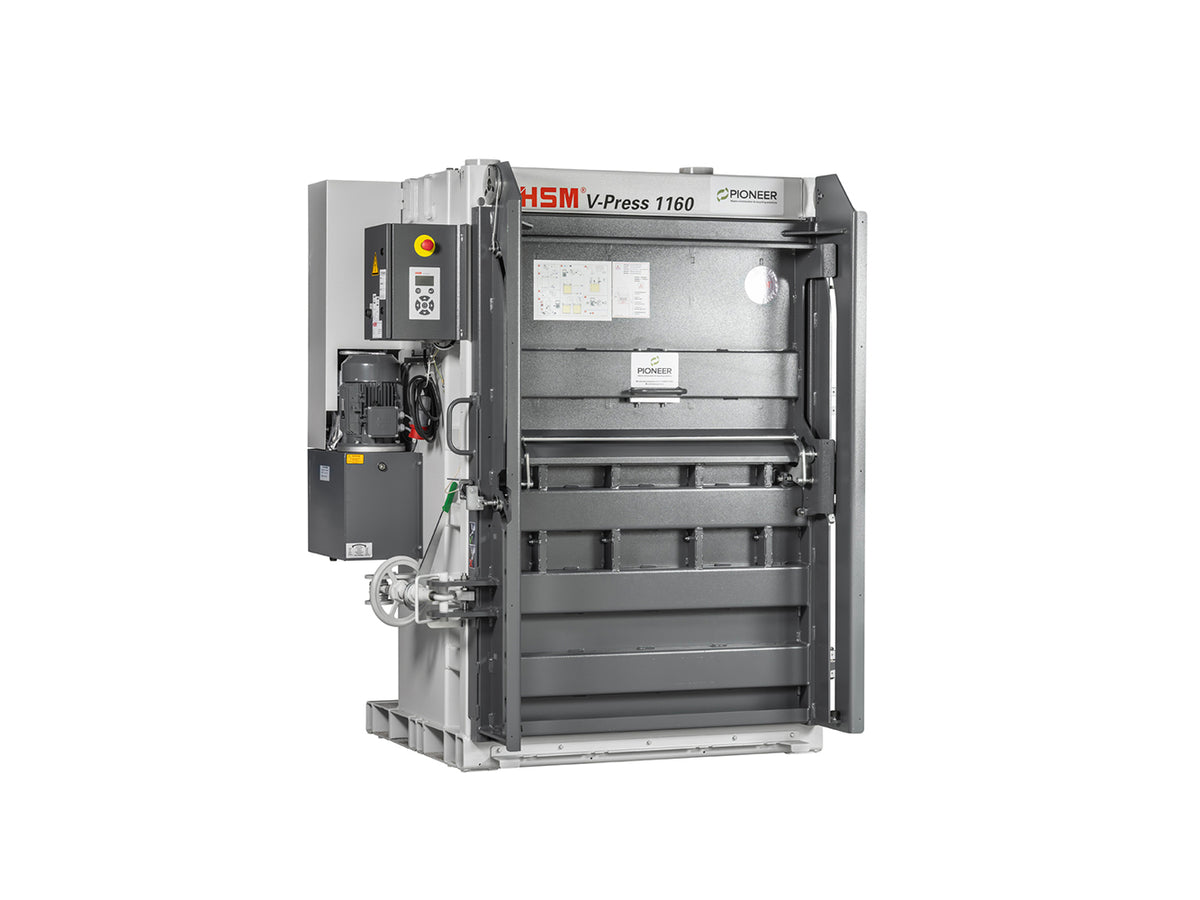

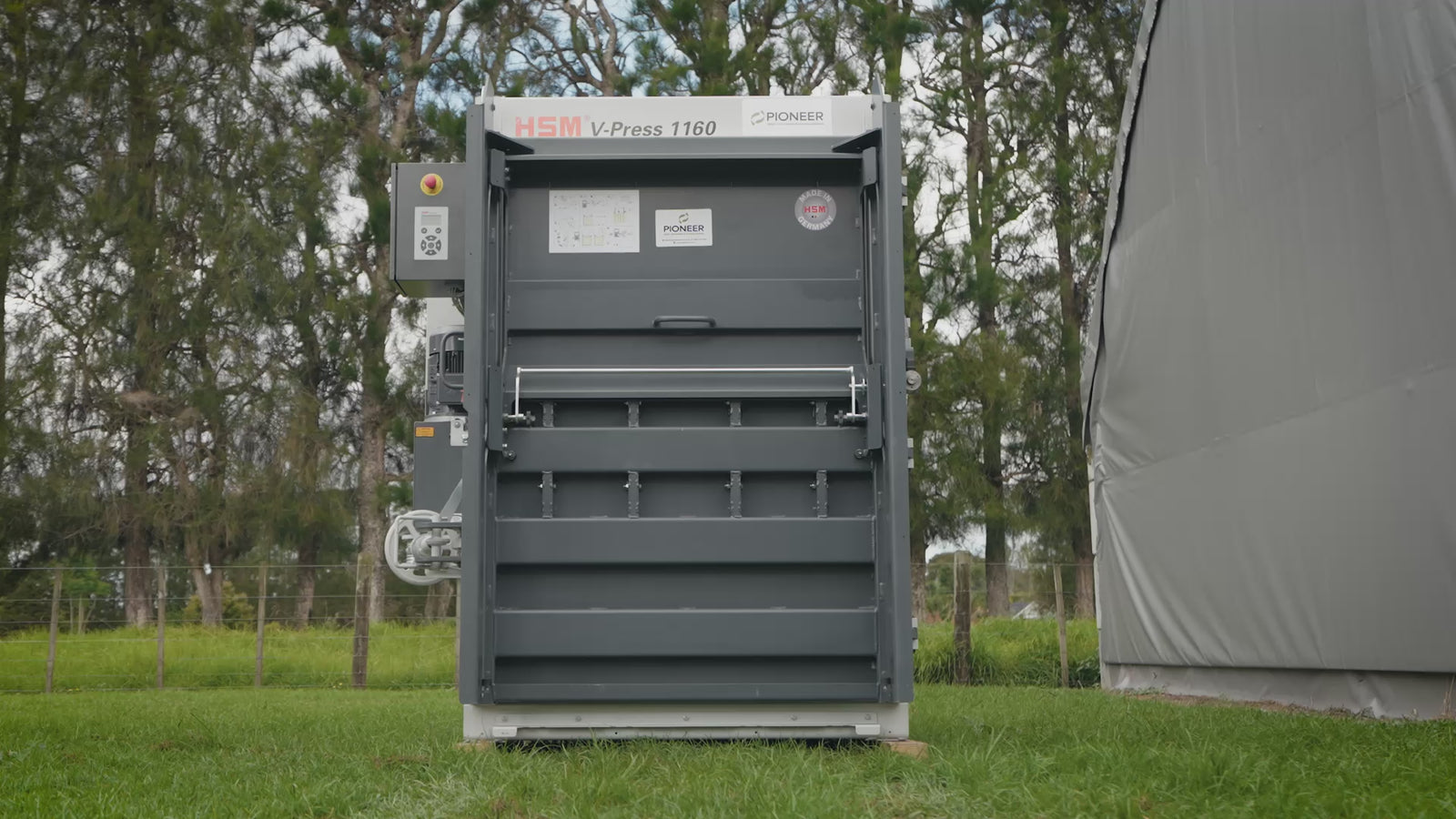

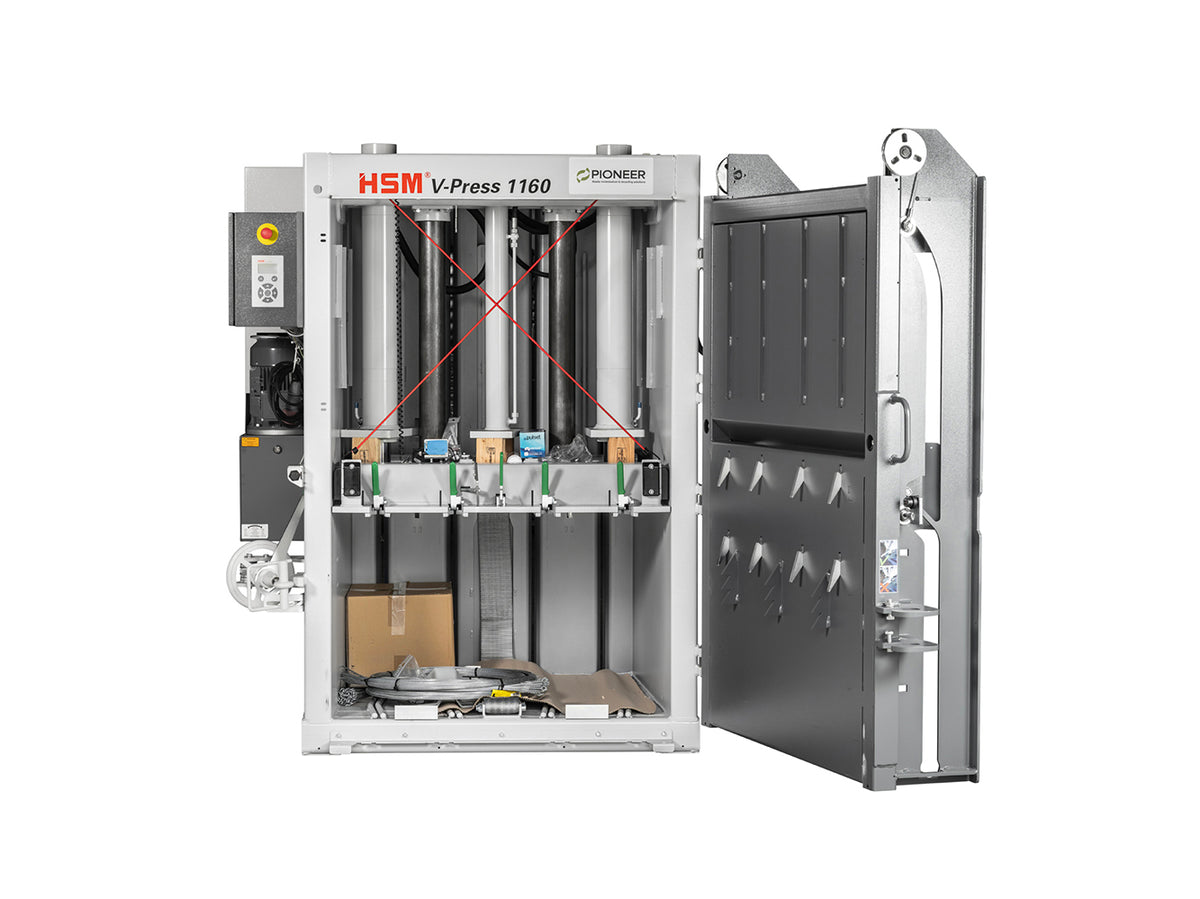

V-Press 1160 Plus Vertical Baler
Please enquire for pricing and rental options





With a maximum bale weight of 550 kg, strong pressing power and an absolutely high efficiency level, the HSM V-Press 1160 is the top-model of the HSM V-Press series.
Features

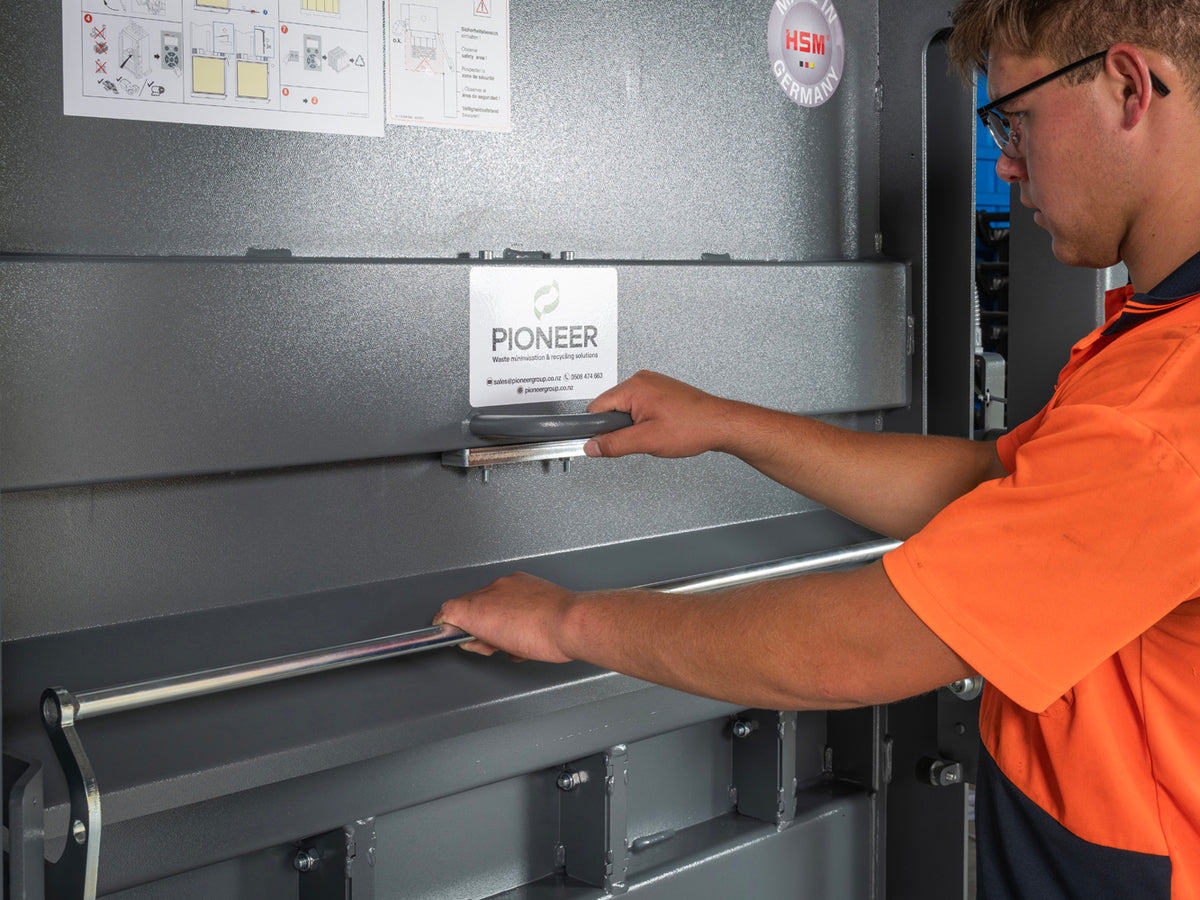

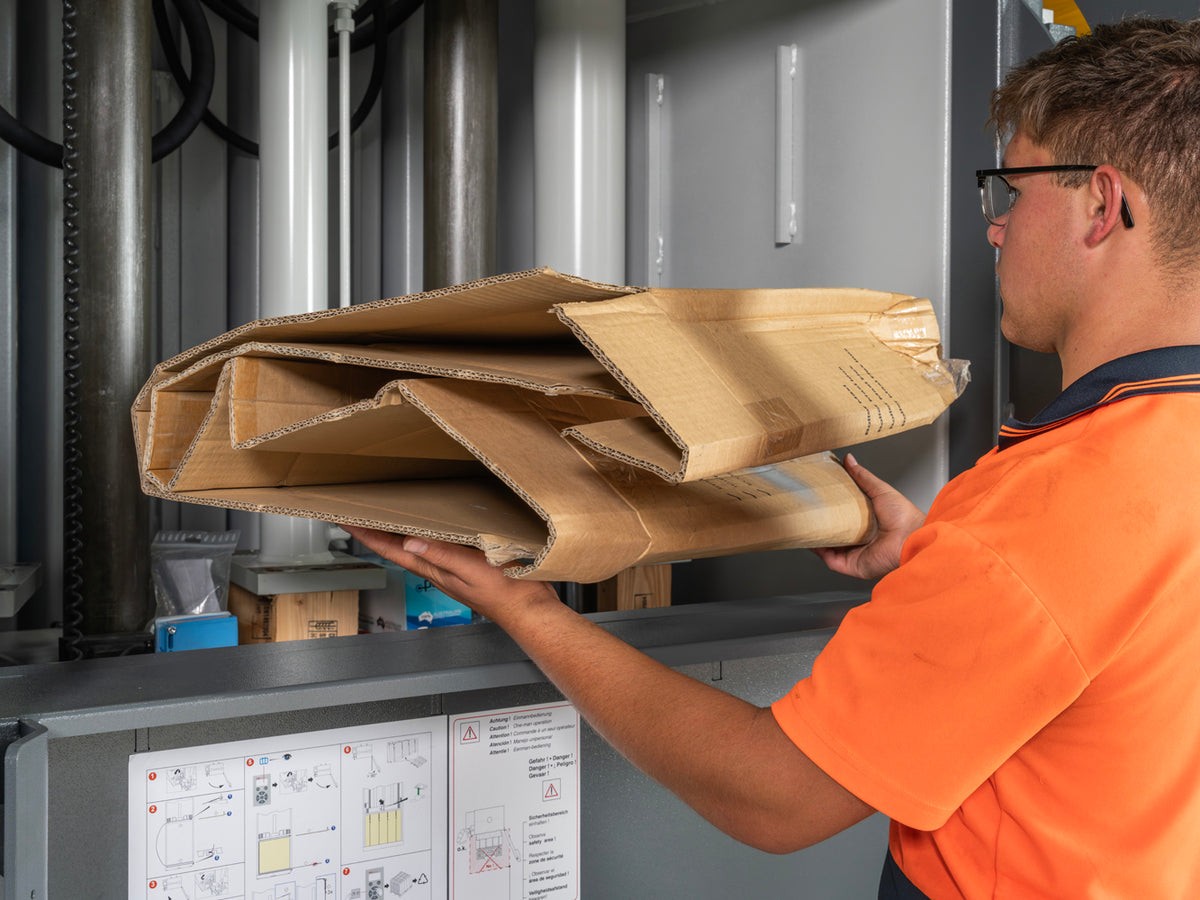

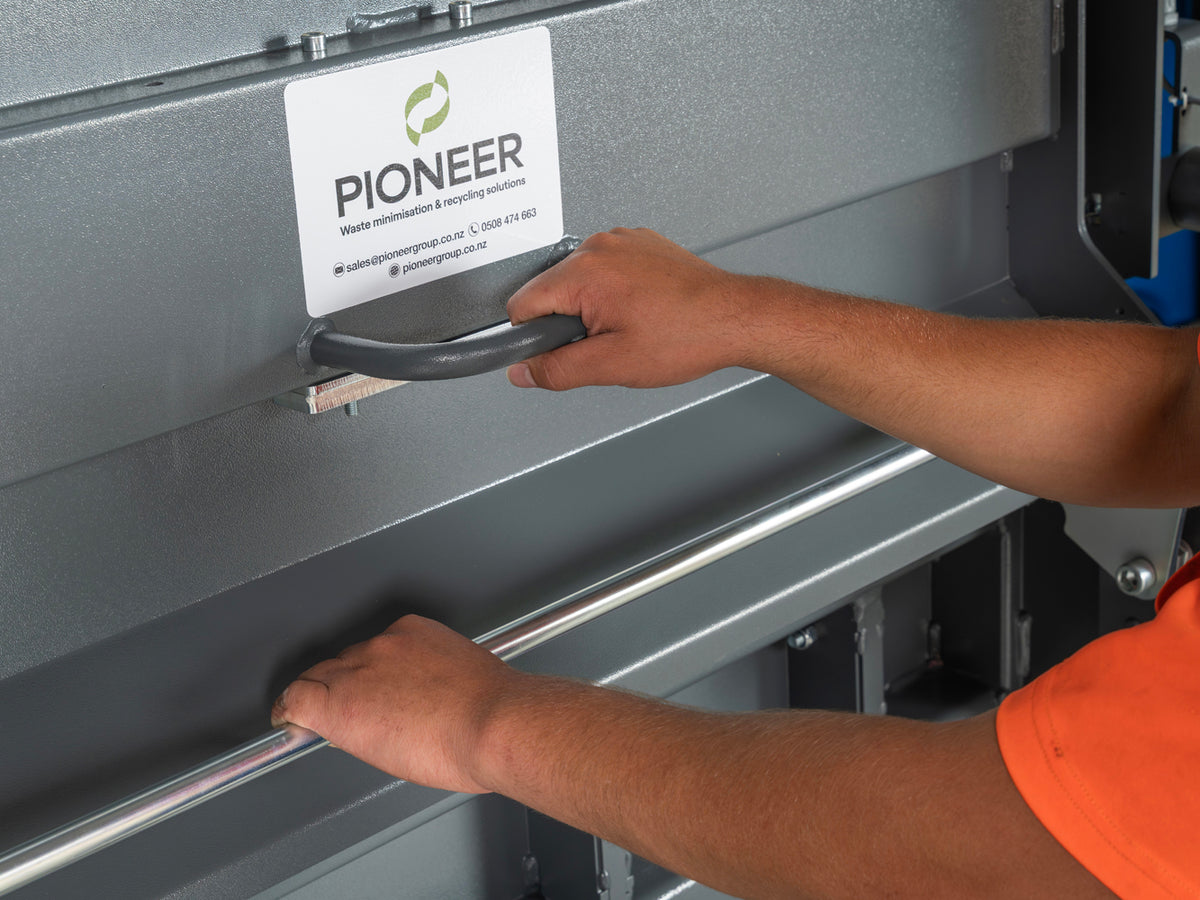

- To fill the press, the upper half of the doors is pushed down and automatically opens after the compression process
- Hydraulic door lock - Convenient opening and closing, no manual effort required
- The HSM V-Presses are highly energy efficient thanks to the rapid stroke technology. This saves time and money
- Suitable for cardboard as well as film
- Automatic start of the pressing process after closing the door
- Optimised bale dimensions and bale weights for efficient storage, transport and direct commercialisation

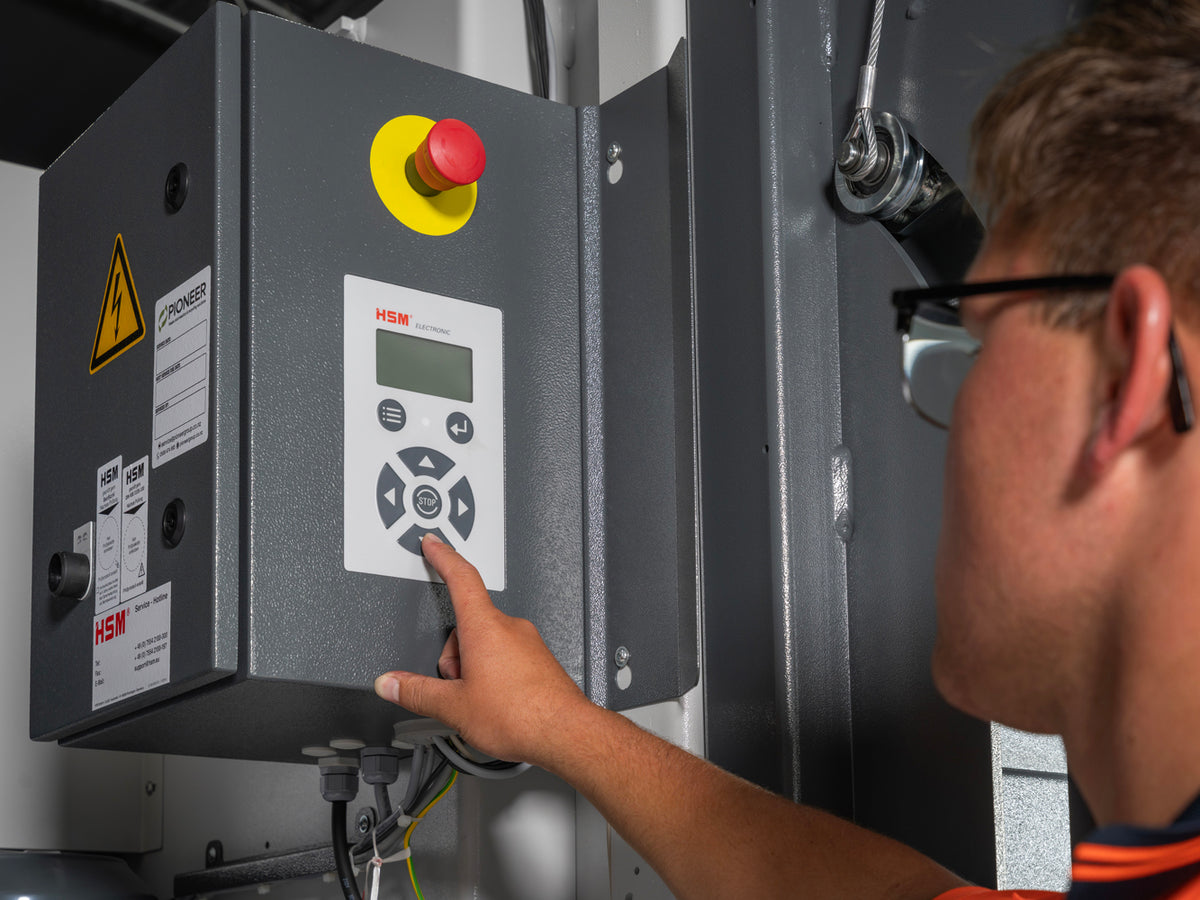

- Convenient membrane keypad with text display, which shows the current status of the machine
- HSM TCS (Torsion Control System) for monitoring press ram movement
- Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements
Dimensions
- Width: 1780 mm
- Height: 2985 mm
- Length: 1568 mm
Weight
Machine Weight: 2430 kg
Additional Information
- Pressing power: 594 kN
- Specific pressing power: 45 N/cm²
- Driving power: 4 kW
- Voltage / Frequency: 400 V / 50 Hz
- Cycle time when idling vacío: 25 s
- Volume throughput in idle operation (theor.): 32,5 m³/h
- Loading height: 1115 mm
- Loading aperture width x height: 1195 x 650 mm
- Bale length x Bale width x Bale height: 1200 x 1100 x 1200 mm
- Bale weight: 550 kg
- Related product line: V-Press
- Type of consumables: Wire
- Press material: Plastic film, Mixed paper, Cardboard, Punch waste/residue
