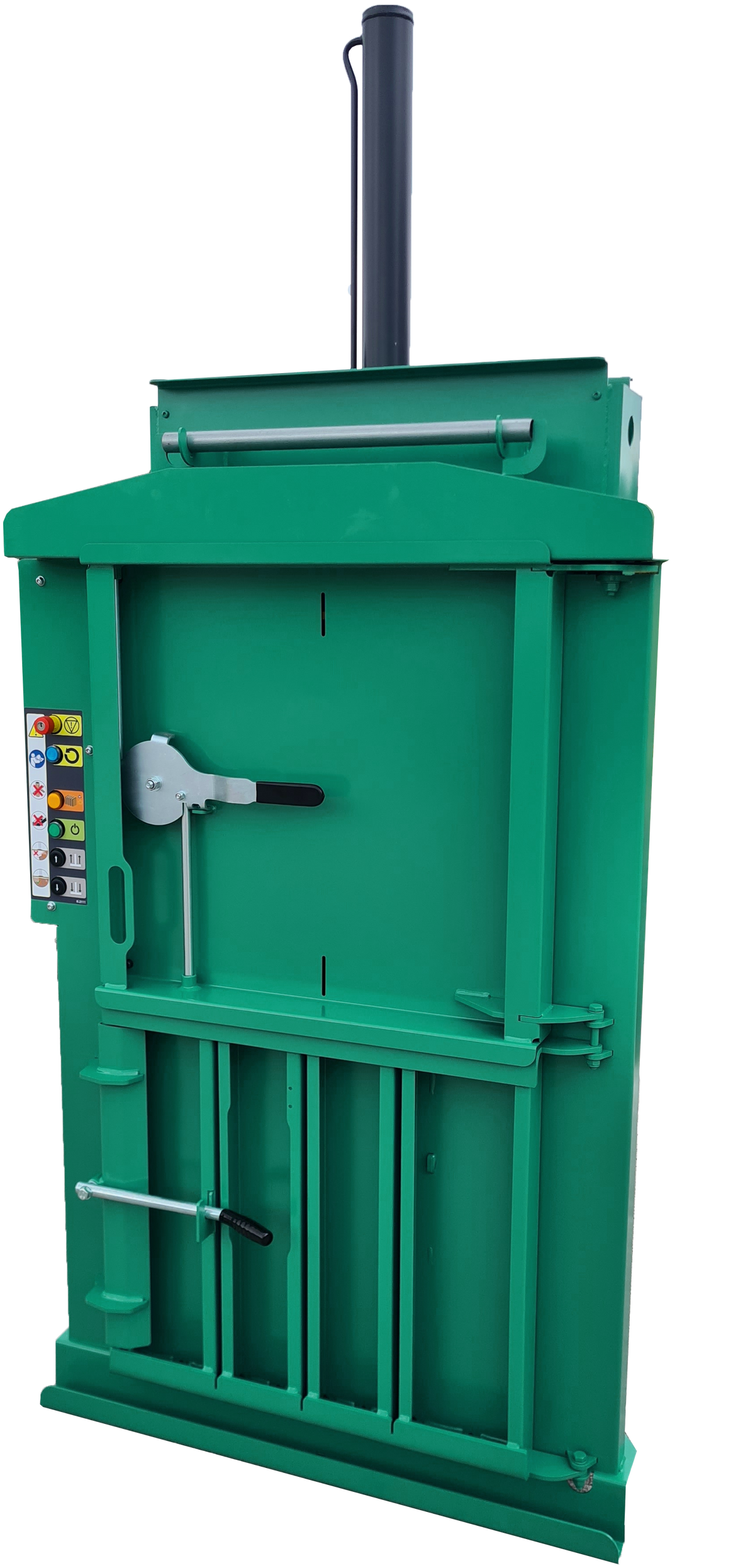

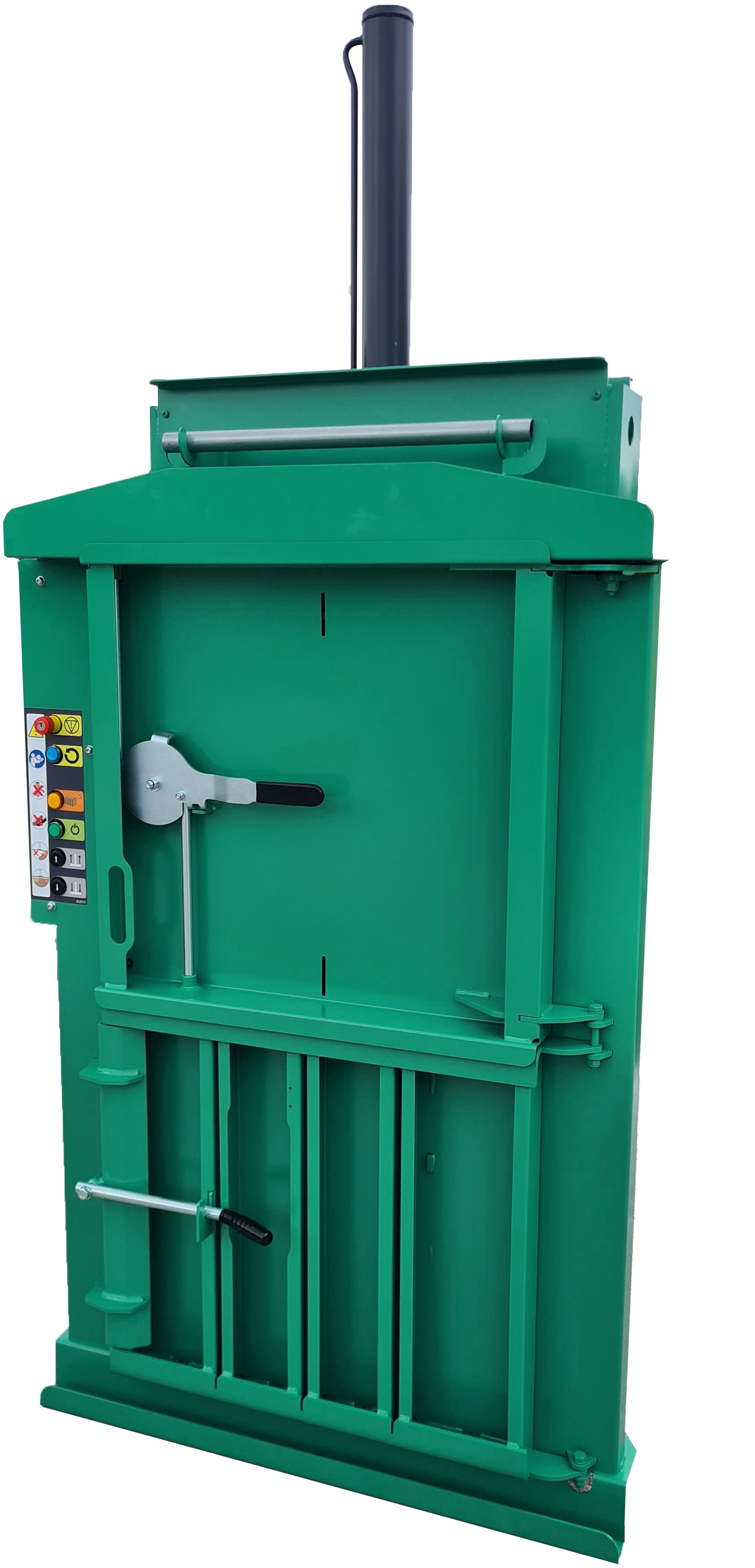

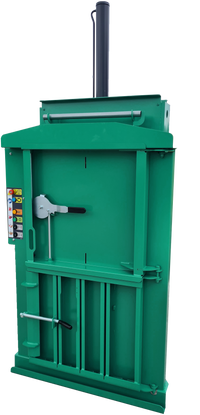

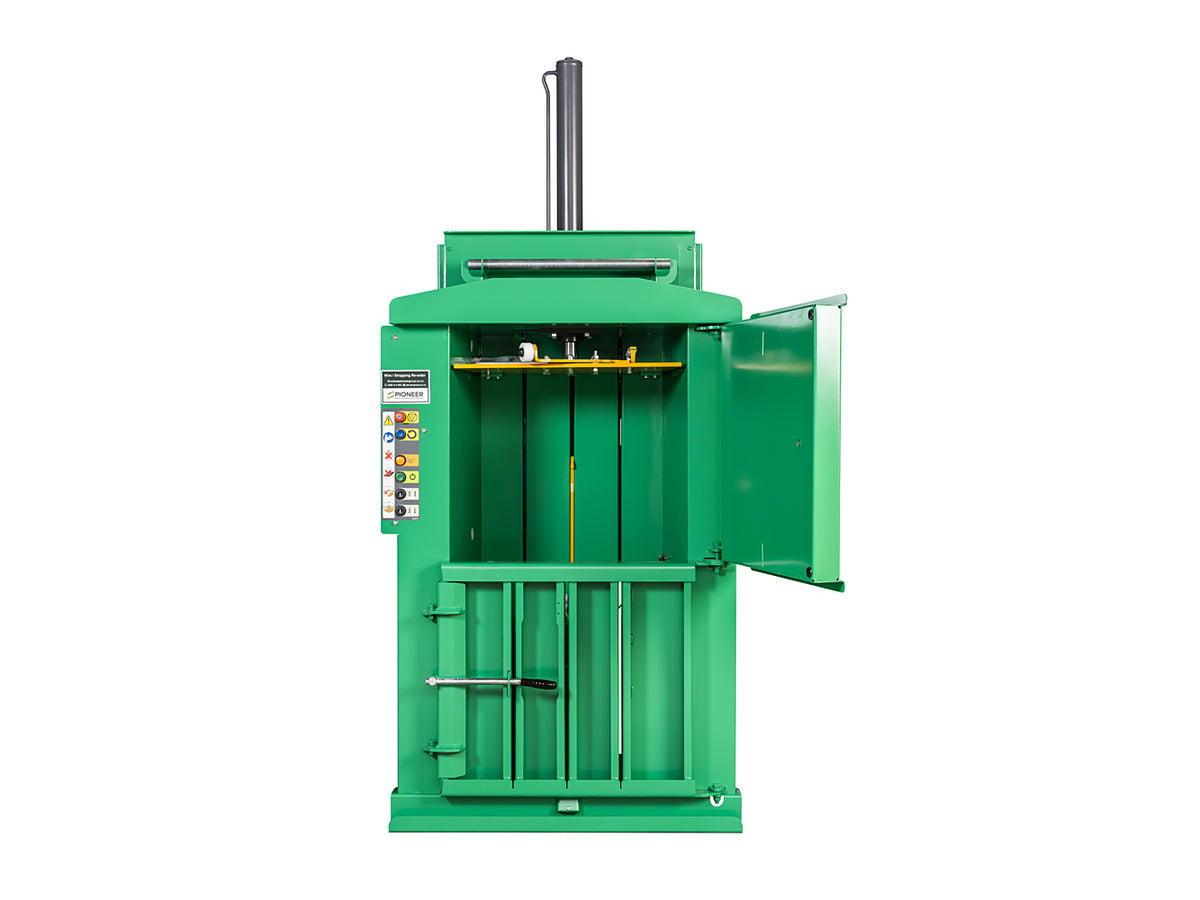

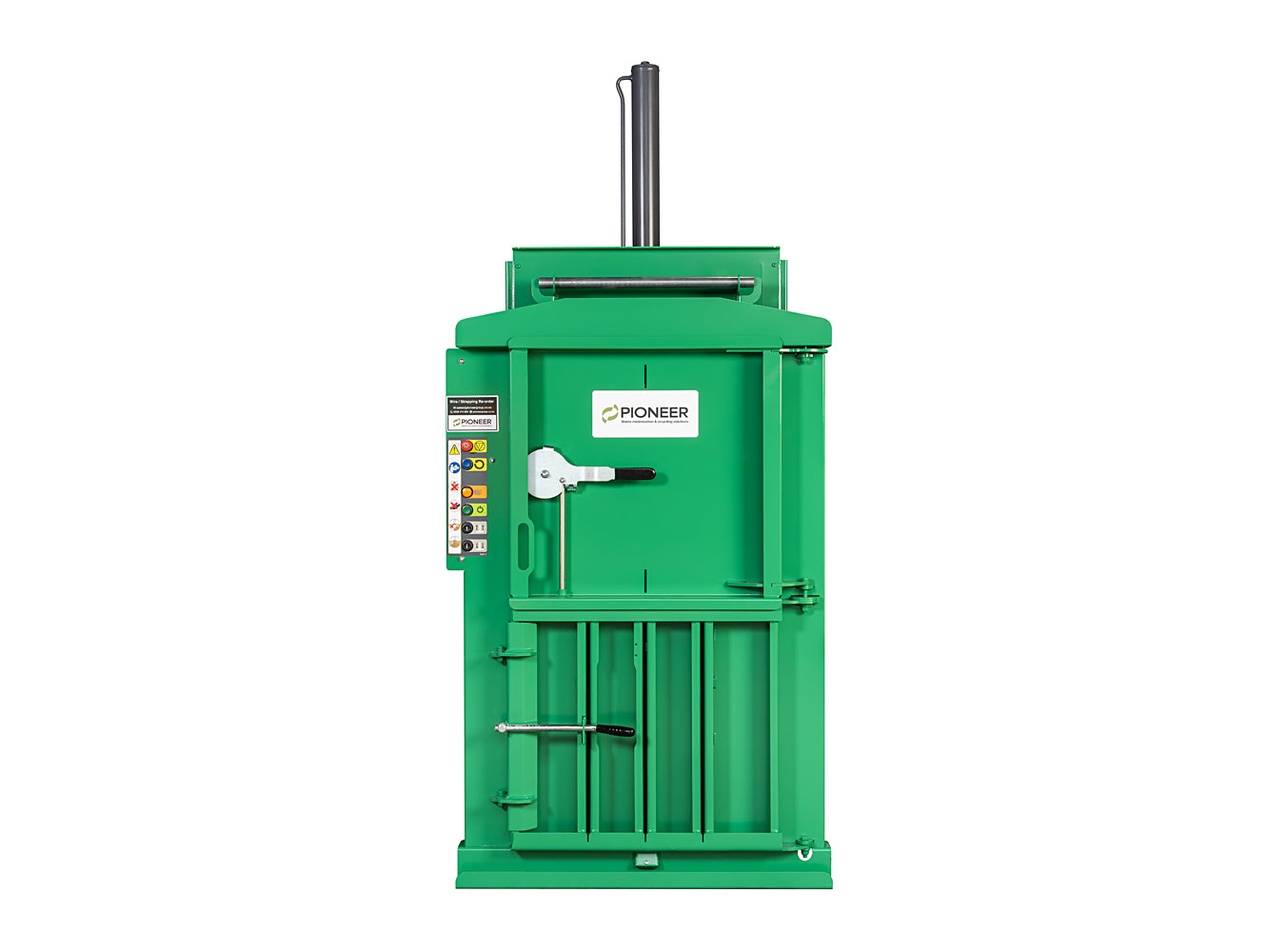

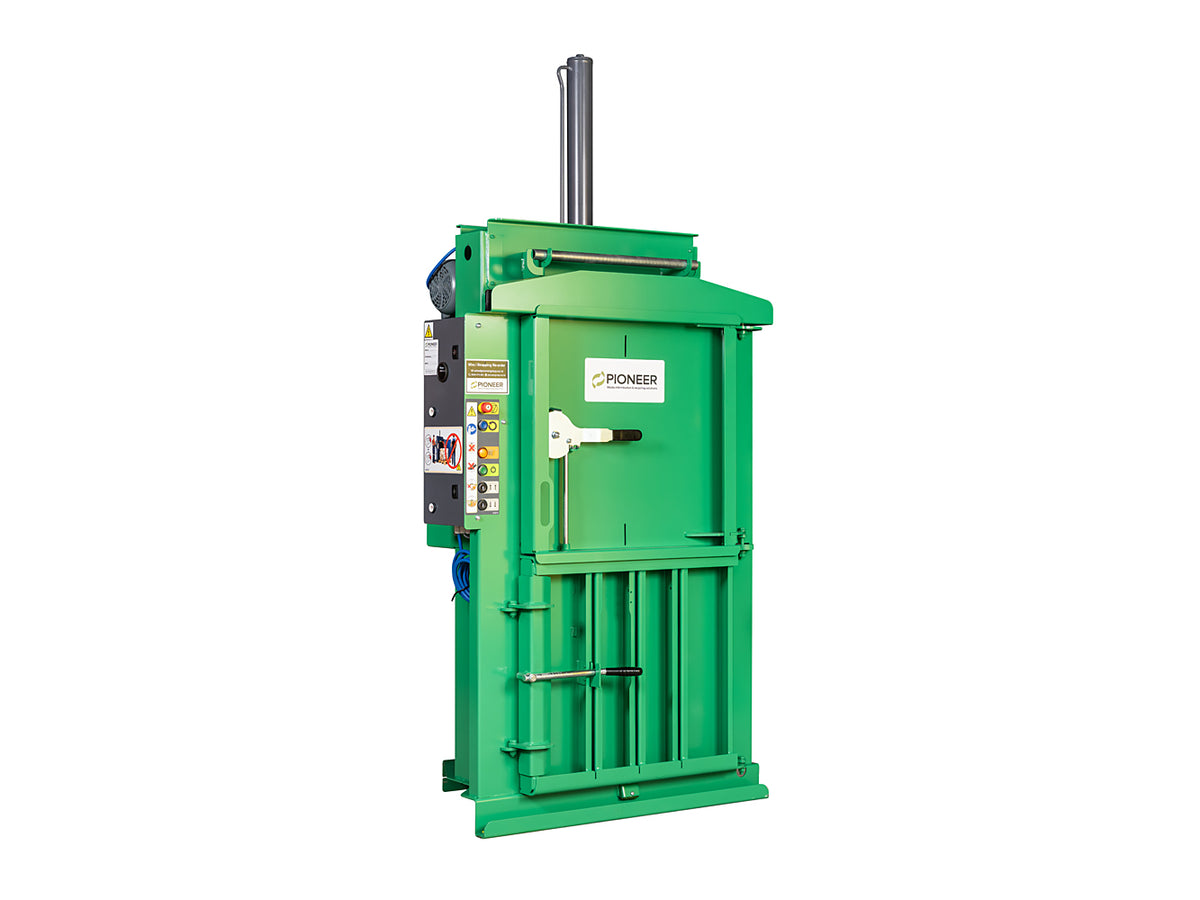

PB75 Vertical Baler - Automatic

Please enquire for pricing and rental options

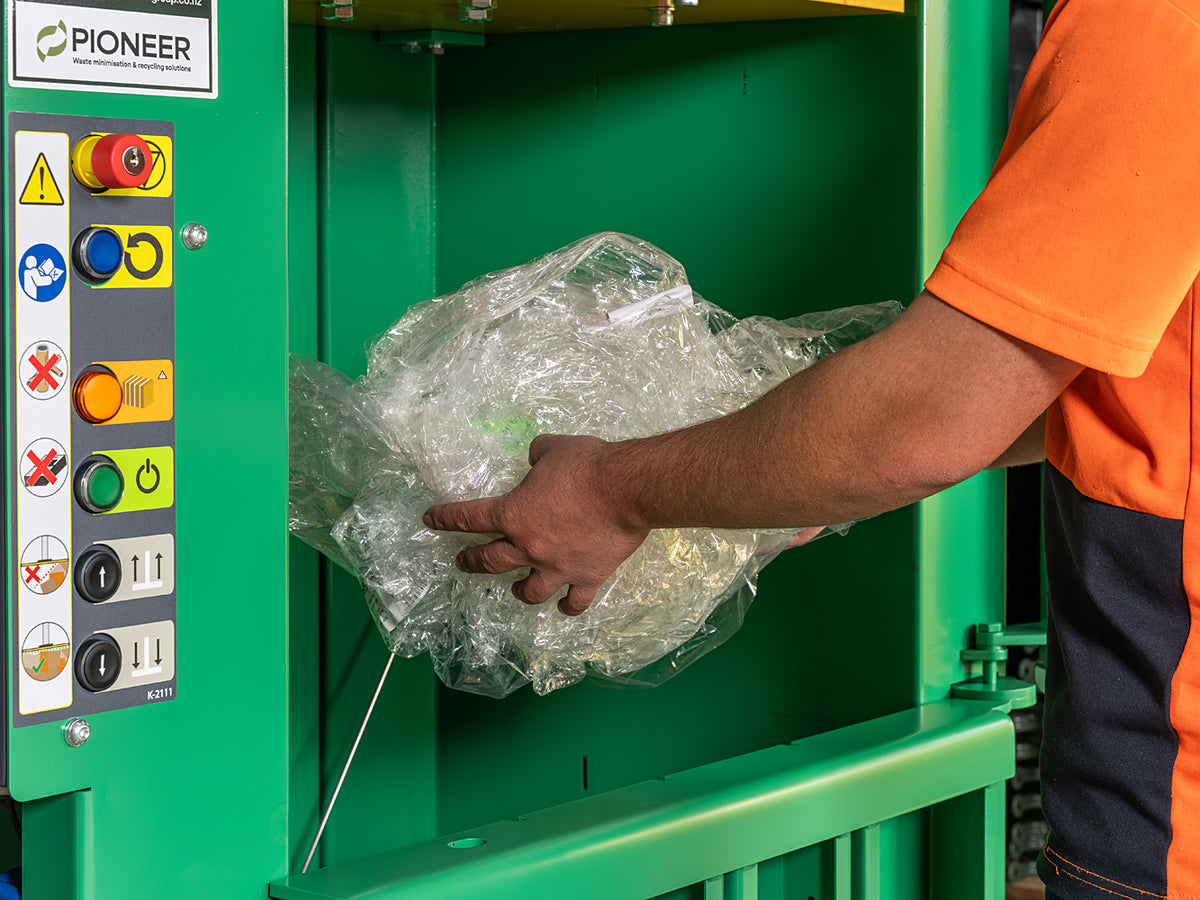

The most popular baler in the MACFAB range. An excellent baler for baling soft plastic / plastic film as well as cardboard and paper.

All MACFAB machines are available in Pioneer Green only.

Enquire about this product

Features

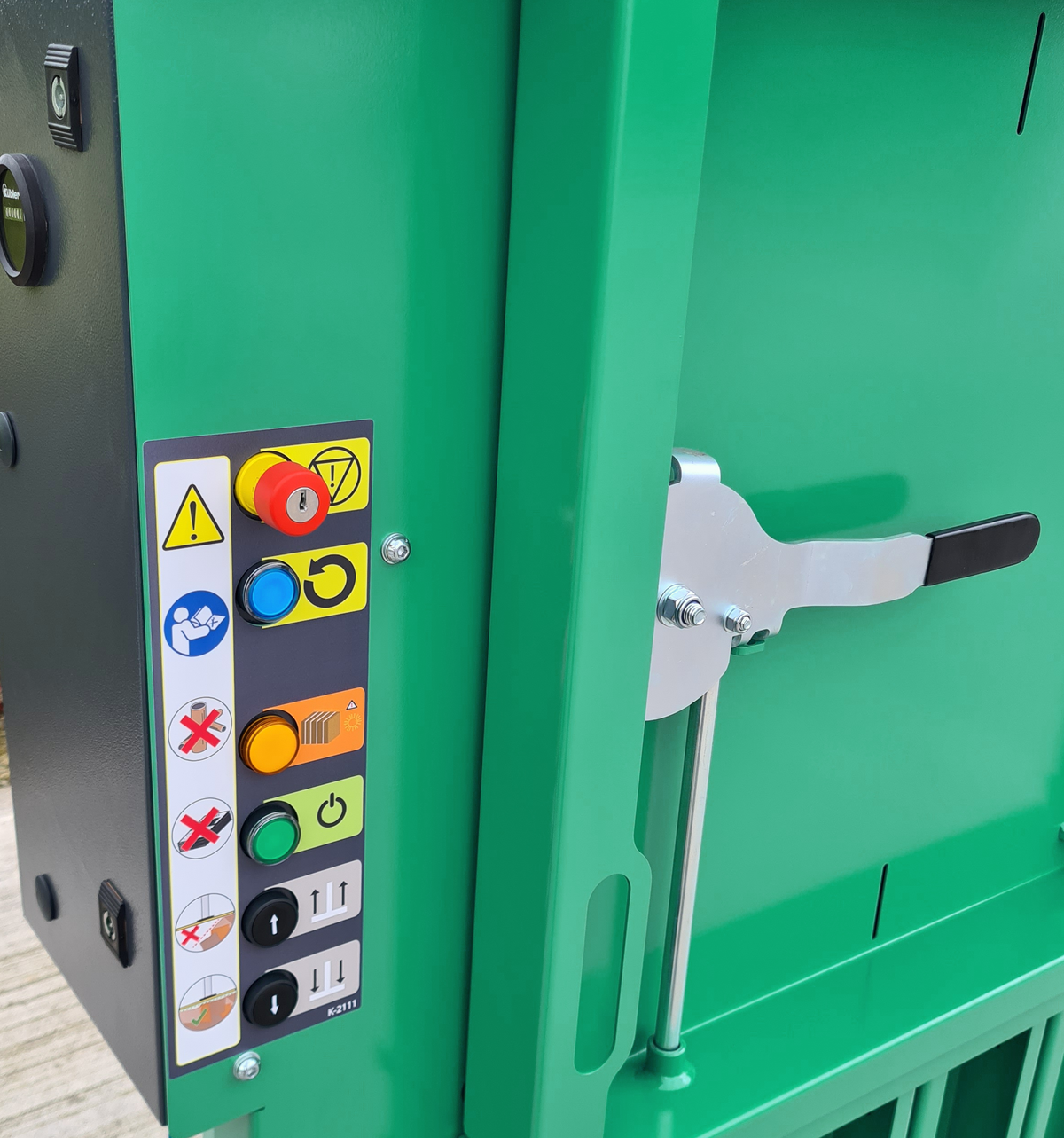

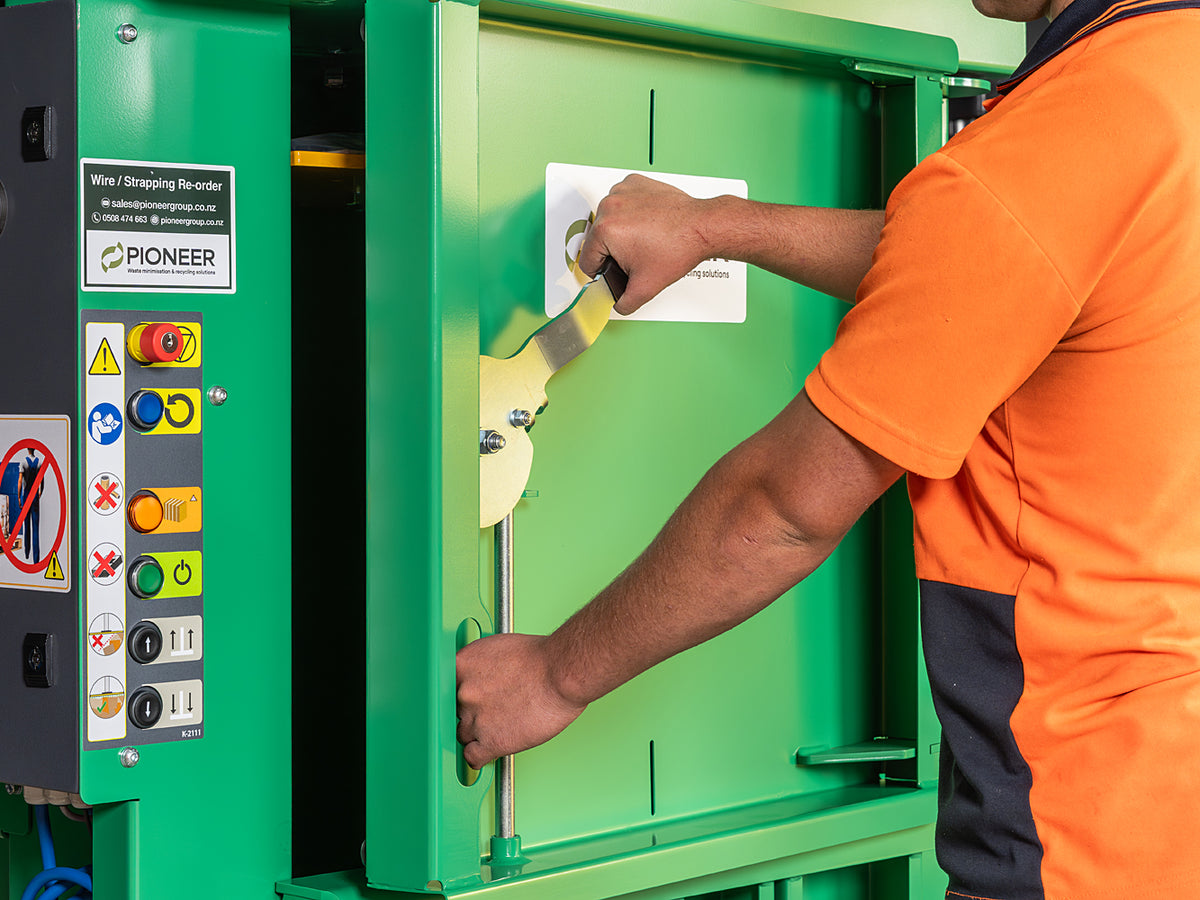

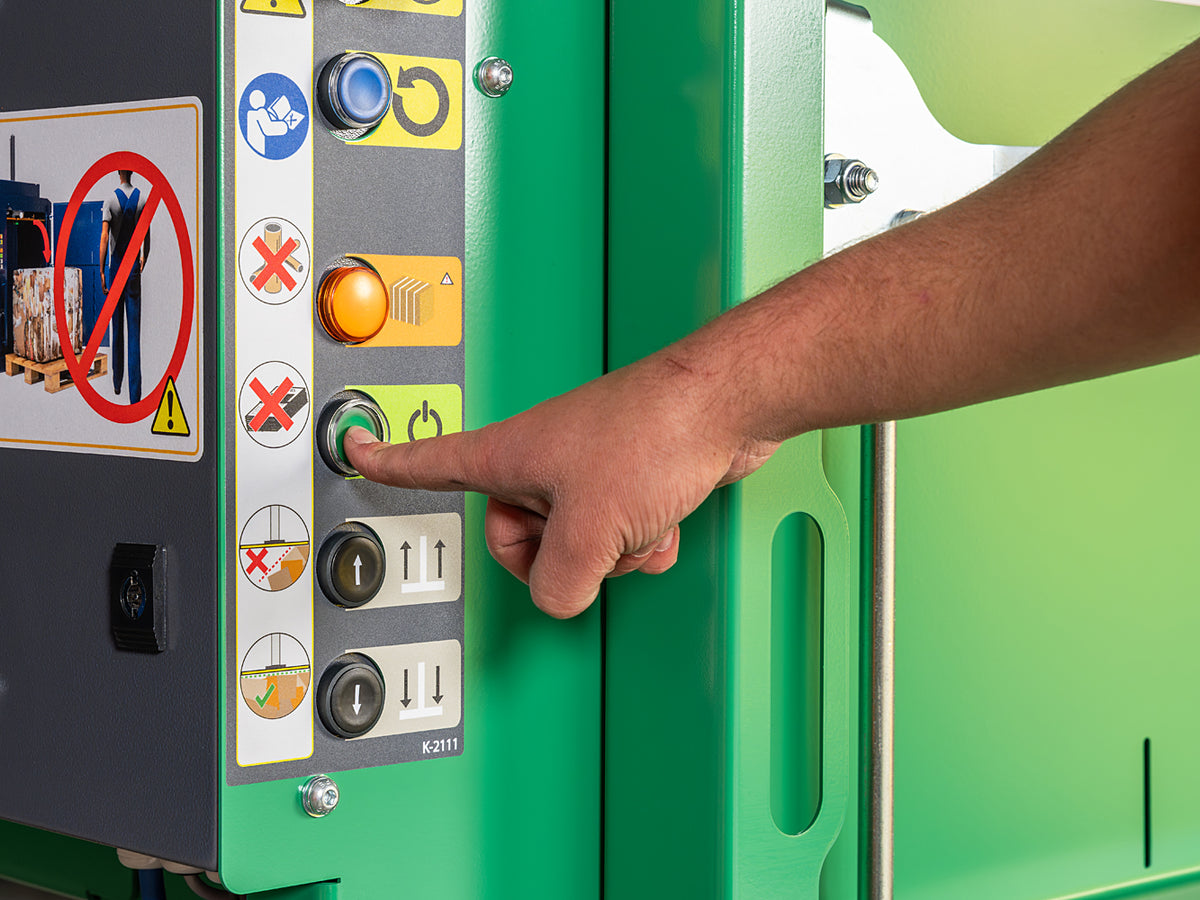

• PLC control panel with a bale full light.
• E-stop button with a key for easy machine lockout of the baler.
• Hour counter to record machine usage and plan maintenance.
• Makes a up to 75 kg bale.

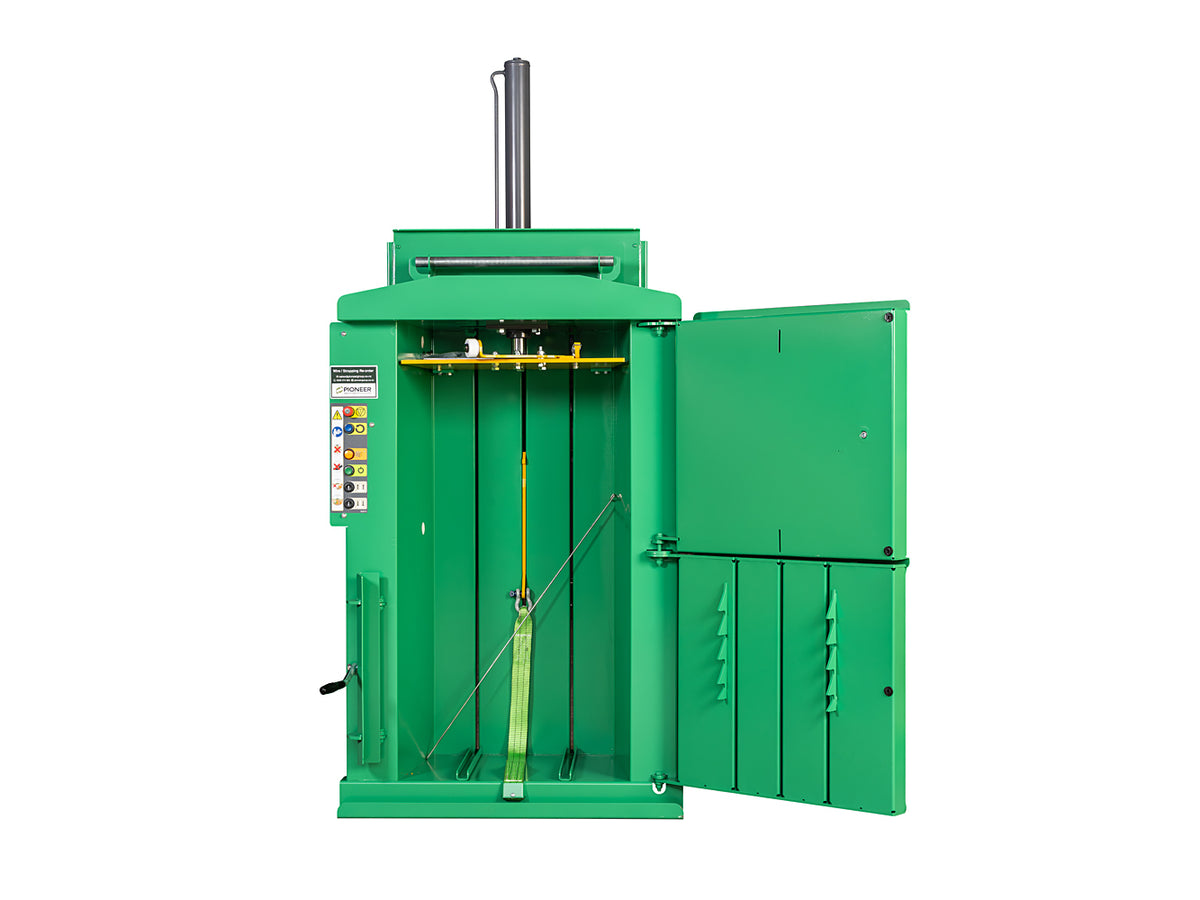

• Easy to eject a bale onto a pallet with strap eject system.
• Retainers to prevent spring back of material in the bale chamber.

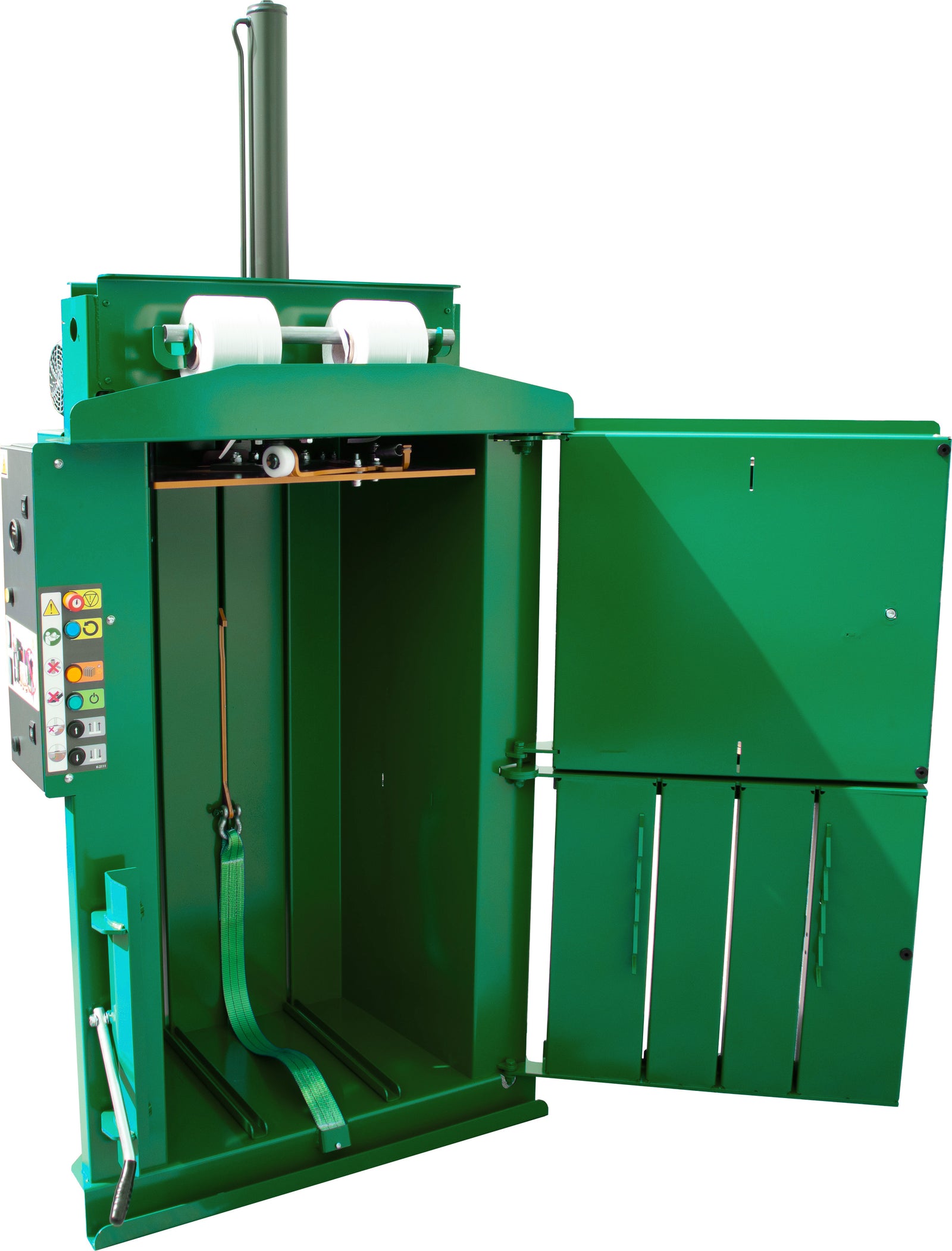

• Reel holder at the front of the baler holds 4 rolls of strapping for tying bales.

Dimensions

Width: 2335 mm
Height: 1040 mm
Length: 750 mm

Weight

Machine Weight: 278 kg

Options

Auto control panel with bale full light and E-stop with locking key
Strap eject for easy removal of bales.
Galvanised finish
Insert to crush small cans
Alternative power supplies

Additional Information

Baler Specs

Power Supply: 220 - 240 Volt 1 phase
Motor: 1.5 kW 13 Amp
Pressing Force: up to 3.5 Ton
Noise Level: 68 decibels
Cycle Times: 24 seconds

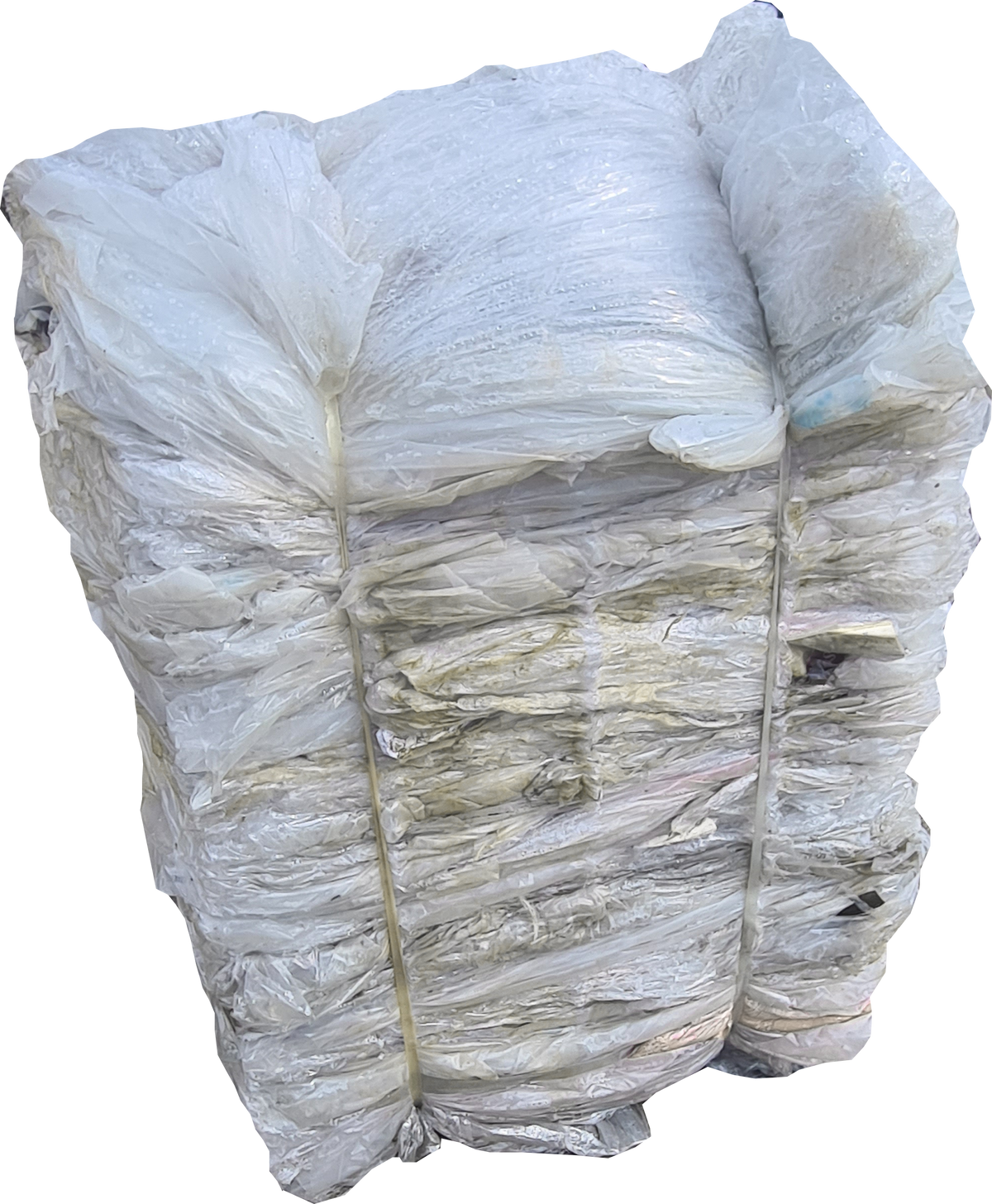

Bale Dimensions

Height: 0.735 m
Width: 0.700 m
Depth: 0.500 m
Weight: 75kg (depending on material used)

Loading Aperture Sizes

Width: 0.700 m
Height: 0.698 m
Depth: 0.500 m

Downloads

Pioneer_MACFAB_PB_75-_Automatic.pdf

Consumables for this product

PBS9 - 9mm Bale Strap

Made of high tenacity polyester yarns. It is very strong yet more flexible & much safer to handle.

PBS13 - 13mm Bale Strap

13mm polyester tape is an ideal solution for baling strap. It is wider and stronger than the 9mm baling strap, but still cost effective. Made of high tenacity polyester yarns it is very strong yet more flexible and much safer to handle.
