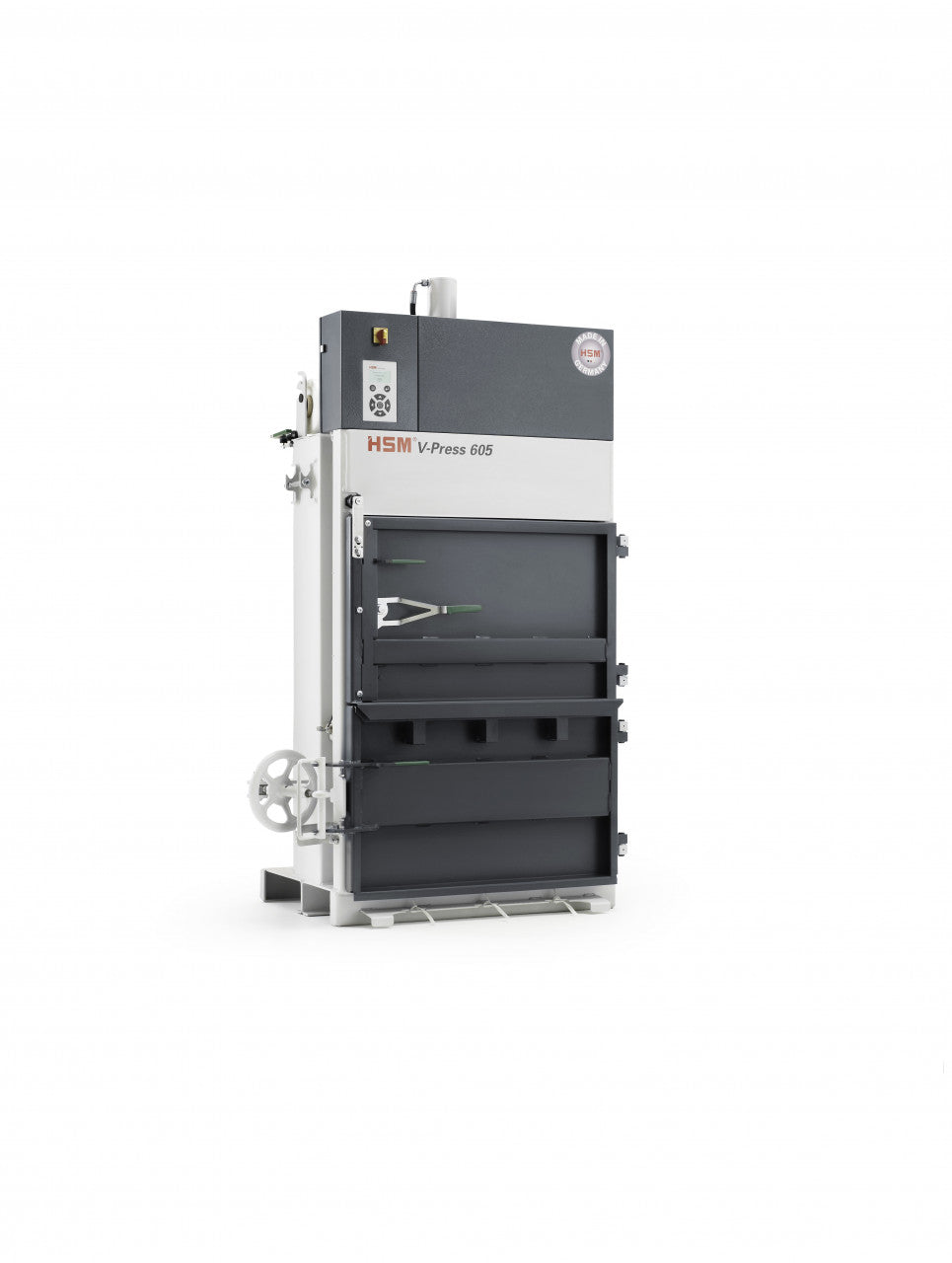

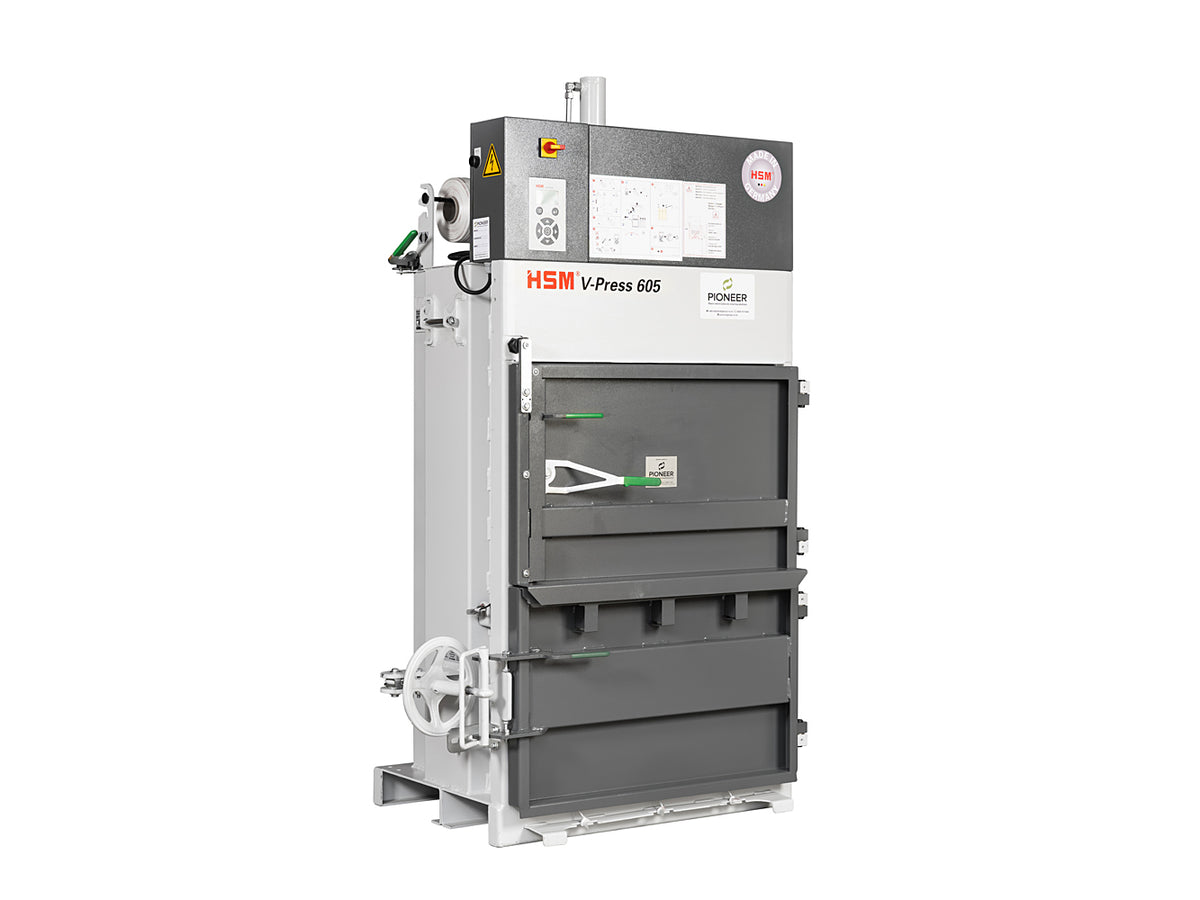

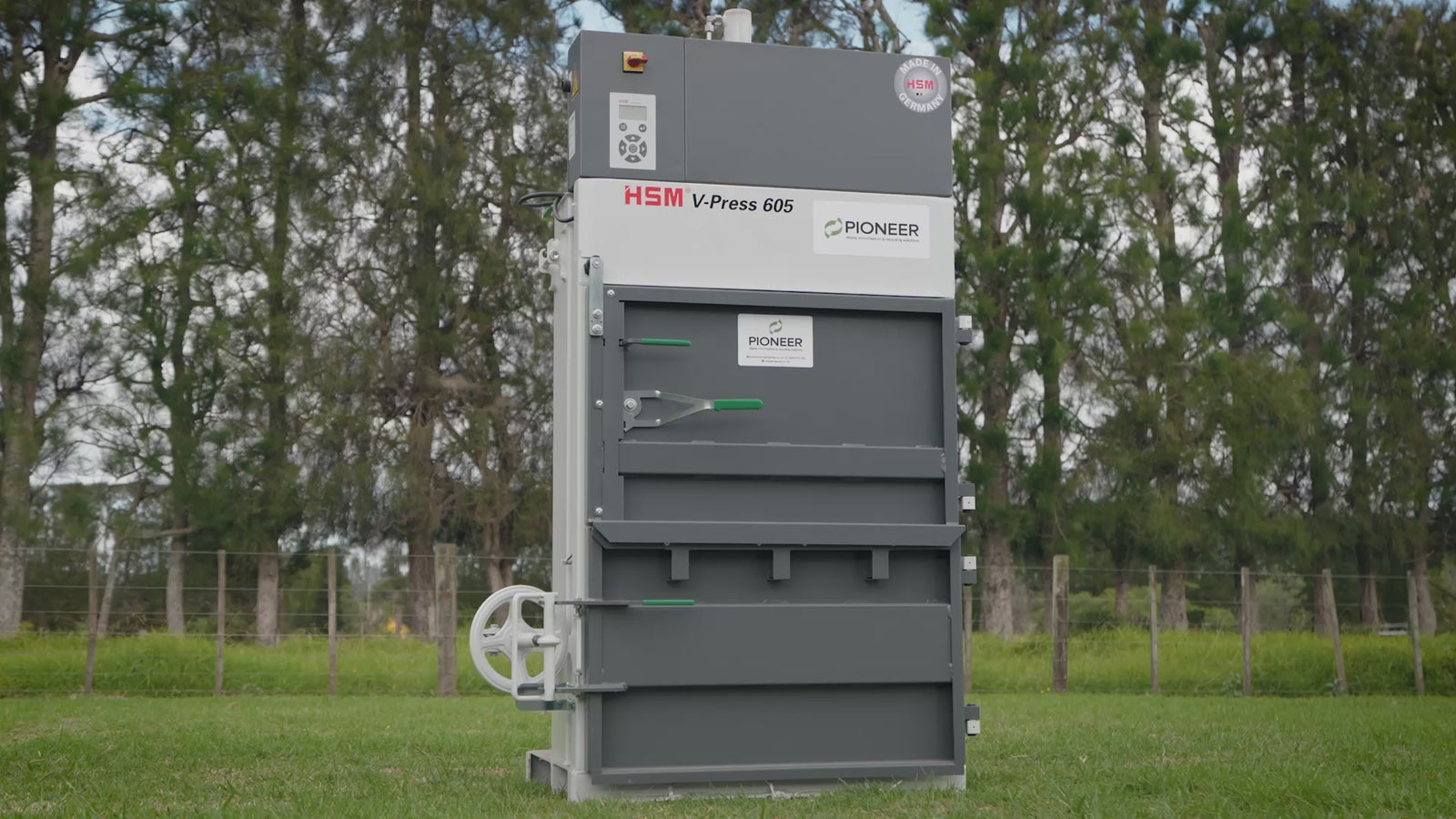

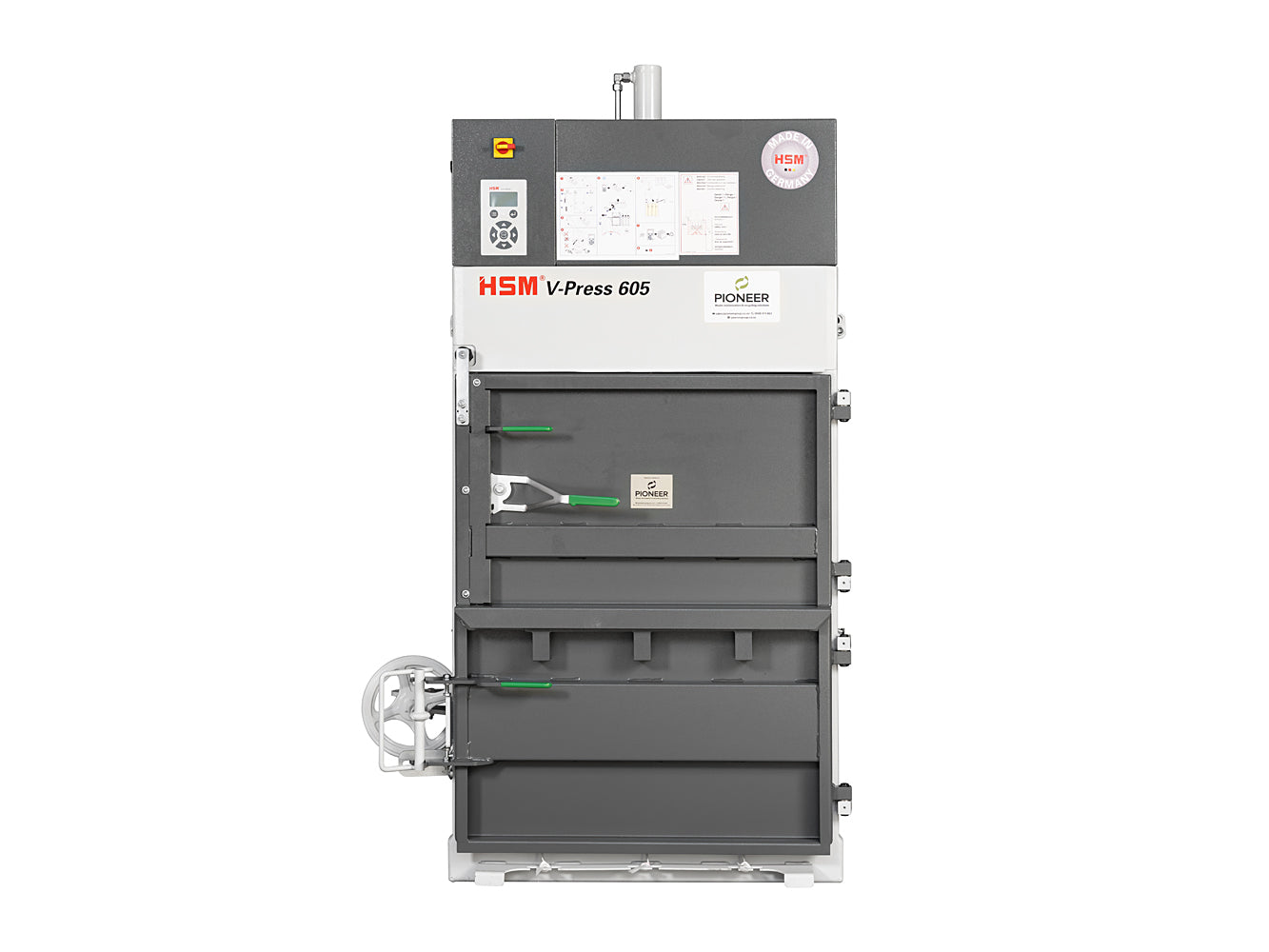

V-Press 605 Eco Vertical Baler

Name: V-Press 605 Eco Vertical Baler
SKU: V-Press 605 Eco Vertical Baler

Please enquire for pricing and rental options

The HSM V-Press 605 reduces the volume of cardboard or foils in an economical way.

Enquire about this product

Features

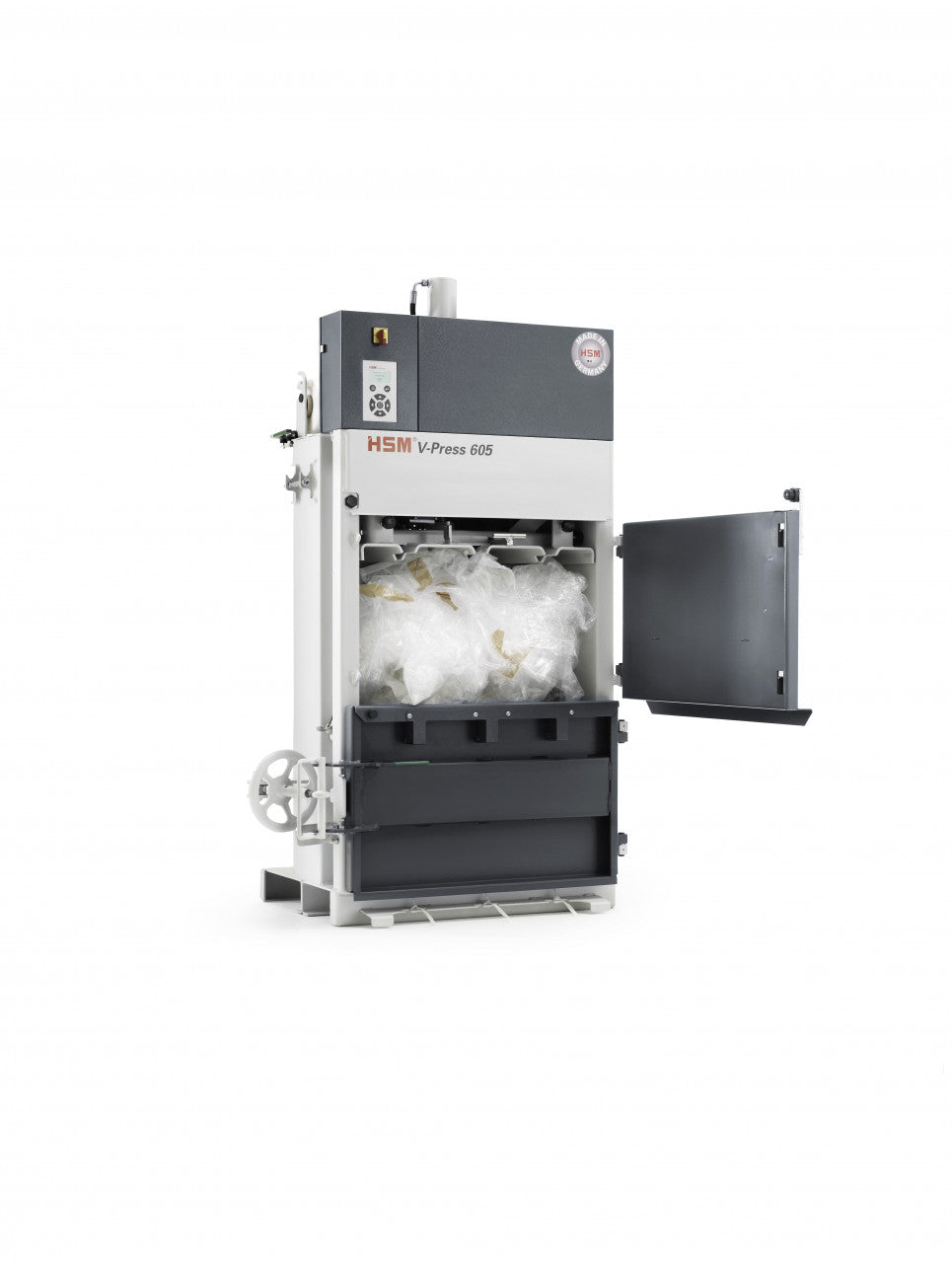

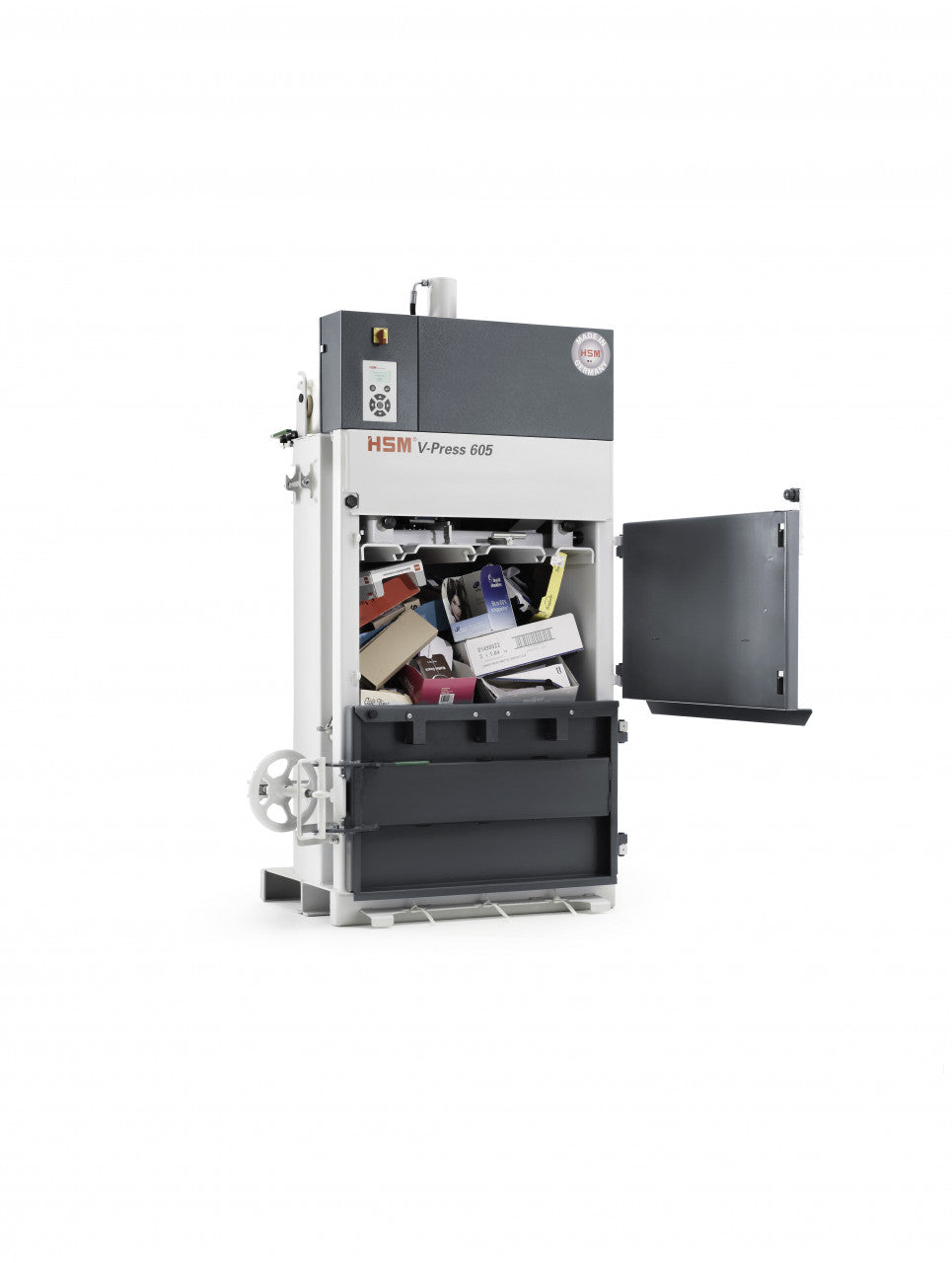

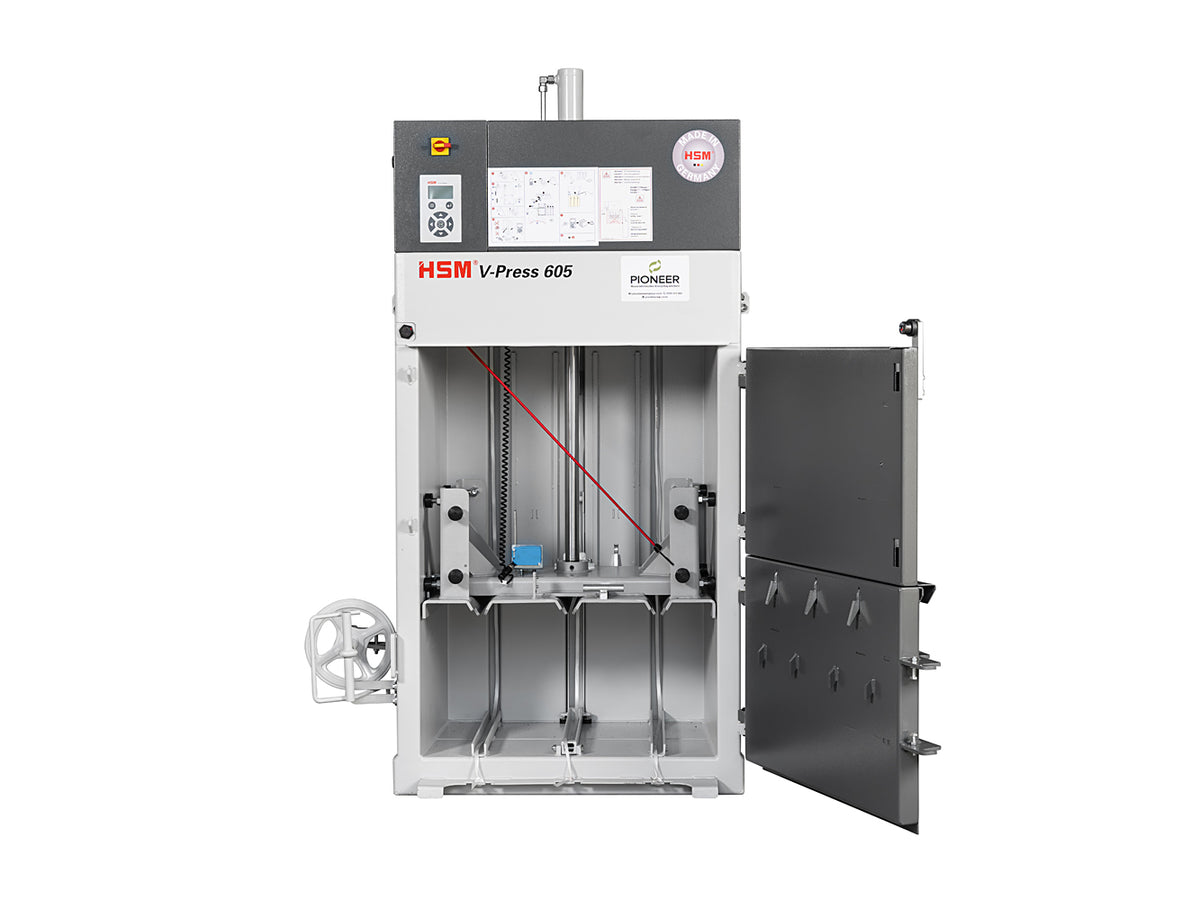

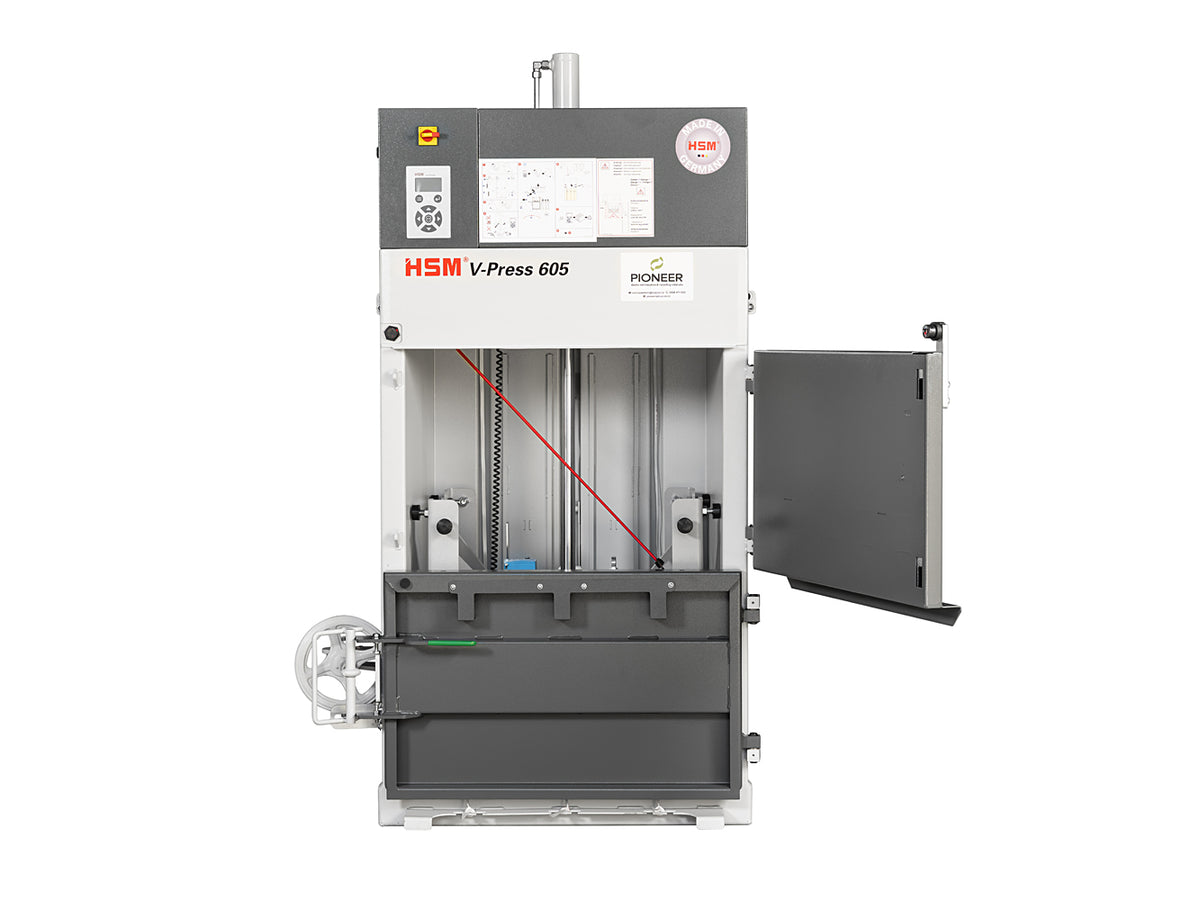

To fill the press, the upper half of the doors is swung to the right

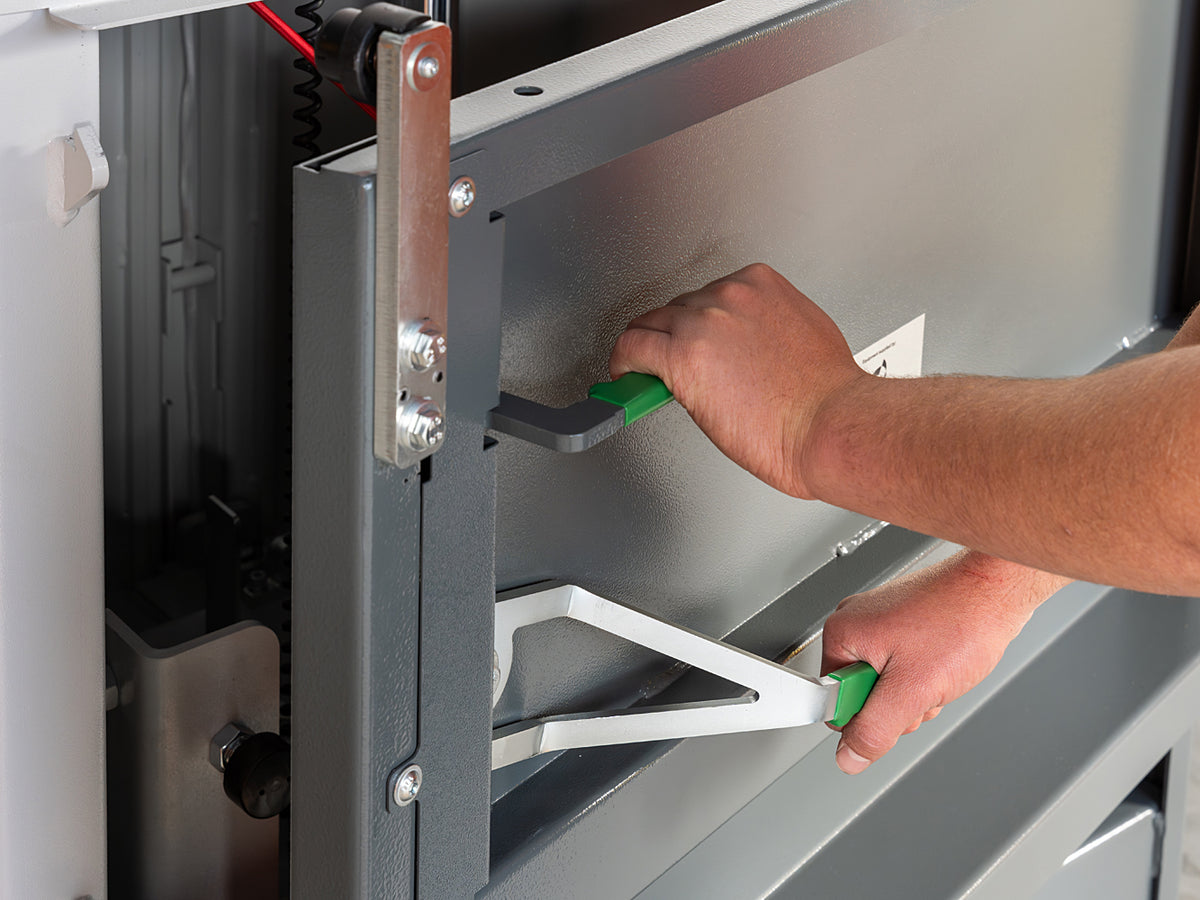

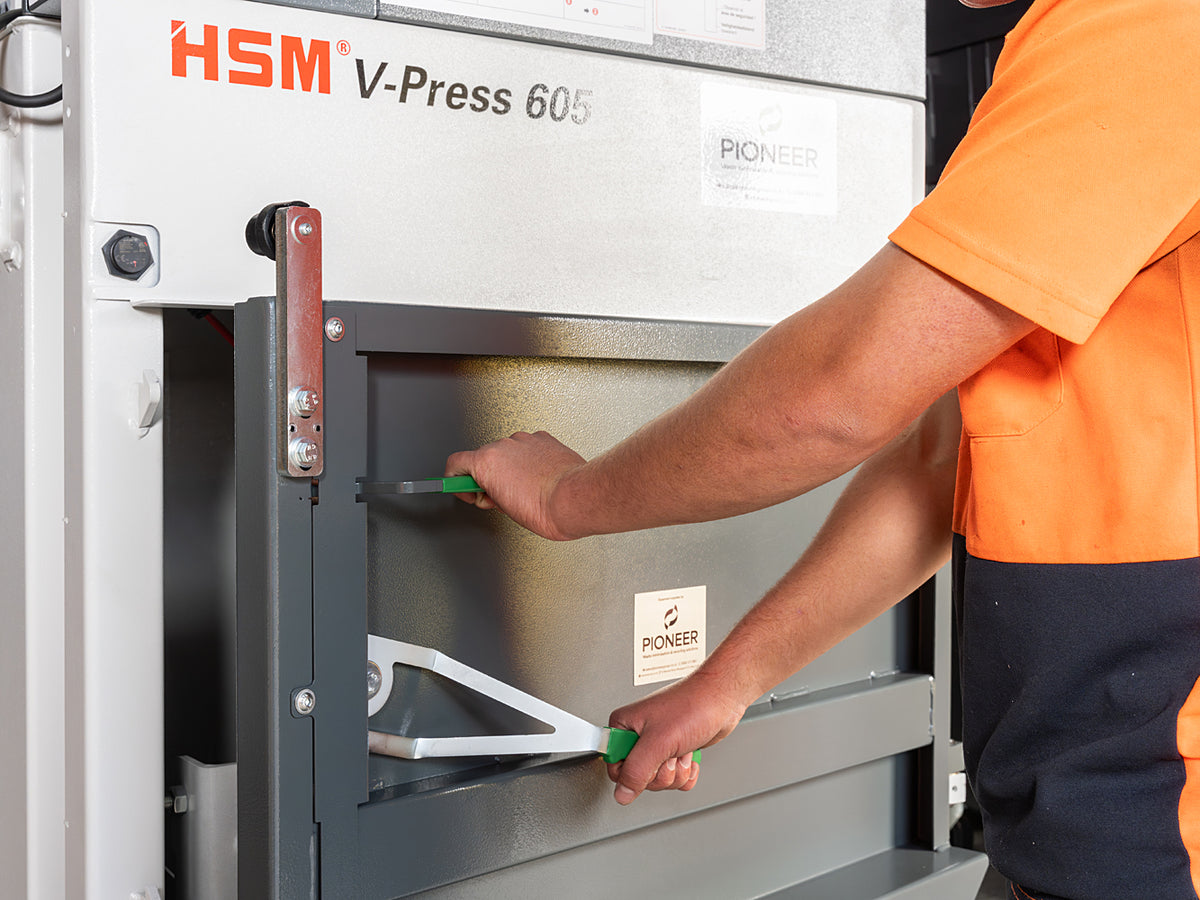

Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing

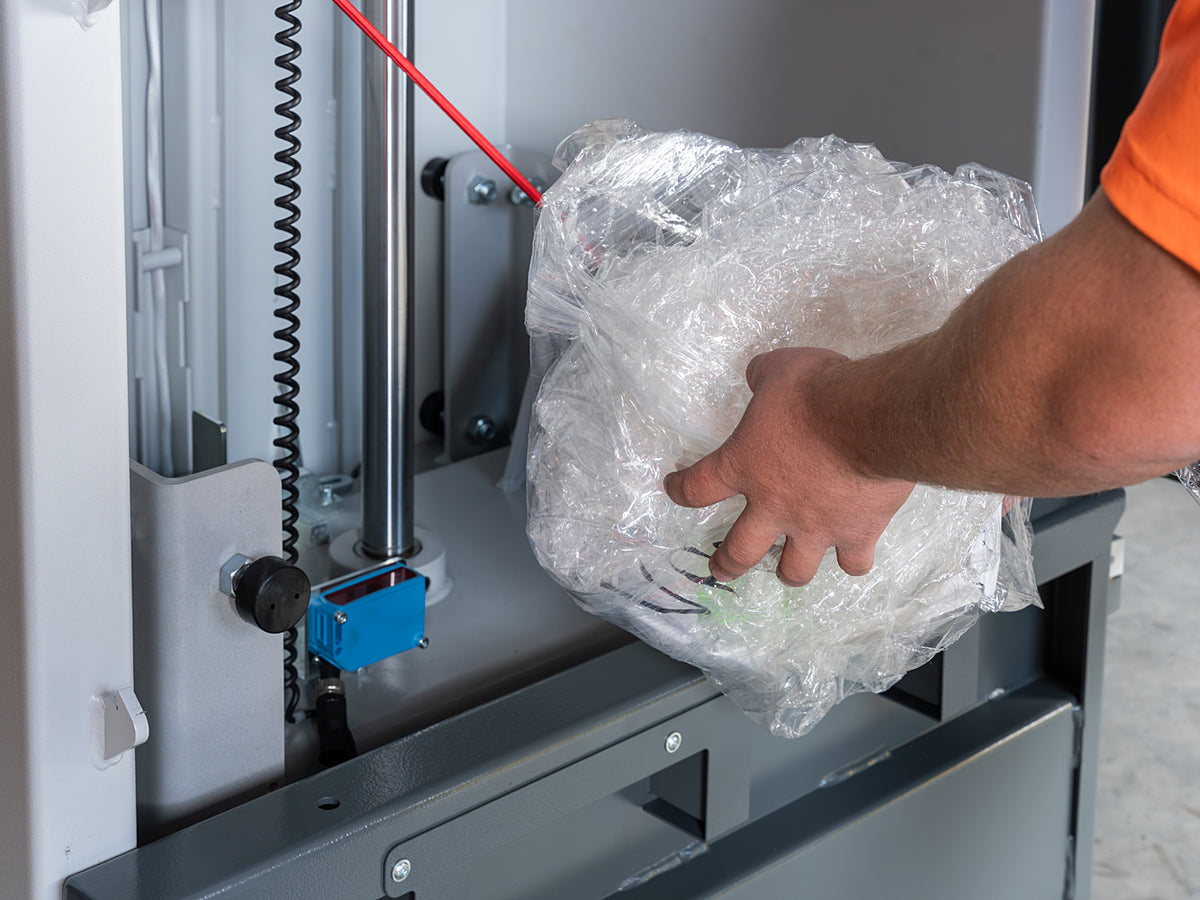

Suitable for cardboard as well as film
Automatic start of the pressing process after closing the door
Massive press ram and extremely robust press plate guidance

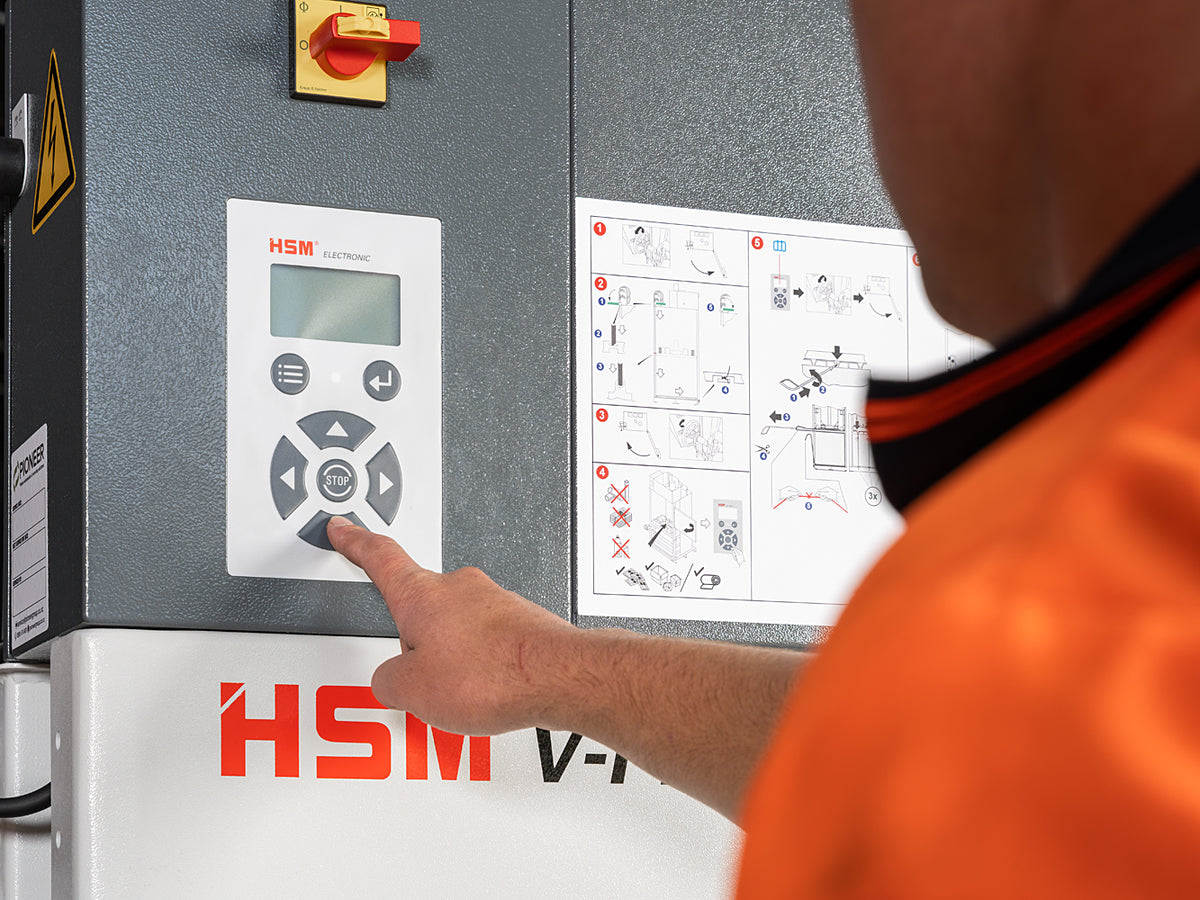

Convenient membrane keypad with text display, which shows the current status of the machine
HSM TCS (Torsion Control System) for monitoring press ram movement
Manual bale strapping with continuous polyester tape

Dimensions

Width: 1198 mm
Height: 1986 mm
Length: 823 mm

Weight

Machine Weight: 485 kg

Additional Information

Pressing power: 57 kN
Specific pressing power: 11,85 N/cm²
Driving power: 1,5 kW
Voltage / Frequency: 400 V / 50 Hz
Cycle time when idling vacío: 21 s
Volume throughput in idle operation (theor.): 4,38 m³/h
Loading height: 655 mm
Loading aperture width x height: 800x495 mm
Bale length x Bale width x Bale height: 800 x 600 x 600 mm
Bale Weight: Output up to +/- 70kgs
Noise level (idle operation): ca. 57dB(A)
Related product line: V-Press
Type of consumables: Strapping tape
Press material: Plastic film, Mixed paper, Cardboard

Purchase strapping tape here

Downloads

Pioneer_HSM_V-Press_605.pdf HSM-Vertical-Baling-Presses.pdf

Consumables for this product

PBS13 - 13mm Bale Strap

13mm polyester tape is an ideal solution for baling strap. It is wider and stronger than the 9mm baling strap, but still cost effective. Made of high tenacity polyester yarns it is very strong yet more flexible and much safer to handle.
