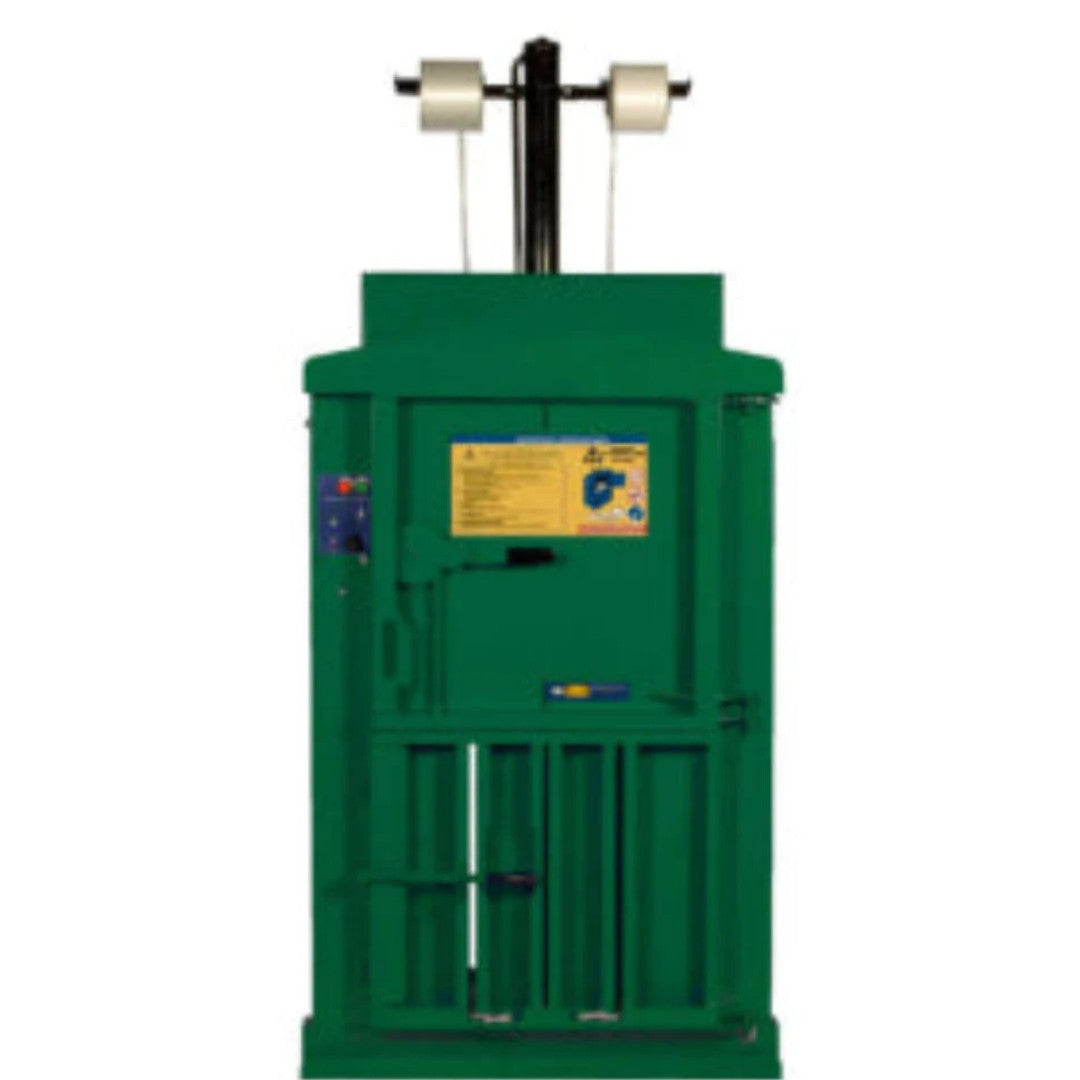

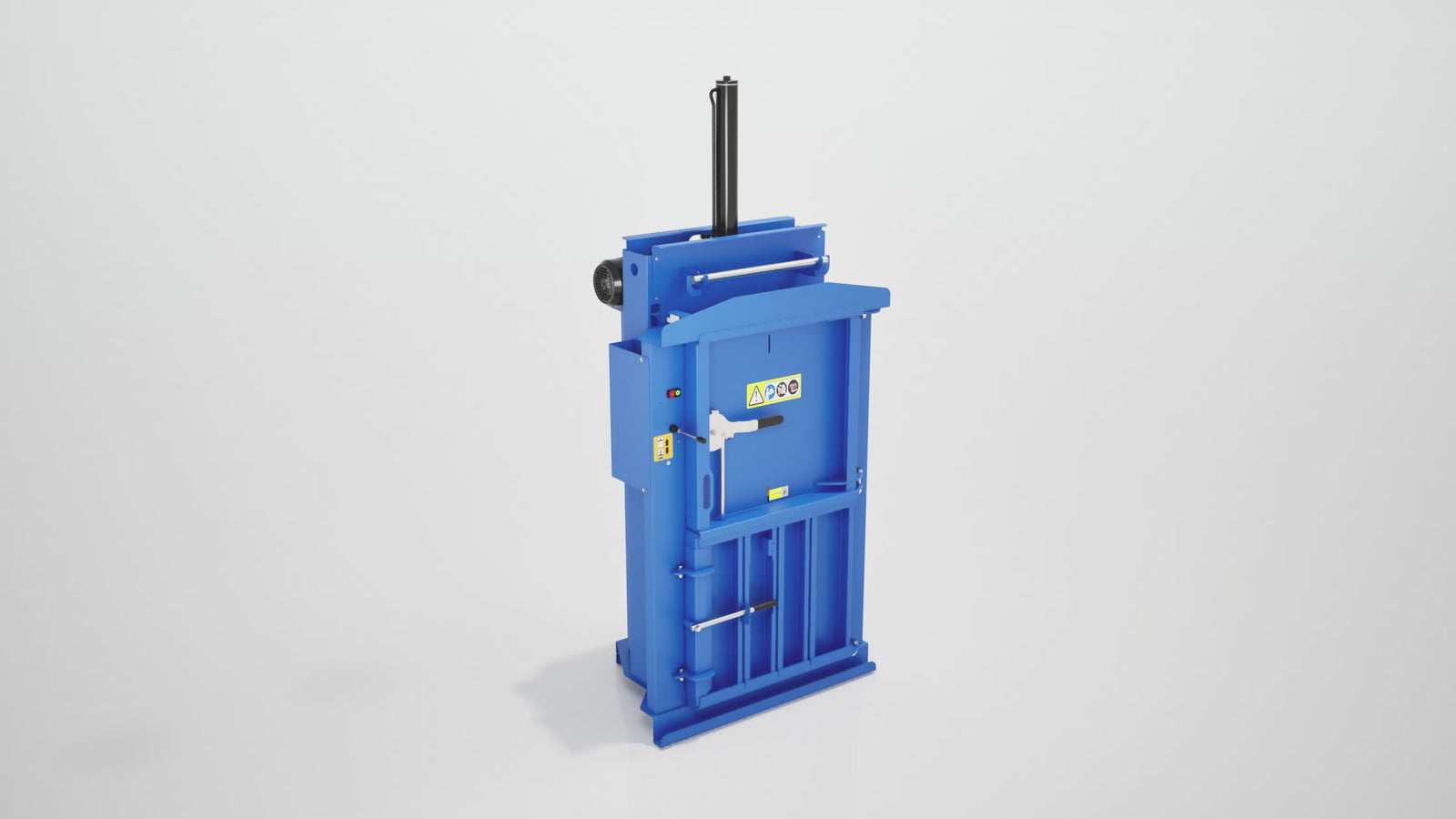

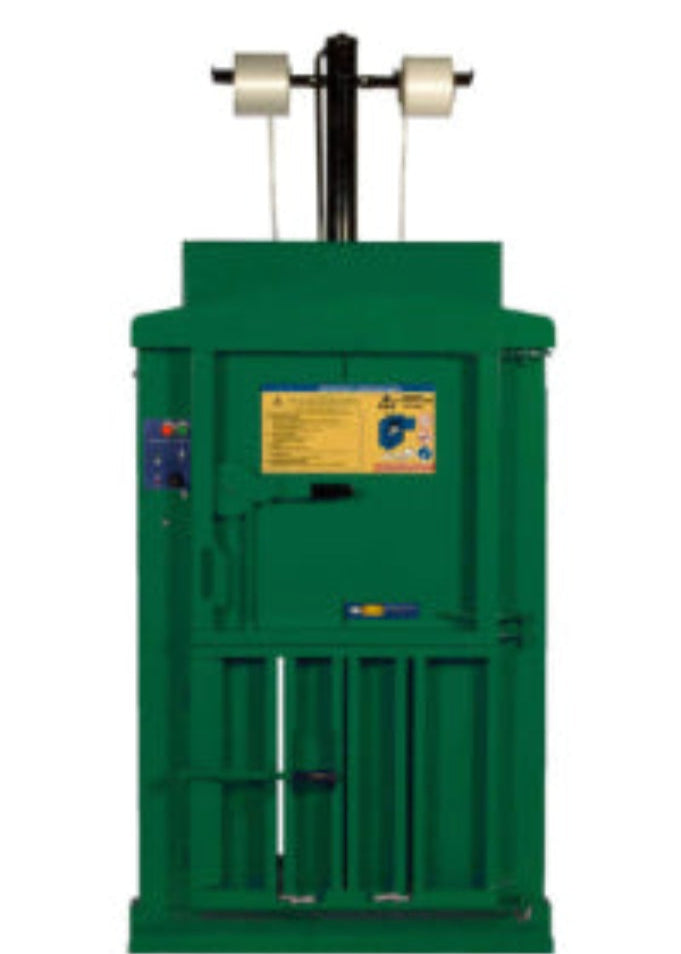

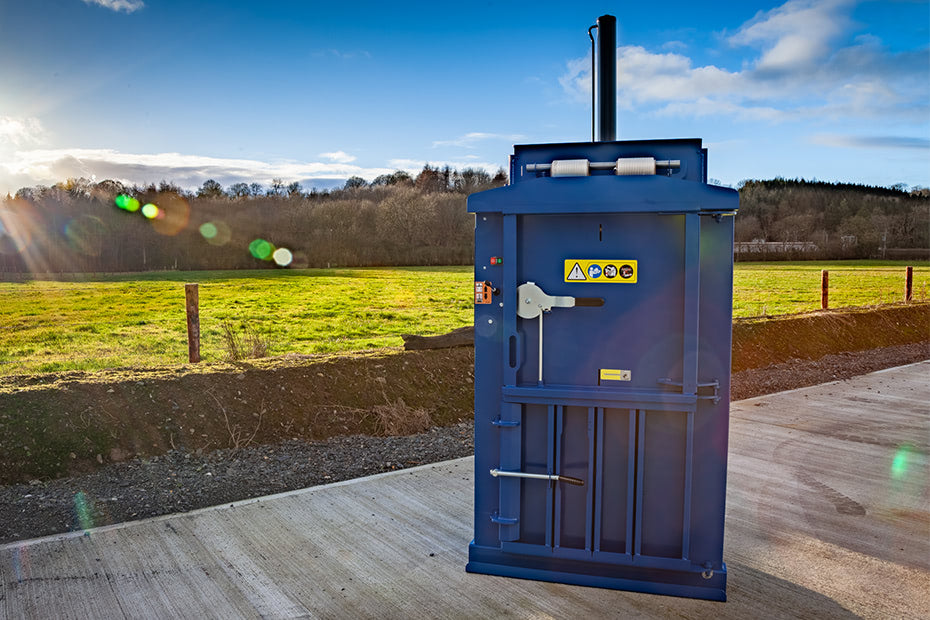

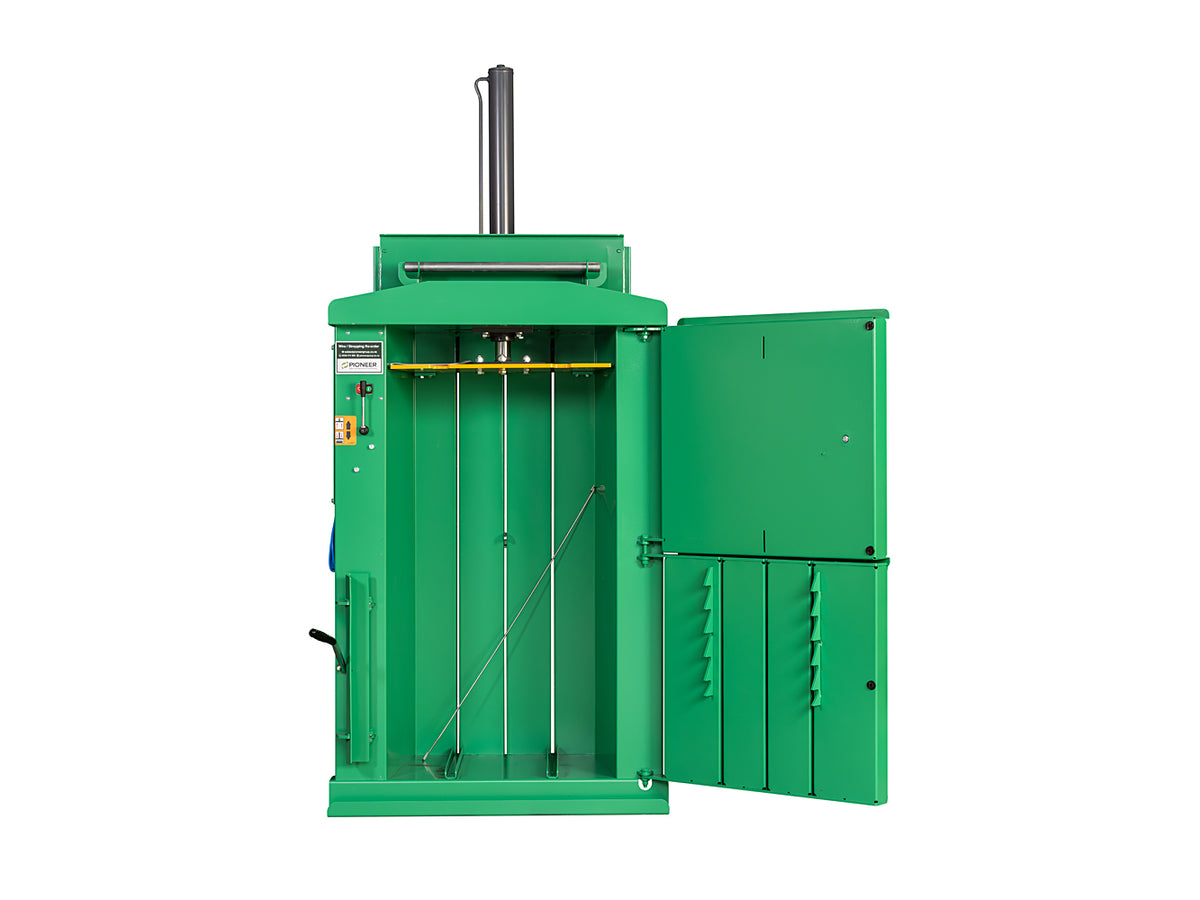

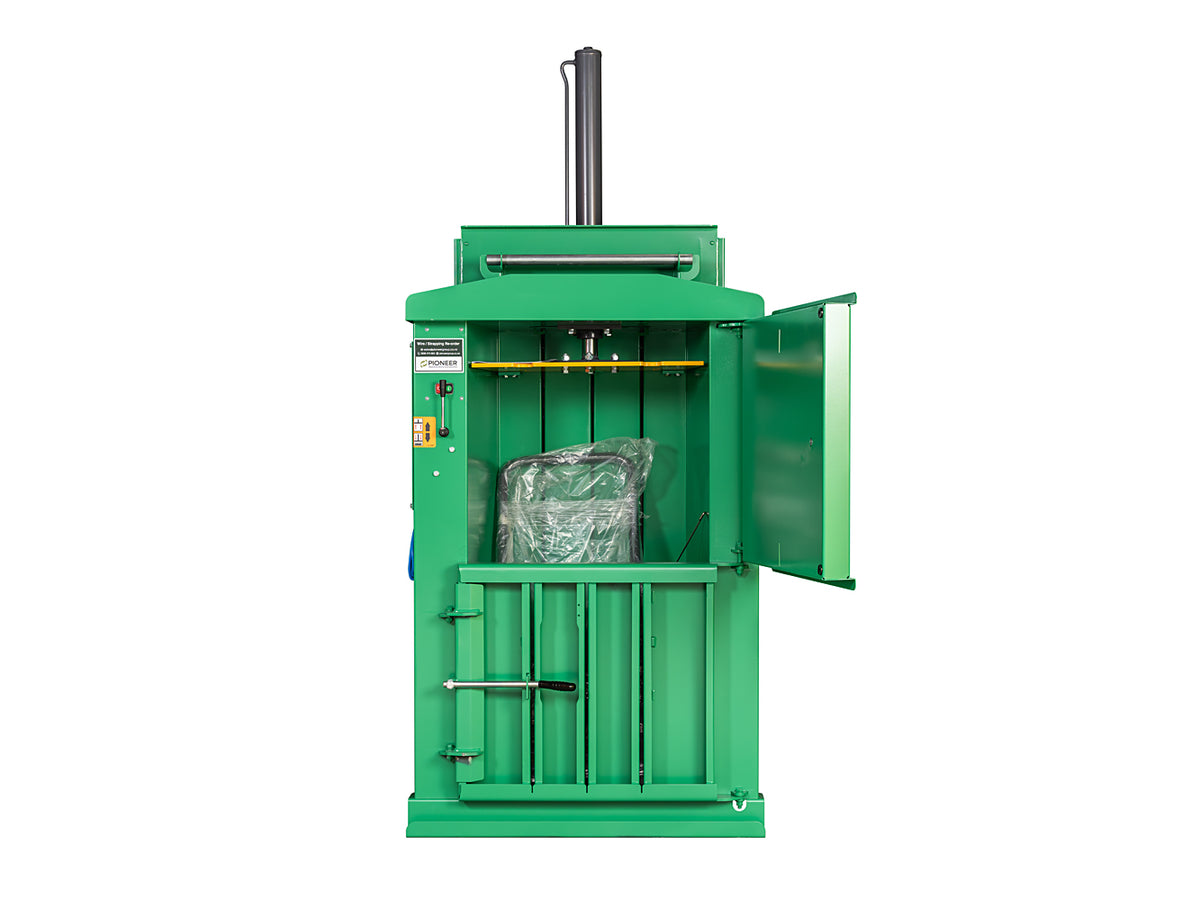

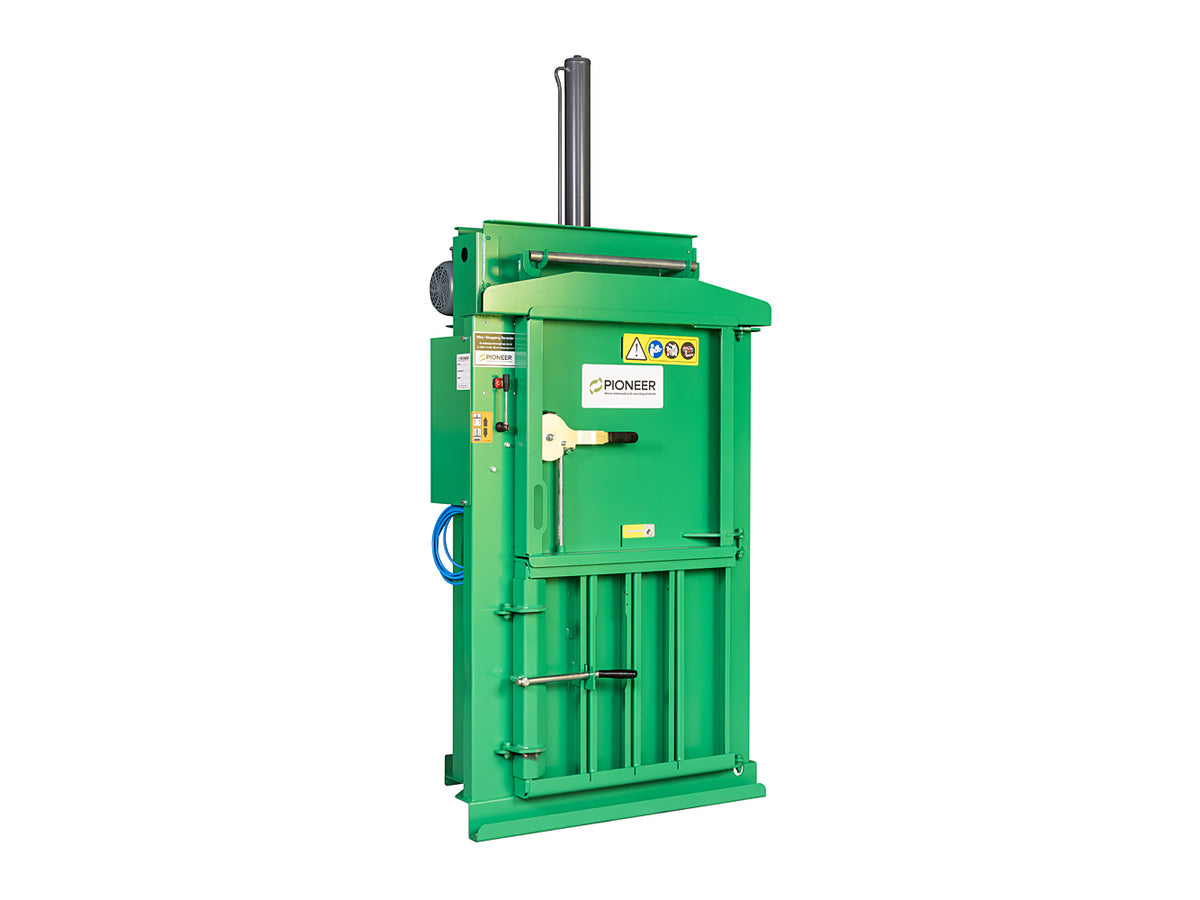

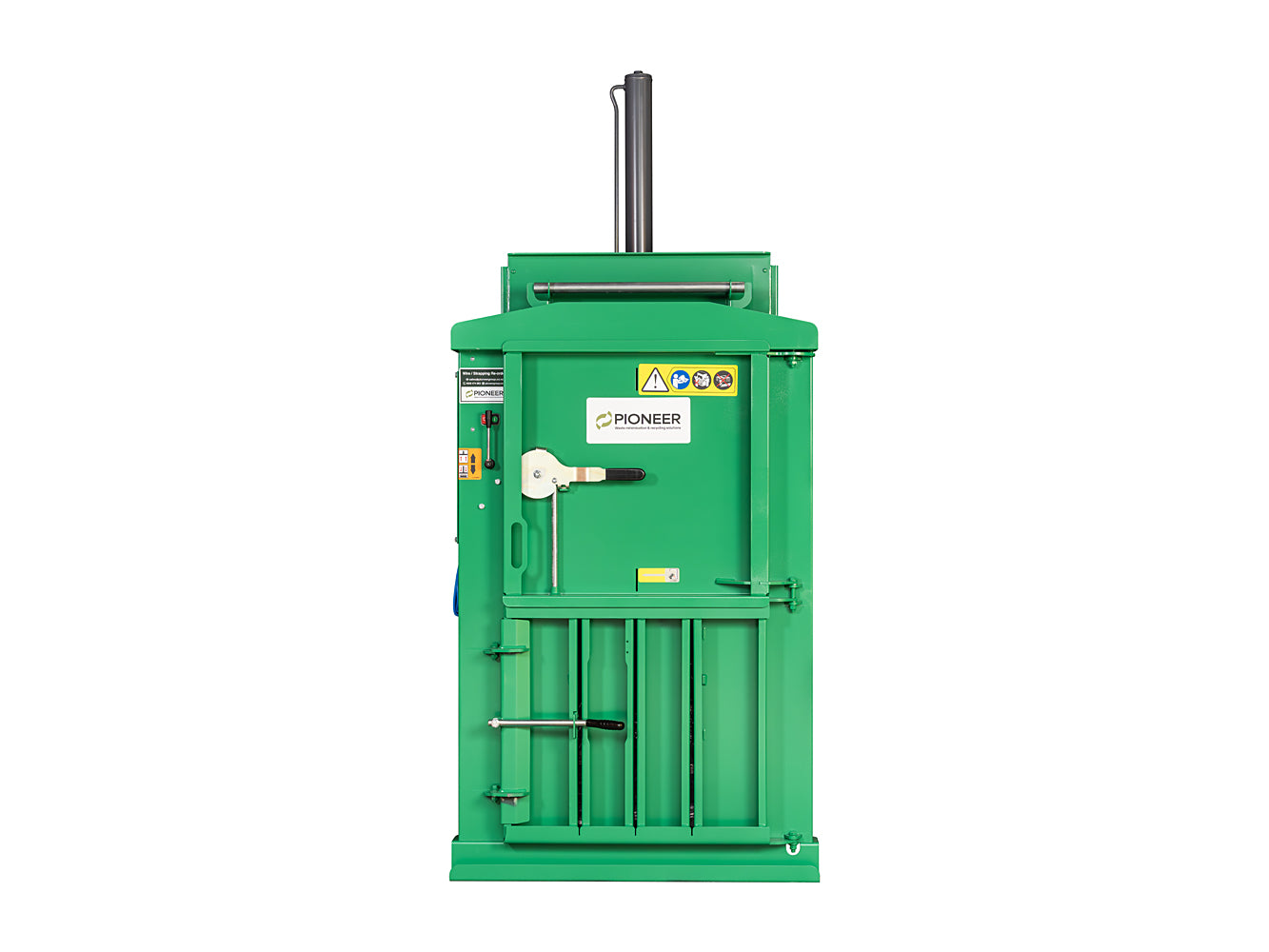

PB75 Vertical Baler

Name: PB75 Vertical Baler
SKU: PB75 Vertical Baler

Please enquire for pricing and rental options

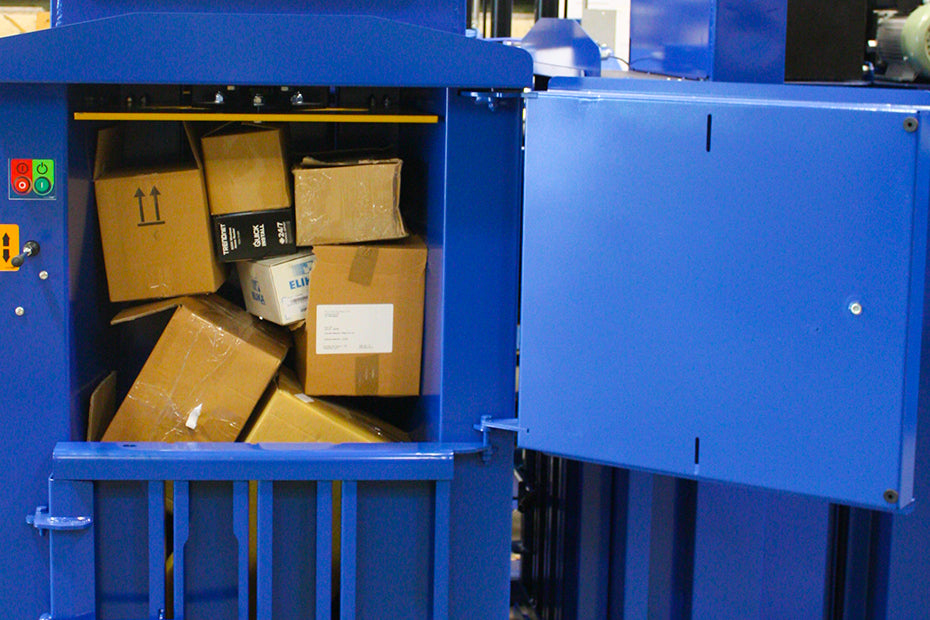

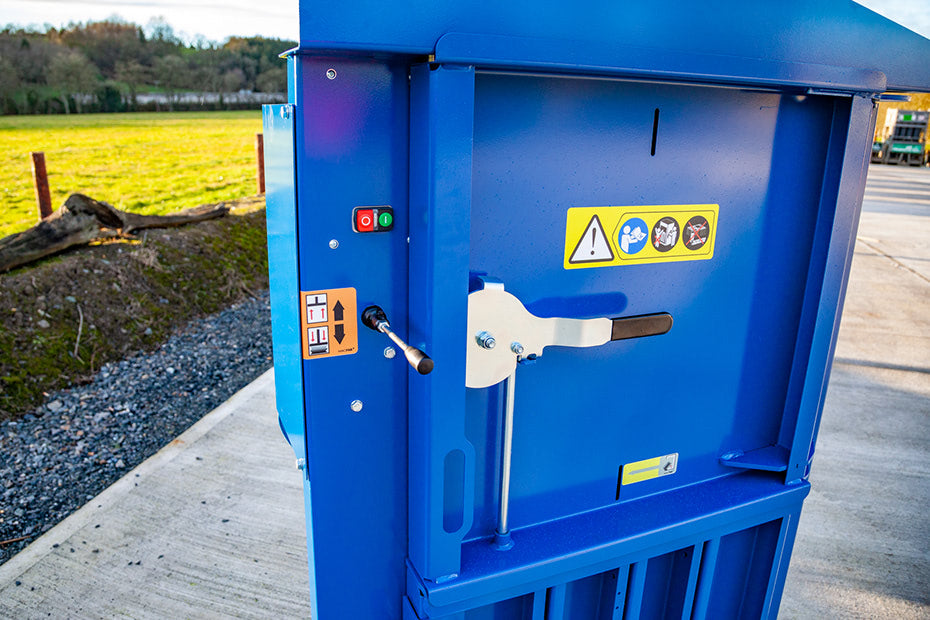

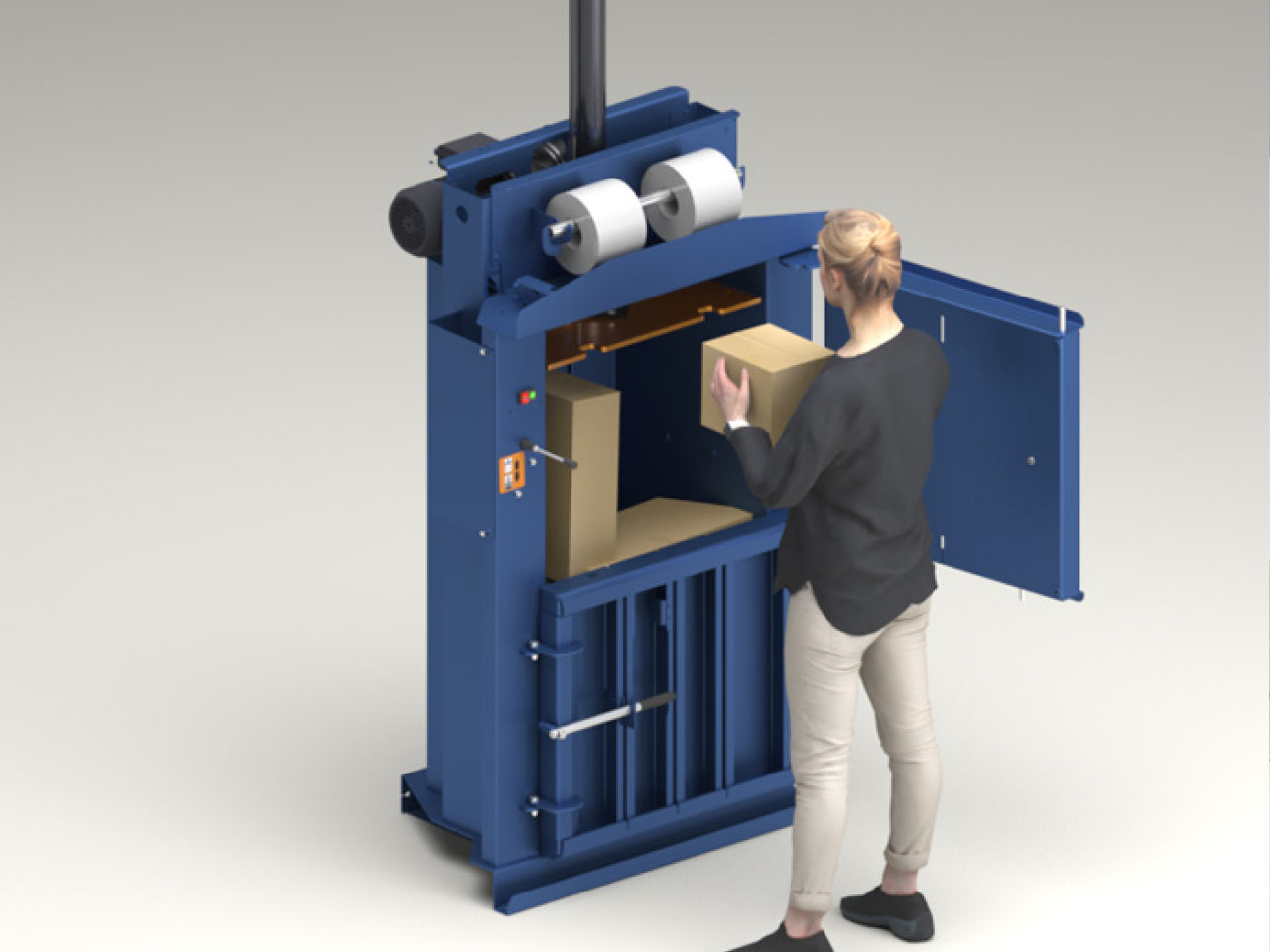

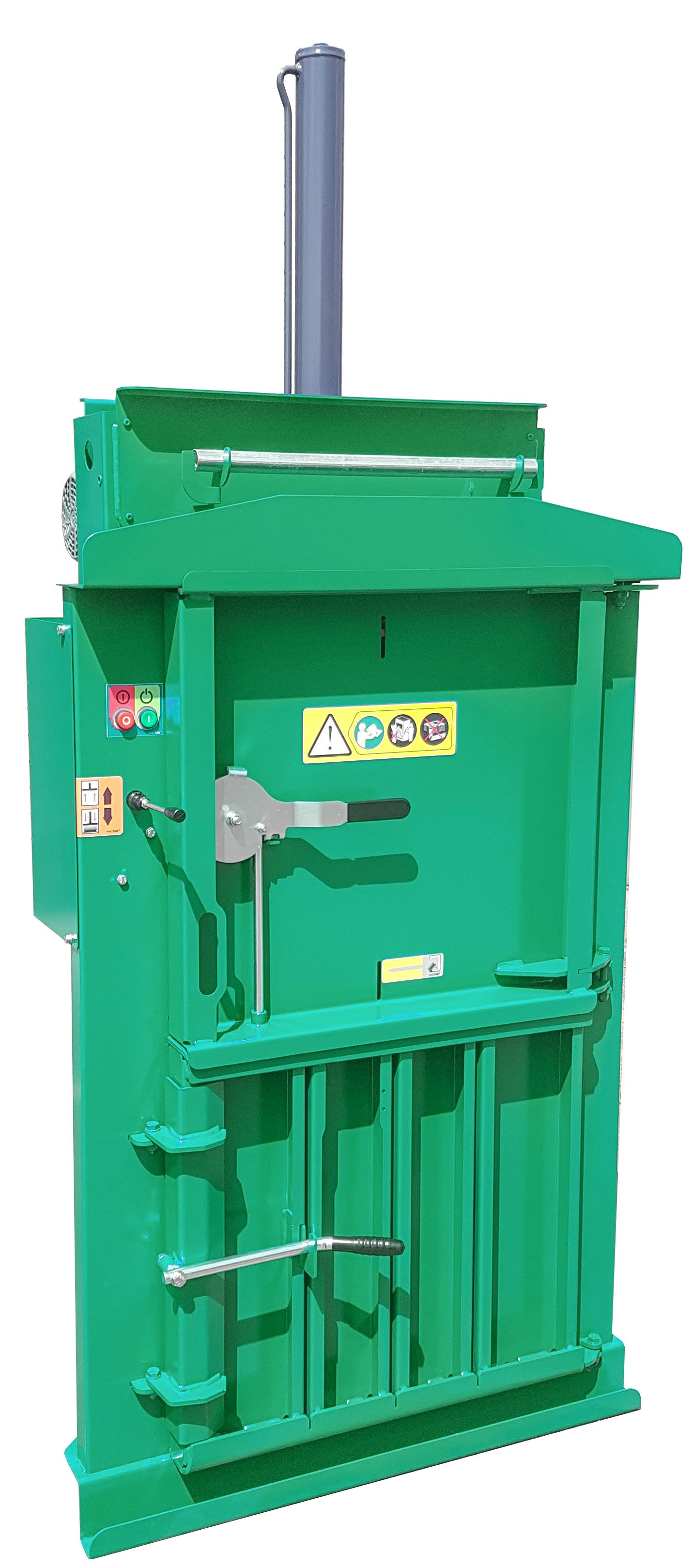

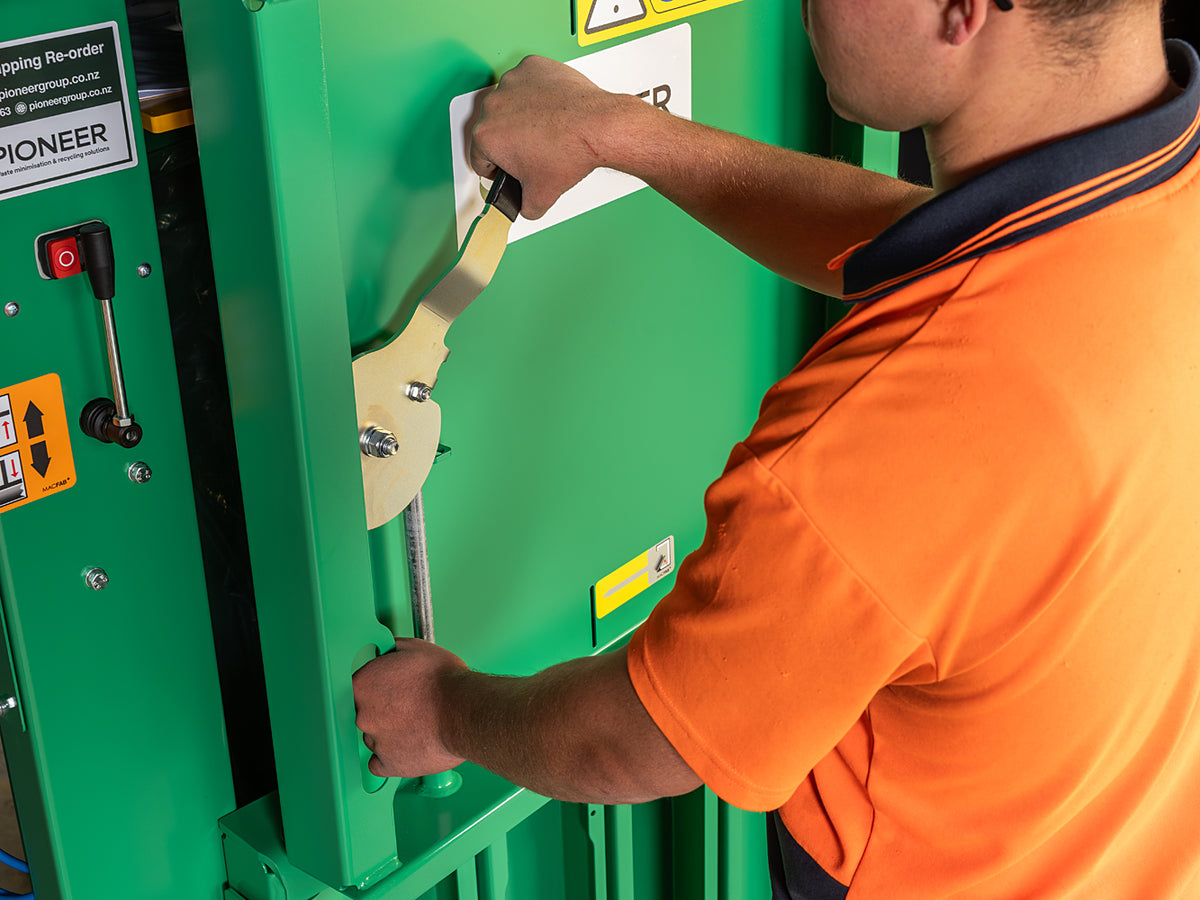

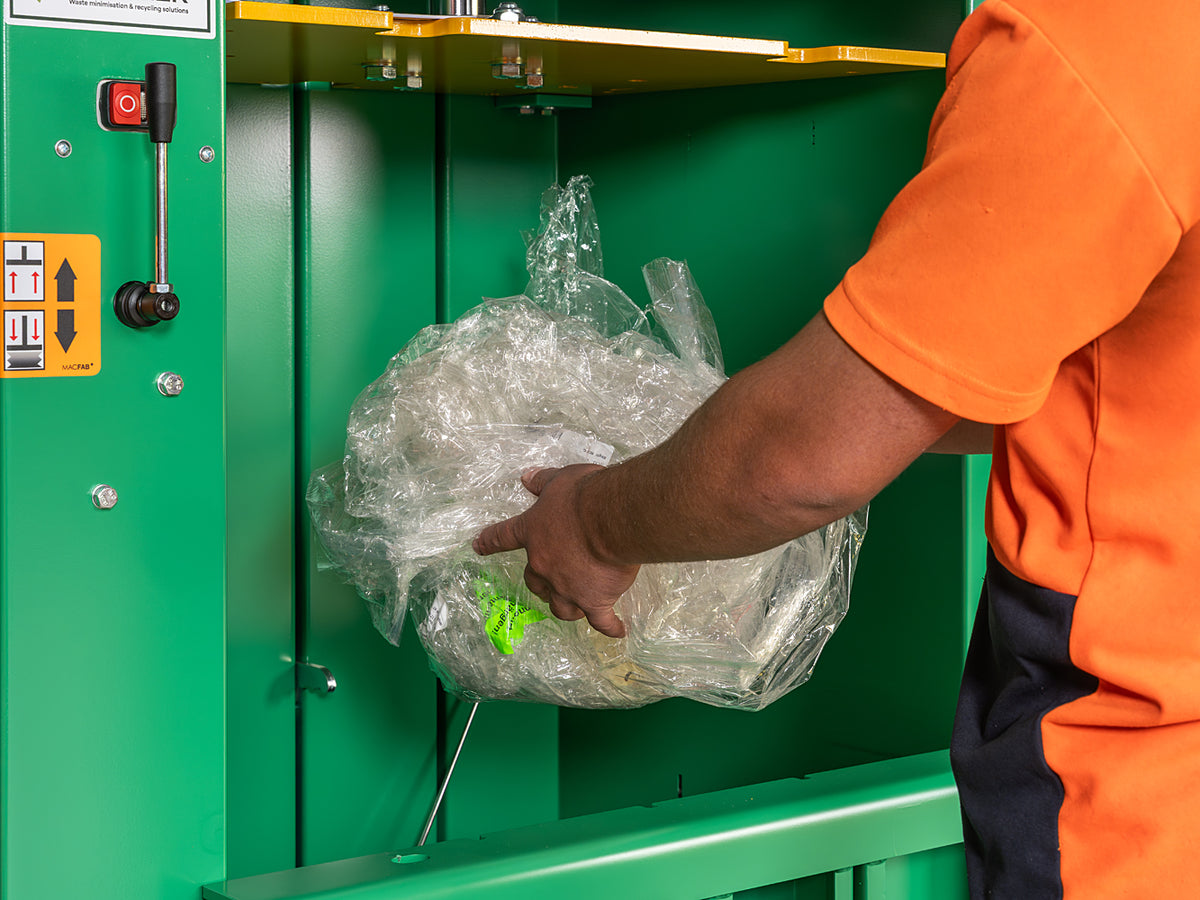

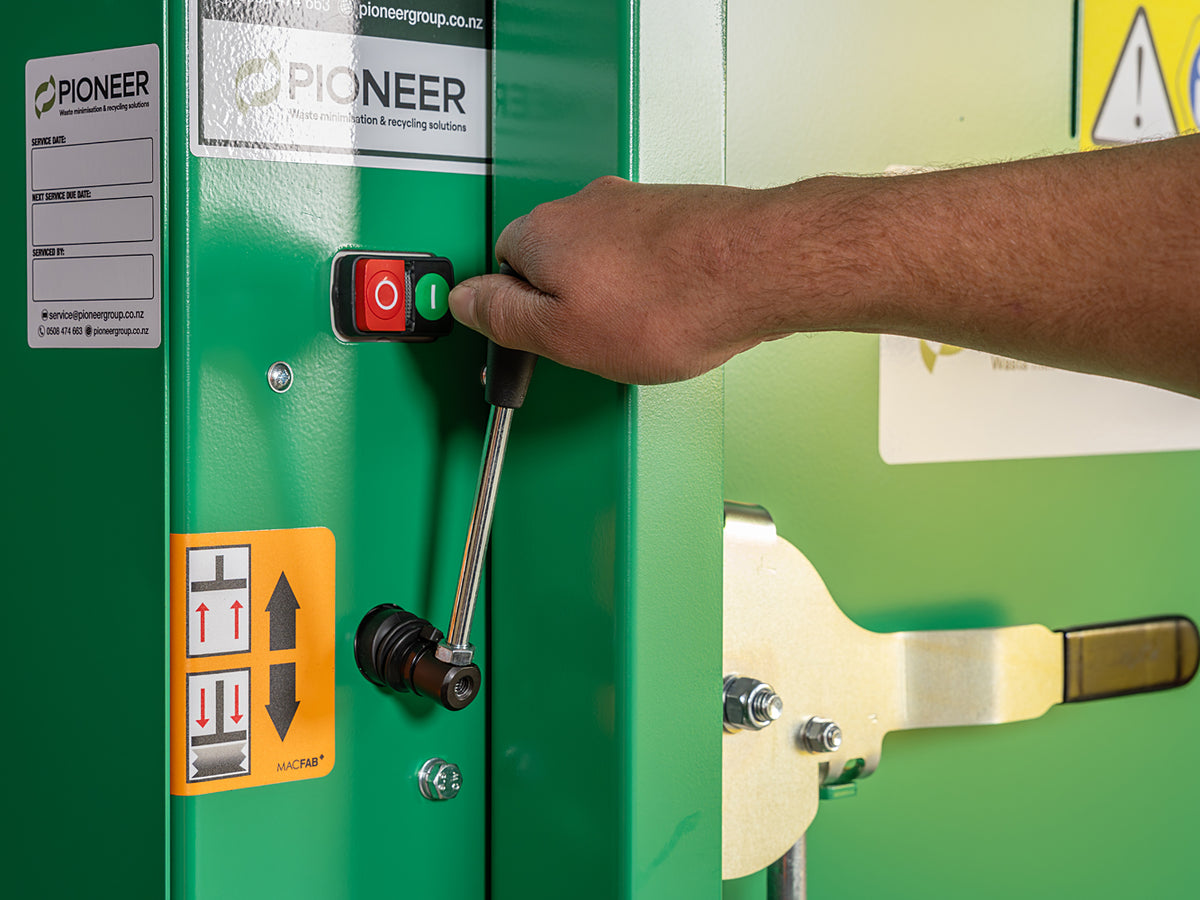

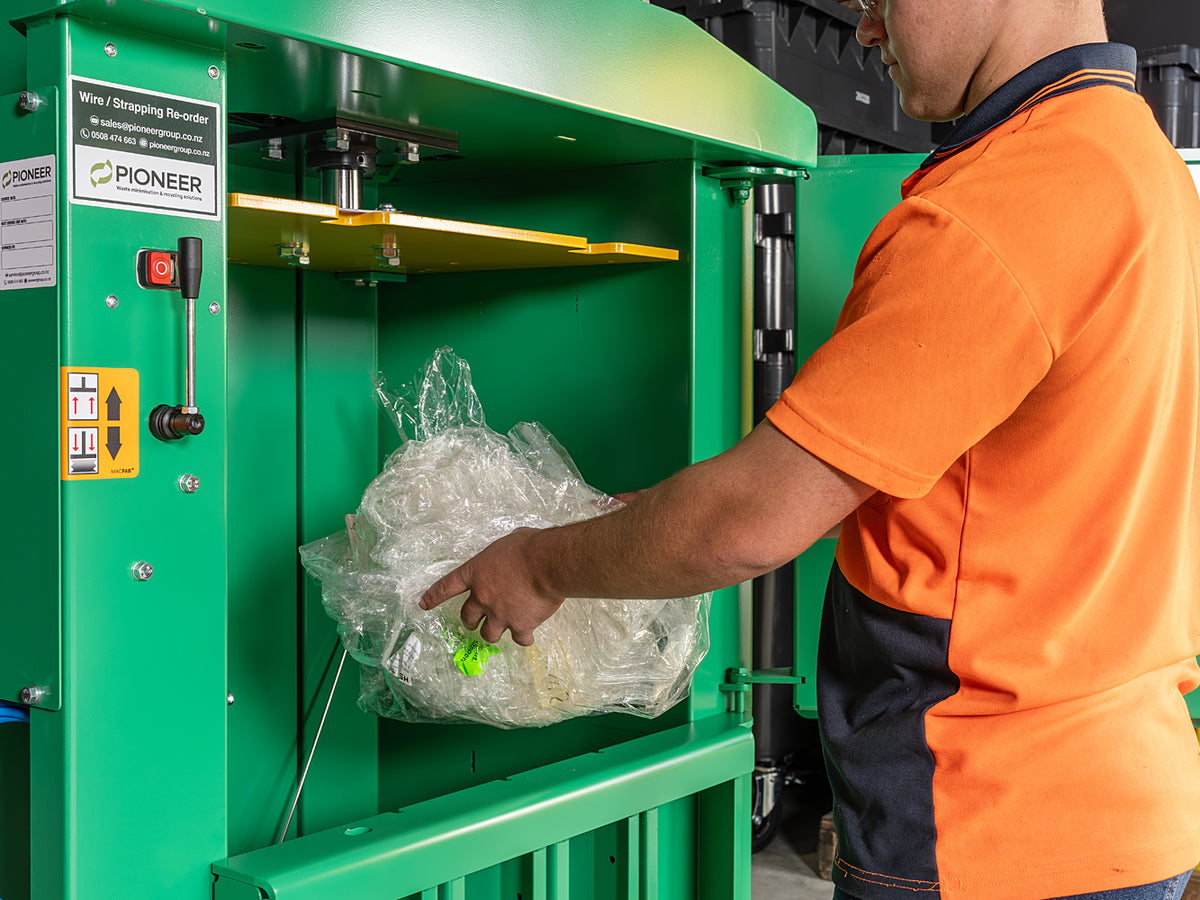

The most popular and economical hydraulic baler in the MACFAB range. An excellent baler for baling cardboard, paper and plastic film. This baler is offered in 3 different versions. The lever valve control and eject trolley version Is our standard model and is an excellent choice for value and simple operation. This baler is controlled by a hydraulic lever and timer control configuration.

All MACFAB machines are available in Pioneer Green only.

Enquire about this product

Features

Suitable for a wide range of businesses generating recyclable waste.

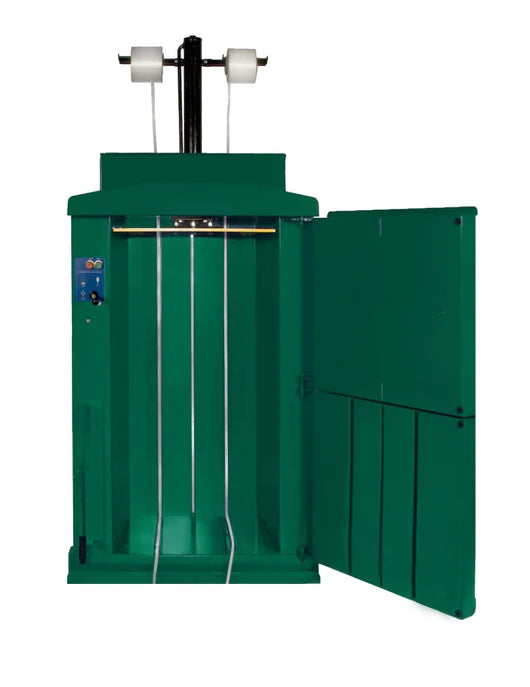

Bale Eject trolley included on standard models
Retainers to prevent spring back of material in the bale chamber.

Dimensions

Width: 2335 mm
Height: 1040 mm
Length: 750 mm

Weight

Machine Weight: 278 kg

Options

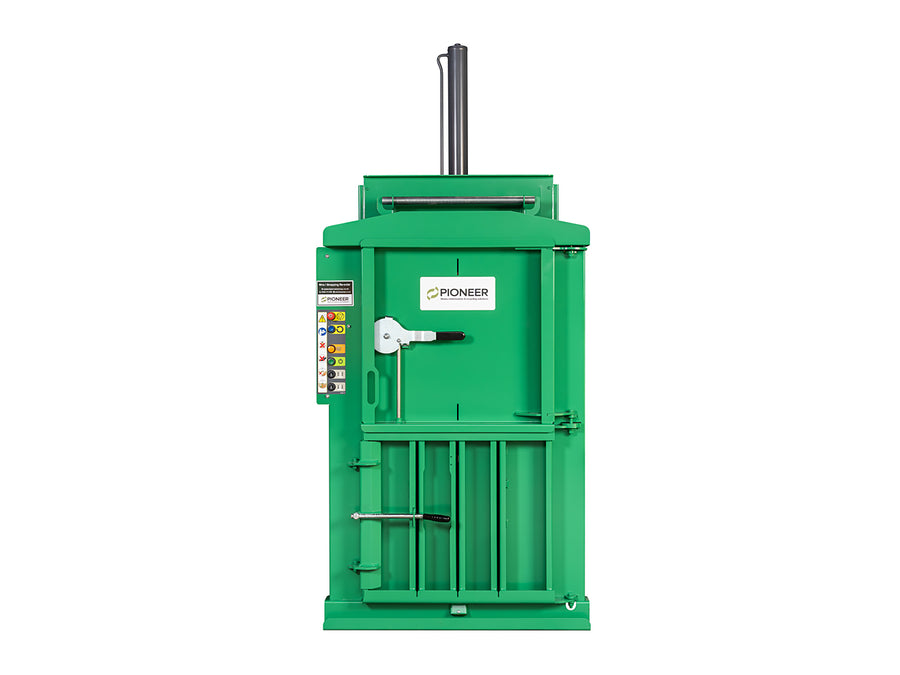

Auto control panel with bale full light and E-stop with locking key
Strap eject for easy removal of bales.
Galvanised finish
Insert to crush small cans
Alternative power supplies

Additional Information

Baler Specs

Power Supply: 220 - 240 Volt 1 phase
Motor: 1.5 kW 13 Amp
Pressing Force: up to 3.5 Ton
Noise Level: 68 decibels
Cycle Times: 24 seconds

Bale Dimensions

Height: 0.735 m
Width: 0.700 m
Depth: 0.500 m
Weight: 75kg (depending on material used)

Loading Aperture Sizes

Width: 0.700 m
Height: 0.698 m
Depth: 0.500 m

Downloads

Pioneer_MACFAB_75_Baler.pdf

Consumables for this product

PBS9 - 9mm Bale Strap

Made of high tenacity polyester yarns. It is very strong yet more flexible & much safer to handle.

PBS13 - 13mm Bale Strap

13mm polyester tape is an ideal solution for baling strap. It is wider and stronger than the 9mm baling strap, but still cost effective. Made of high tenacity polyester yarns it is very strong yet more flexible and much safer to handle.
