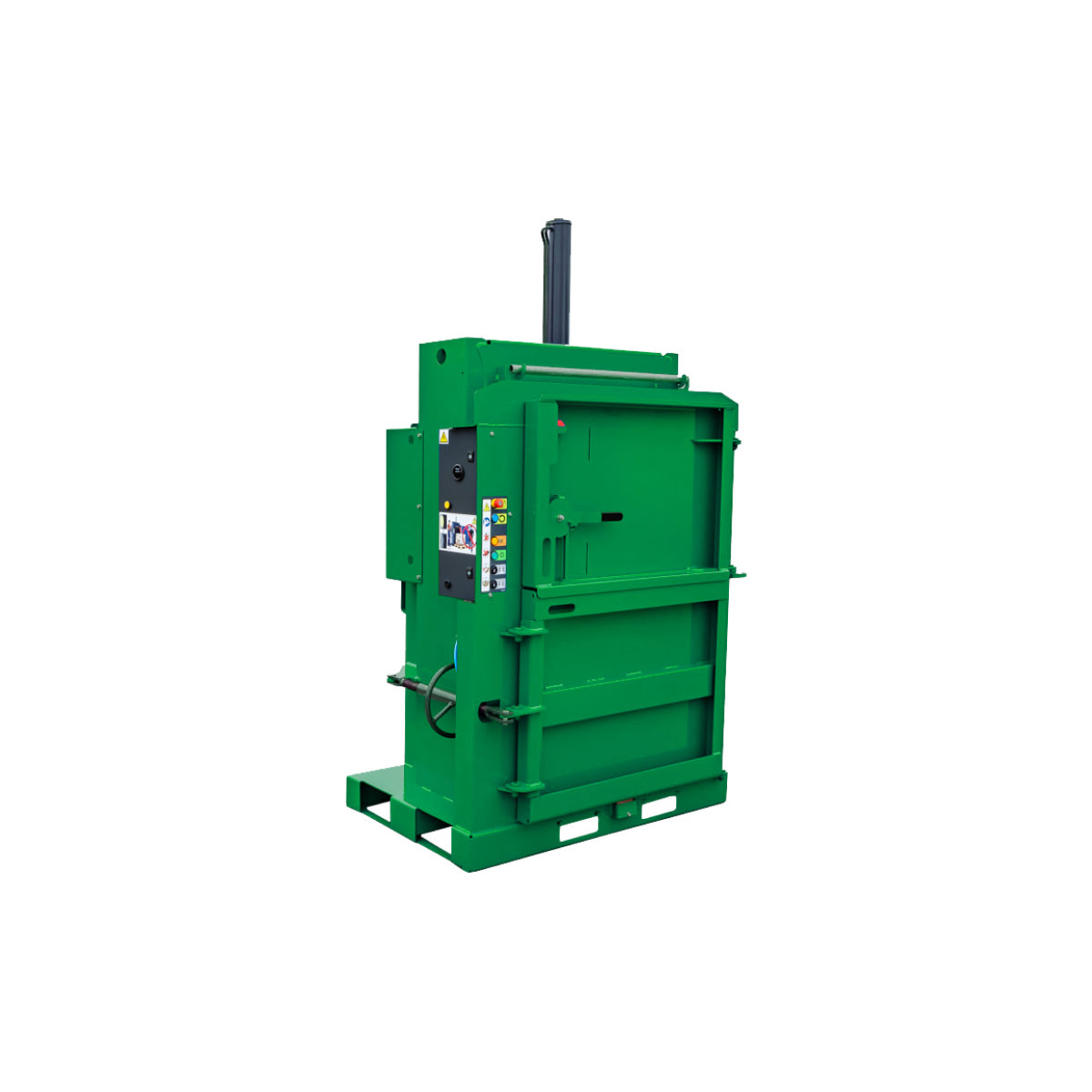

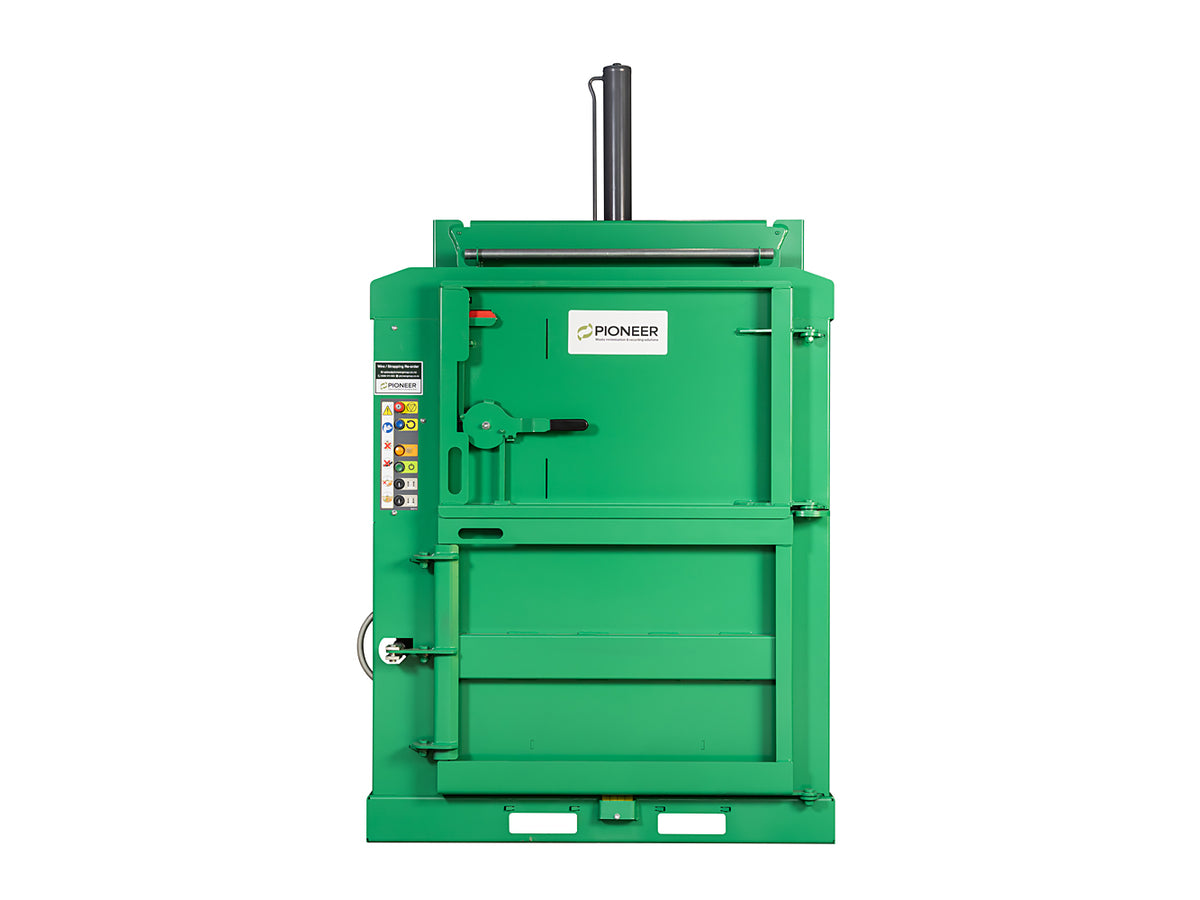

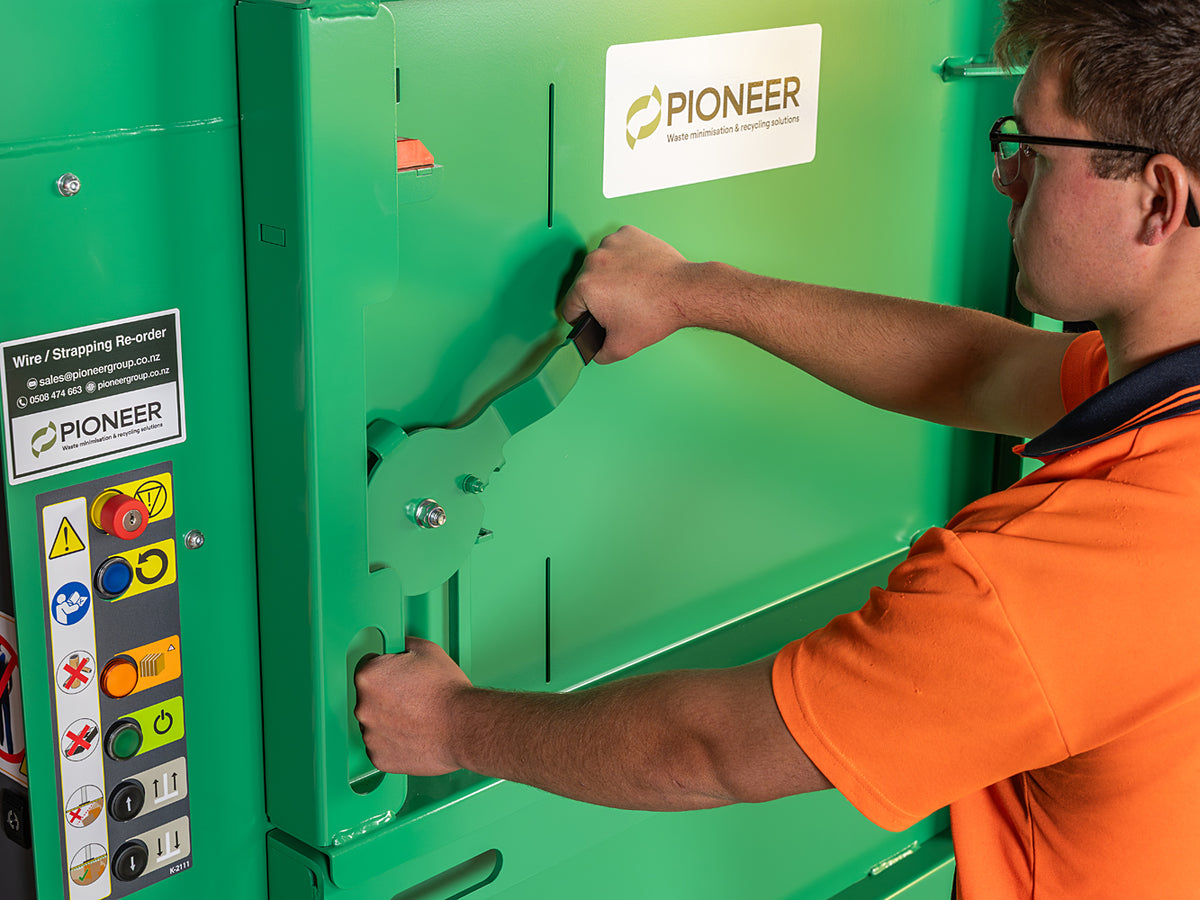

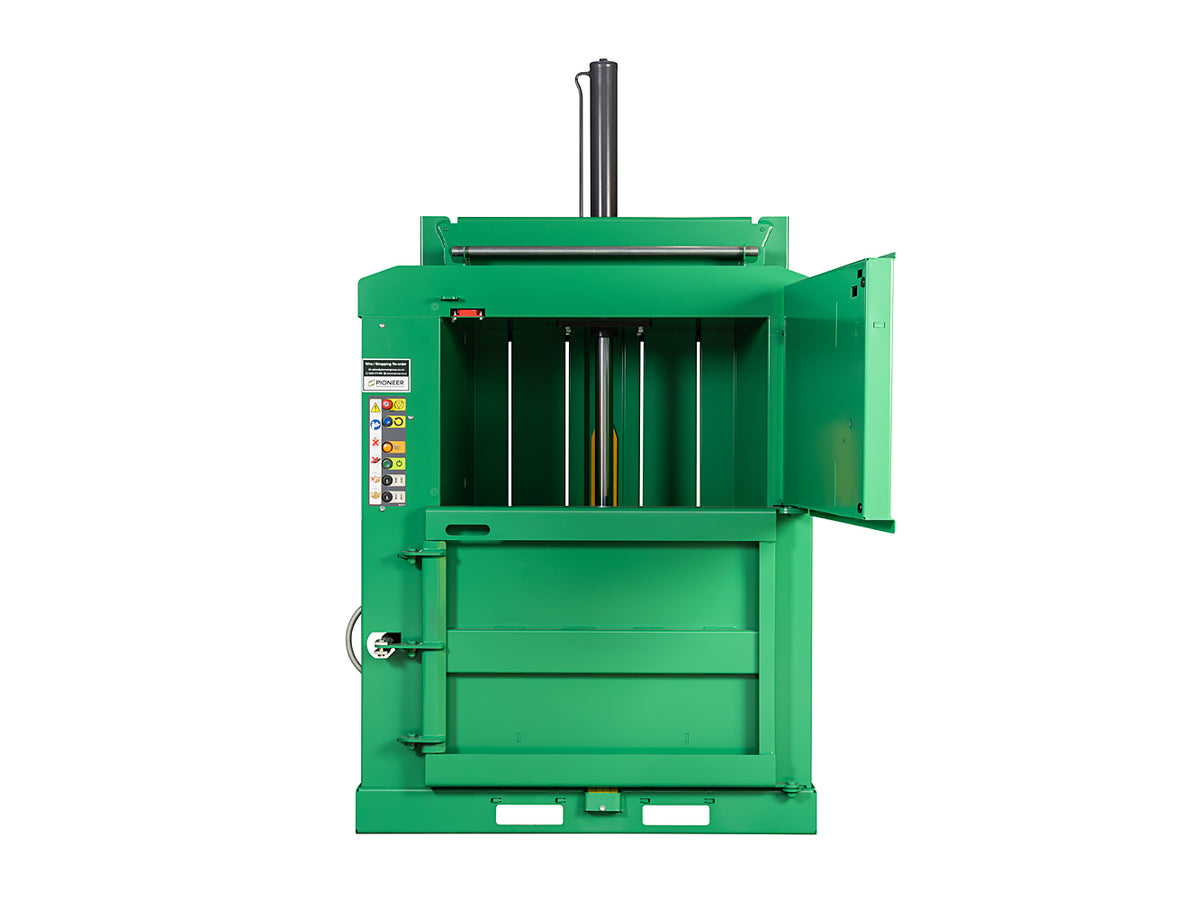

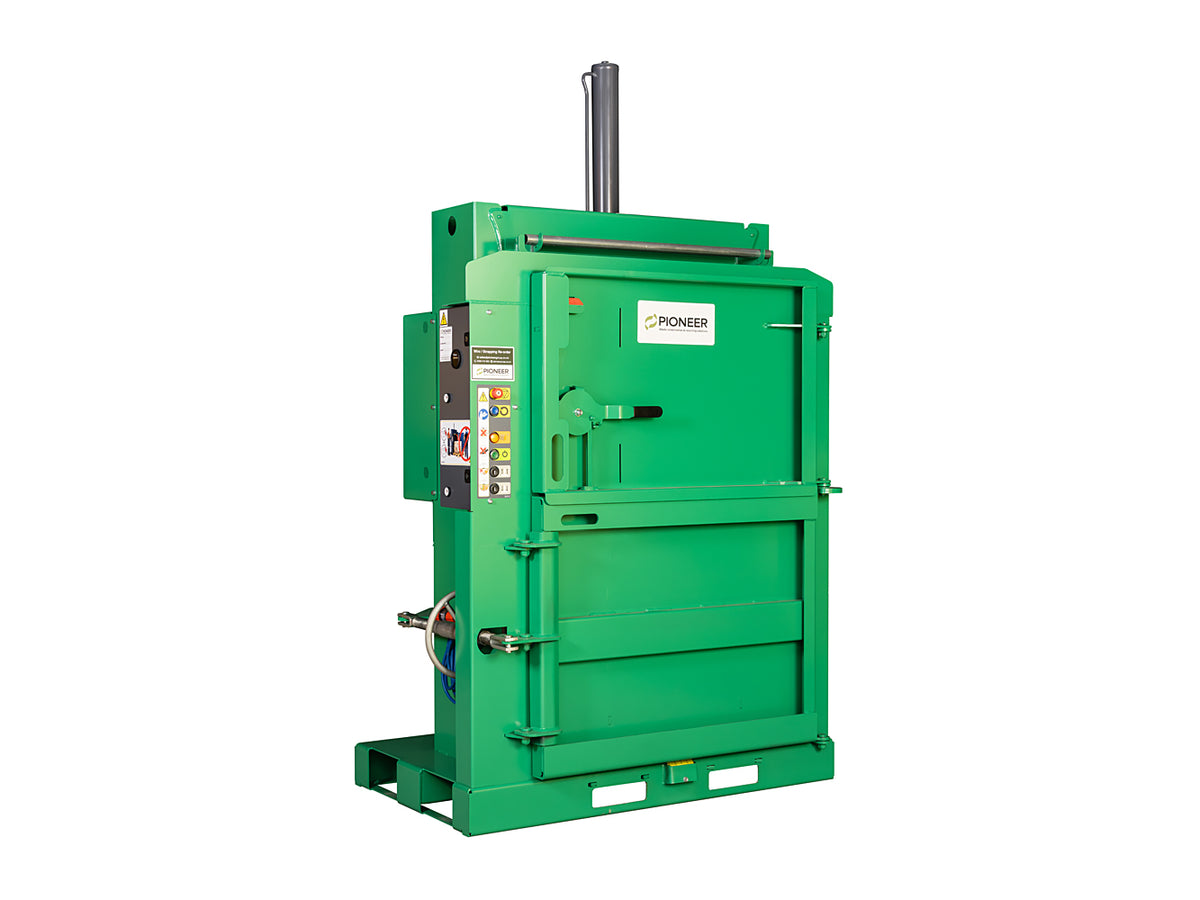

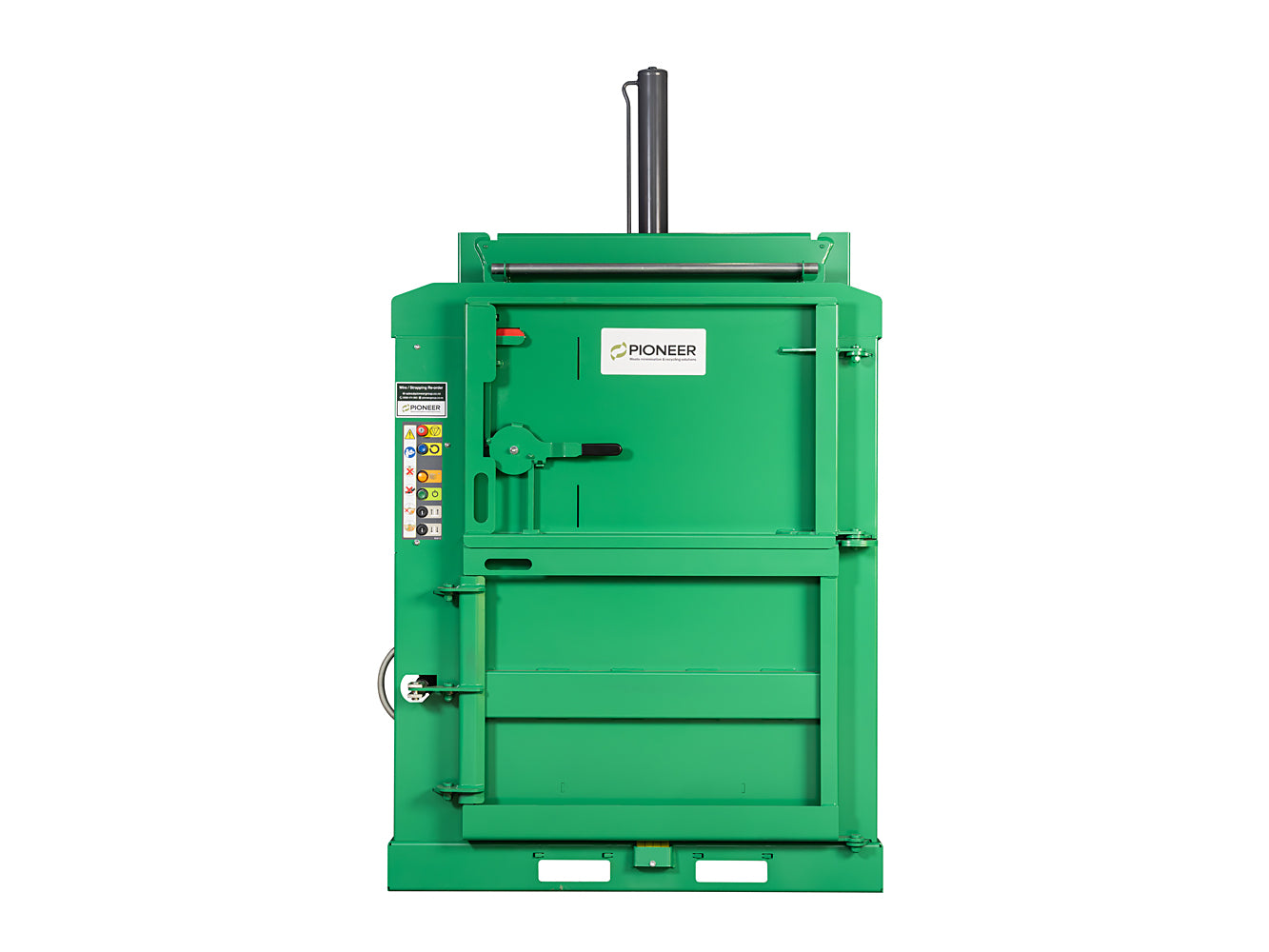

PB100 Vertical Baler

Name: PB100 Vertical Baler
SKU: PB100 Vertical Baler

Please enquire for pricing and rental options

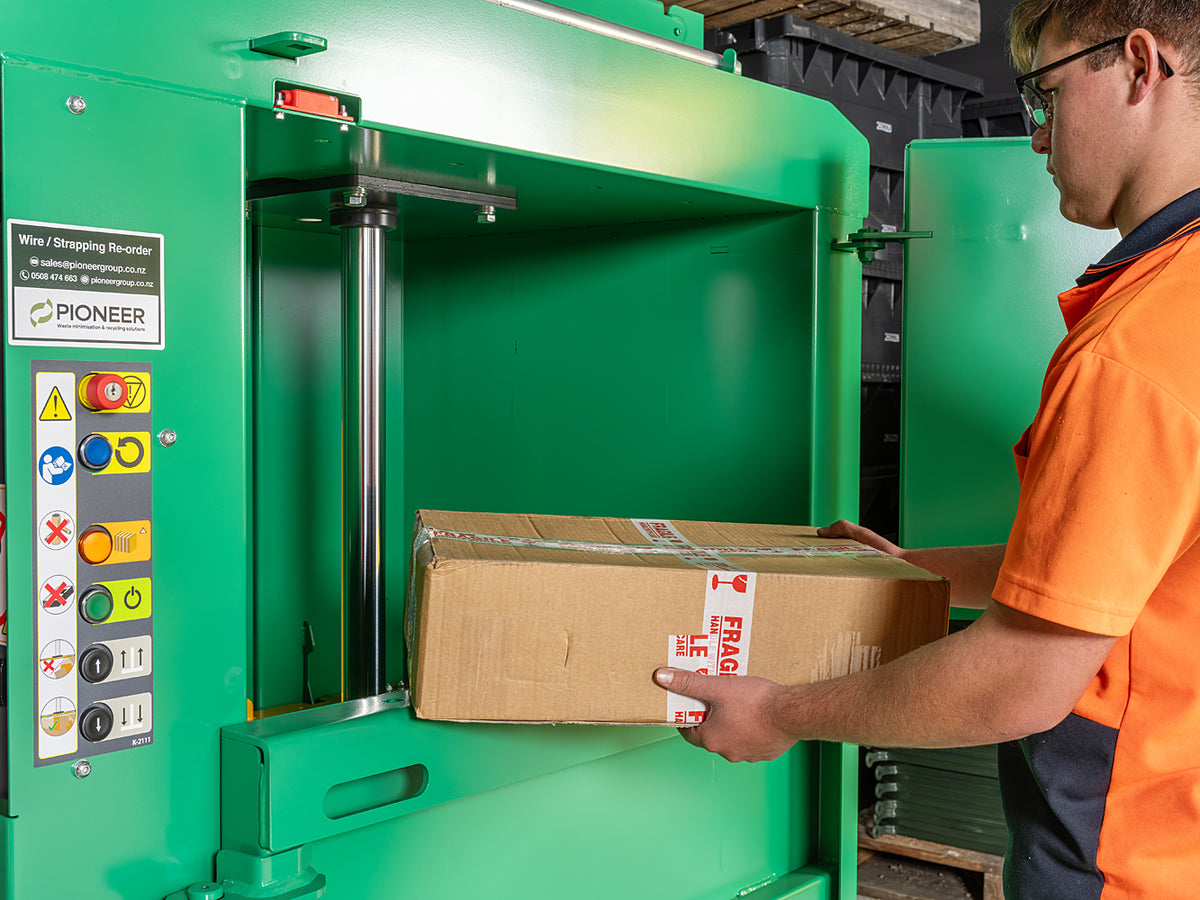

The PB100 vertical baler is an excellent choice for a business looking to compact cardboard boxes and waste plastic packaging.

This Baler has as an auto compaction cycle as standard, key locked E-stop with reset button, hour counter to monitor servicing and includes a safe strap bale eject system for easy removal of bales onto a pallet. The PB100 baler makes a cardboard bale of 100 kg and a plastic film bale of up to 140 kg.

The PB100 can make 2-4 bales per hour depending on the material and site conditions. The bales are normally tied off with 9mm strapping and the baler holds 4 rolls of strapping above the door for easy access.

All MACFAB machines are available in Pioneer Green only.

Enquire about this product

Features

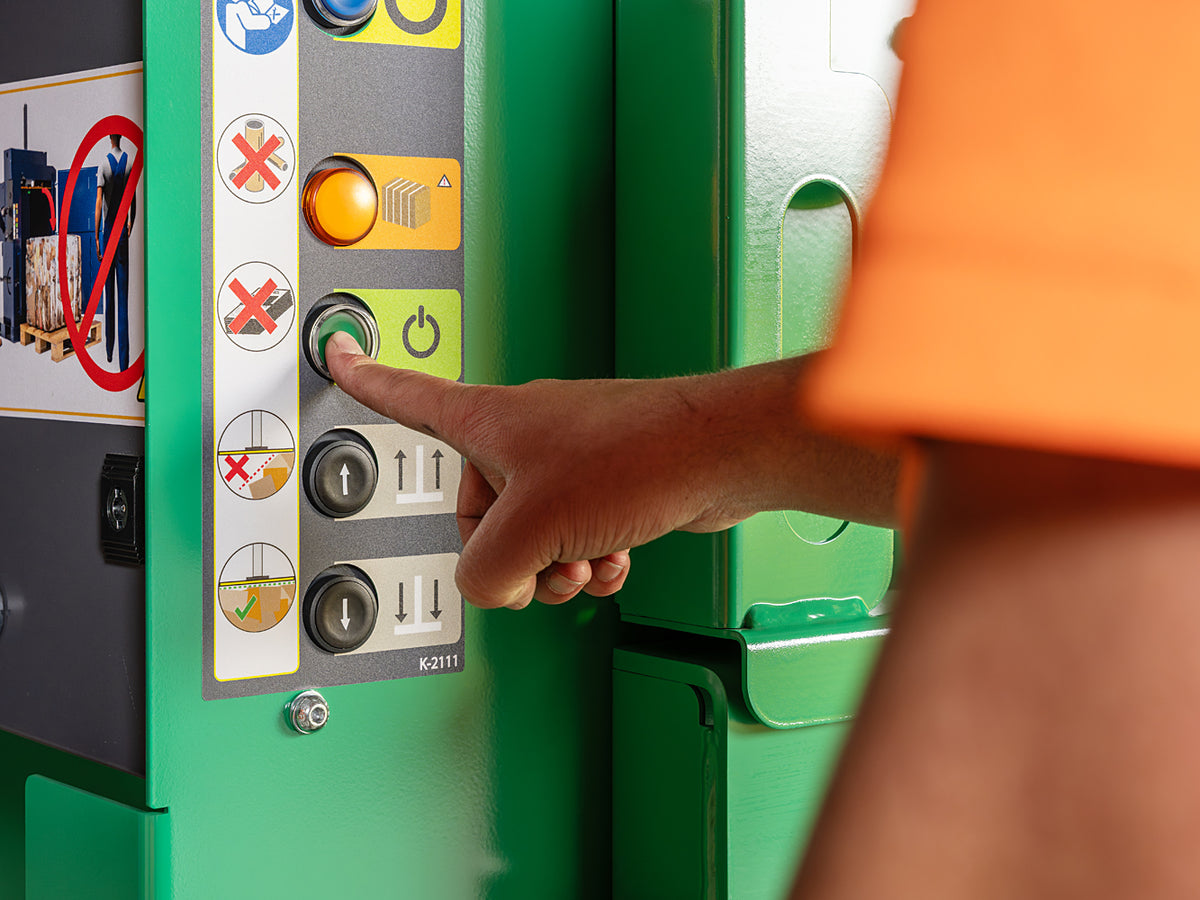

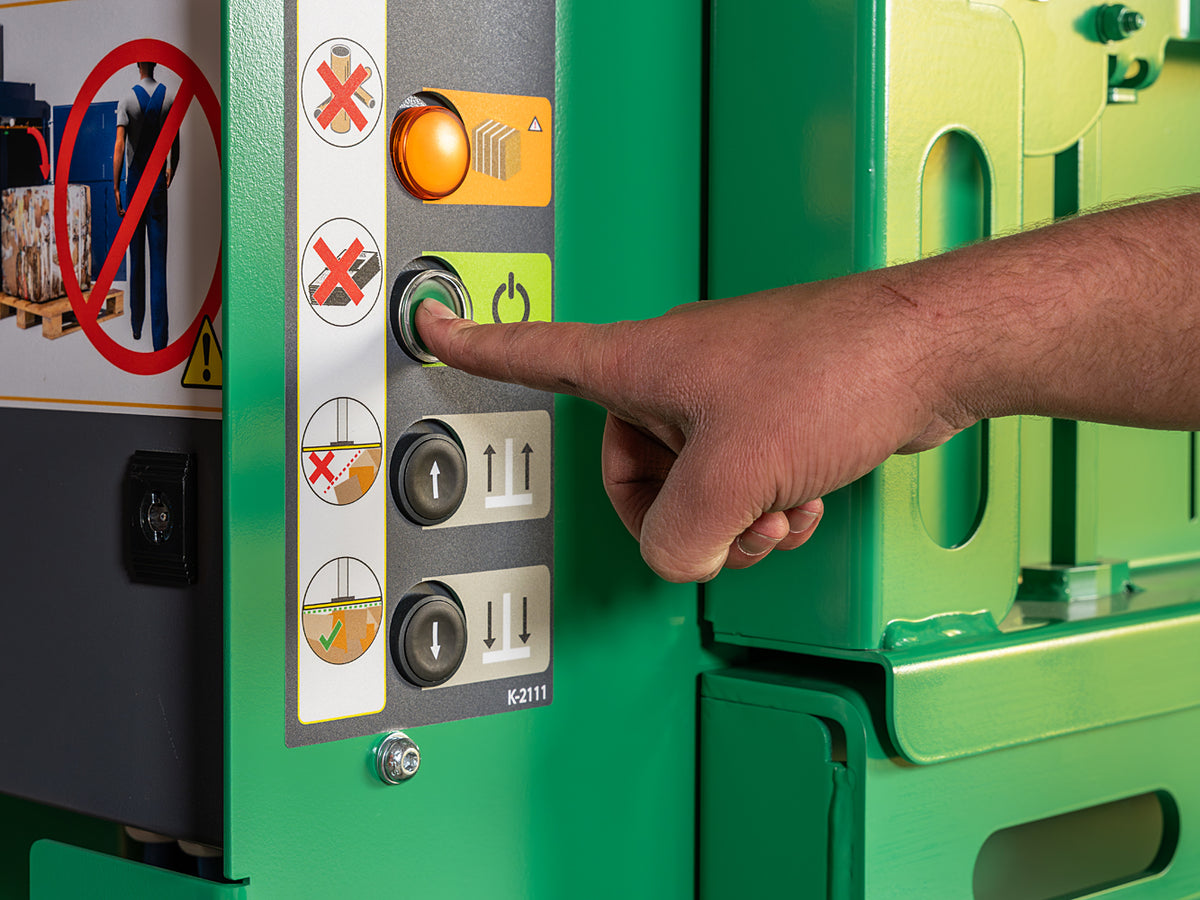

PLC control panel with a bale full light
E-stop button with a key for easy machine lockout of the baler.
Hour counter to record machine usage and plan maintenance.
Makes a 100 kg bale of cardboard.
Easy to eject a bale onto a pallet with strap eject system.

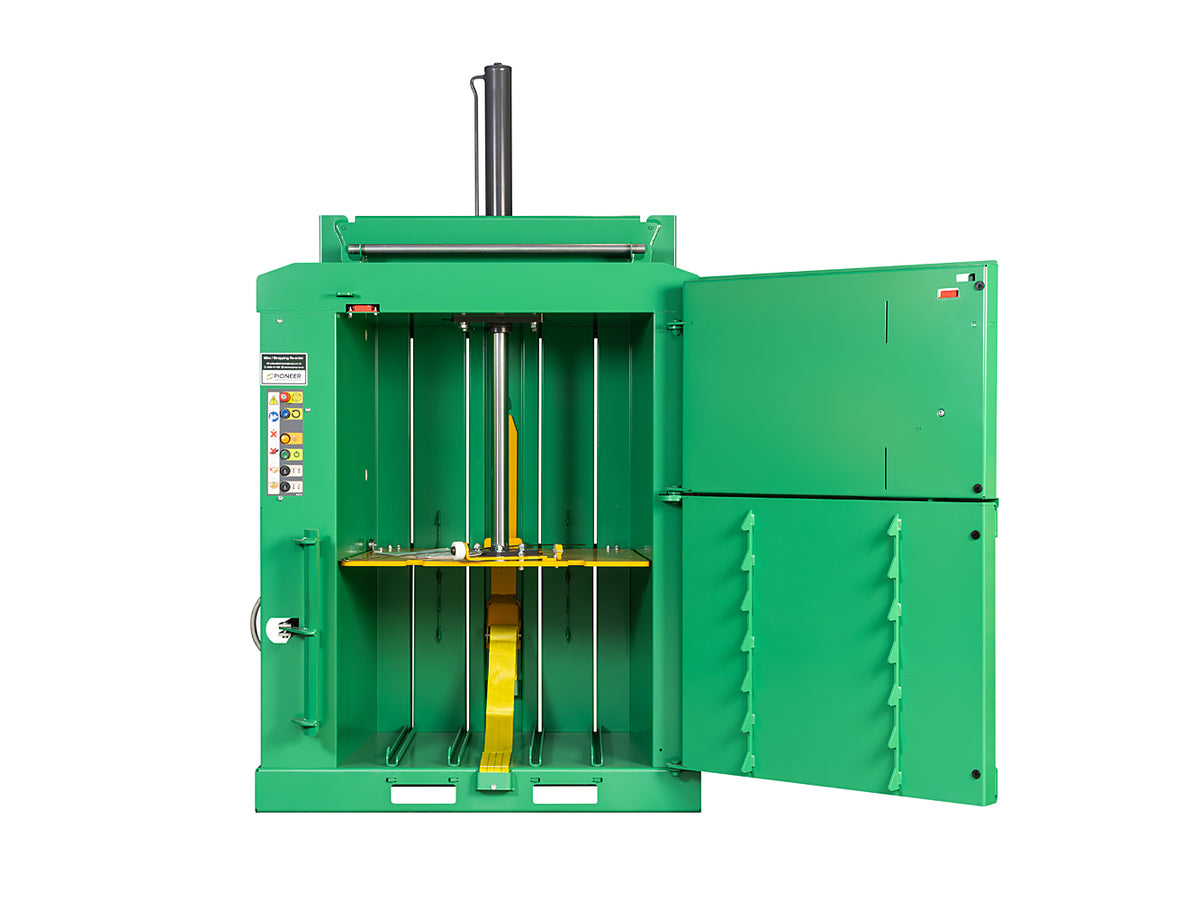

Retainers to prevent spring back of material in the bale chamber.
Reel holder at the front of the baler holds 4 rolls of strapping for tying bales.

Dimensions

Width: 1440 mm
Height: 2399 mm
Length: 1014 mm

Weight

Machine Weight: 632 kg

Options

Galvanised finish
Alternative power supplies

Additional Information

Baler Specs

Power Supply: 220 - 240 Volt 1 phase
Motor: 1.5 kW 13 Amp
Pressing Force: up to 6 Ton
Noise Level: 68 decibels
Cycle Times: 28 seconds

Bale Dimensions

Height: 0.847 m
Width: 0.980 m
Depth: 0.800 m
Weight: 100kg (depending on material used)

Loading Aperture Sizes

Height: 0.698 m
Width: 0.700 m
Depth: 0.500 m

Downloads

Pioneer_MACFAB_100_Baler.pdf

Consumables for this product

PBS13 - 13mm Bale Strap

13mm polyester tape is an ideal solution for baling strap. It is wider and stronger than the 9mm baling strap, but still cost effective. Made of high tenacity polyester yarns it is very strong yet more flexible and much safer to handle.
