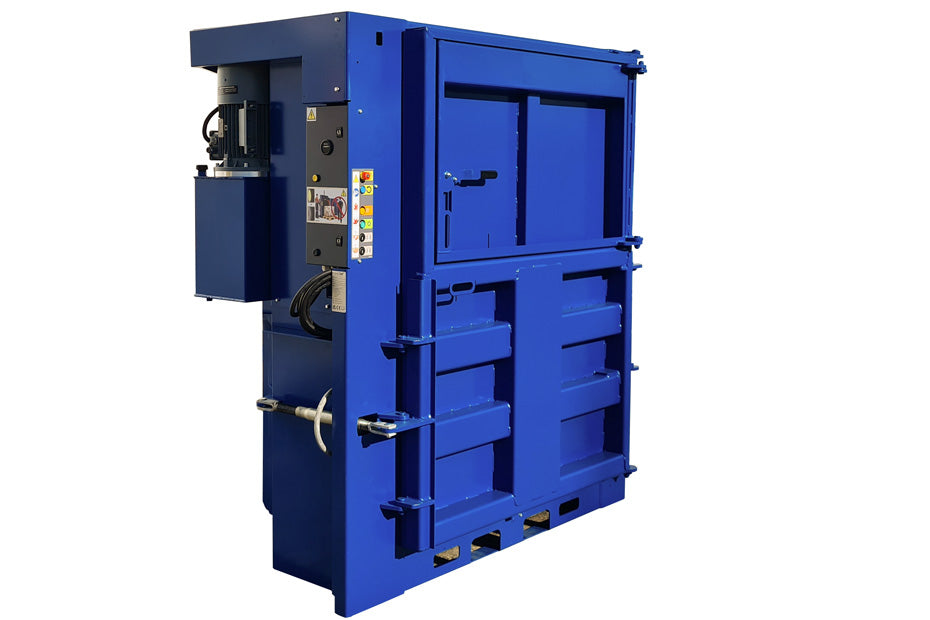

PB500 Vertical Baler

Name: PB500 Vertical Baler
SKU: PB500 Vertical Baler

Please enquire for pricing and rental options

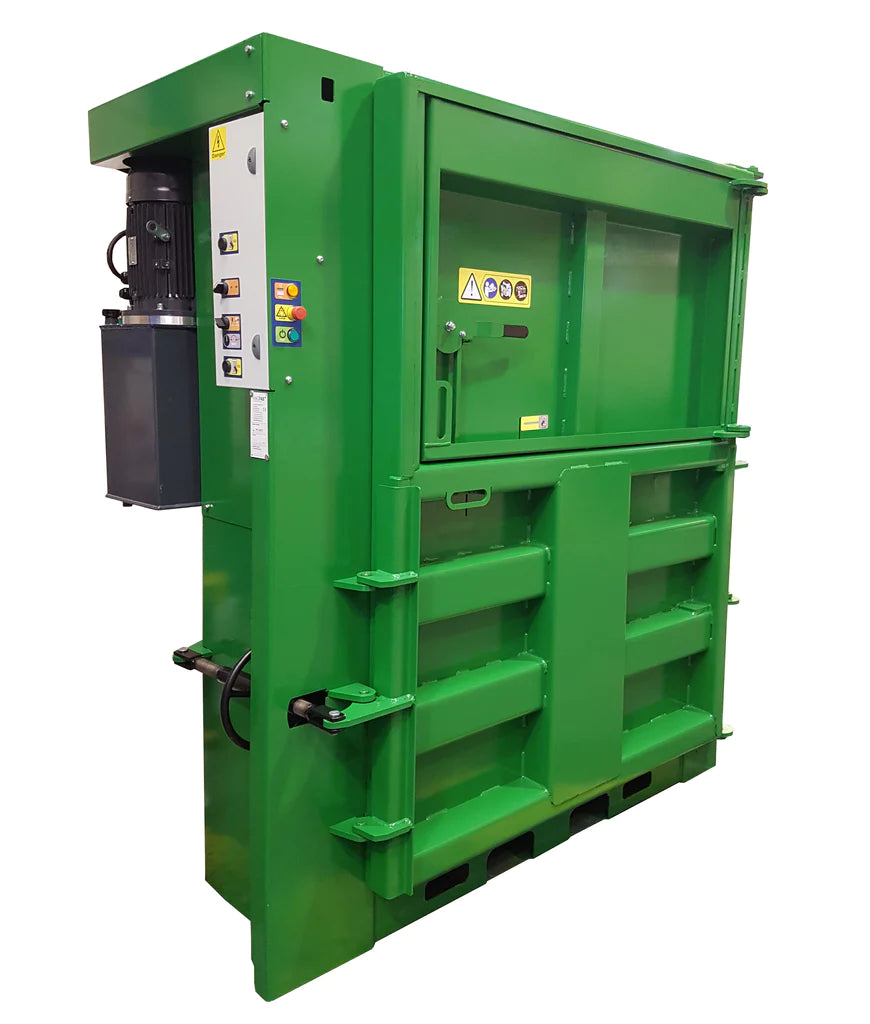

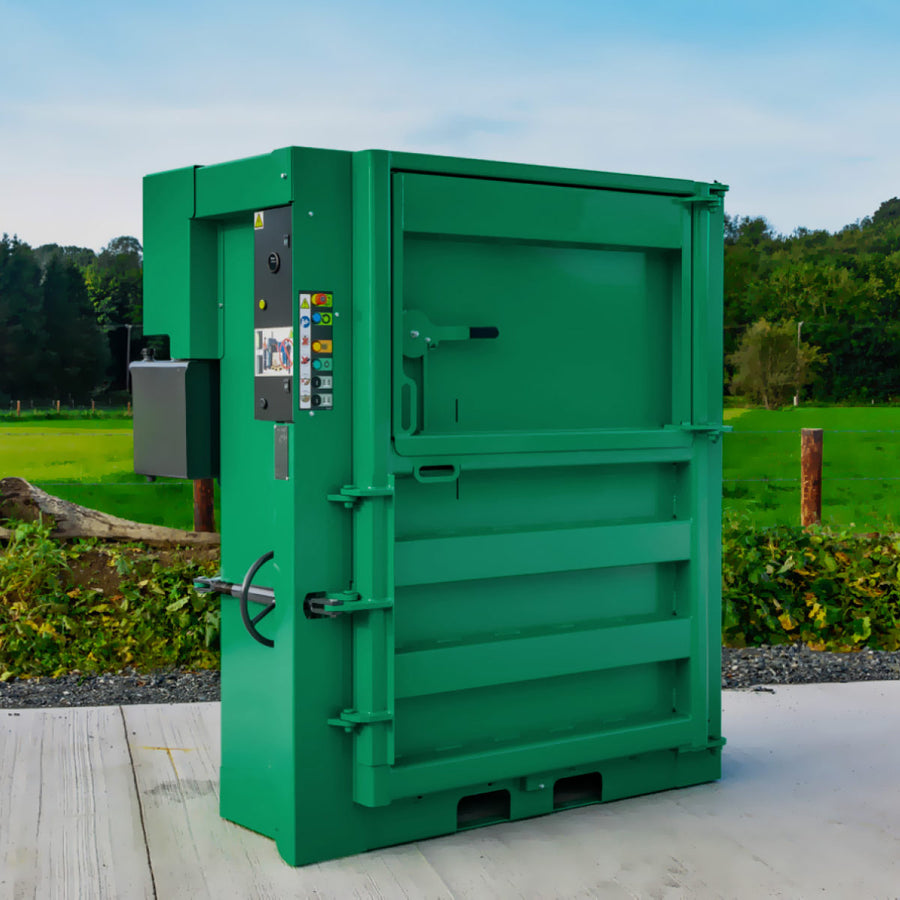

The PB500 baler is an excellent option for businesses with a large volume of cardboard or plastic film. The compaction cylinders of the PB500 are mounted on the sides of the baler meaning this machine has a low operation height of 2.249 meters, Perfect for stores with low ceiling heights.

This Baler has as an auto compaction cycle as standard, key locked E-stop with reset button, hour counter to monitor servicing and includes a safe strap bale eject system for easy removal of bales onto a pallet. There are 6 tying points to tie off the bales from this baler.

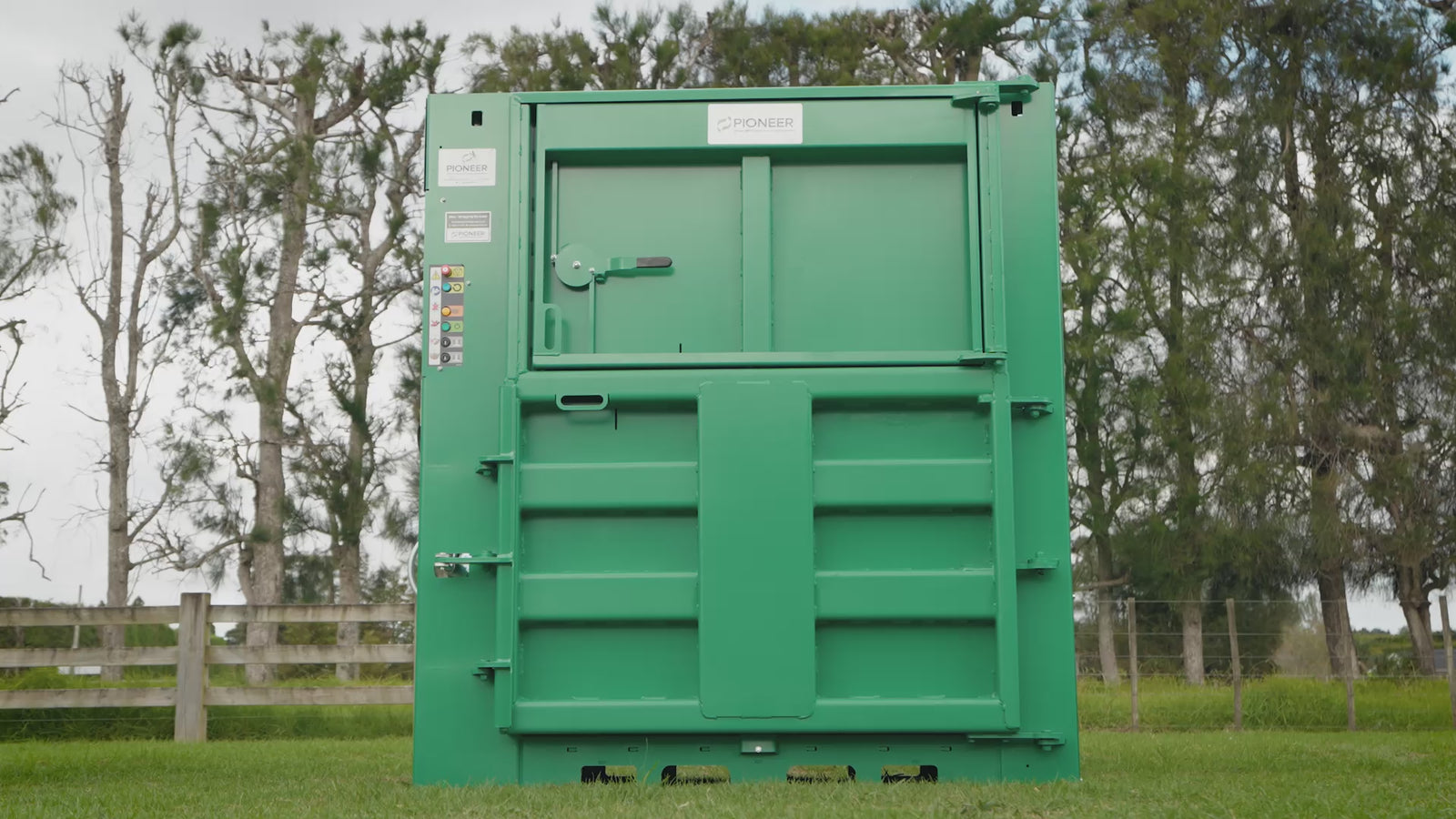

All MACFAB machines are available in Pioneer Green only.

Enquire about this product

Features

Produces a a mill size bale.

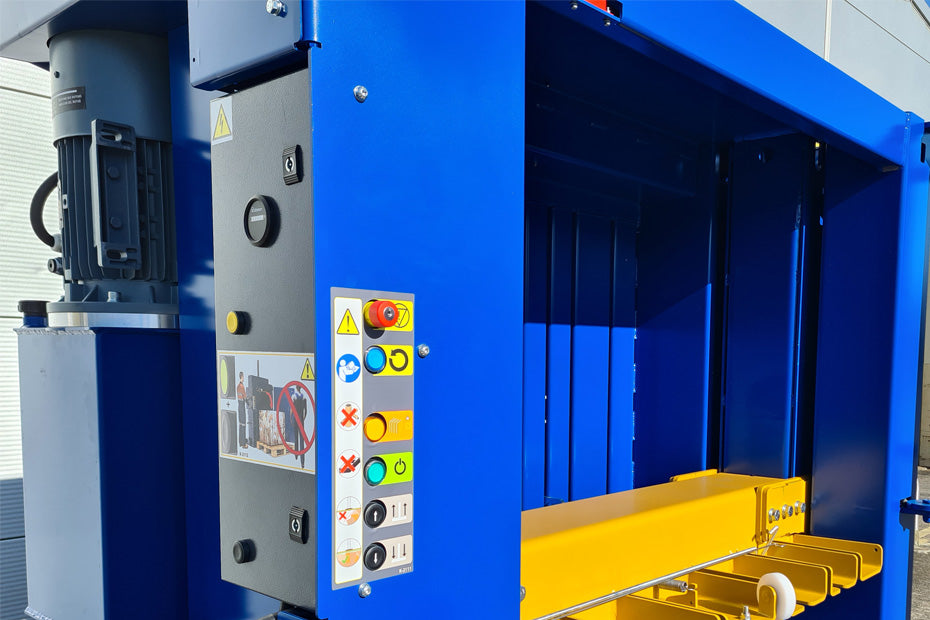

Auto control panel with bale full light and E-stop with locking key
Dual cylinders for even compaction of waste material.

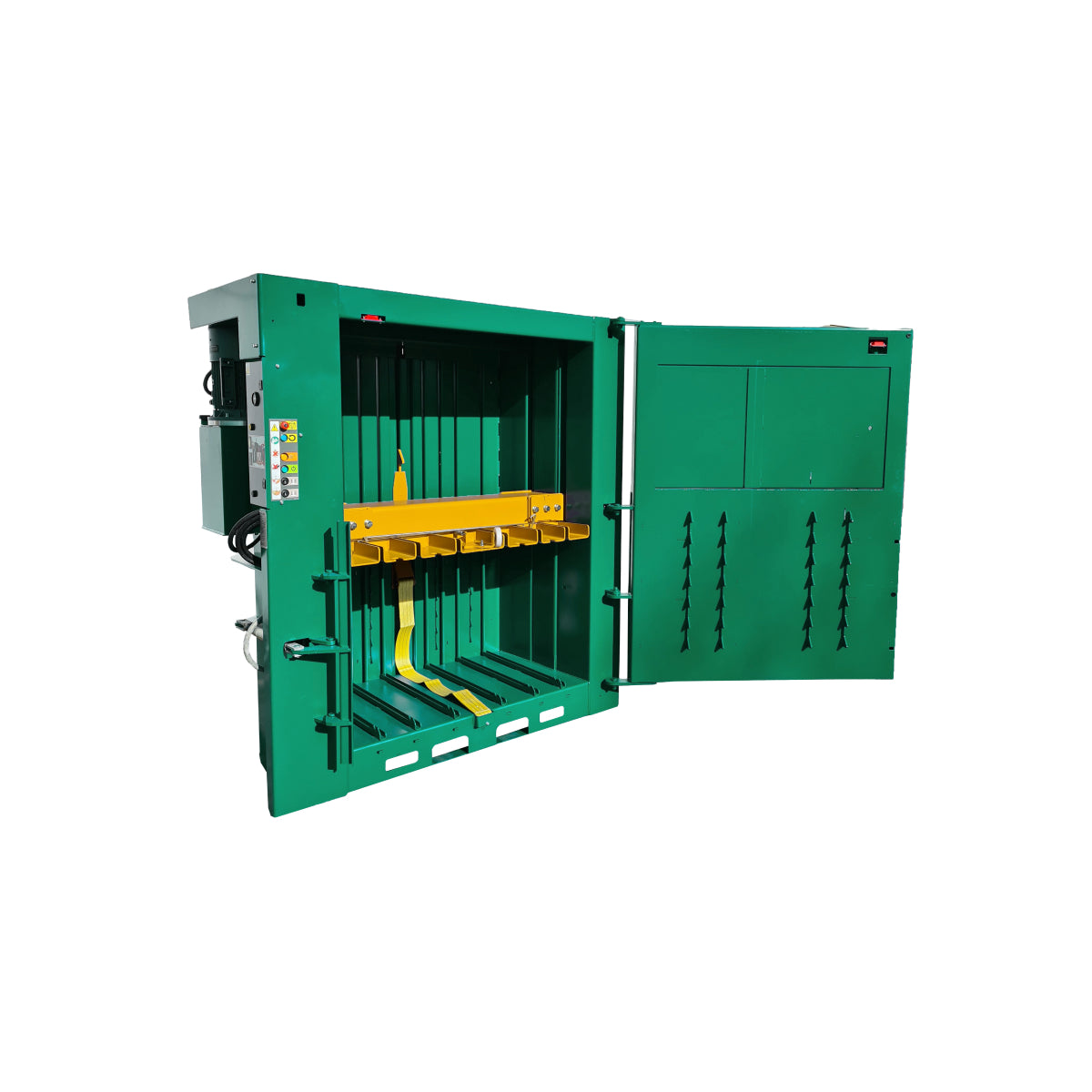

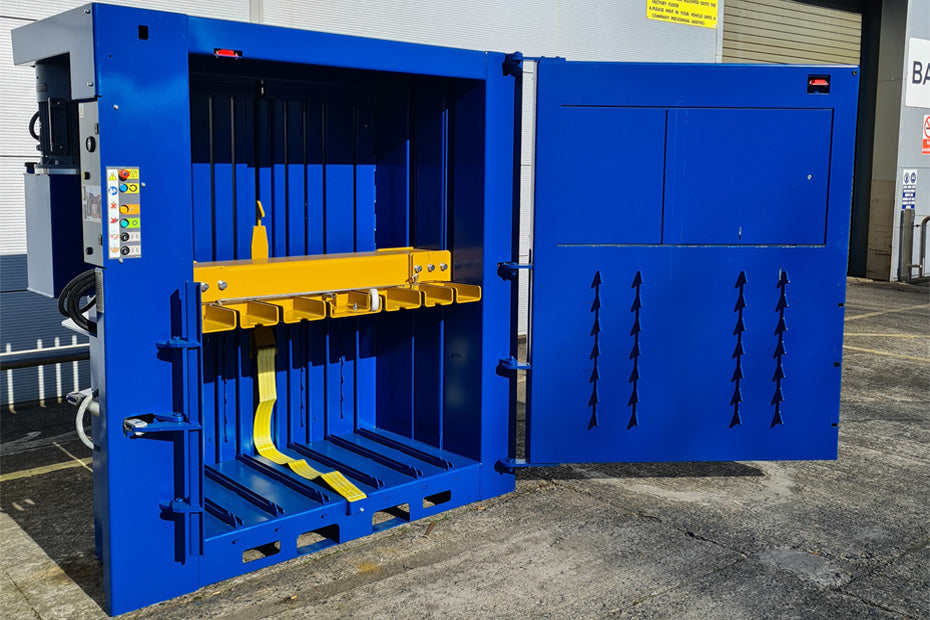

Strap eject for easy bale removal.

Dimensions

Width: 2041 mm
Height: 2249 mm
Length: 1350 mm

Weight

Machine Weight: 2100 kg

Options

Galvanised finish

Additional Information

Baler Specs

Power Supply: 380 - 400 Volt 3 phase
Motor: 11 kW 32 Amp
Pressing Force: up to 50 Ton
Noise Level: 68 decibels
Cycle Times: 35 seconds

Bale Dimensions

Height: 1.100 m
Width: 1.400 m
Depth: 0.800 m
Weight: 500kg (depending on material used)

Loading Aperture Sizes

Height: 0.679 m
Width: 1.350 m
Depth 0.800m

Downloads

Pioneer_MACFAB_500_Baler.pdf

Consumables for this product

PBS13HD - 13mm Heavy Duty Baler Strap

This is our heavy duty baler strap. The 13mm polyester tape has a breaking strain of 600Kgs, but is still light and easy to handle.

PBS13 - 13mm Bale Strap

13mm polyester tape is an ideal solution for baling strap. It is wider and stronger than the 9mm baling strap, but still cost effective. Made of high tenacity polyester yarns it is very strong yet more flexible and much safer to handle.
